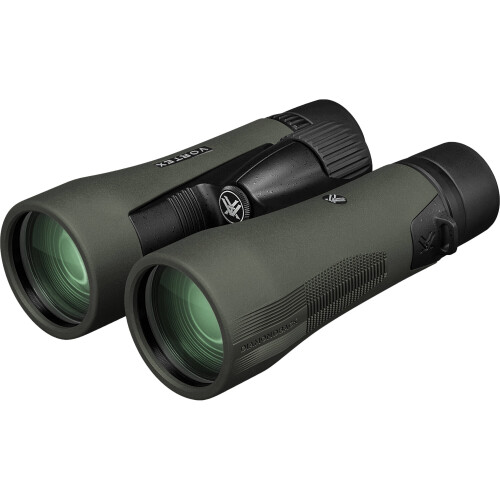

Vortex Diamondback HD 10x50 Binocular Roof Prism

Vortex Diamondback HD 10x50 Binocular Roof Prism Description

Discription: The Diamondback® HD smashes the scale of price vs performance, delivering a rock-solid optic that optically punches high above its class. The included GlassPakTM binocular harness keeps your glass close at hand, ready to deploy at a moment's notice, all while providing protection and significantly more comfort than traditional neck straps.

Featuring powerful magnification and a generous objective lens for a bright view even in lower light conditions, the 10x50 Diamondback HD Binoculars from Vortex are a versatile optic suited to a wide range of uses. They can be mounted on a tripod with a separately sold adapter, and come with a Vortex GlassPak harness for comfortable use during hours of observation.

The Diamondback HD renders views with minimal chromatic aberration, exceptional color fidelity, edge-to-edge sharpness, and optimal light transmission through the use of ultra high definition glass, an index-matched lens configuration, XR Plus lens coatings, and dielectric-coated, phase-correcting roof prisms. The lenses are protected from scratches, oil, and dust by ArmorTek exterior lens coating.

The housing is argon filled and sealed with O-rings to ensure reliable and durable protection against dust, debris, fog, and water. The binoculars are rubber armored for nonslip and durable protection, and is equipped with a large focusing knob that is easy to use even while wearing gloves. Twist-down eyecups accommodate users who wear glasses. Naturally contoured to perfectly fit your hands, promoting comfort and eliminating user fatigue, the Diamondback HD includes a winning combination of features.

Optical Performance

• Roof prism design
• 10x magnification
• 50mm objective lenses
• Fully multi-coated lenses increase transmission, clarity, and brightness
• Dielectric-coated, phase-correcting roof prisms improve true color, contrast, and transmission
• 6° angle of view
• 315' linear field of view at 1000 yards
• Birding-friendly 6' close focus distance
• Exit pupil: 5mm
• Eye relief: 17mm

Use and Handling

• Short-hinge bridge cuts weight and exposes more surface for handling
• Adjustable interpupillary distance: 60-75mm
• Oversized knurled center focusing wheel
• Textured diopter ring on right eyepiece
• Twist-up soft tapered rubber eyecups

Construction Details

• GlassPak binoculars harness with zippered accessory pocket
• Protective rubber armor provides a slip-resistant grip
• O-ring sealed and argon filled to be waterproof and resistant to internal fogging when moving through extreme temperature and environmental conditions
• Scratch-resistant ArmorTek exterior lens coatings repel oils and corrosive materials from lenses

Specifications:

• Magnification 10x
• Objective Lens Diameter 50 mm
• Eye Relief 17 mm
• Exit Pupil 5 mm
• Linear Field of View 315 feet/1000 yards
• Angular Field of View 6.0 degrees
• Close Focus 6 feet
• Interpupillary Distance 60-75 mm
• Height 6.6 inches
• Width 5.3 inches
• Weight 30 oz

Kit Content:
Vortex Diamondback HD 10x50 Binocular Roof Prism

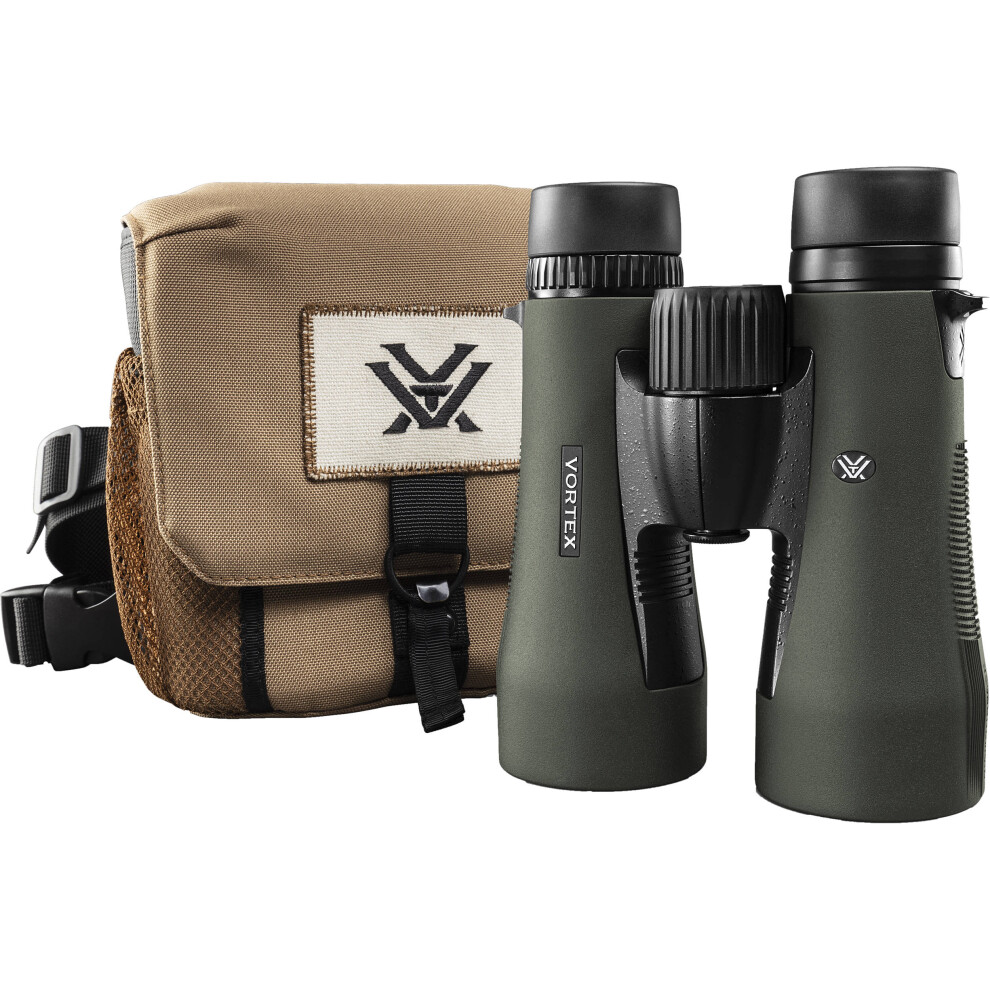

GlassPak binocular case
GlassPak case harness
Comfort neck strap
Tethered objective lens covers
Rainguard Eyepiece Cover
Lens Cloth
