VRX 6.1G-7.2G Video Image Transmission Receiver Video Input Module 64-CH Video Analog Receiver Module for FPV Goggles

VRX 6.1G-7.2G Video Image Transmission Receiver Video Input Module 64-CH Video Analog Receiver Module for FPV Goggles Description

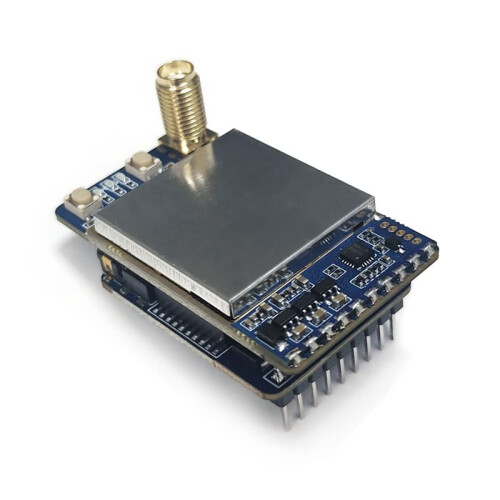

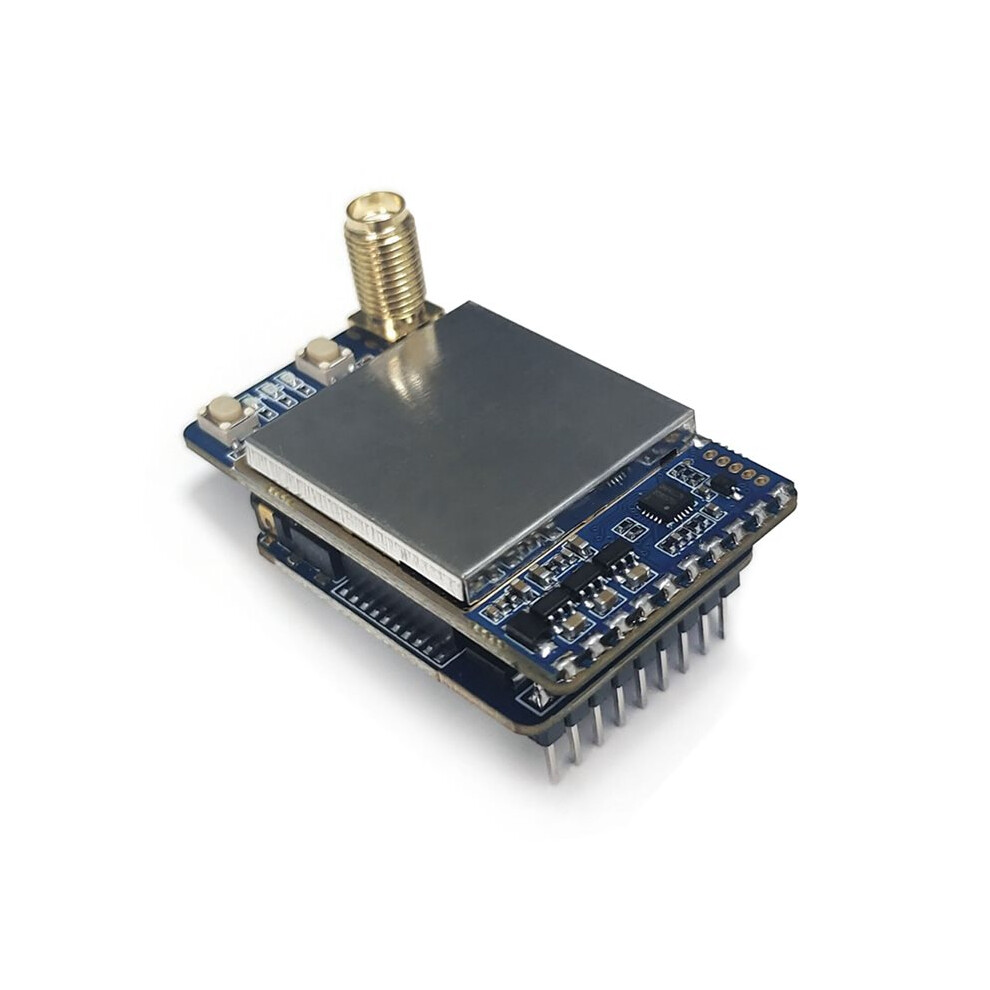

The VRX-75D is a CVBS video input module designed for FPV goggles, Supports wideband reception from 3.1-3.7GHz, 64 adjustable channels. It can also be used as a standalone receiver and features a 2.5mm headphone jack for video output.
Compatible with mainstream FPV goggles like for FatShark and for Skyzone, plug-and- for convenience and efficiency.
It has a 1.0mm 5-pin ribbon cable interface, power input of 5-36V, video output,and RSSI signal strength level output, as well as a PWM pulse count adjustment channel interface.
High sensitivity at -95dBm, stable signal, clear and smooth long-distance video transmission.
FM/PLL demodulation technology, signal-to-noise ratio to 38dB, low distortion and low latency video quality.

Parameter:
Characteristics:
Power Supply: 5.0V & 5-36V
Current Consumption: 420mA Max

Environmental Specification:
Operating Temperature: -10~+65
Storing Temperature: -30~+85
Operating Humidity: 85%RH

Radio Frequency (RF):
Receiving Frequtabilizatione: 6110~7210MHZ
Voltage Standing Wave Ratio: 2:1
Demodulation system: FM/PLL
IF: 480MHZ
ANT. input impedance: 50Ω,TyP.
LO Frequency stabilization: 200kHz
LO Frequency Precision: 200kHZ
LO Control: PLL
Input LO Leak: -65dBm
Receiving Sensitivity: -95dBm
Input Level Range: -95dBm~+5dBm

Video Characteristics:
Video Output impedance: 75Ω,TyP.
Video Output Level: 1Vp-p,TyP.
Video Polarity: Negative polarity
Video Frequency Response: +5dB,Max.50HZ~6MHZ
Differential Gain: 5%,Max
Differential Phase: 5Deg.,Max
3dB IF Wide Band: 16.5MHZ
SNR.: 38dB,Min
RSSI Output Voltage: 1.3~0.7V
Color:
Material: PCB+Metal

Package Contents:
1 * Image Transmission Receiver
1 * Anten
