Wall Mounted Mini Bluetooth Amplifier & 1 Stereo Ceiling Speaker Kit Stereo HiFi

Wall Mounted Mini Bluetooth Amplifier & 1 Stereo Ceiling Speaker Kit Stereo HiFi Description

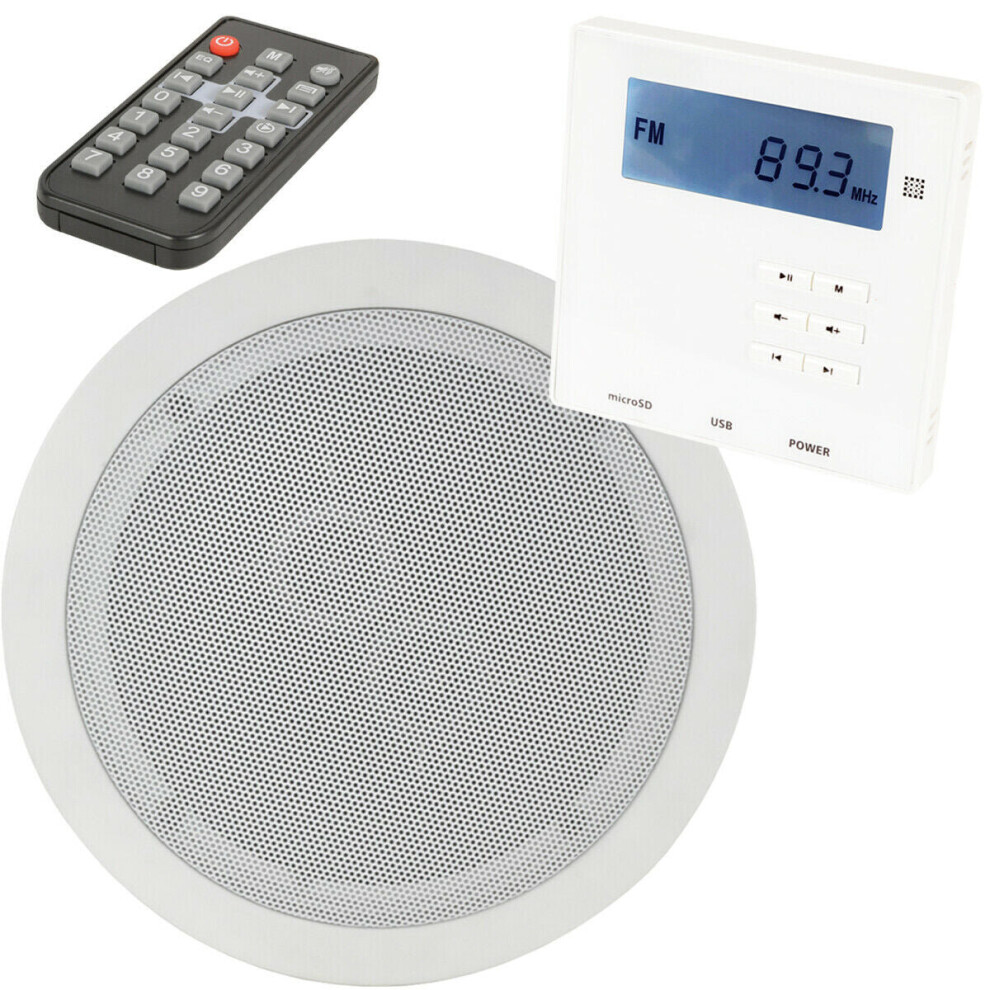

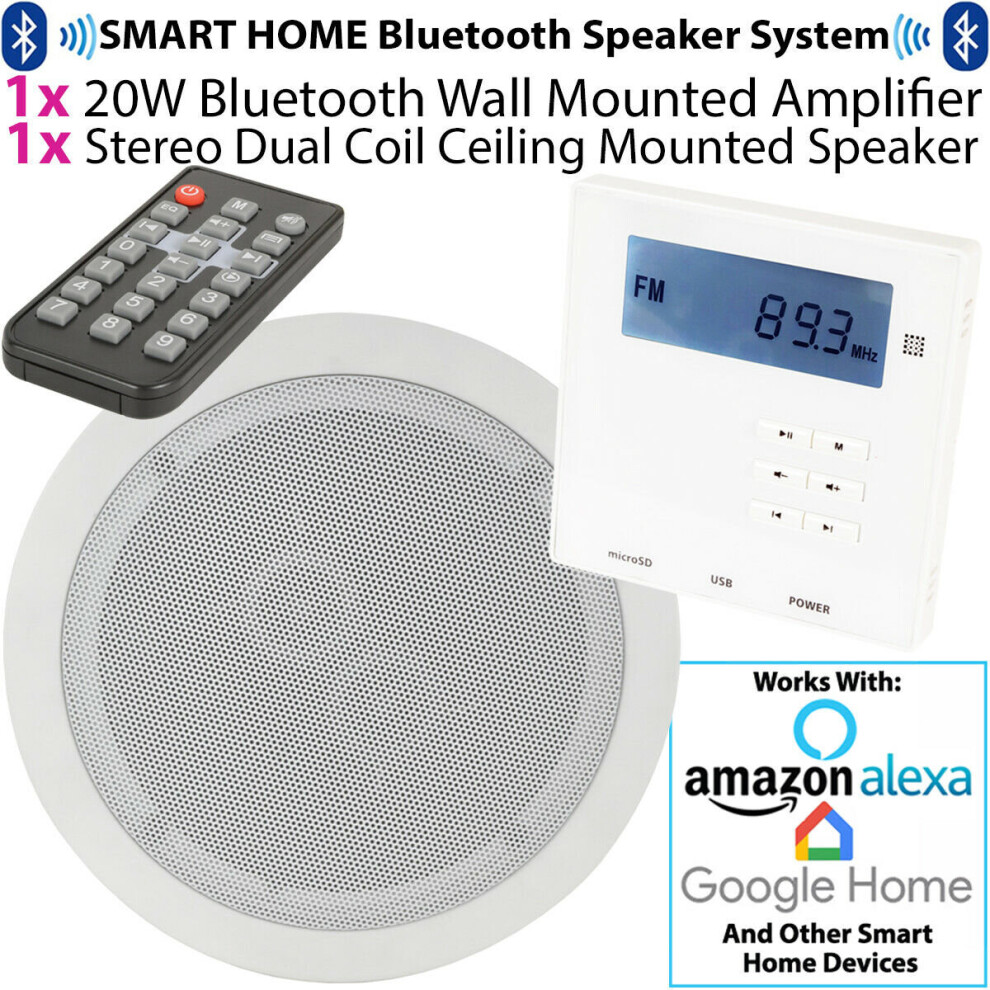

Wall Mounted Amp & Single Stereo Ceiling Speaker Kit

Contents:

1x 20W Wall Mounted Bluetooth Amplifier
1x IR remote for amplifier
1x Premium 6.5â Dual Coil Stereo Ceiling Speaker
Instructions
(Speaker cable is not included but can be purchased through our shop)

AMPLIFIER IS THE SAME SIZE AS A SINGLE UK PLUG SOCKET / LIGHT SWITCH

Overview:

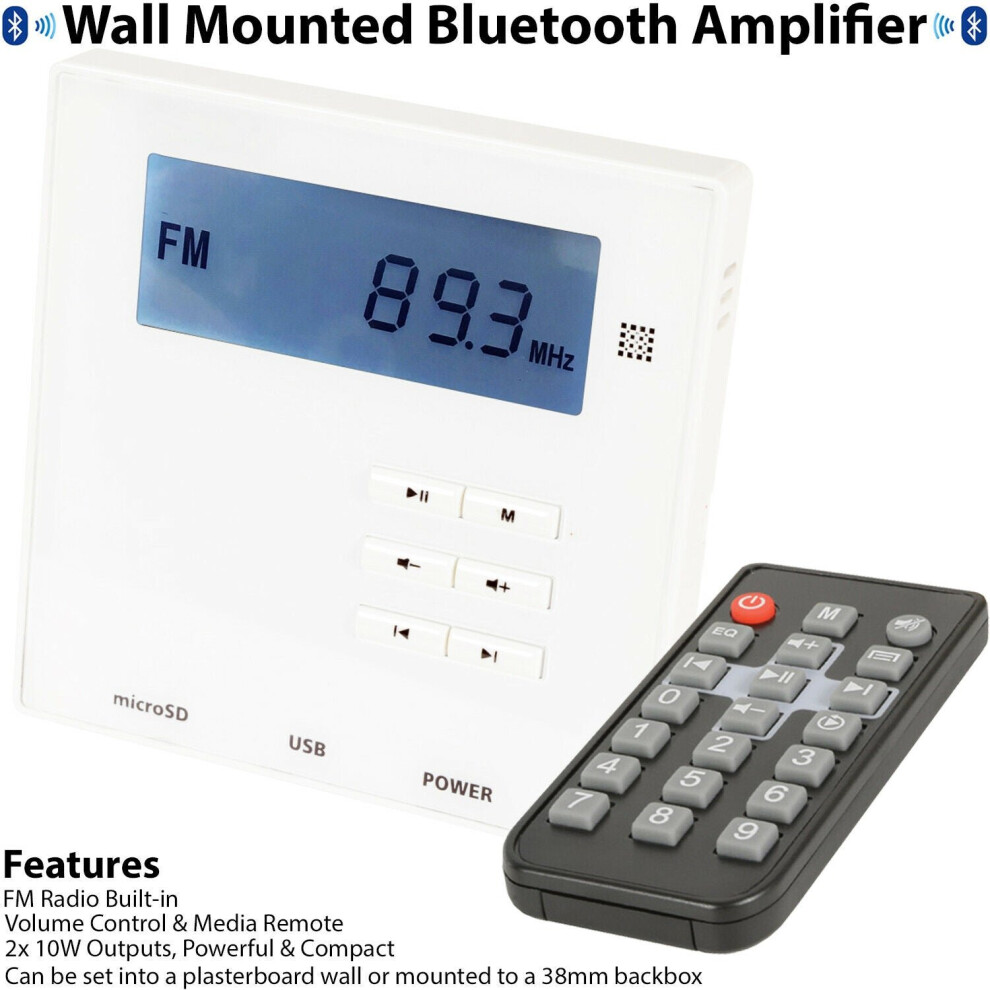

Our most compact amplifier yet, this incredibly clever unit can be recess or surface mounted to a wall using a standard single 38mm back box. It is powered directly by the mains meaning no clumsy transformer plugs required and no plug sockets are used. Simply connect a mains cable to the rear of the unit, this will conceal any wiring resulting in a professional finish.

The impressive thing about this unit is its versatility, you can hardwire up to 2 source devices to the rear of the unit, insert a Micro SD card / USB drive, listen to FM radio or connect to the amp via a Bluetooth connection (smartphone or tablet) and stream your music wirelessly.

You can then connect this amplifier to the supplied speaker (if you want a different number of speakers, please search our shop or get in touch) and enjoy the rich tones produced by this compact but premium quality Bluetooth amplifier & speaker system.

Controlling the amplifier is easy, you can pause/play, skip tracks, adjust volume and moreâ by either pressing the buttons on the front of the unit, using the supplied IR remote or via your Bluetooth enabled device (if you are connected via Bluetooth).

PLEASE NOTE â" This unit only produces 10W per channel and is not designed to be used with speakers in large spaces, it is better suited to kitchens, bathrooms & bedrooms where very loud volumes arenât always required. We stock various amplifiers & speaker kits so please get in touch if you require a kit with more power.

Features:

AMP

Bluetooth receiver (wireless)
2x AUX screw terminal inputs (rear of unit)
1x FM terminal input (rear of unit)
1x USB media input (bottom of unit)
1x Micro SD card media input (bottom of unit)

2x Speaker screw terminal outputs (rear of unit)
On/Off power switch (bottom of unit)

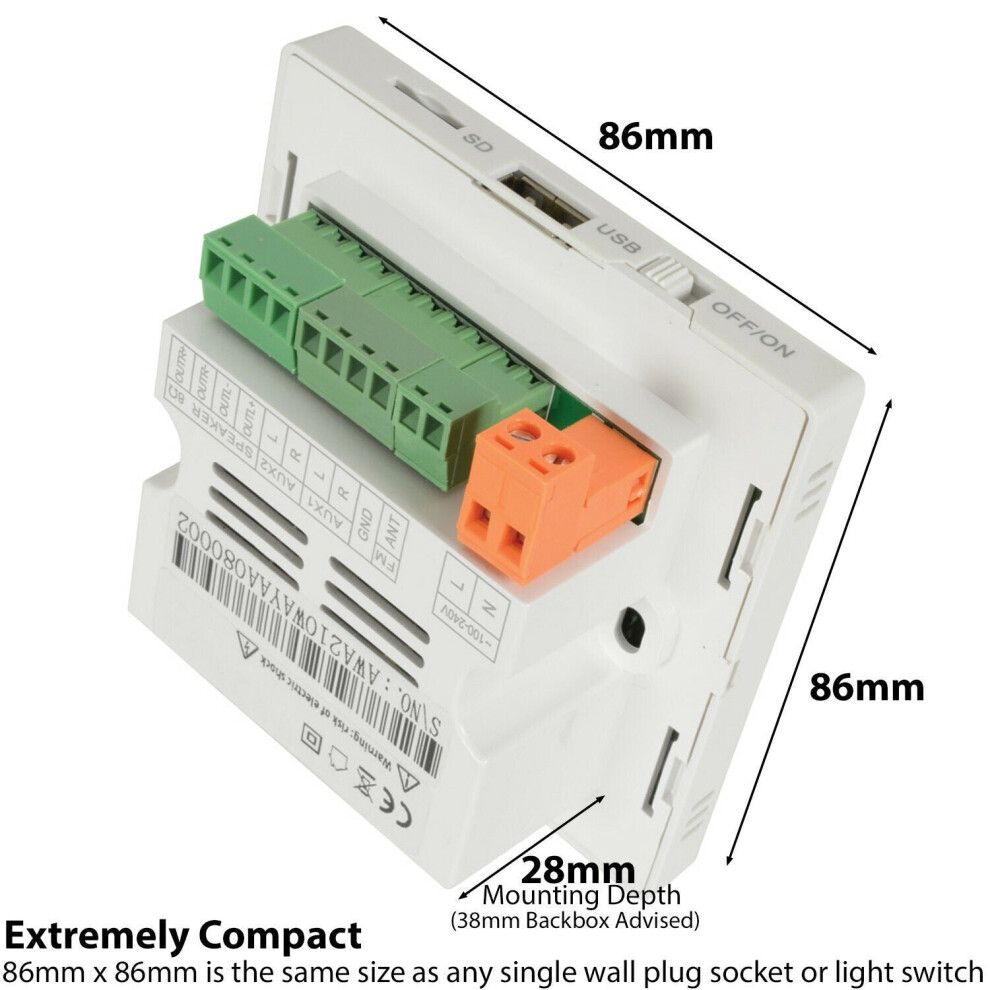

Extremely compact â" 86mm x 86mm â" same size as a standard UK light switch plate.

SPEAKERS

A 4-way ceiling speakers which is ideal for use as main or surround sound speaker in the wall or ceiling. The concentric directional tweeter allows the higher frequencies to be focused at the listener to help create a better soundstage. This speaker can be used perfectly in conjunction with this kit.

PLEASE NOTE â" This is a single speaker. However, this has 2x tweeters and a dual sub built in meaning you have a true stereo sound from one speaker where you would normally have to run a pair of speakersâ This means you can wire the left and right outputs on the amplifier into this speaker and produce a true stereo signal, 2 lengths of speaker cable are required (just treat this as 2 speakers in one shell).

Technical Specification:

AMP

Dimensions â" 86mm x 86mm x 37mm (WxHxD)
Mounting depth â" 28mm (38mm back box advised)
Weight â" 130g

Power Supply â" 100-230V AC direct mains
Power output Max per channel at 8 Ohms - 10W (per channel)
Bluetooth version â" 2.1 + EDR
Frequency Response â" 20Hz - 20kHz
Compatible Media Formats â" MP3, WMA, WAV & FLAC

SPEAKERS

Woofer Size â" 265mm (6.5â) diameter
Tweeter Size â" 2x 13mm diameter (each)
Frequency Response â" 70Hz-20kHz
Impedance â" 8Ohms
Max Power 8Ohm â" 100W
RMS Power 8Ohm â" 50W
Mounting Depth â" 76mm
Dimensions â" 86mm x 227mmÃ

Cut-out required for ceiling/wall â" 193mmÃ

Dual Mylar dome tweeters for the best quality sound transfer
Gold plated Spring Terminals
Supplied with âœDog Ear Mountsâ for easy mounting.

Further Information â" How to install:

1) â" Run all of the cables you need to run before starting the install, this includes mains power cables, speaker cables and any other audio cables (for AUX ports). PLEASE ENSURE THAT ELECTRICITY IS TURNED OFF WHEN INSTALLING.

2) â" You now need to prepare your wall for the amplifier to be mounted, you will need to cut a hole for this to be recess mounted or use a surface mounted back box (please see supplied instruction manual for full details).

3) â" Wire the mains power cable and speaker cables to rear of the amplifier via the screw terminal connections. Connect the other end of the speaker cables to the speakers ensuring that you wire positive to positive & negative to negative.

4) â" You can now power up the unit, select a source and listen to your chosen music.

If you are connecting via Bluetooth, simply turn Bluetooth on, on your device (make sure your device is visible under its Bluetooth settings). Then search for compatible devices and your device (phone for example) will find the amplifier. Follow the instructions given to you and you will then be able to play your music / speech wirelessly.

If you require any technical specification or would like to purchase this as part of a kit with speakers / accessories, please feel to get in touch and we will be more than happy to help you.
