Waterproof 10A UBEC 2-6S Input 6.0/7.4/8.4V Adjustable Voltage Regulator

Waterproof 10A UBEC 2-6S Input 6.0/7.4/8.4V Adjustable Voltage Regulator Description

Features:
1. It adopted the advanced DC-DC regulator chip with conversion efficiency exceeds 90%

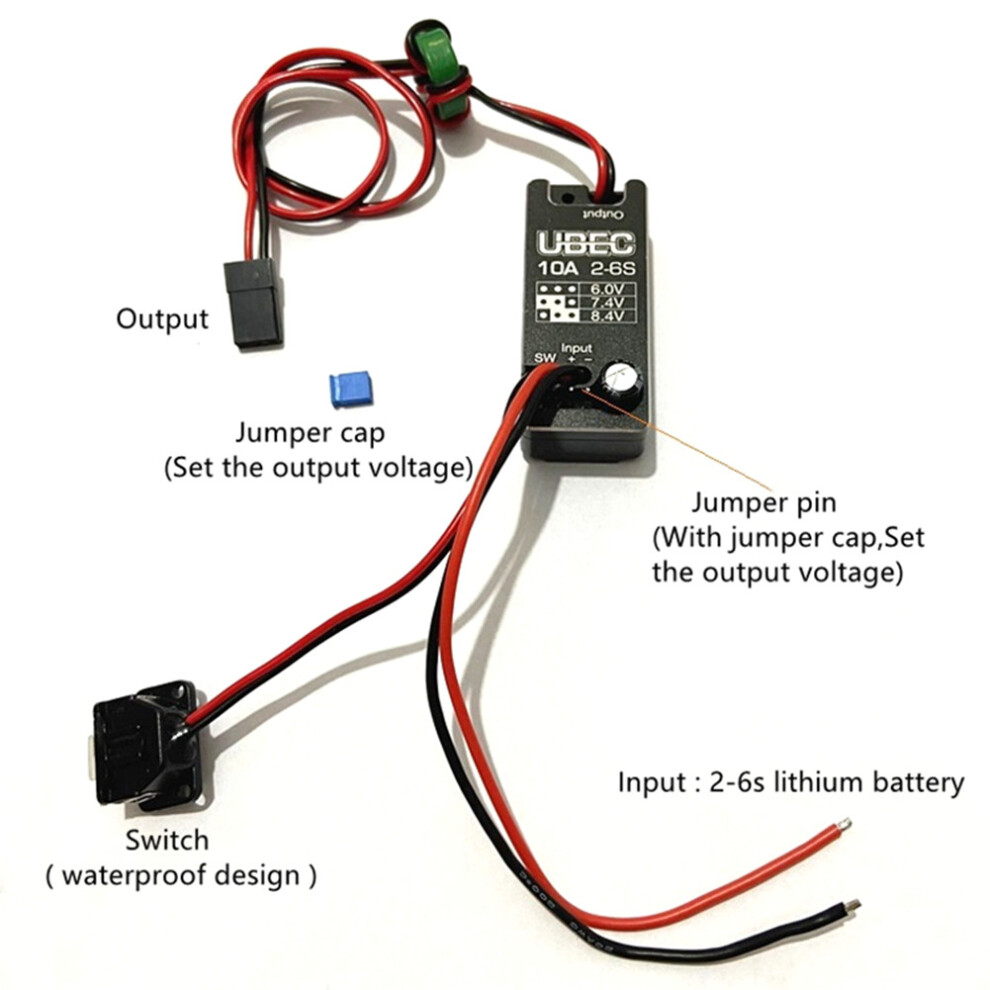

2. 4 options for the output voltage, applicable for all kinds of receivers/gyros/servos, etc.
3. It owns BEC shoot-through protection, which prevent the input voltage from directly flowing to the output end and causing damages to receivers, servos and other electronic devices;
4. It featured other protections like over-current protection, short-circuit protection (at the output end) and thermal protection make the use more safe and reliable;
5 .Two cables are connected in parallel at the output end of the UBEC, allow larger current to flow into the receiver.
6. It has one status LED, which lights up when the output voltage is within the normal range;
7. The external switch can turn on/off the UBEC easily
8. Exquisite aluminum case is helpful for heat dissipation & EMI (Electromagnetic Interference) reduction.

Specifications:
Model: UBEC 10A-Car
Input voltage: 2-6s lithium batteries

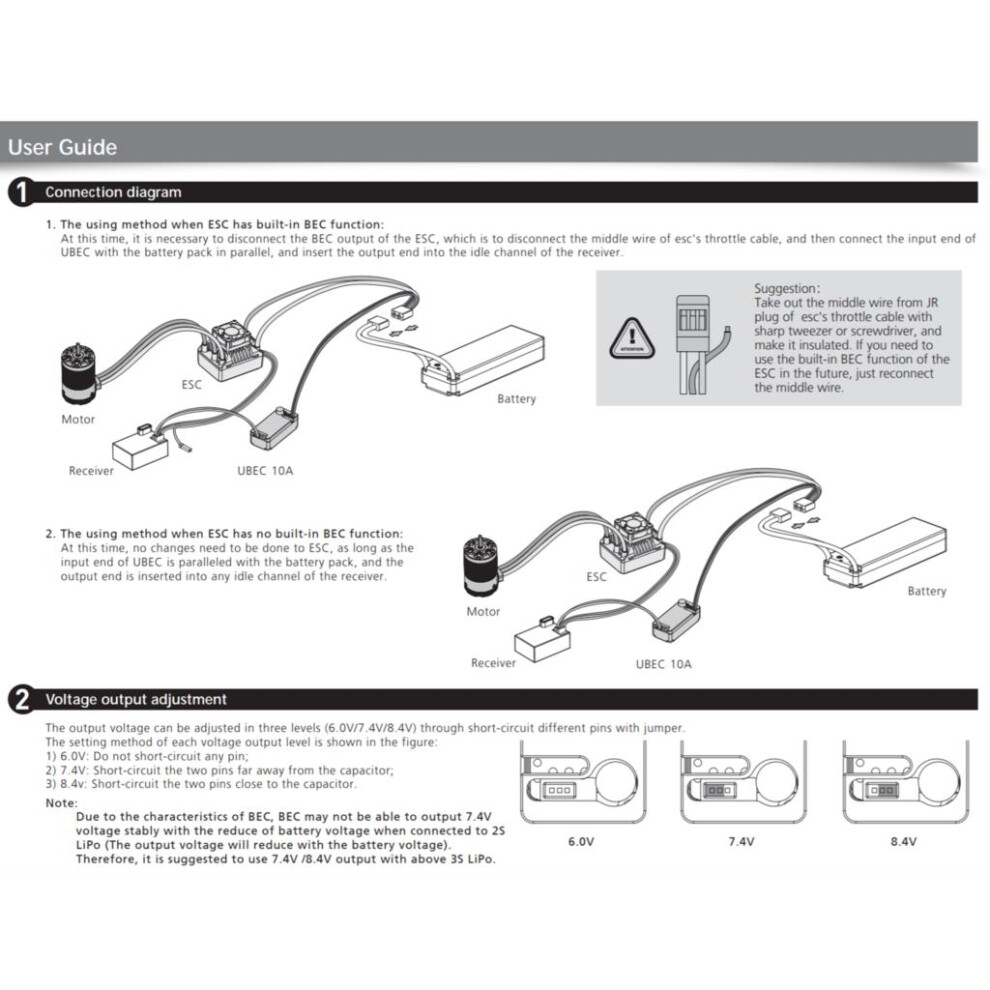

Output voltage: 6.0 / 7.4 / 8.4 V (3 options adjustable)
Output current: Continuous 10A, Instantaneous 15A
Measurement: 45*20*16.2mm
Weight: 34g (including wires)

Package include:
1* UBEC 10A
