Waterproof 13.56MHz RFID Access Control Reader with Keypad, Metal Shell IP68, Fast Authentication

Waterproof 13.56MHz RFID Access Control Reader with Keypad, Metal Shell IP68, Fast Authentication Description

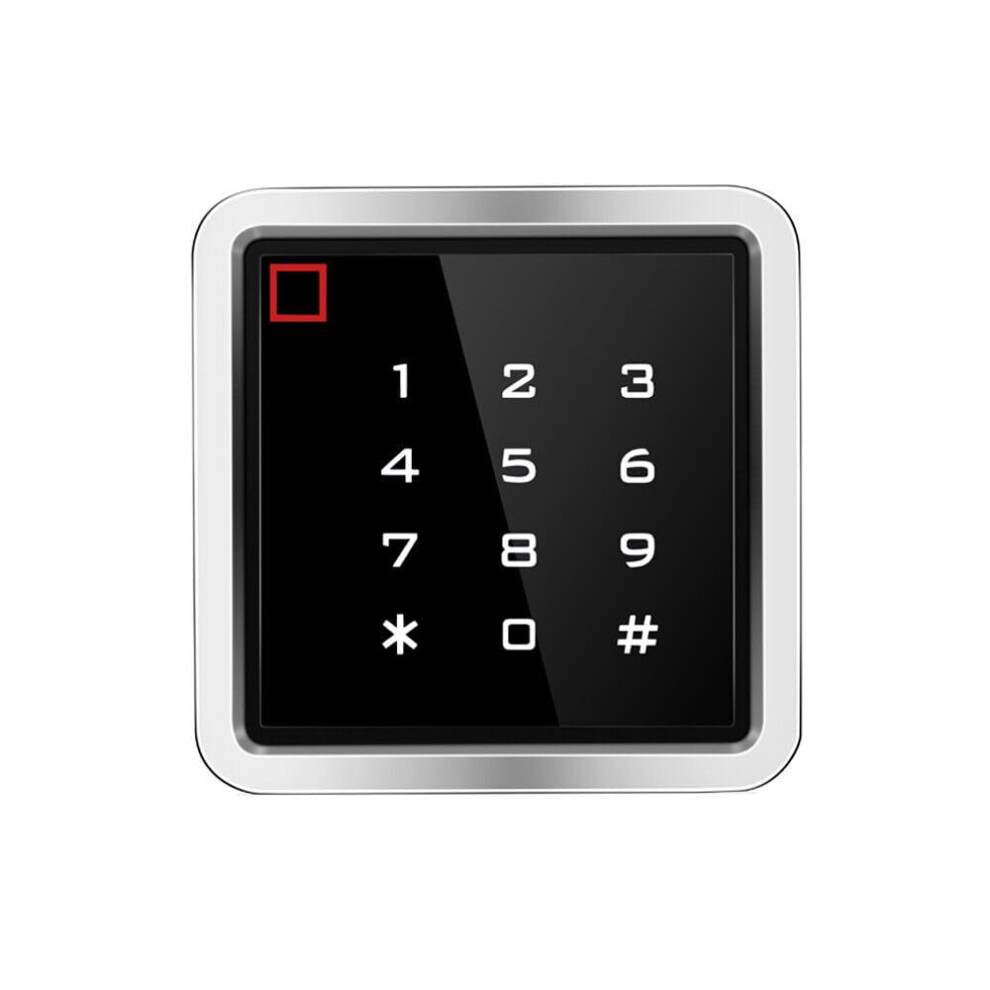

This waterproof IP68 metal RFID reader delivers fast, reliable 13.56 MHz card authentication for access control and identification applications. Designed for durability and easy integration, it combines a compact footprint with longrange communication and builtin indicators for straightforward user interaction. Key benefits Fast authentication: response speed under 0.2 second and proximity time under 0.5 second minimize wait times and improve user throughput. Reliable proximity performance: reads Mifare1 S50 and S70 13.56 MHz IC cards at 2 to 15 cm for secure, contactless operation. Durable and weatherproof: metal shell with black resin provides waterresistant protection suitable for outdoor or industrial use. Easy installation and integration: DC 12V operation with low 70 mA current draw and up to 100 meter communication distance for flexible placement. Clear user feedback: builtin dualcolor LED and buzzer indicate read status instantly. Compact design: 86 mm by 86 mm by 20 mm fits standard mounting locations and maintains a low profile. Main features Card compatibility: supports Mifare1 S50 and S70 13.56 MHz IC cards. Builtin antenna: simplifies installation with no external antenna required. Builtin LED: dualcolor LED for ready visual status indication. Builtin buzzer: audible confirmation of successful reads. Realtime data transfer: immediate transmission of read events for responsive control systems. Communication range: up to 100 meters for controller or network connections. Power and consumption: DC 12V working voltage, 70 mA working current. Physical dimensions: 86 mm x 86 mm x 20 mm. Housing: metal shell with black resin coating for improved water resistance and durability. Protection rating: waterproof IP68. Typical applications Building access control: wallmounted reader for secure entry to offices, storage rooms, and restricted areas. Outdoor gate and parking systems: weatherproof reader installed at gates or barriers to allow contactless vehicle and pedestrian access. Time and attendance terminals: integrated with attendance systems to record realtime employee checkins and checkouts. What you get Package includes one card reader ready for installation. This reader is an efficient, compact solution for projects that require fast, contactless card reading, robust weather protection, and simple system integration.
