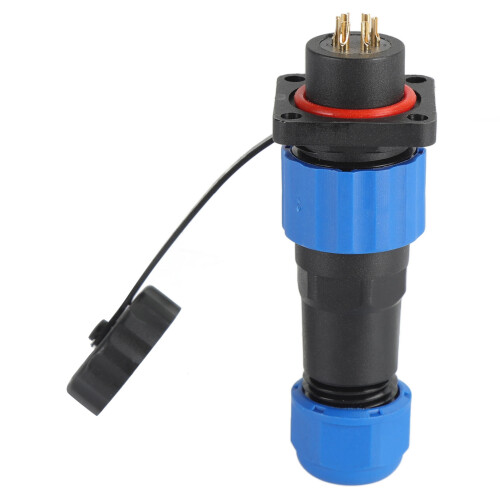

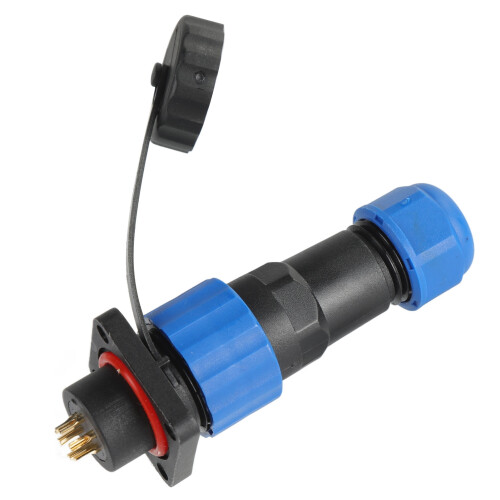

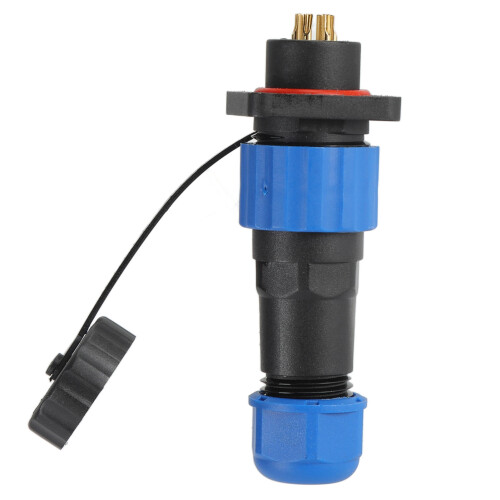

Waterproof Square Power Socket SP166 IP68 Aviation Power Connector 250V 5A

Waterproof Square Power Socket SP166 IP68 Aviation Power Connector 250V 5A Description

IP68 Waterproof Plug Socket Square Aviation Power Connector Industrial Terminal Adapter SP166 Pin (250V 5A)
Item Type: Waterproof Plug Socket
Material: PA66, PPS, silicone, copper
Uses: Widely used in communication equipment, instrumentation, computers, program controlled machines, alarms and electronic equipment, etc.
Shell Material: PA66, PA6
Insulator: Thermoplastic PPS (high temperature resistant 220)
Contact Material: Copper (gold plated)
Wiring Method: Soldering (if solder paste is used, it must be cleaned)
Connection Method: Threaded connection
Head Size: Approx. 16mm / 0.6in
Thread Specification: M16 x 1.5mm
Insulation Resistance: 2000MΩ
Withstand Voltage: 1500V
Shell Applicable Wire: 6-7.5mm²
Mounting Hole Distance: Approx. 20 x 20mm / 0.8 x 0.8in
Mating Times: More than 500 times
Operating Temperature Range: -25 to 85
Tightness: Comply with IP68
Number of Core
2 Pin
3 Pin
4 Pin
5 Pin
6 Pin
7 Pin
8 Pin
9 Pin
Contact Diameter
1.8mm
1.8mm
1mm
1mm
1mm
1mm
1mm
1mm
Rated Current
10A
10A
5A
5A
5A
5A
5A
5A
Working Voltage
380V
380V
250V
250V
250V
250V
250V
250V
Contact Wire Gauge
1.5mm²/14AWG
1.5mm²/14AWG
0.75mm²/18AWG
0.75mm²/18AWG
0.75mm²/18AWG
0.75mm²/18AWG
0.75mm²/18AWG
0.75mm²/18AWG
