Waterproof UHF RFID Long Range Card Reader Parking Access 110-240V

Waterproof UHF RFID Long Range Card Reader Parking Access 110-240V Description

1、UHF card reader, high working frequency of 902Mhz‑928Mhz, the data rate is up to 115200BPS. 2、IP65 waterproof design, not fear of rain, and it is able to work well in all kinds of demanding environments. 3、Multi‑protocol compatibility, rich communication interface, supports for IOS‑18000‑6C (EPC G2) ISO‑18000‑6B electronic tag, supports for RS485, RS232 and wiegand26/34bit communication. 4、Reading distance is up to 10 meters, it is convenient and time‑saving, which can reduce the queuing time of vehicles waiting to slot the card. 5、A variety of environmental sensing technologies, it can automatically adjust signal parameters according to the needs of the environment.
Features:
1. UHF card reader, high working frequency of 902Mhz-928Mhz, the data rate is up to 115200BPS.
2. IP65 waterproof design, not fear of rain, and it is able to work well in all kinds of demanding environments.
3. Multi-protocol compatibility, rich communication interface, supports for IOS-18000-6C (EPC G2) ISO-18000-6B electronic tag, supports for RS485, RS232 and wiegand26/34bit communication.
4. Reading distance is up to 10 meters, it is convenient and time-saving, which can reduce the queuing time of vehicles waiting to slot the card.
5. A variety of environmental sensing technologies, it can automatically adjust signal parameters according to the needs of the environment.
Specification:
Condition: Brand New
Operating Frequency 902MHZ- 928MHZ
Type: Contactless Card Reader
Card Reading Time: 0.2s
Working Mode: Software Sets Frequency Hopping or Constant Frequency Operation
Adjustable Range of Power: 0.1W-1W
Antenna: Built-in Circular Polarization Antenna
Communication Port:
USB: Support USB Communication, USB Upgrade Program
RS-232, RS-485
Wigan 26 or Wigan 34
Communication Rate: Software Setting, Default 9600, Up to 115200bps
Read and Write Performance:
Read and Write Passive Electronic Tags: Support 18000-6B and EPC Protocol
Maximum Reading Distance of Label: 10 Meters / 32.8ft , Reliable Reading Distance: 3 Meters
Support VB or VC Development
Power Supply: 12V DC
Average Power Consumption: Less Than 2W
Size: Approx. 215 X 215 X 50mm/8.5 x 8.5 x 2in
Application: Vehicle Access Control, Automatic Charging Without Stopping, Personnel Access Control Management, Logistics Monitoring, Production Automation Management and Other Fields

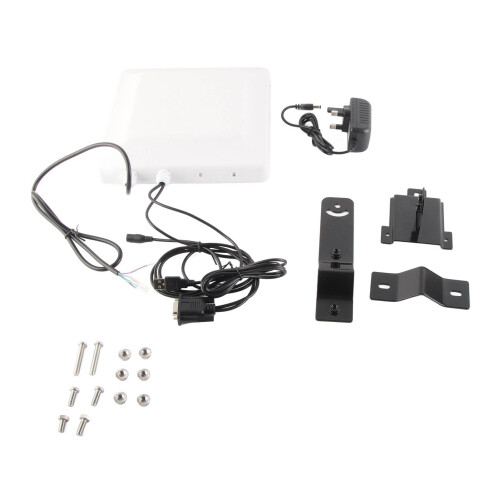

Package List:
1 x UHF Card Reader
1 x Power Supply
1 x Mounting Bracket
1 x Screw Package
