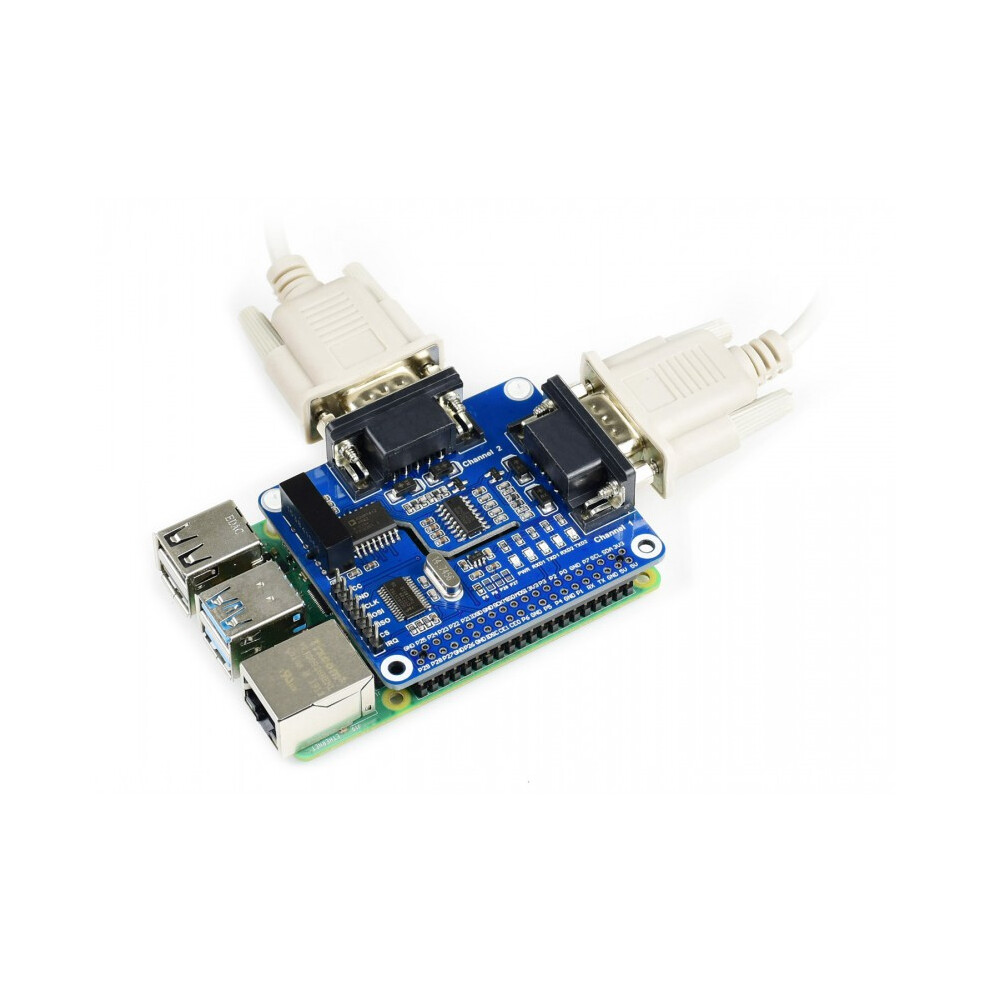

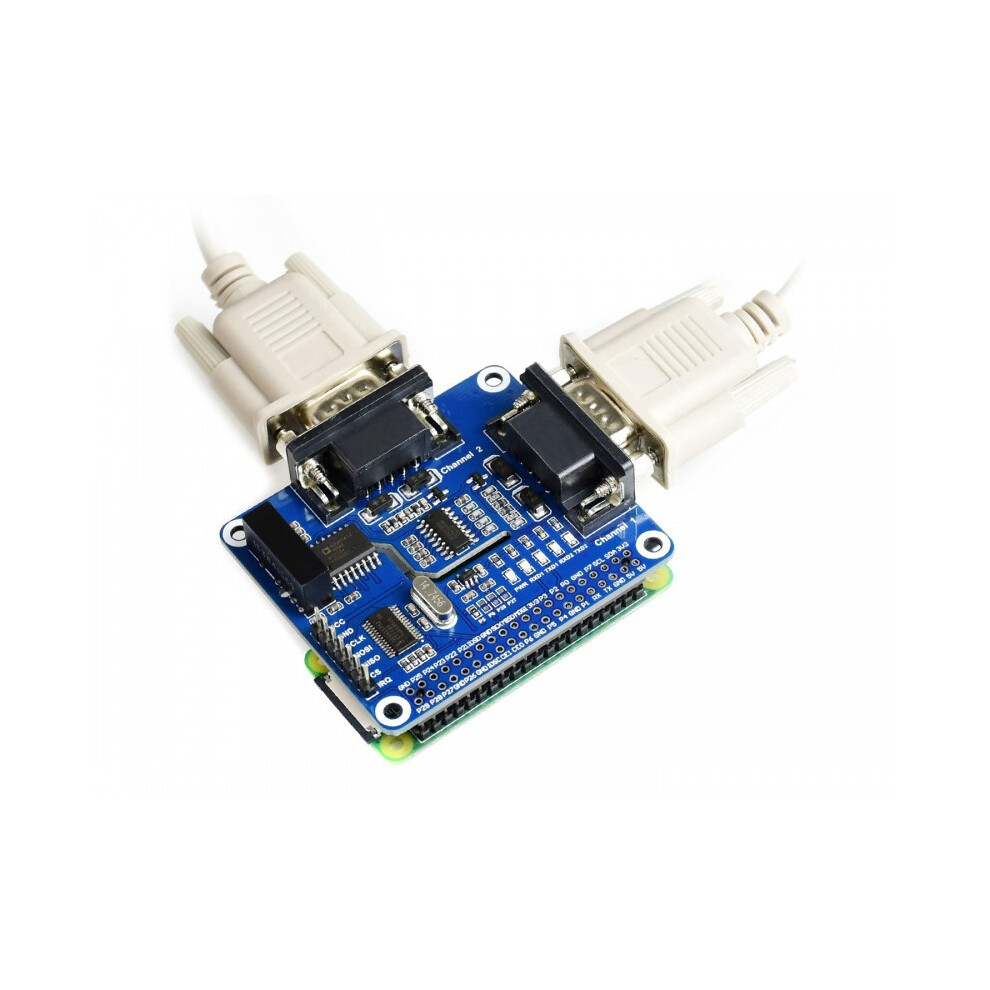

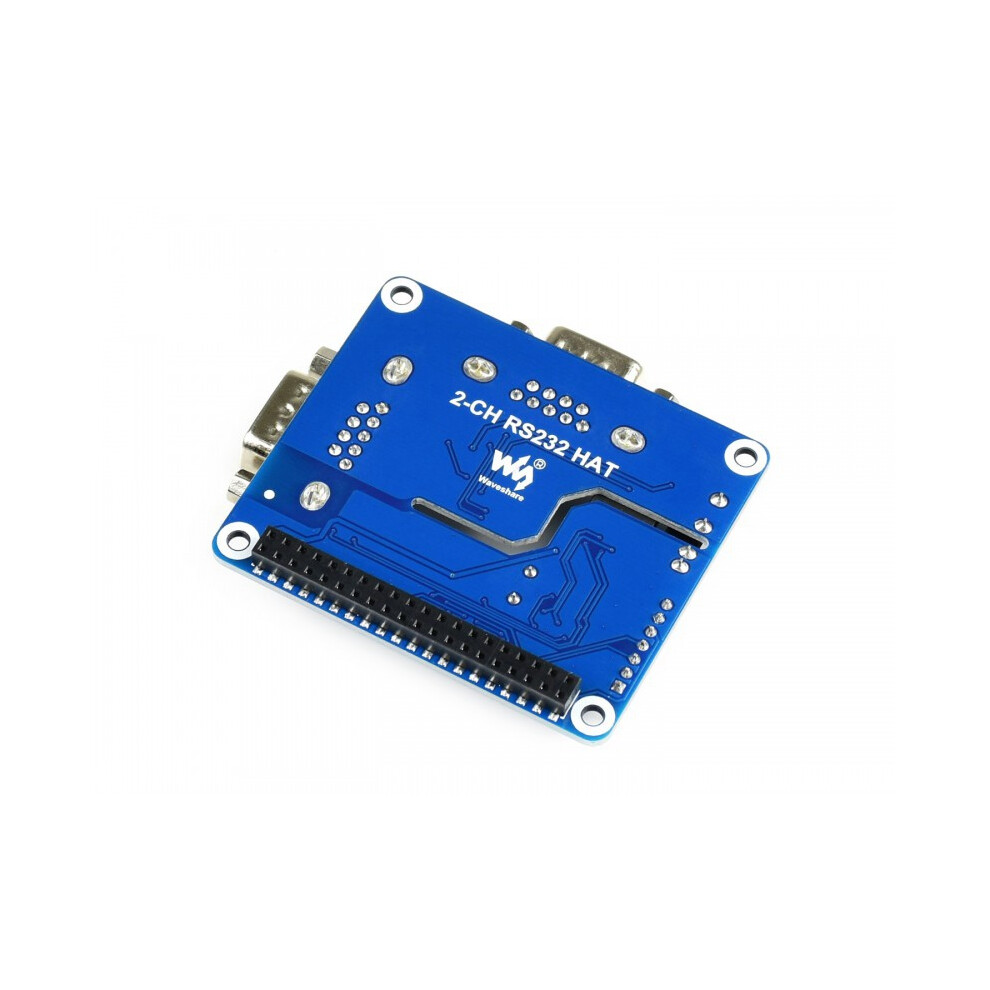

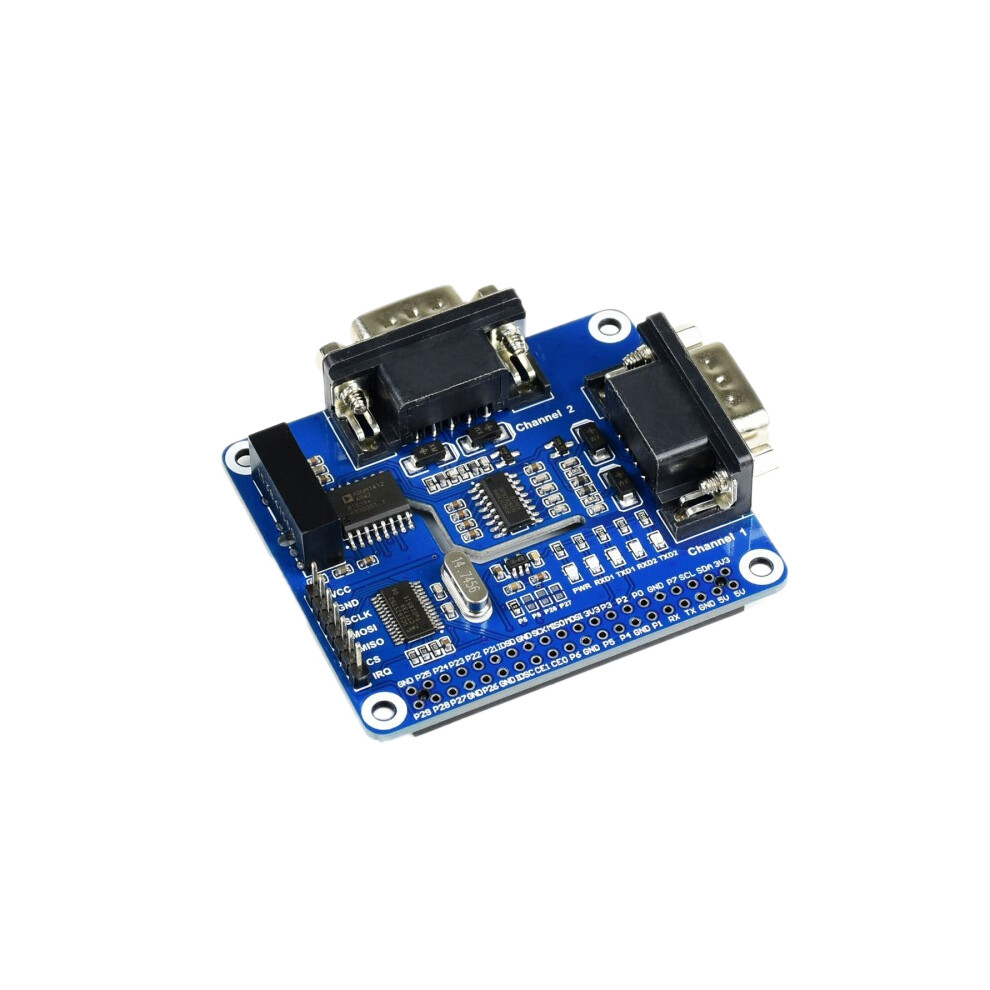

Waveshare 2-Channel Isolated RS232 Expansion HAT SC16IS752+SP3232 for Raspberry Pi
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 130,000 Trustpilot reviews and an 'Excellent' rating
£77.22
+£3.85 Delivery
1%
Earn £0.77 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£3.85) | Thu 20th - Sat 22nd Aug
Sold by: MINI MALL
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Waveshare 2-Channel Isolated RS232 Expansion HAT SC16IS752+SP3232 for Raspberry Pi Description
Size Conversion Inches Centimeters Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size. Specifications UART expansion chip: SC16IS752 RS232 transceiver: SP3232 Communication interface: SPI Data rate: 300 ~ 921600 bps Operating voltage: 3.3V / 5V Dimensions: 65mm x 56.5mm Mounting hole size: 3.0mm Connectors: 1. SC16IS752 UART expansion chip 2. SP3232 RS232 transceiver 3. ADUM1412 digital isolator 4. B0505LS power supply isolation module 5. RT9193-33 power chip 6. for Raspberry Pi GPIO connector: for connecting Raspberry Pi 7. MCU control header: for connecting host control boards like Arduino 8. RS232 connector: 2 channels RS232 interface (RS232 9PIN male) 9. Transient suppress diode array 10. ESD protection two-way diode 11. Serial port status indicator RXD1/TXD1: channel 1 transceiving indicator RXD2/TXD2: channel 2 transceiving indicator 12. Power indicator 13. Interrupt pin switch The interruptpin IRQ is connected to P5 (BCM P24) by default Changeable via 0R resistor Package Included: 1* 2-CH RS232 HAT 1* 2x20PIN female pinheader 1* RPi screws pack (2pcs)
Details
| OPC | PCKN28C |
|---|---|
| Codes | 0640187846840 (EAN) |
