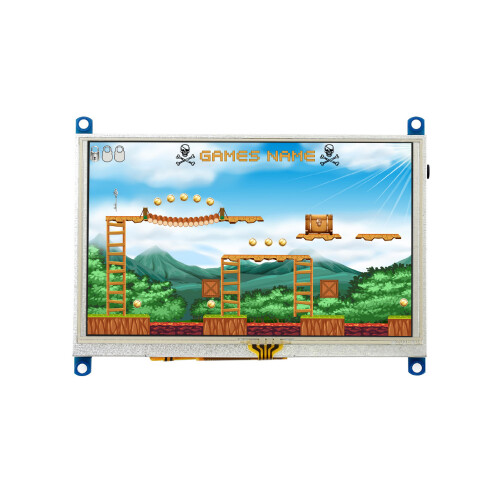

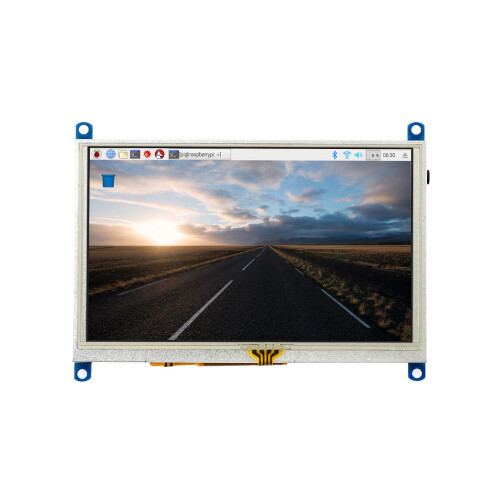

Waveshare 5 inch HDMI LCD (G) 800x480 Supports Various Systems Resistive Touch HD Display Screen Board VGA Audio Output

Waveshare 5 inch HDMI LCD (G) 800x480 Supports Various Systems Resistive Touch HD Display Screen Board VGA Audio Output Description

Documents: WIKI: Click here to open Datasheet: Click here to open Features: 800x480 hardware resolution, configurable by software. Used with Raspberry Pi, supports Raspbian, Ubuntu, WIN 10 IoT, single touch, and driver free. Multi-languages OSD menu, for power management, brightness/contrast adjustment, etc. It has a 3.5mm audio jack and supports HDMI audio output Supports VGA input (specific cable is required and should be purchase separately) Note: Limited by the game console OS, the touch function is unavailable. Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack. FAQ: Q1: Why the LCD doesn't work with my Raspbian? A: To use the LCD with the Raspberry Pi official image, driver (SPI touch interface only) should be installed first. Please refer to the user manual. However, for the first testing, you may want to use our image directly (if provided). Q2: Why the LCD still doesn't work with the Waveshare provided image? A: Make sure the hardware connection is correct and connects fine. Make sure the image in TF card is burnt correctly. The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, if both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact. Q3: Which power supply should I use? It is recommended to use a 5V/3A power adapter for the Raspberry Pi other than USB connection, otherwise the Pi may failed to start up because the PC's USB port might have not enough power. For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD. For more info, please check the wiki page. Package includes: 1 x 5inch HDMI LCD (G) 1 x HDM1 cable 1 x HDMl female to micro HDMI male adapter 1 x USB cable type-A male port to micro male port 1 x Resistive touch pen 1 x RPi copper pillar package (4PCS set)
