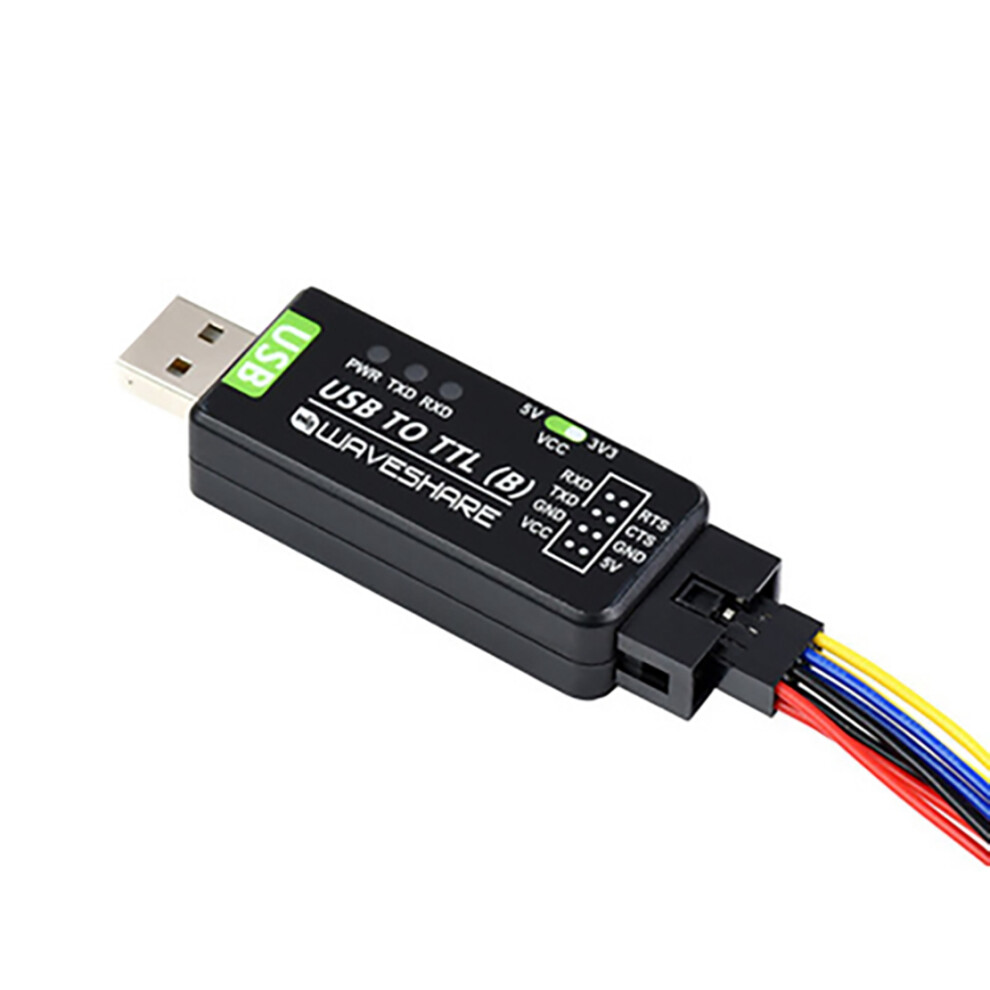

Waveshare Industrial Grade USB to TTL Converter CH343G Serial Port Conversion Module Support 5V/3.3V Level Conversion Circuit
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£6.91
£10.02
31% off!
+£2.67 Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£2.67) | Sat 25th - Fri 31st Jul
Sold by: GPouttre
Returns: 30 days
180-day payment protection
Most Popular in Serial Adapters
Description & Details
Summary

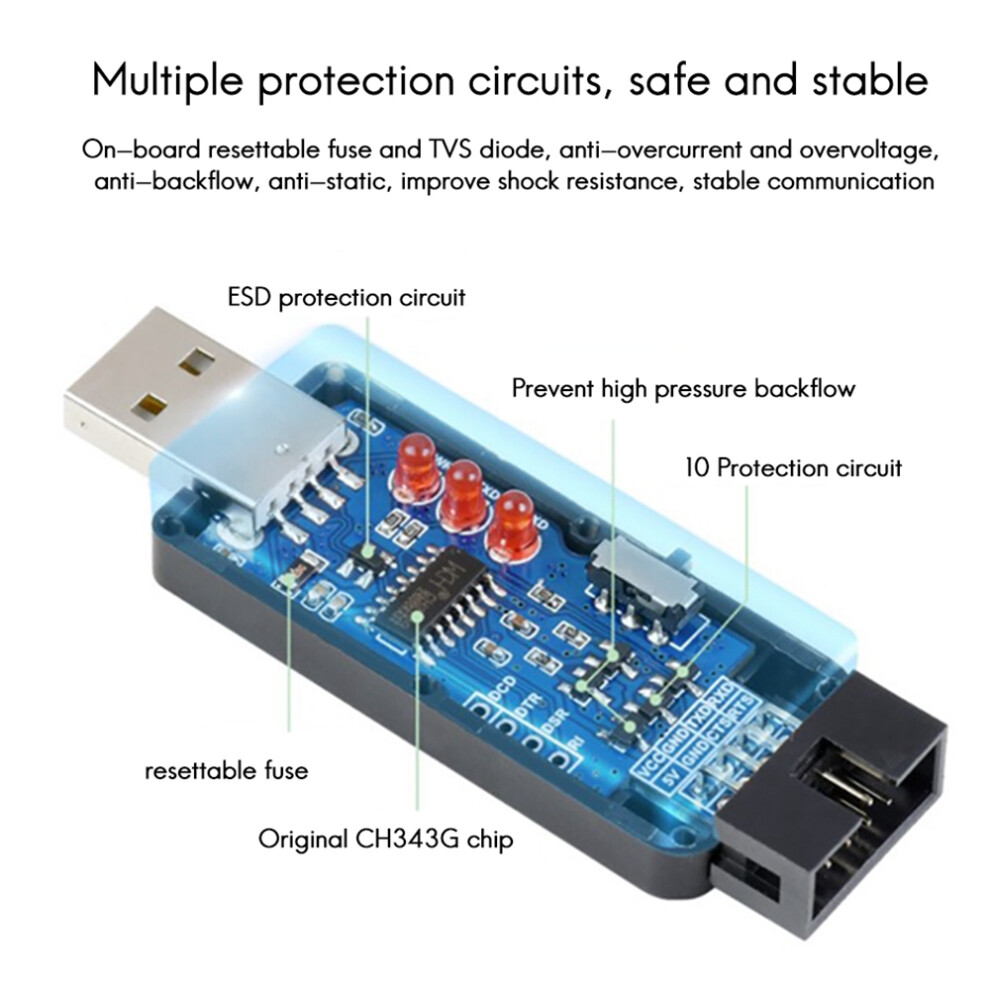

- 1. On-board resettable fuse and transient suppression diode, anti-overcurrent and overvoltage, anti-backflow, anti-static, improve shock resistance, stable and safe communication
- 2. On-board IO protection circuit, anti-surge, stable and safe communication
- 3. The onboard TTL serial port 3.3V and 5V level conversion circuit can switch the TTL communication level
- 4. There are 3 LED indicators on the board, which is convenient to check the status of power supply and signal sending and receiving
- 5. DC simple bull socket interface, smooth plug and unplug, sturdy and reliable, prevent reverse connection
Waveshare Industrial Grade USB to TTL Converter CH343G Serial Port Conversion Module Support 5V/3.3V Level Conversion Circuit Description
1. -board resettable fuse and transient suppression diode, anti-overcurrent and overvoltage, anti-backflow, anti-static, improve shock resistance, stable and safe communication
2. -board IO protection circuit, anti-surge, stable and safe communication
3. The onboard TTL serial port 3.3V and 5V level conversion circuit can the TTL communication level
4. There are 3 LED indicators the board, which is convenient to check the status of power supply and signal sending and receiving
5. simple bull socket interface, smooth plug and unplug, sturdy and reliable, prevent reverse connection
Specification:
Product name: USB to TTL conversion module
Product Type: Industrial Grade USB to TTL Converter
Host interface: USB
Communication rate: 50bps~6Mbps
Device interface: UART
USB interface: interface form: USB-A type interface; interface protection: self-recovery fuse, ESD electrostatic protection
UART interface: interface form: terminal; interface form: 8PIN foolproof interface; interface protection: IO protection diode circuit
Indicator light:
PWR: Power indicator, connected to USB, and lights when voltage is detected
TXD: Send indicator, light when data is sent from the USB port
RXD: Receive indicator, light when data is sent back from the device interface
Compatible system: Support Win7/8/8.1/10/11, , Linux, Android and other systems
Product size: 53 x 23.5 x 14.6mm
Colour: black
Material: plastic
Package Contents:
1 x USB to TTL conversion module
1 x 8pin DuPont cable
Details
| OPC | PRJMYCP |
|---|---|
| Codes | 4711463651369 (EAN) |
Product Data
| Height | 3cm |
|---|---|
| Width | 7cm |
| Length | 8cm |
| Weight | 0.0335kg |
| Colour | black |
| Material | plastic |
