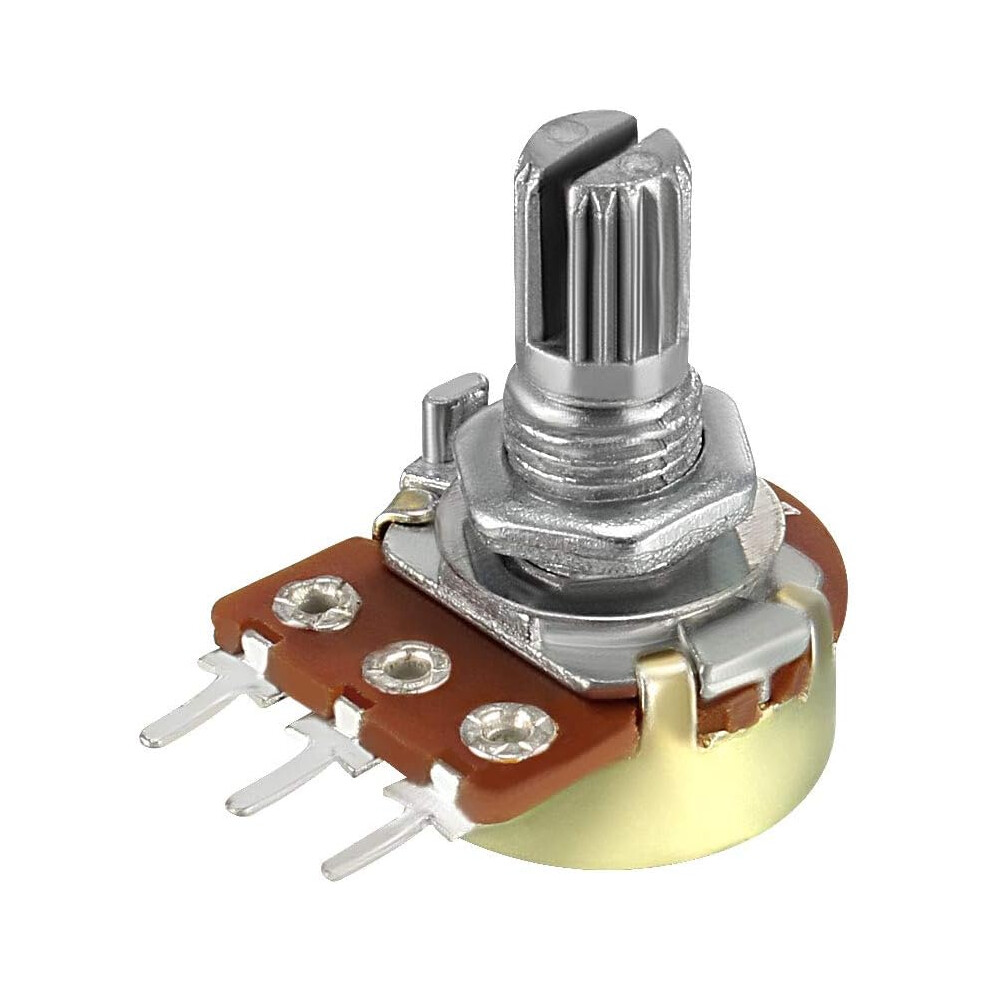

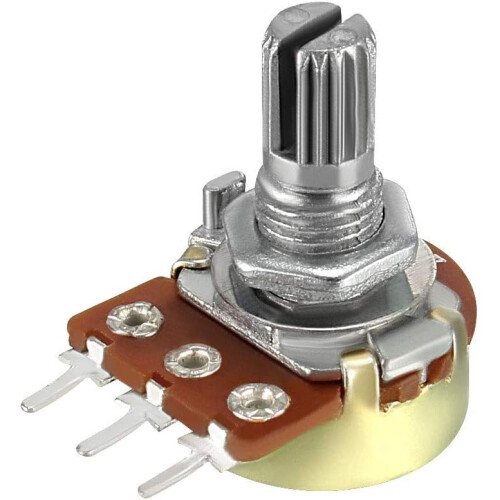

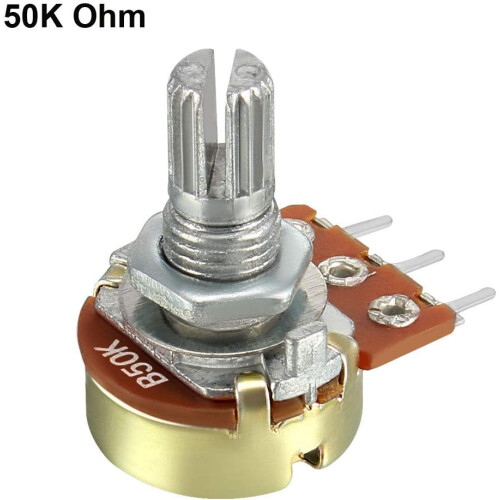

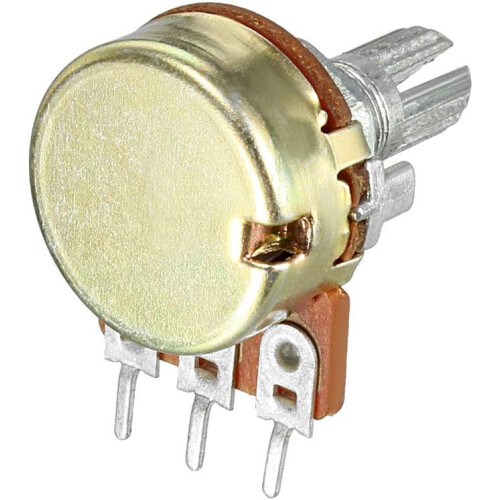

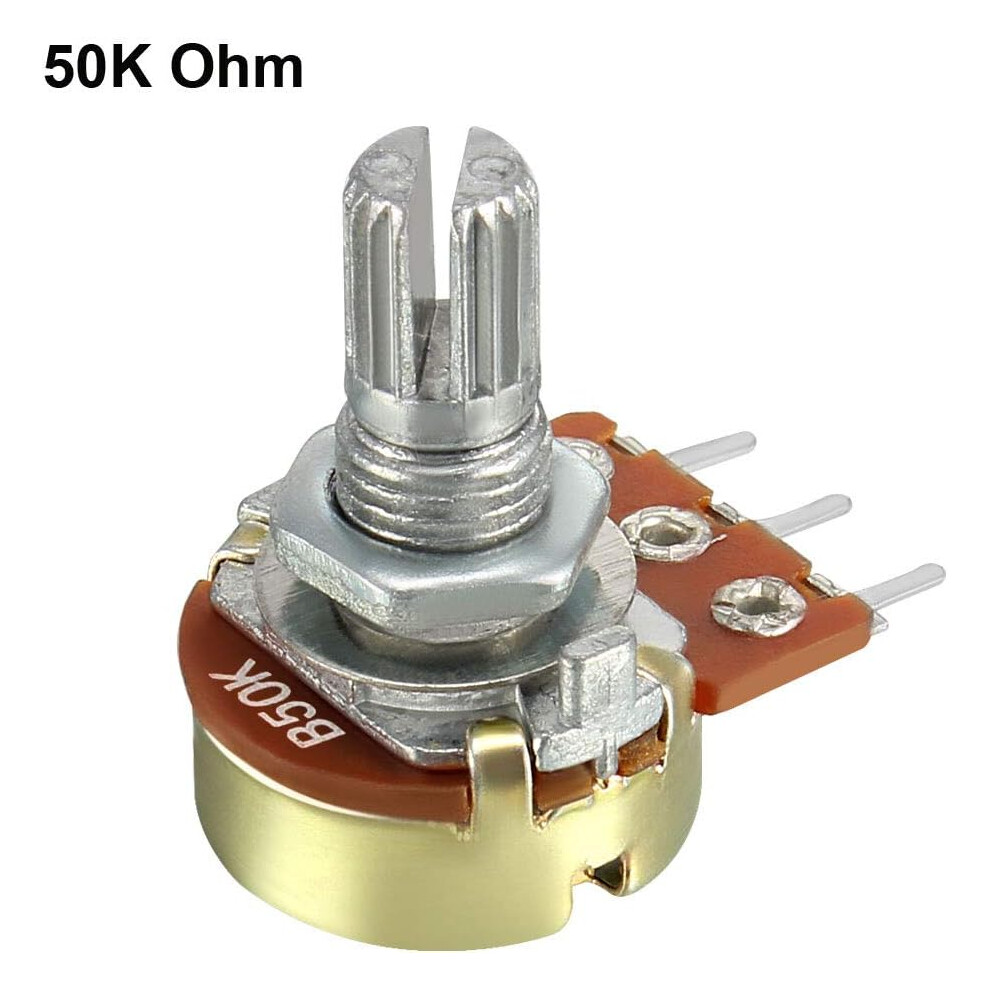

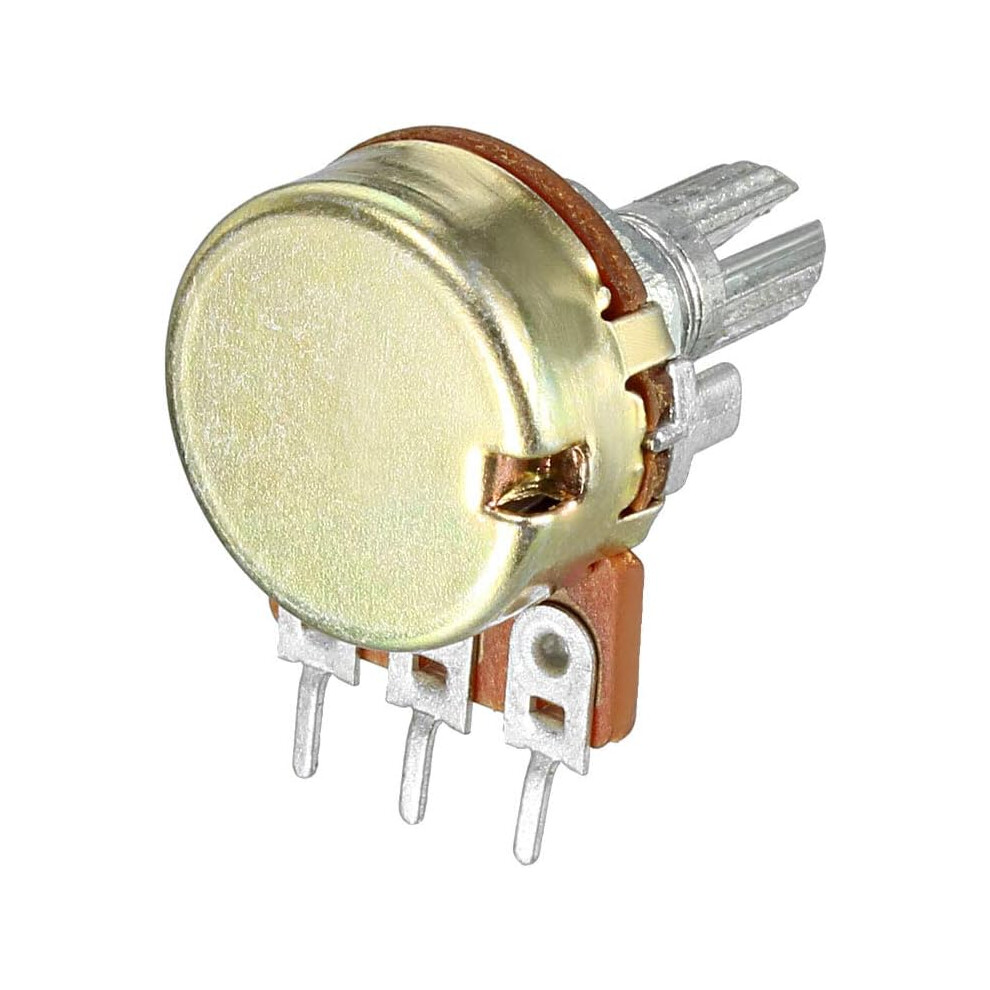

WH148 50K Ohm Variable Resistors Single Coil Film Potentiometer

WH148 50K Ohm Variable Resistors Single Coil Film Potentiometer Description

Key Features

• ModelWH148;Single potentiometer, linear diversify of resistance
• Resistance Value 50K Ohm Tolerance+/-20,Thread Dia. 6.7mm/0.26 inch
• Main used to control electrical devices such as volume controls on audio equipment，Amplifier and so on .
• Long life, soft touch, with soft center positioning
• Top adjustment type and knurled shaft for easy operate in daily use.

Product Description

Product Name: Carbon Film PotentiometerModel: WH148Material: Carbon film MetalResistance Value: 50k ohmTolerance: +/-20%Turn Number: Single TurnTerminals Number: 3

Features

Round ShaftTotal Size: 23.9mm x 16.4mm/0.94 x 0.65 inch (H * D)Screw Thread Dia.: 5.9mm/0.23 inchShaft Diameter: 5.9mm/0.23 inchShaft Length(do not include the Screw Thread parts): 8.5mm/0.33 inchShaft Total Length: 15mm/0.59 inch

Package Content

1 x Carbon Film Potentiometer

Features

50K ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.（this item do not include Knobs)Top adjustment type and knurled shaft for easy operate in daily use.Main used to control electrical devices such as volume controls on audio equipment.Knurled shaft with split design for push-on knob.

Specifications Item Weight0.18 Kilograms Product Dimensions5.51 x 3.94 x 0.79 inches
