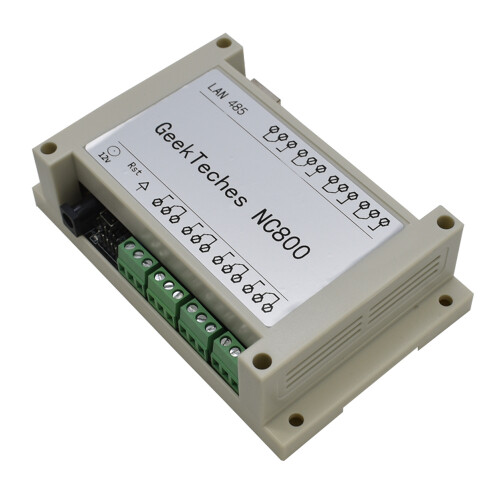

(White) 8-Channel Ethernet RJ45 TCP/IP Relay Controller, 250V AC 10A, with Web Server & Case

(White) 8-Channel Ethernet RJ45 TCP/IP Relay Controller, 250V AC 10A, with Web Server & Case Description

Features:

Ethernet TCP/IP RJ45 port, IP port can be modified

WEB server allows accessing and controlling the relay via WEB

8-Channel 250V/AC 10A relay control individually

8 external control outputs and active low level can control switch or sensor, etc

Provide protocol for re-engineering, when connected to router, it allows access control via Android, Mac, Tablet, Windows system from anywhere in the world with network

Description:

Coil Voltage: 250 volts

Color: white

Compatible Devices: Tablet

Contact Current Rating: 10 amps

Current Rating: 10.0 amps

Data Link Protocol: Ethernet

Item Weight: 8.5 ounces

Material: Plastic+PCB

Maximum Switching Current: 10 amps

Measurement System: Imperial , Metric

It's 8-channel WiFi network IO controller model. And it has integrated with the 8-channel relay to help you realize controlling your other devices remotely. This Model helps you to avoid complicated wiring processes and save you much time to accomplish your goal.

Supports status return, can display current status of the relays With Reset function, short press to reset, long press to restore factory setting. Supports 485 networking. Supports Internal circuit protection, with optocoupler to prevent from external voltage surge.

Specifications:

Color: White, Black (Optional)

Operating Voltage: 9V~40V DC

Load Capacity: 250V/AC 10A

Size: 145*90*40mm/5.7*3.54*1.57"

Package Includes:

1*Controller Module
