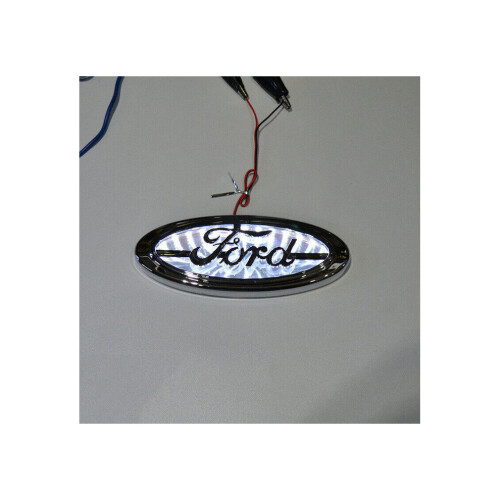

(White) Ford Car Emblem 3d Led Car Tail Light Logo Badge

(White) Ford Car Emblem 3d Led Car Tail Light Logo Badge Description

Size:14.5cm X 5.6cm

Applicable models:Focus ,Mondeo,Kuga

Lighting: Red light, blue light, white light / choose one of three

Power supply: DC12V+/-10%

Power 2(W)

Voltage 12(V)

Before starting, please have the following tools ready: 1. Flat head screwdriver 2. Phillips screwdriver 3. Insulation tape 4. Towel 5. Pliers

【Installation Notes】

1. First, lay a towel next to the car logo in the trunk, and use a flat-head screwdriver to pry the car logo. The towel is to prevent scratching the body.

2. Pay attention to peel off the double-sided tape from the car body first, and use moderate force when prying, don't be too violent, little by little, slowly pry it off, and clean the double-sided tape on the car logo and the car body.

3. Use a Phillips screwdriver to remove the partition inside the tail box. Note that there are clips in some places. Be careful to remove the sound insulation board to see various lines.

4. Now install the car logo light. The power cord of the car logo light passes through one of the car logo positioning holes, and penetrates it into the car box. Tear off the single-sided adhesive on the back of the car logo light, and stick the car logo light to the body while pulling the wire. tight.

5. The car logo light is installed, now connect to the power supply. The car logo light should be connected to the power supply of the rear license plate light, so that when the night light is turned on, the car logo light will also be turned on at the same time, find the power connector of the rear license plate light.

6. Unplug the plug first, peel a hole in the positive and negative poles to expose the wire core, and connect the wires according to red to red, black to black, don't forget to wrap it with insulating tape, and finally plug the plug back in! Reinstall the boot lid baffle.

Features:

1. The appearance of this product is the same as that of the original car logo. It is installed in the position of the car logo on the trunk and can directly replace the original car logo. The special vacuum electroplating technology it adopts can not only ensure the same gloss as the original car logo, but also ensure high light transmittance and uniform brightness.

2. Adopt high-quality LED light group, which has the characteristics of high brightness and long service life, and is specially designed to be waterproof and dustproof to ensure long-term use.

3. This product is specially designed for car modification enthusiasts. When the car logo light is off during the day, it is no different from the original car logo. When the license plate light is turned on at night, the LED car logo light will also light up, making the car The logo becomes dazzling in the dark.

4. The LED light inside adopts a special waterproof and dustproof design! The life of the LED lamp is up to 100,000 hours.

5. Using high-quality car-specific double-sided tape, the adhesive force is extremely strong and durable!
