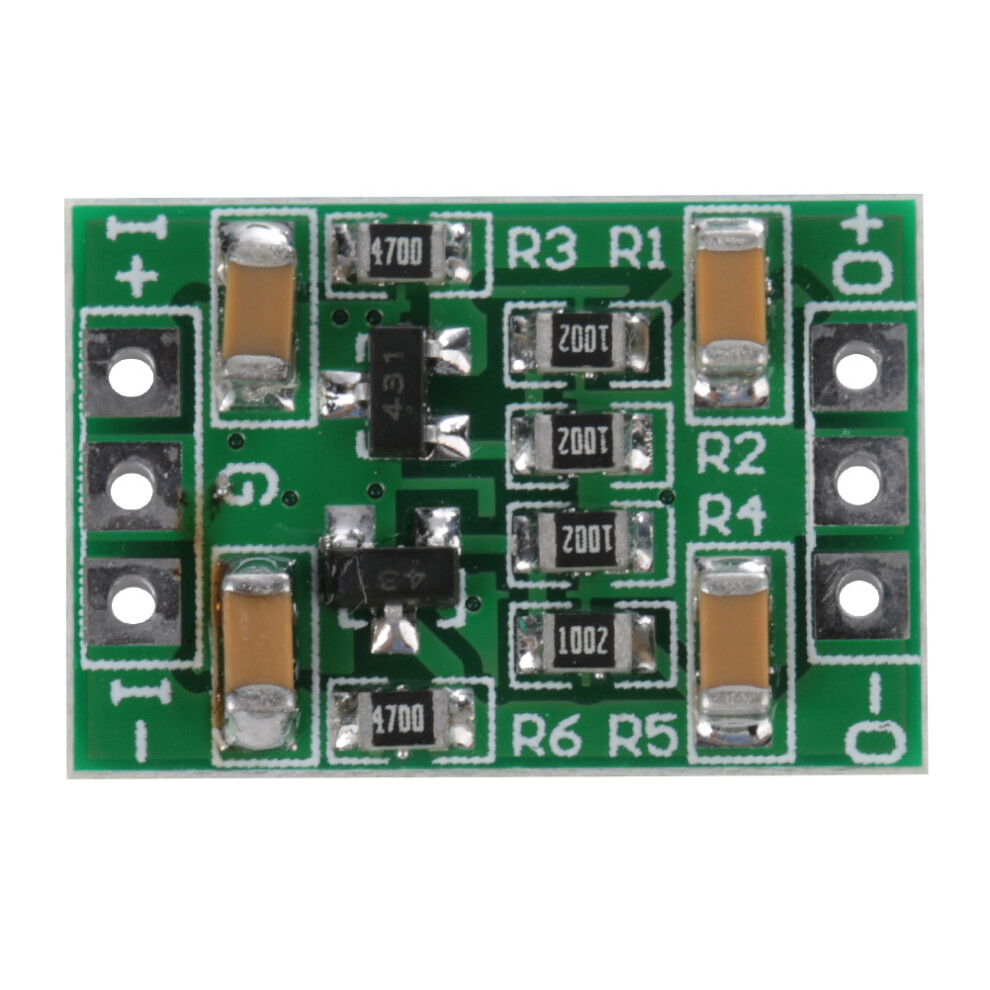

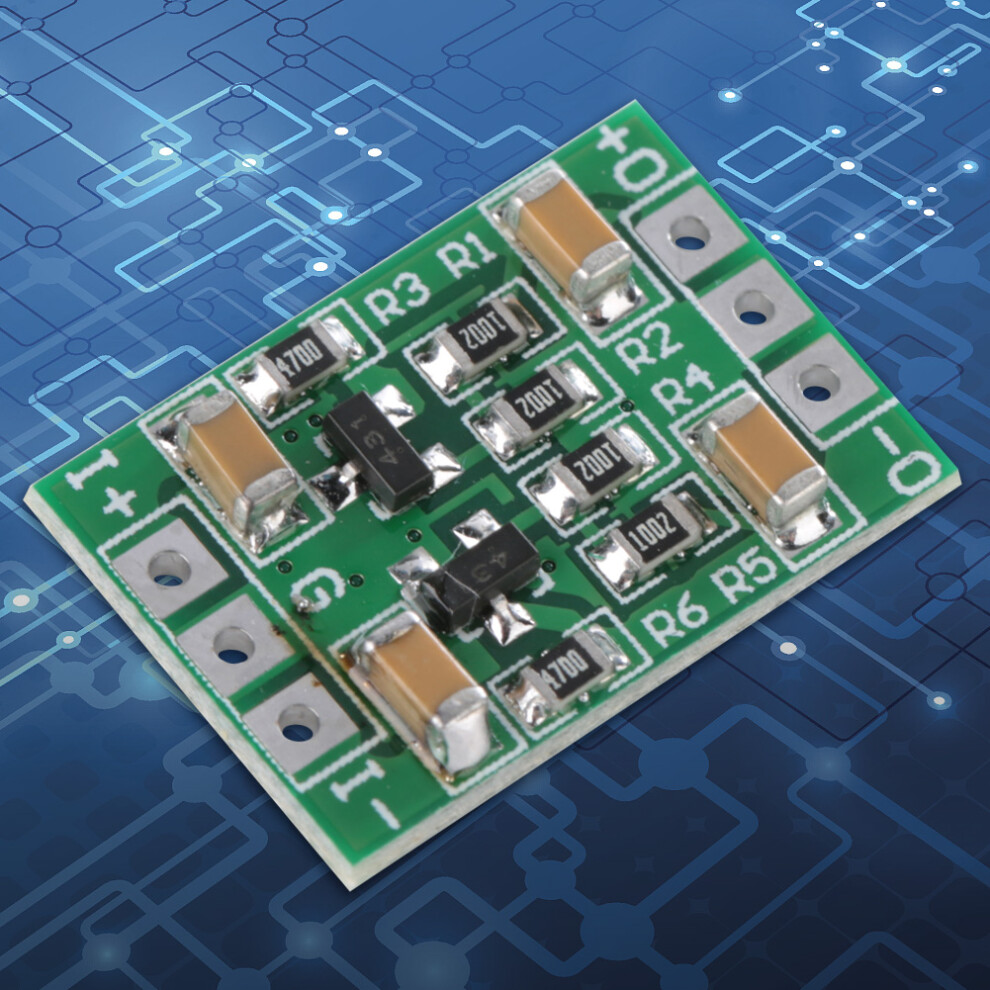

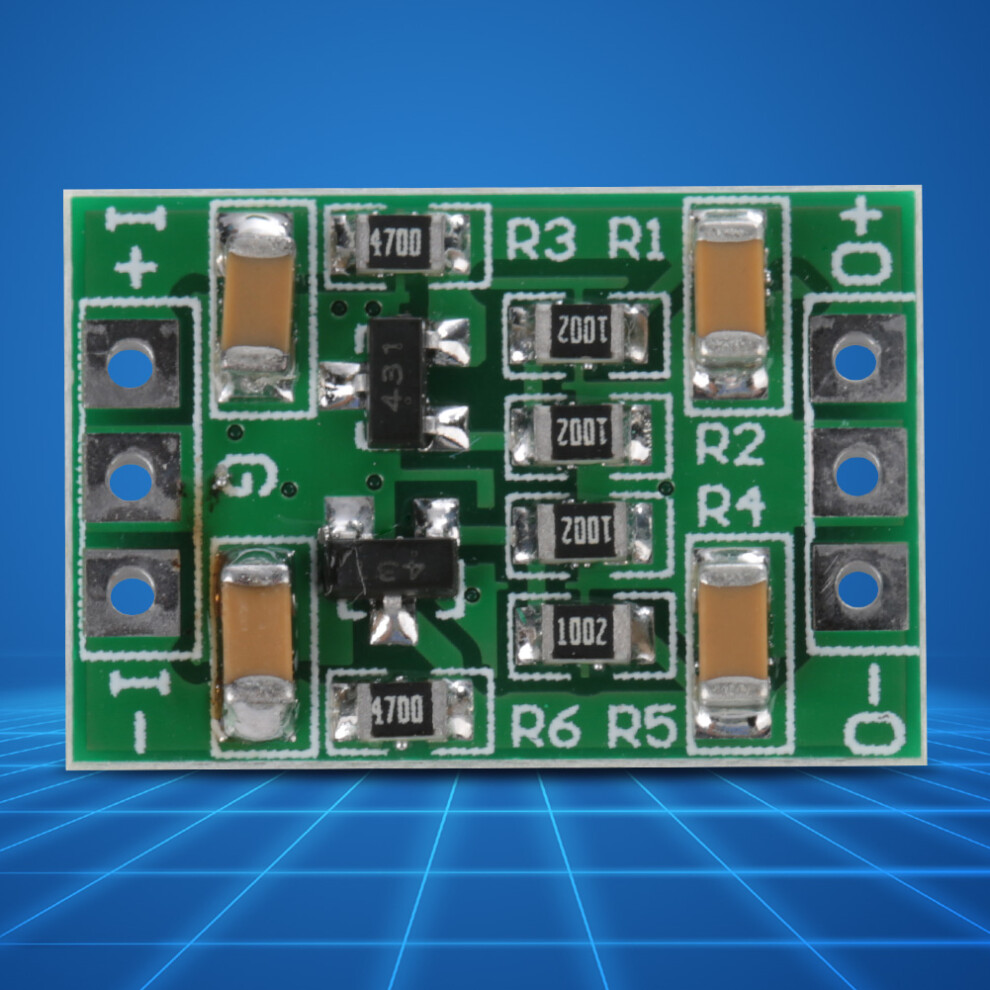

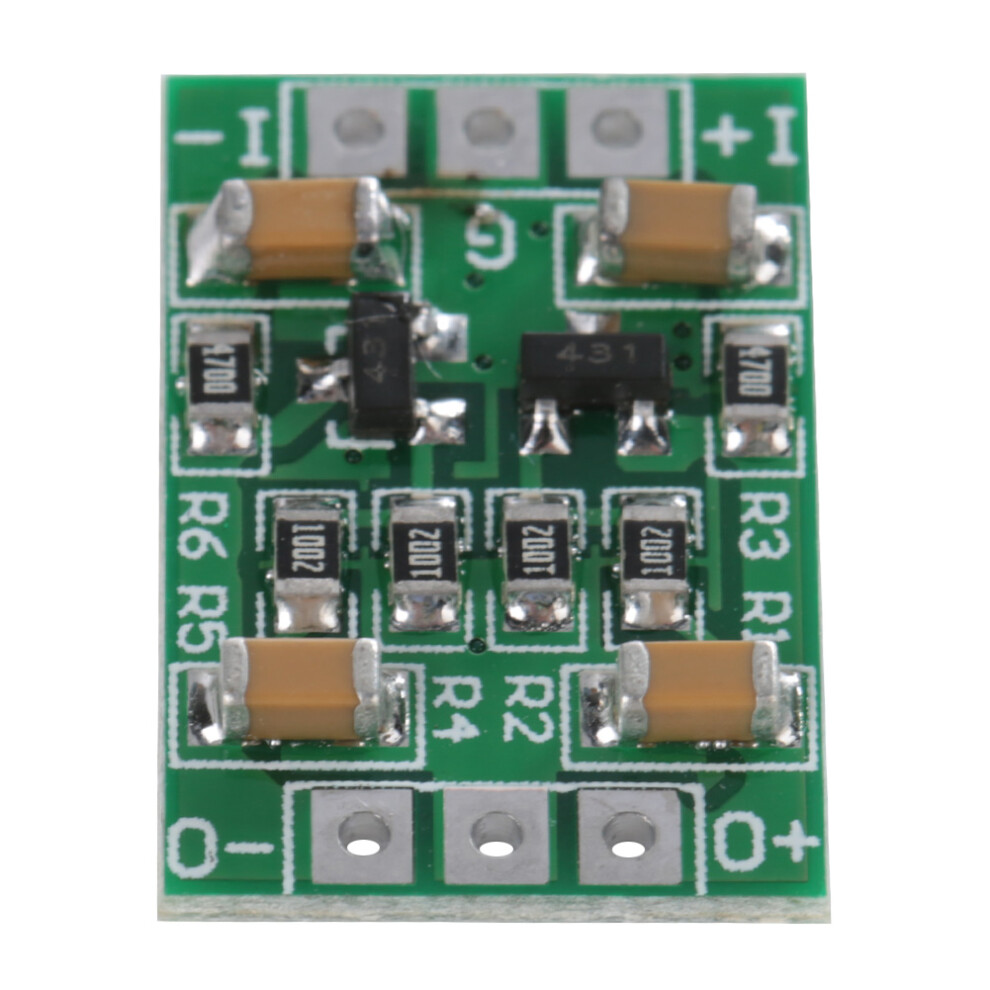

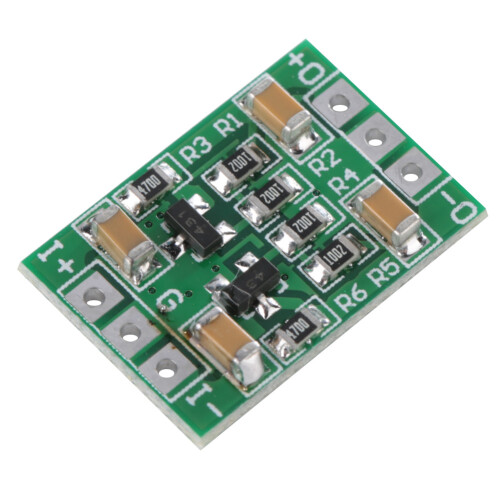

Wide Voltage 7.5V Precision Voltage Reference Board

Wide Voltage 7.5V Precision Voltage Reference Board Description

1、100% brand new and high quality 2、TL431 Positive & Negative Dual Output 1% Precision voltage reference source Module 3、Applications:Operational Amplifier : LM324 LM358 AD101 AD201 Etc.ADC : ADC0809 MAX160 AD7705 Etc.DAC :DAC0832 PCF8591 TL5615 MPC4822 TL5610.Replace AD584 LM399 LM4040 MC1403 LM326 AD637AD584;Audio equipment;RS232 RS485 RS422 Bus;LCD voltage reference;In 4、The terminal has good contact performance, ensuring stable working 5、Adopted of high quality electronic components, and precision process,itensures for the durability
Features:
The terminal has good contact performance, ensuring stable working
Adopted of high quality electronic components, and precision process,itensures for the durability
2.54mm pin pitch,for MCU Development Board Breadboard friendly.
Specification:
Output voltage:2.5V,3.3V, 5V, 7.5V , 10V, 12V (Optional)
2.5V :
Input Current 2.5-16MA,MAX Output Current 0.6-14MA
3.3V :
Input Current 2.5-15MA,MAX Output Current 0.6-13MA
5V :
Input Voltage6-12.6V,Output Voltage5V
Input Current 2.1-16MA,MAX Output Current 0.1-13MA
7.5V :
Input Current 3-16MA,MAX Output Current 1-14MA
10V :
Input Current 3-15MA,MAX Output Current 1-13MA
12V :
Input Current 3-14MA,MAX Output Current 1-12MA
Accuracy :1%
Operating temperature range : -40~+125 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
Size : 19 * 13 * 2.8mm / 0.7 * 0.5 * 0.1in
Weight: 2.5 g / 0.1 oz(approx.)
Package list:
1 x Voltage Reference source Board
