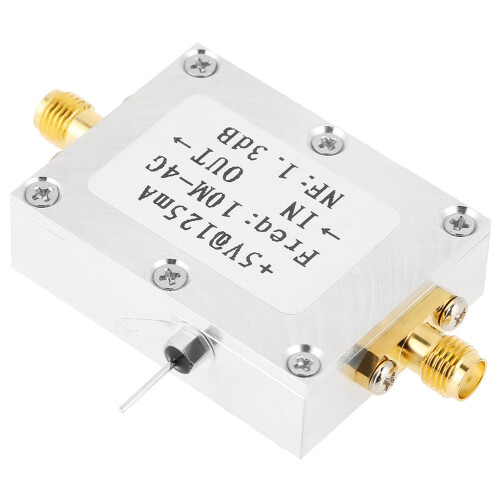

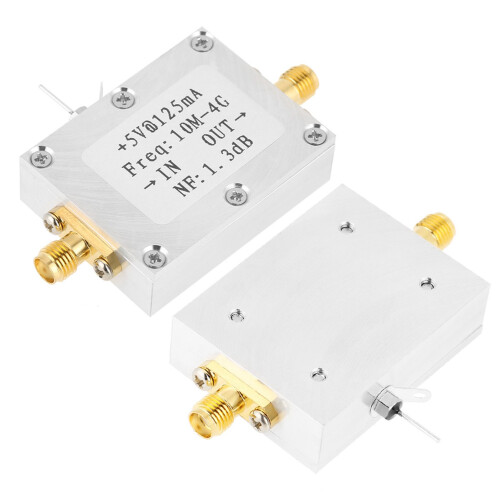

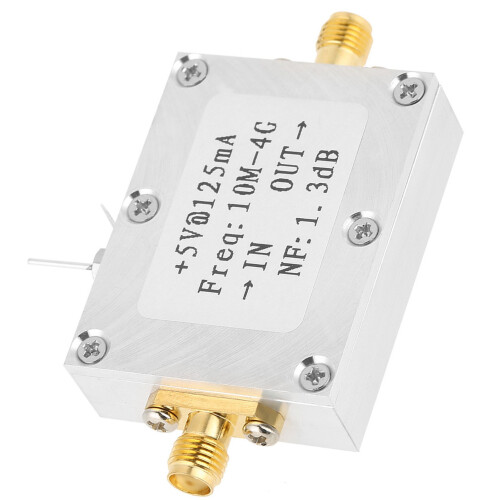

Wideband 0.01-4GHz 21dB Low Noise Amplifier Module 7x3.2cm
New
£29.38
Similar Products we think you'll like
Would you like us to let you know when it's back?
Description & Details
Summary
- Double sides adopt the process of immersion metal, make the printed circuit surface is stable with color, brightness and smooth coating, good welding property.
- Ultra bandwidth, high reliability, not easy to corrode and fall off.
- Power supply voltage: DC3-5.5V(typical +5V), (typical current value 125mA).
- Gain: typical value of [email protected] (Different frequency gains are slightly different ). Input output impedance: 50 Ω
- Maximum output power: P1dB +22dBm typical, +39.5 dBm Output IP3.
Wideband 0.01-4GHz 21dB Low Noise Amplifier Module 7x3.2cm Description
1pc Wideband 0.01-4GHZ 21DB LNA Low Noise Amplifier Module Board
Features:
Double sides adopt the process of immersion metal, make the printed circuit surface is stable with color, brightness and smooth coating, good welding property.
Ultra bandwidth, high reliability, not easy to corrode and fall off.
Power supply voltage: DC3-5.5V(typical +5V), (typical current value 125mA).
Gain: typical value of [email protected] (Different frequency gains are slightly different ). Input output impedance: 50 Ω
Maximum output power: P1dB +22dBm typical, +39.5 dBm Output IP3.
Specifications:
Bandwidth: 0.01-4GHZ
Noise coefficient: 1.3dB
Size: Approx. 7*3.2*1.3cm / 2.8*1.3*0.5inch
Weight: 41g
Package Included:
1 x RF Low Noise Amplifier
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Details
| OPC | PSXDDHS |
|---|---|
| Codes | 4961392939827 (EAN) |
