Wiegand Extender / Signal Format to RS485 Converte

Wiegand Extender / Signal Format to RS485 Converte Description

The extender does not distinguish between receiving and sending, The wiring is correct,Both sides need power supply, 9-24v,Adaptive wg26-wg80 format, Signal delay in 50-150ms
Model Number:WG-RS485

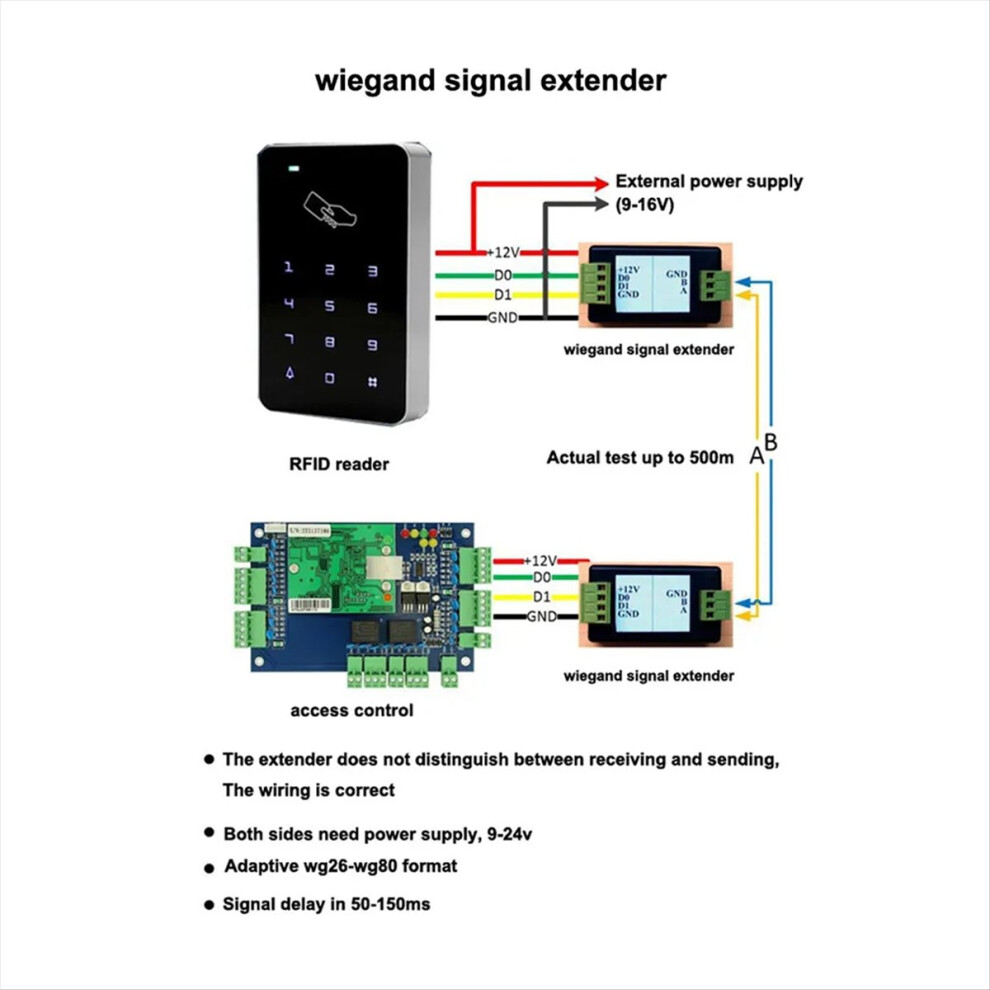

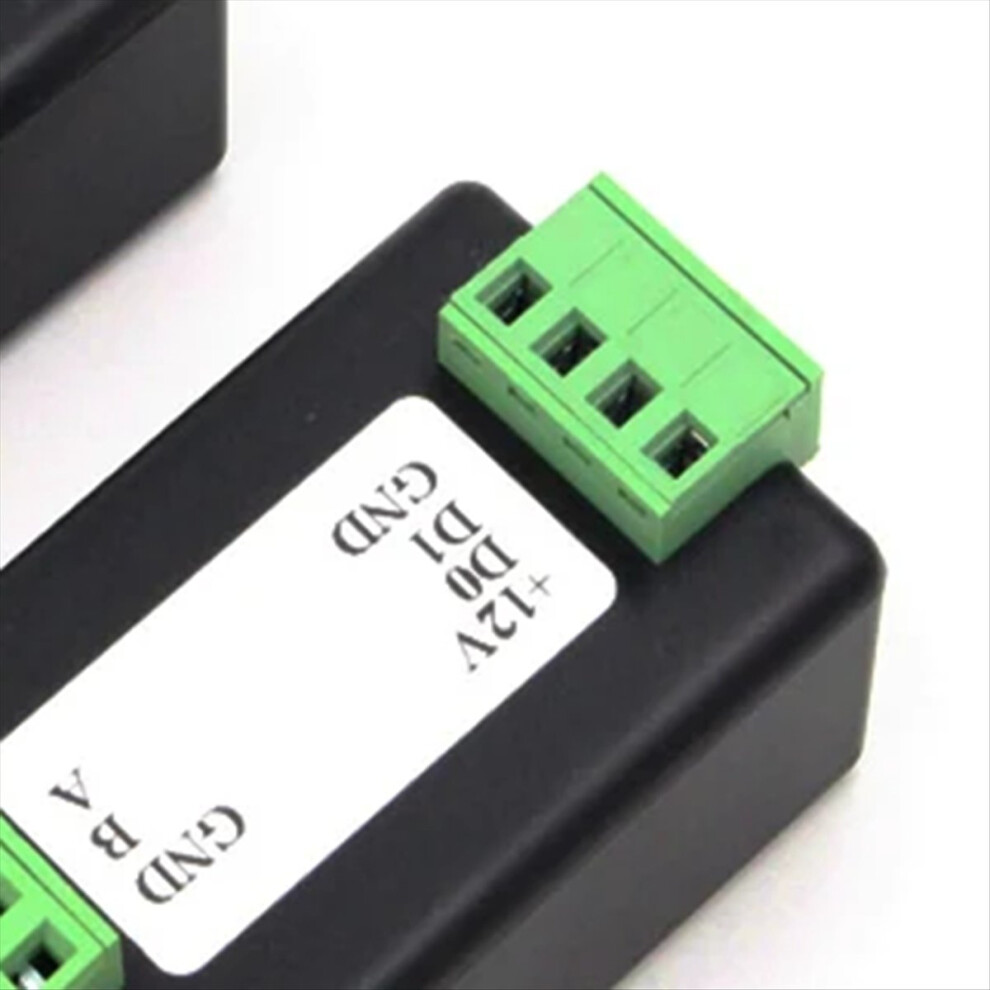

Instructions:Please pay attention to the following points when using the extender:1. The card reader must be connected to the transmitter, that is, the GND of both should be connected;
2. The access control board must be connected to the receiving converter, that is, the GND of both should be connected;
3. 5/6 type network cable can be used as the signal transmission line; the reader can be powered separately from the access control board 100 meters or more;
4. If the access control board is powered, it is best to supply the remaining pairs of cable in parallel, leaving only one pair of lines for transmitting 485 signals:
5. If you can't receive the signal, please open the converter cover and observe the change of the indicator light: working status: red light is on the sending end: the blue light is on; the receiving end: receiving the signal green light is on;
6. Converter 485 terminal GND can not be connected under normal circumstances, only connect AB two lines, such as using shielded transmission line can be connected to the shielding layer;
7. The extender needs to be used in pairs to function properly. The user should decode the card number when using it alone.
Colour:As Shown
Material:plastic

Package Contents:

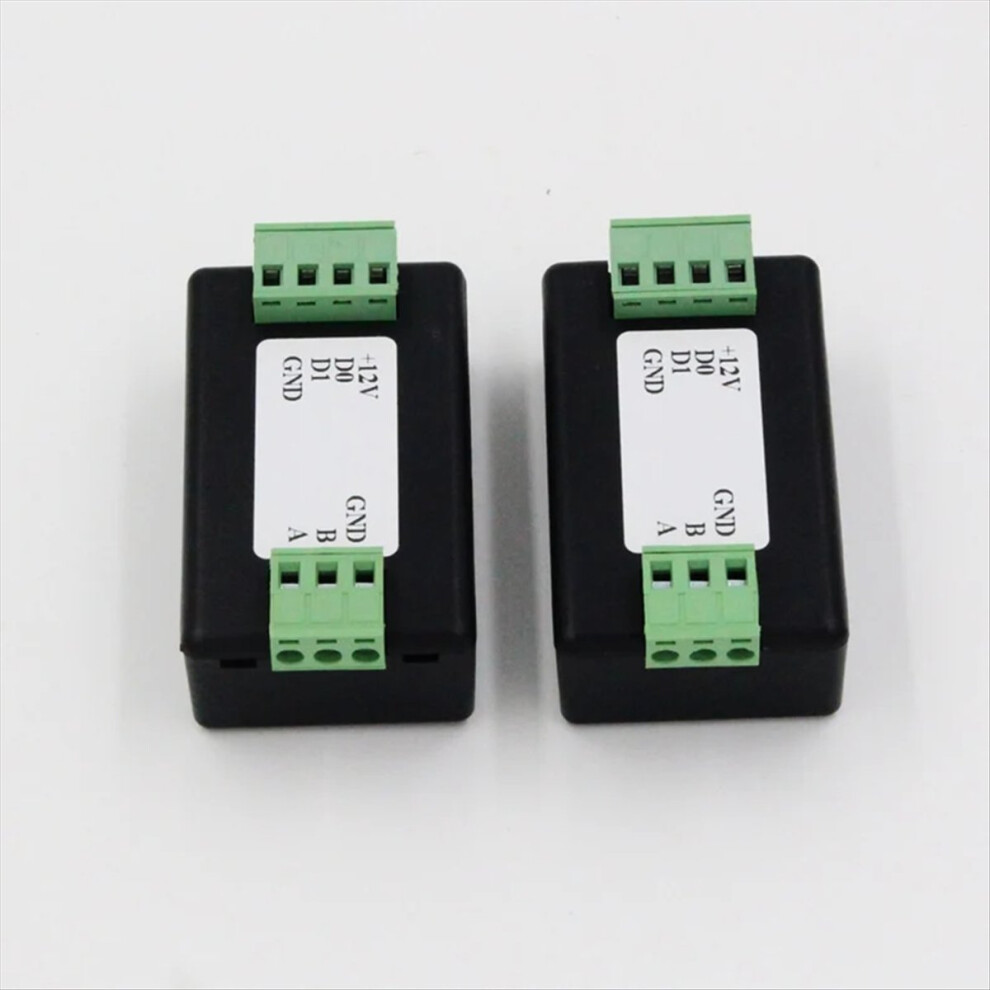

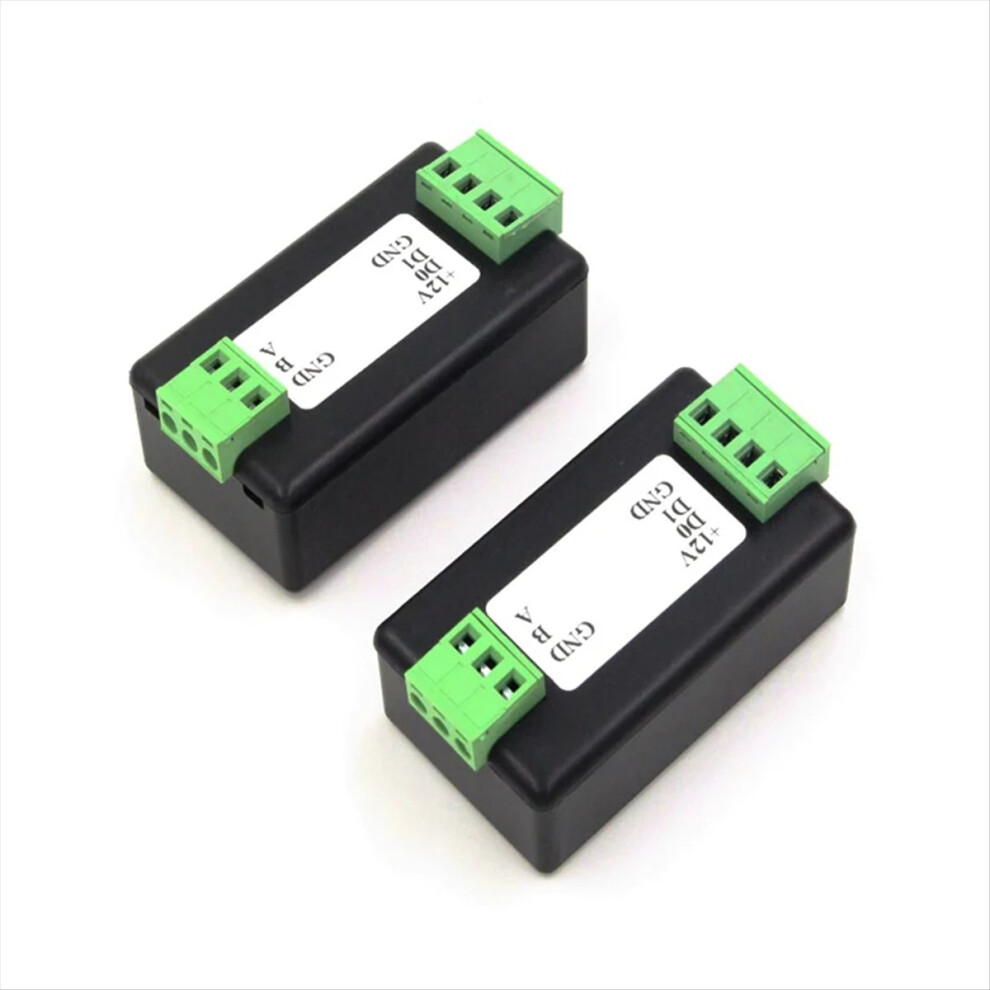

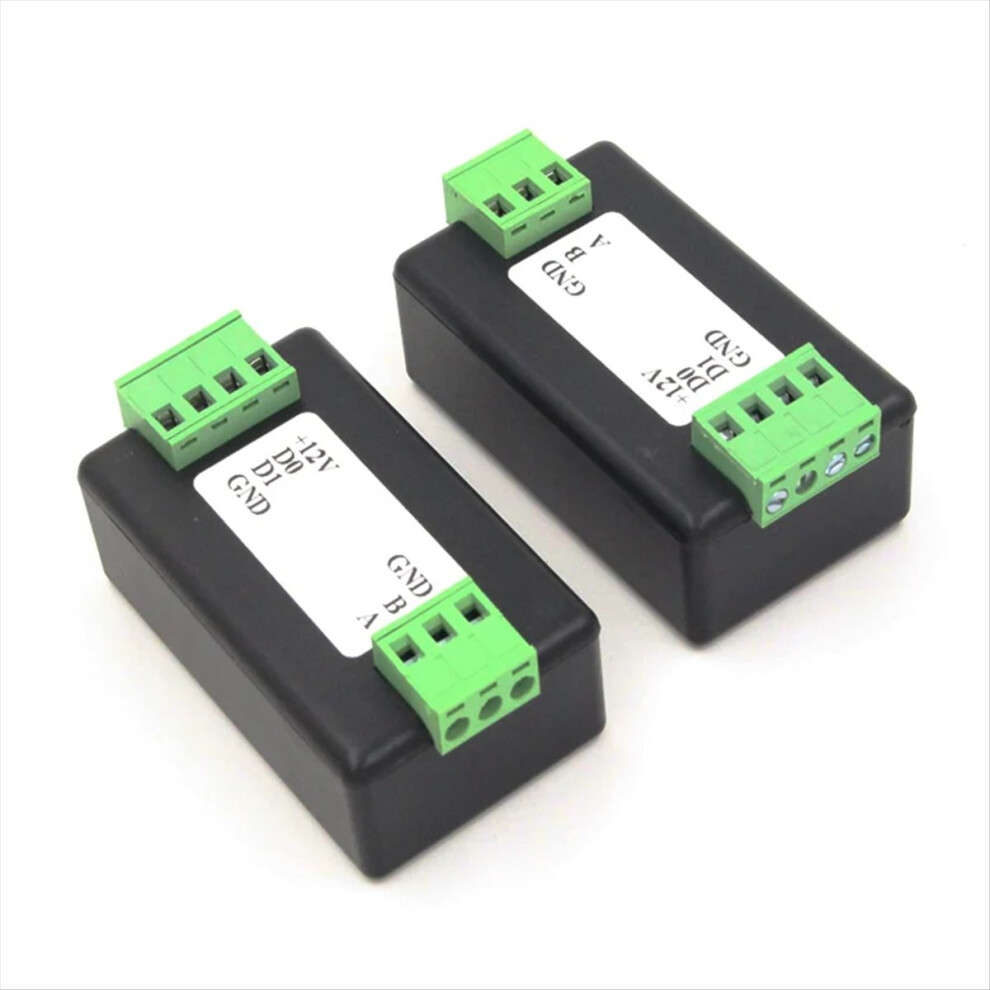

1Set x Wiegand Extender(Due to different product batches, the appearance , which does not affect the use)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
