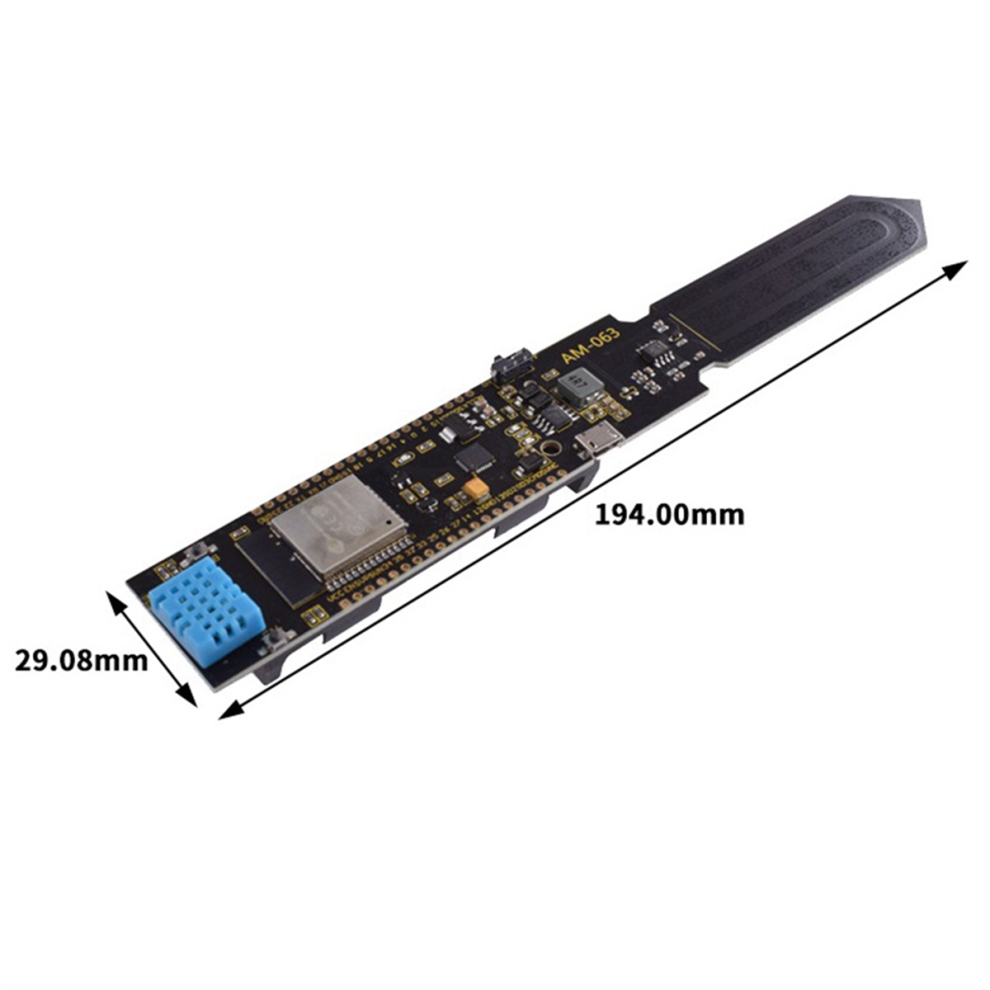

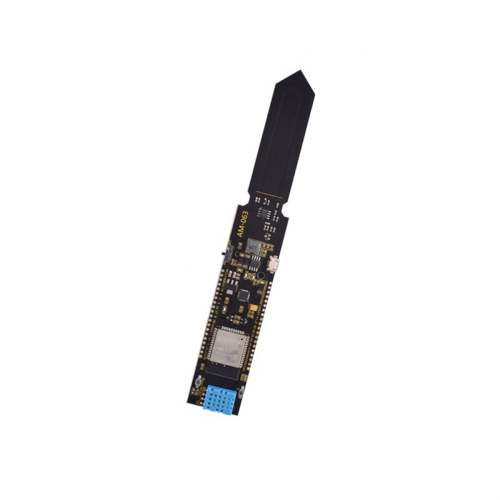

WIFI Bluetooth Temperature Humidity and Soil Module Remote Monitor

WIFI Bluetooth Temperature Humidity and Soil Module Remote Monitor Description

Module Body ESP-Wroom-32 Module
The Usb To Serial Port Chip CP2102 Is Used Peripherally To Extend The Micro-usb Interface.
It Can Be Directly Connected To The Computer Using USB For Debugging, And The Data Transmission Is Fast And Stable.
Adopts A Of Wifi & Bluetooth Dual-Mode Dual-Core Wireless Communication Module, Which Integrates Bluetooth 4.2 And Wifi Transmission.

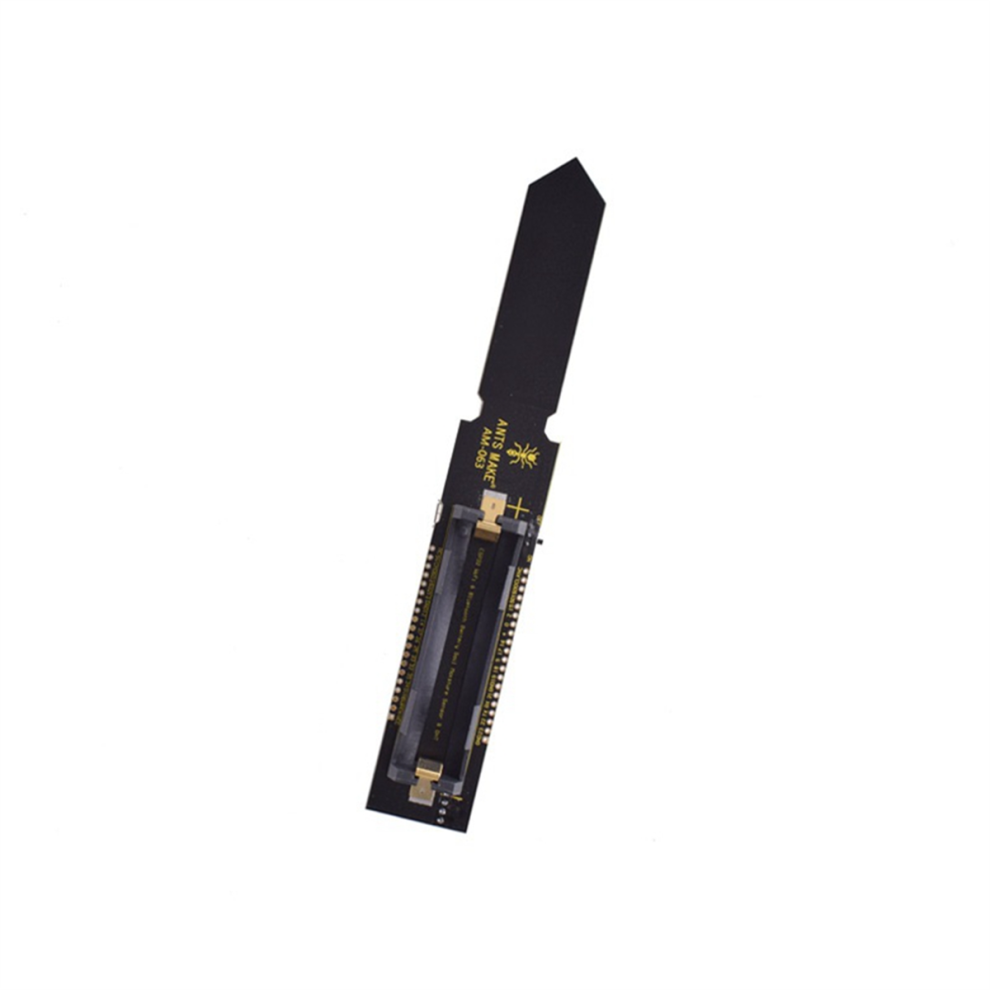

This Module Is Equipped With An 18650 Battery Holder, Which Can Be Powered By The Battery Or Charge The Battery, And Is Equipped With A Temperature And Humidity Sensor. Bluetooth Audio:Cvsd And Audio

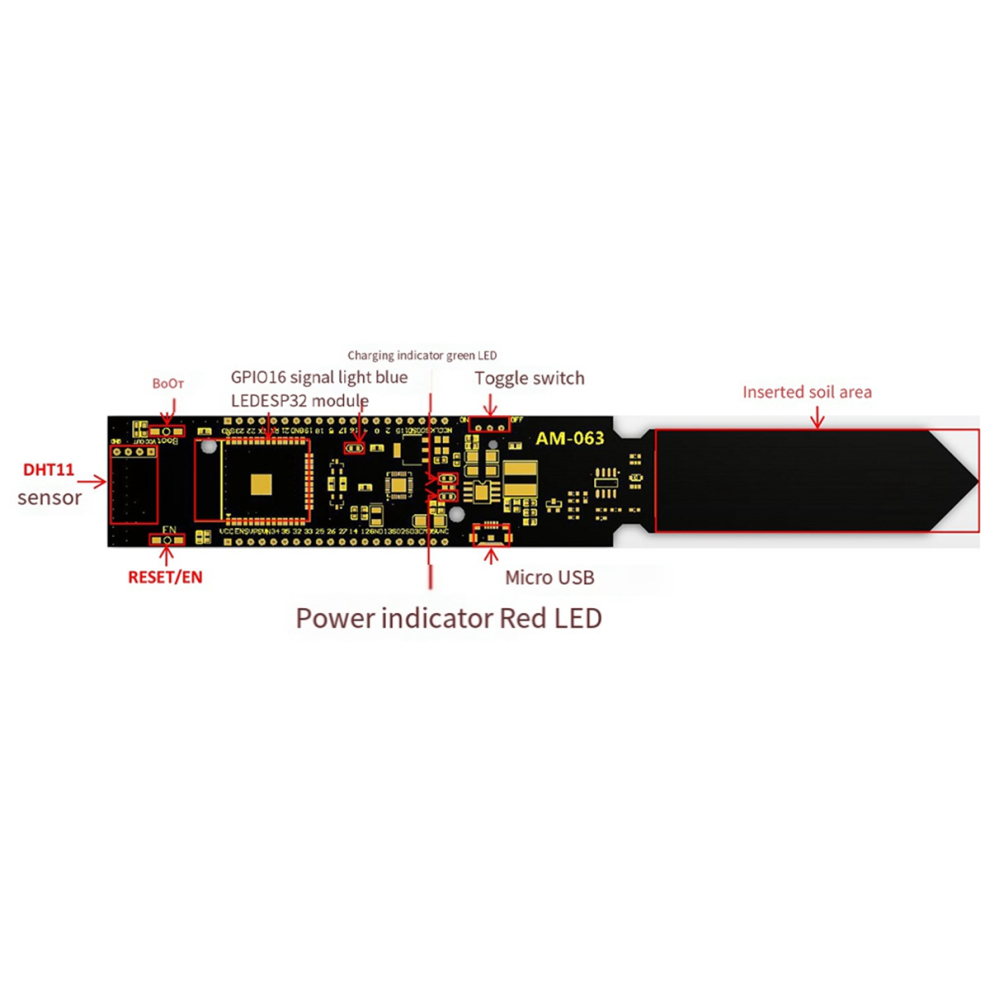

1. Toggle Switch: When It Is Turned On, The Module Enters The Working State. When It Is Turned Off, The Module Exits The Working State (The Battery Charging Circuit Is Not Affected By This Switch)
2. Red Led: It Does Not Light Up When The Battery Is Being , It Always Lights Up When It Is Fully , It Always Lights Up When The Battery Is Not Connected And Only The Usb Cable Is Used For Power Supply, And It Does Not Light Up When The Usb Cable Is Not Connected And The Battery Is Used For Power Supply.
3. Green Led: Always On When Charging The Battery, Not On When Fully , Flashing When The Battery Is Not Connected And Only The Usb Cable Is Plugged In For Power Supply.
4. Blue Led: Gp1016 Signal Indicator Light
Power Supply Voltage:DC3.6V-5V (Micro-USB Port 5V Input)

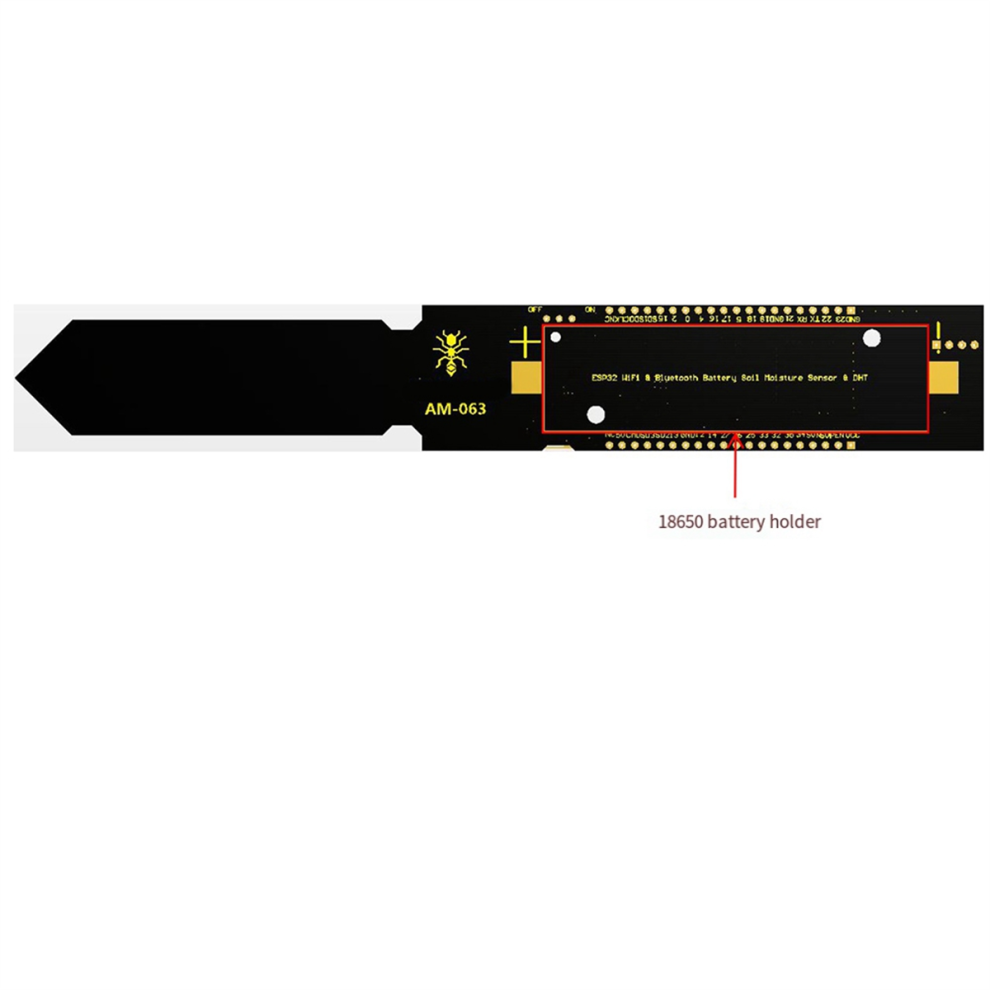

18650 Battery Holder And Integrated Battery Charging And Discharging Circuit.The Module Can Work While Charging The Battery
Wi-Fi Protocol:802.11 B/G/D/E/I/K/R (802.11n, To 150 Mbps), A-Mpdu And A-Msdu Aggregation, Support 0.4us Guard Interval
Wi-Fi Standard:Fcc/Ce/Telec/Kcc Frequency Range: 2.4-2.5 Ghz
Bluetooth Protocol:Complies With Bluetooth V4.2 Br/ And Ble Standards
Note:Different Batches May Have DifferencesIn Product Appearance, Color, And Printed Characters, Which Not Affect The Use
Colour:Black
Material:PCB

Package Contents:
1 * Temperature And Moisture Soil Module

Only the above package content, other products are not included.
