WIFI Signal Scanner 2.4G/5G Usage Analyzer Router Management Assistant Tester

WIFI Signal Scanner 2.4G/5G Usage Analyzer Router Management Assistant Tester Description

2.4-inch TFT color display, the battery level is displayed in the upper right corner of the screen.
Built-in 600mAh lithium battery, the working current is about 160mA, and the standby time is about 4 hours.
Built-in lithium battery charging management circuit. The charging time is about 2 hours.

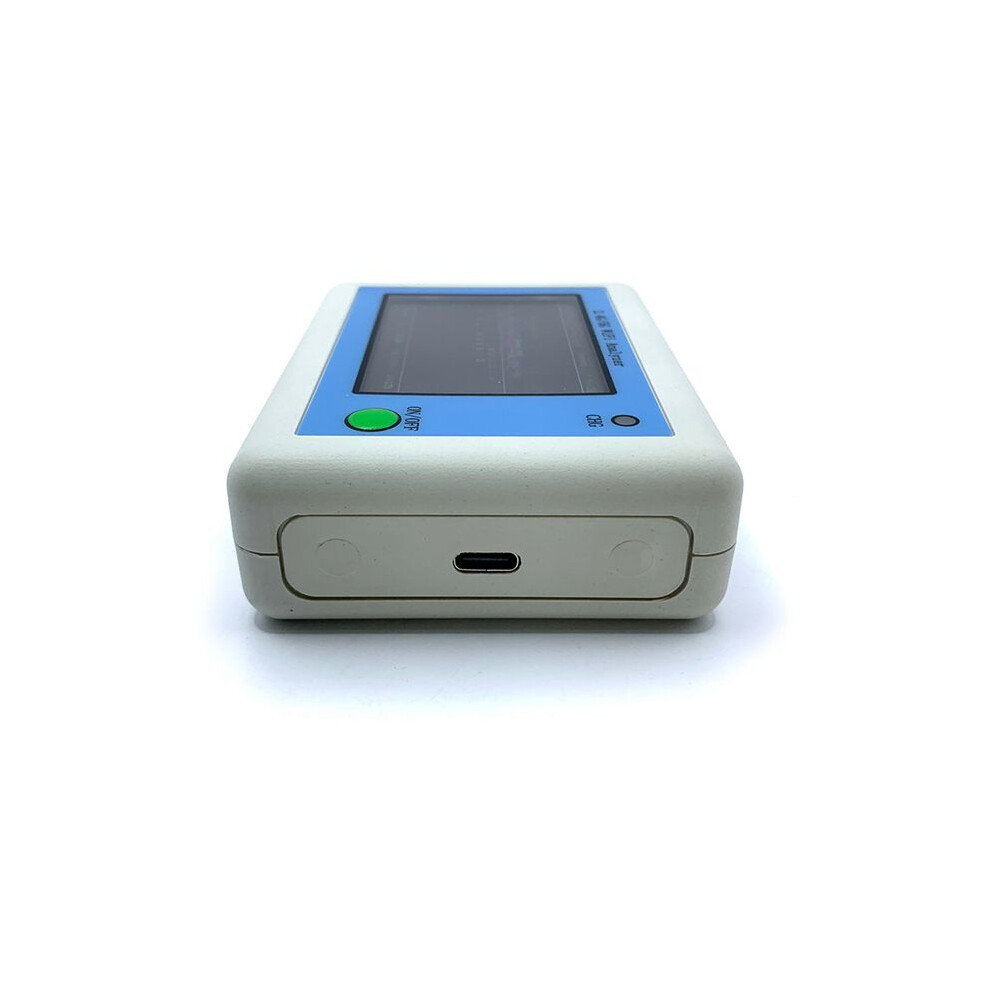

Use TYPE-C interface to charge, very convenient
The charging voltage is 5V. When charging, the red light indicates that it is charging, and the green light indicates that it is fully .

Instructions:
1. Long the button to power on, long again to power off
2. the button once to scanning, the button again to pause scanning

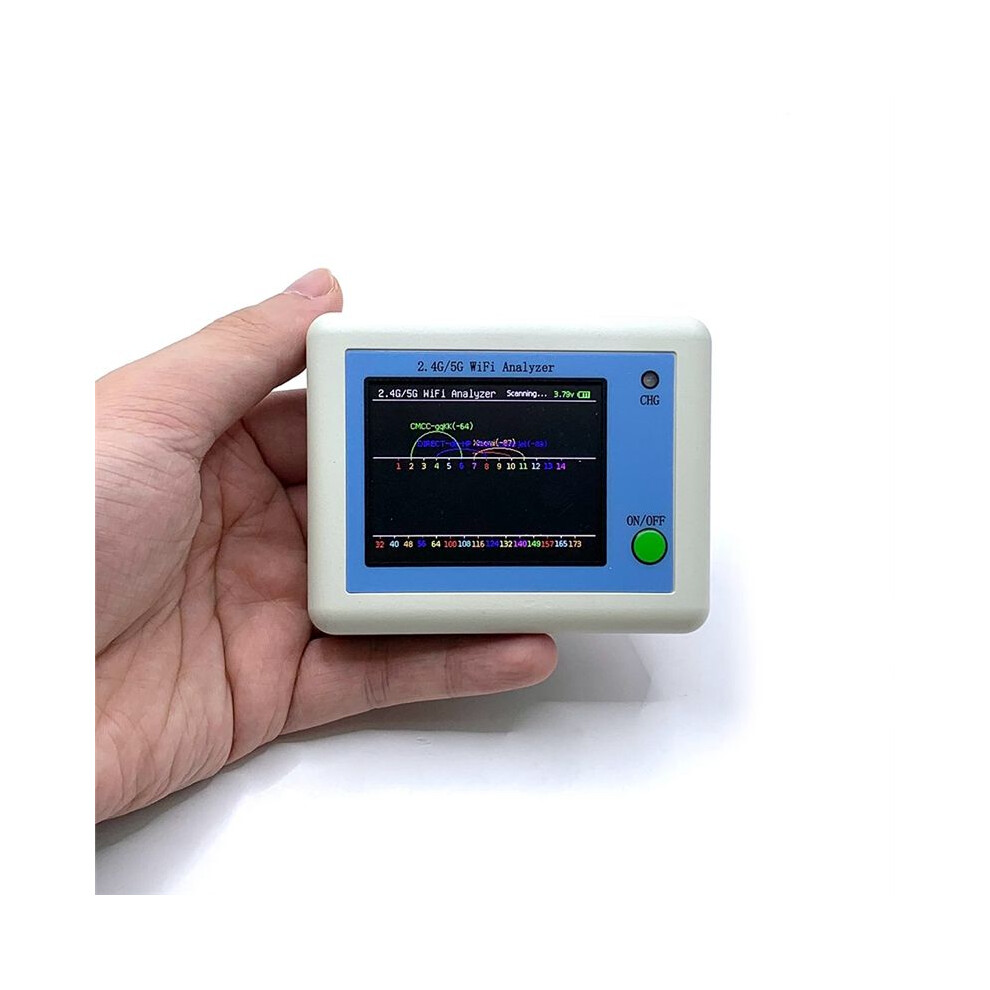

3. The waveform on the top of the screen shows all the wifi signals in the 2.4G frequency band. , only the wifi signal with the strongest signal is displayed. However, if there are multiple signals at the same frequency point, they be displayed in numbers below the corresponding coordinate scale. For example, if the number 5 is displayed, it means that the same frequency point is occupied by 5 wifi. The waveform below the screen corresponds to the waveform of the 5G signal. The interpretation method is the same as above. Since there are more frequency points of 5G signals, there is no way to mark all the frequency points on the coordinate scale.
Type: WIFI signal scanner
Interface: TYPE-C
Charging voltage: 5V
Material: ABS
colour: White

Package Contents:
1 x Host
1 x TYPEC Charging Cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
