Description & Details

Summary

  • Solenoid Operated Directional Hydraulic Control Valve 12v - High Flow up to 80l/min.
  • Modular Hydraulic Pressure Regulator Relief Valve - Pressure Adjustment Range 3.5-14 MPa (35-140 bar setting range).
  • Manifold Subplate - Forged Steel Construction
  • Winch Wireless Remote Control, 12V - Operating Range over 30m (100ft)
  • Full 12v Hydraulic Winch Control System.

WINCHMAX CETOP3/NG6 12v Hydraulic Directional Control. Full Kit. Description

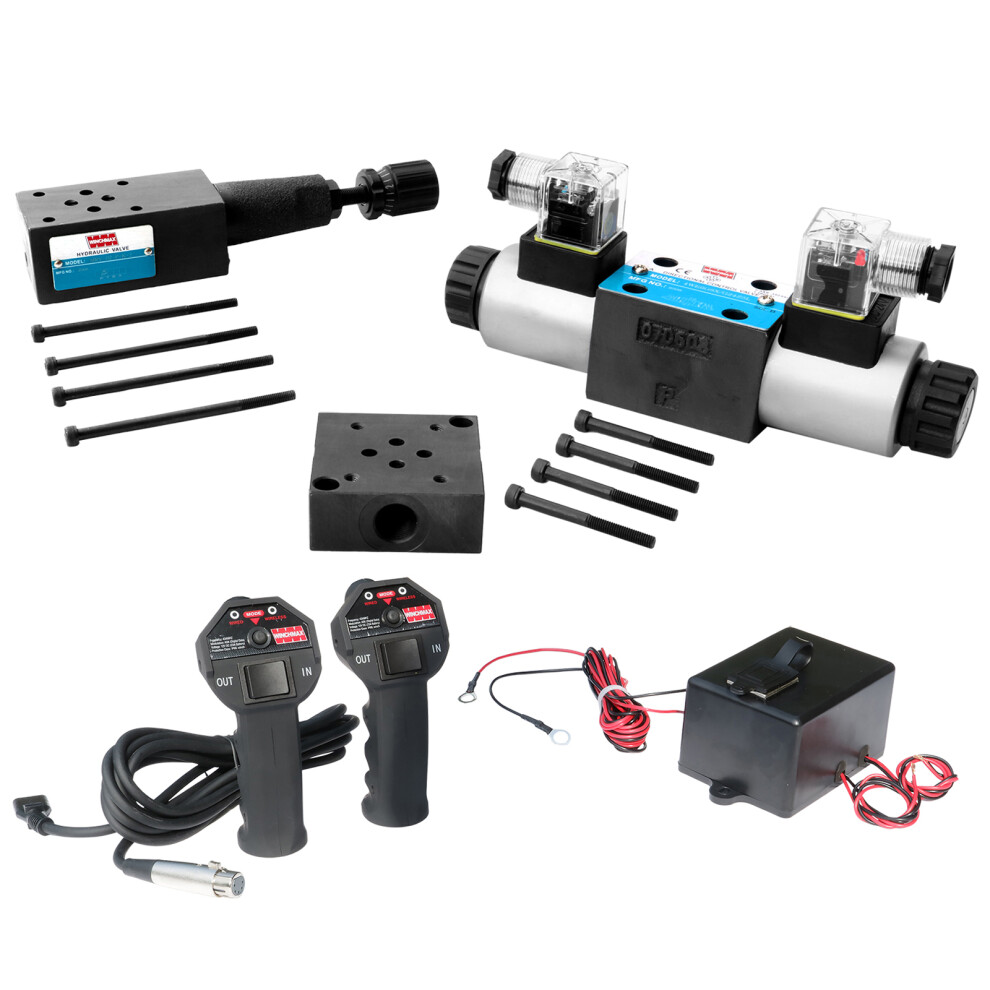

CETOP3/NG6 Hydraulic Directional Control Kit
High flow directional control for hydraulic winches.

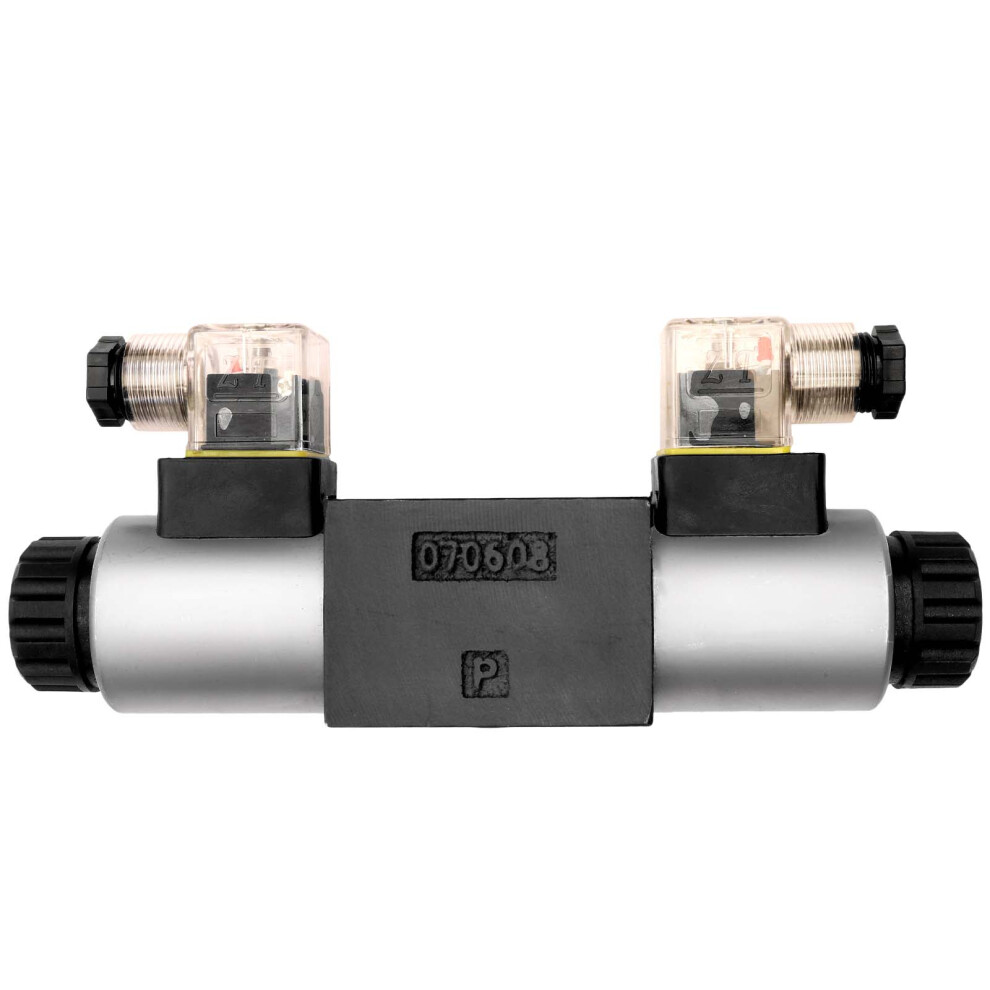

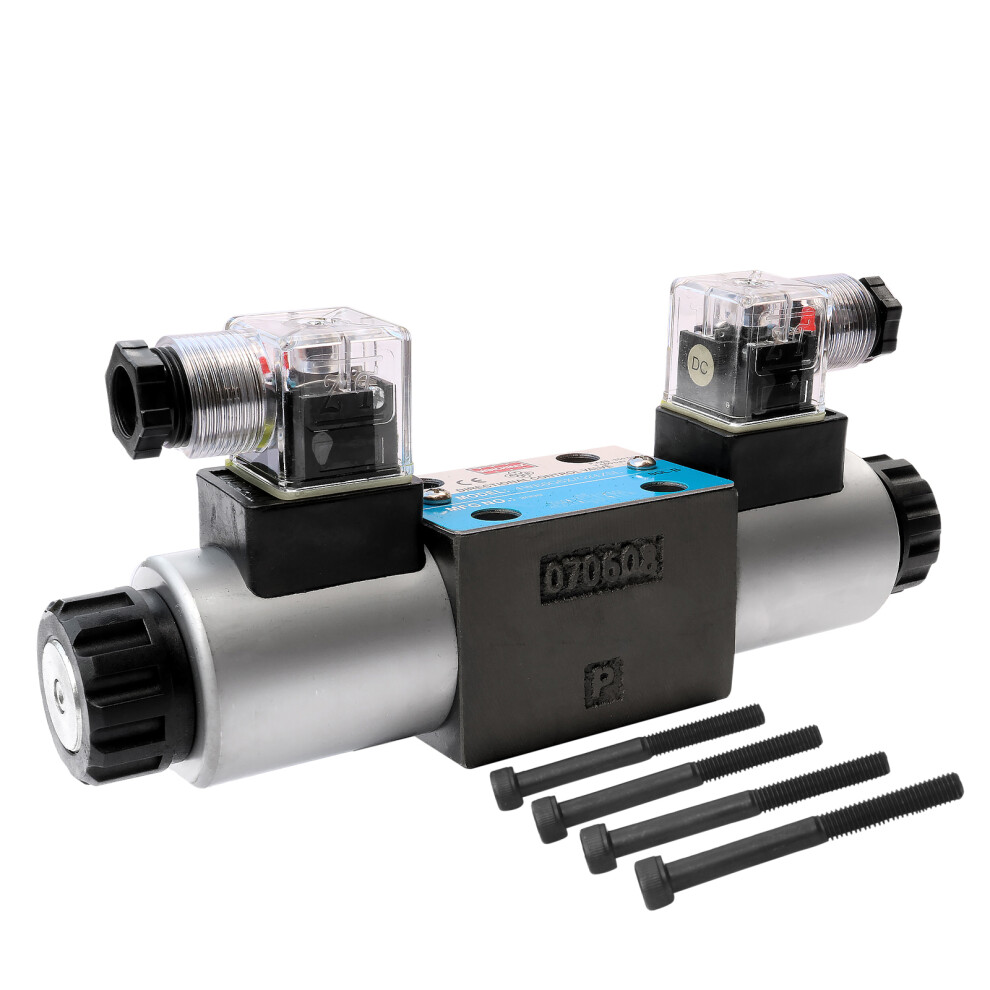

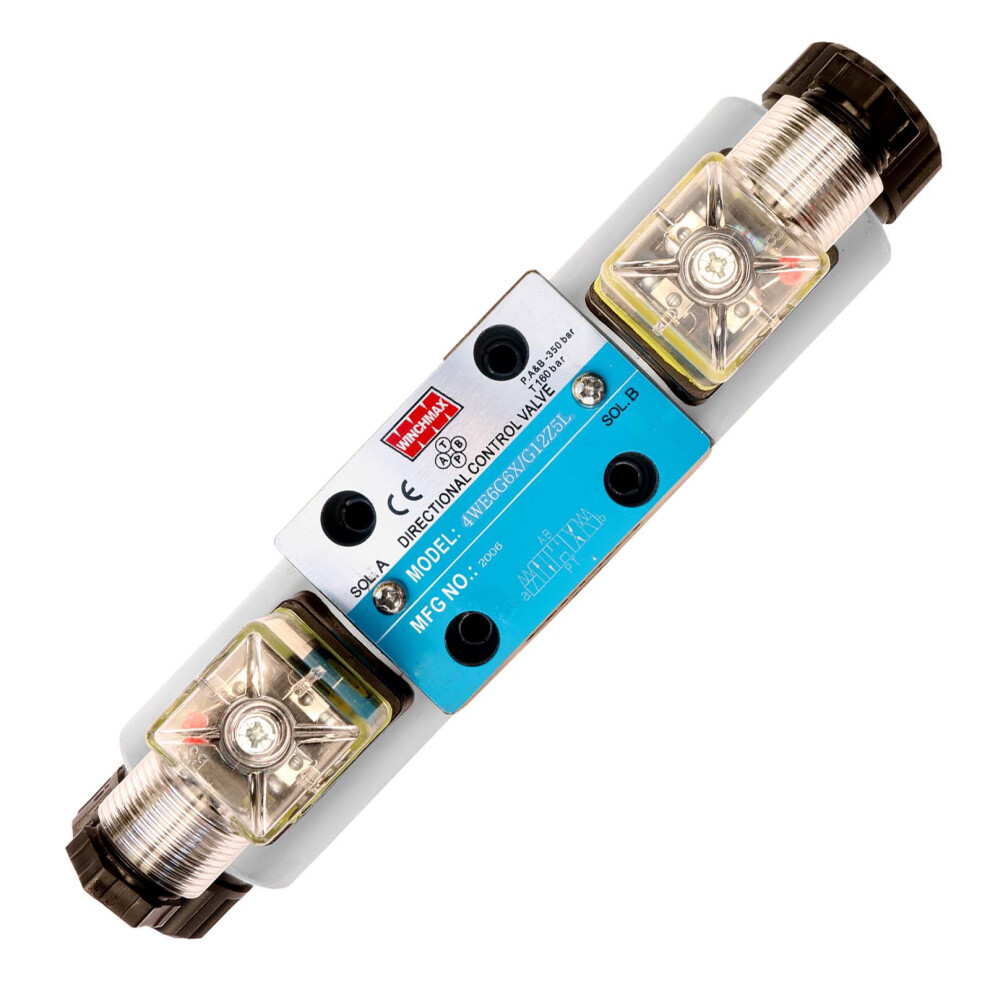

Solenoid Operated Directional Hydraulic Control Valve 12v
Used to start, stop, and direct the oil flow.

  • Double 12v Coils.
  • High Flow up to 80l/min.
  • Removable DIN plug connector with clear cover, cable gland, and LED indicator.
  • Configuration; Spring-centred P open to Tank, A & B Blocked.
  • Max Pressure P, A, B, 31.5 MPa (315 bar/4500 psi).
  • Manual override feature.

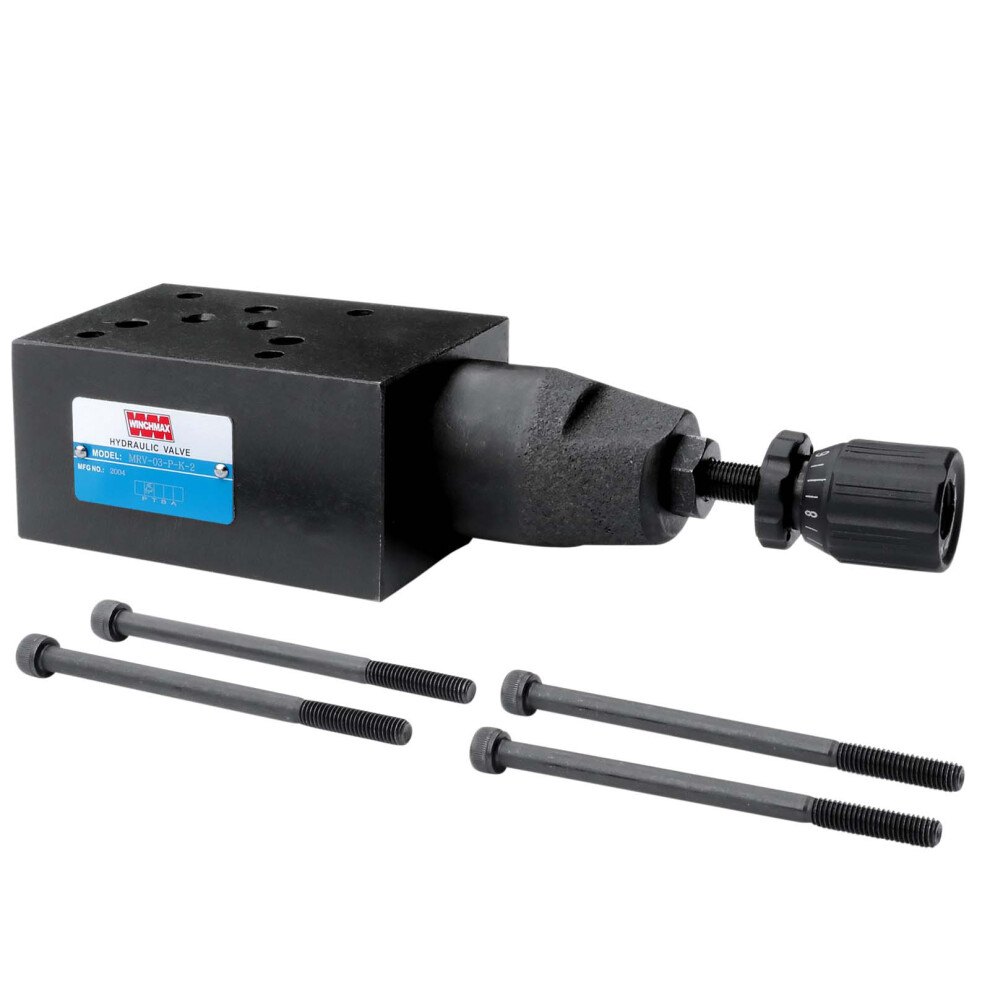

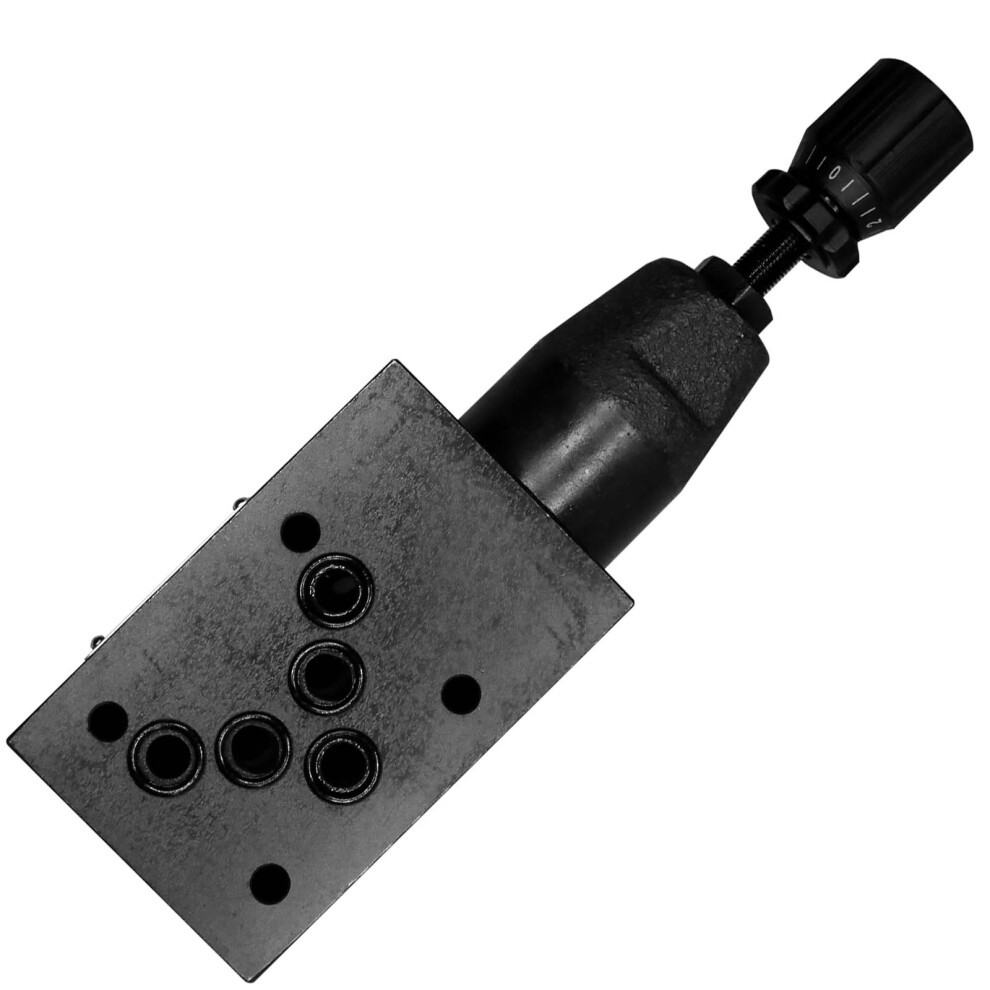

Modular Hydraulic Pressure Regulator Relief Valve
A modular relief valve is used to regulate the maximum pressure within the operating parameters of the winch or other item being controlled.

  • Easy to operate rotary calibration control with lock ring.
  • Maximum flow 35l/min.
  • P to T on operation.
  • Pressure Adjustment Range 3.5-14 MPa (35-140 bar setting range).
  • Supplied with extended bolts for attachment between direction valve and manifold block.

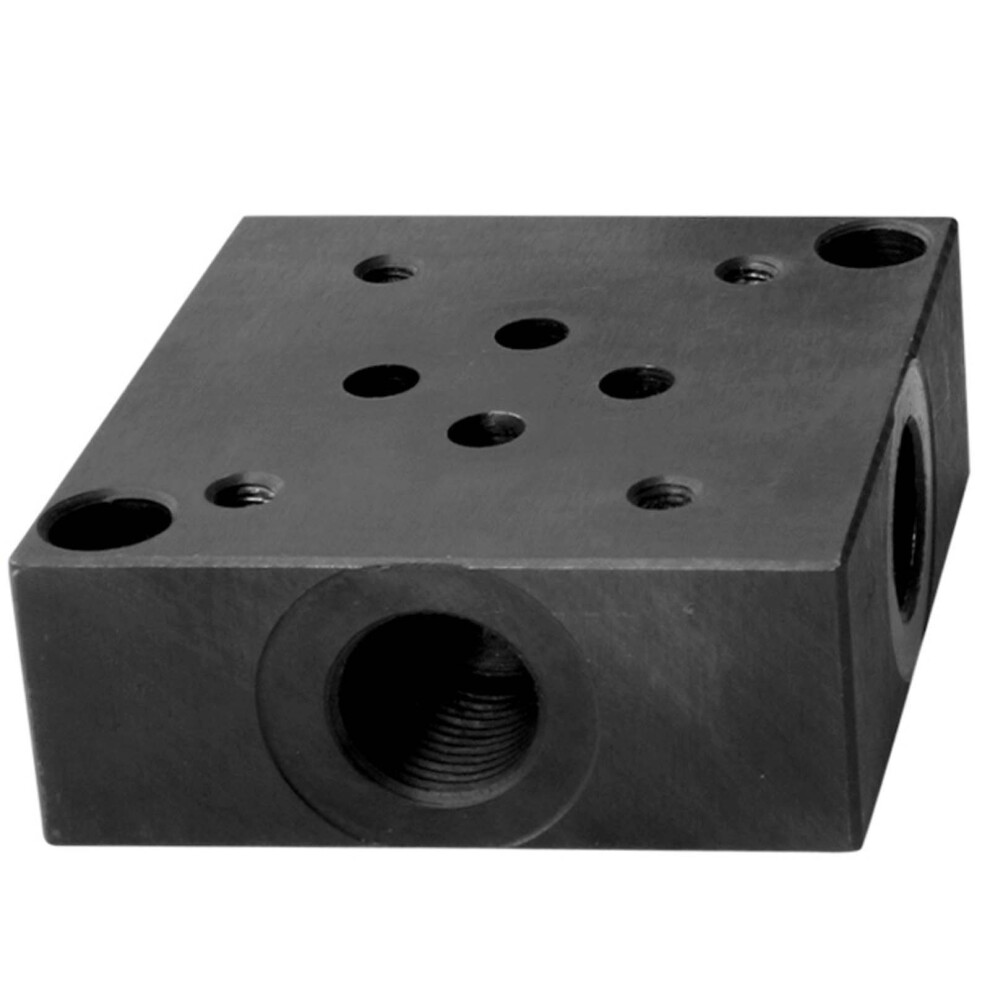

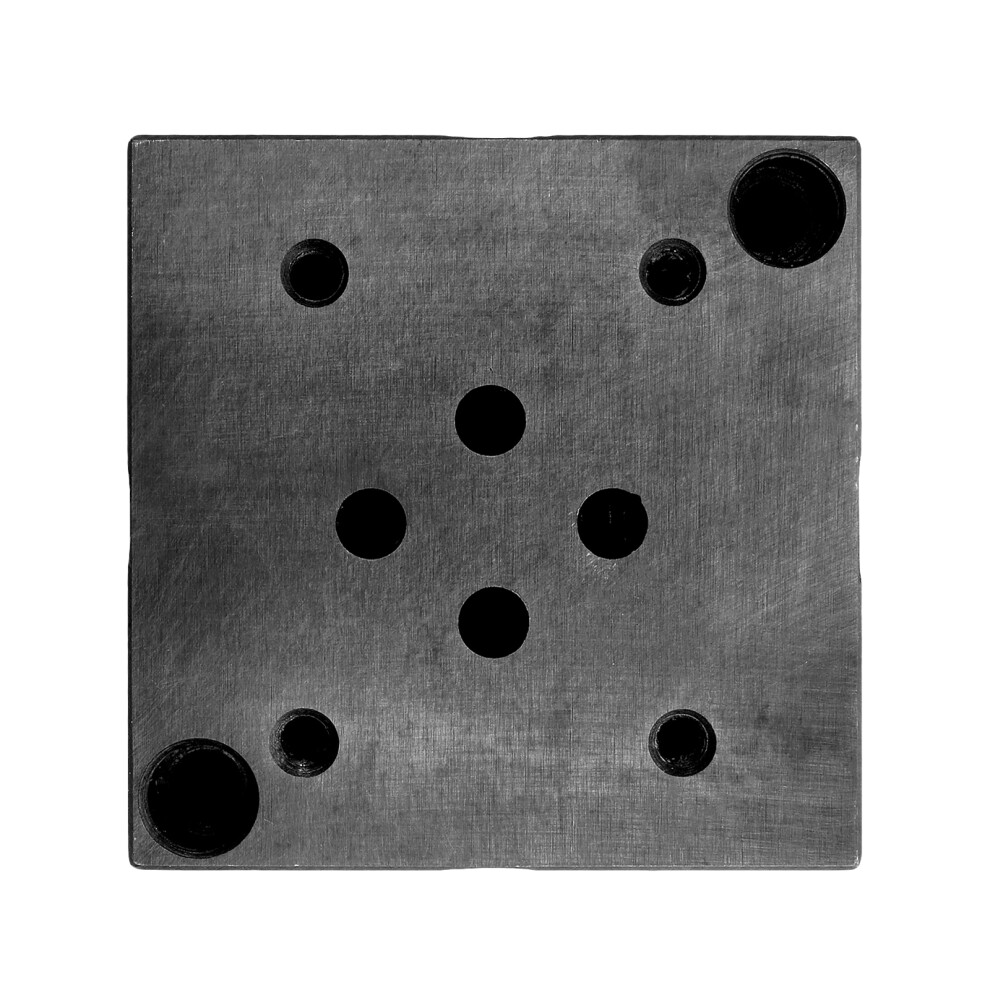

Manifold Subplate

  • Forged Steel Construction.
  • Side Ported P, T, A, B.
  • Port size 3/8 inch BSP.

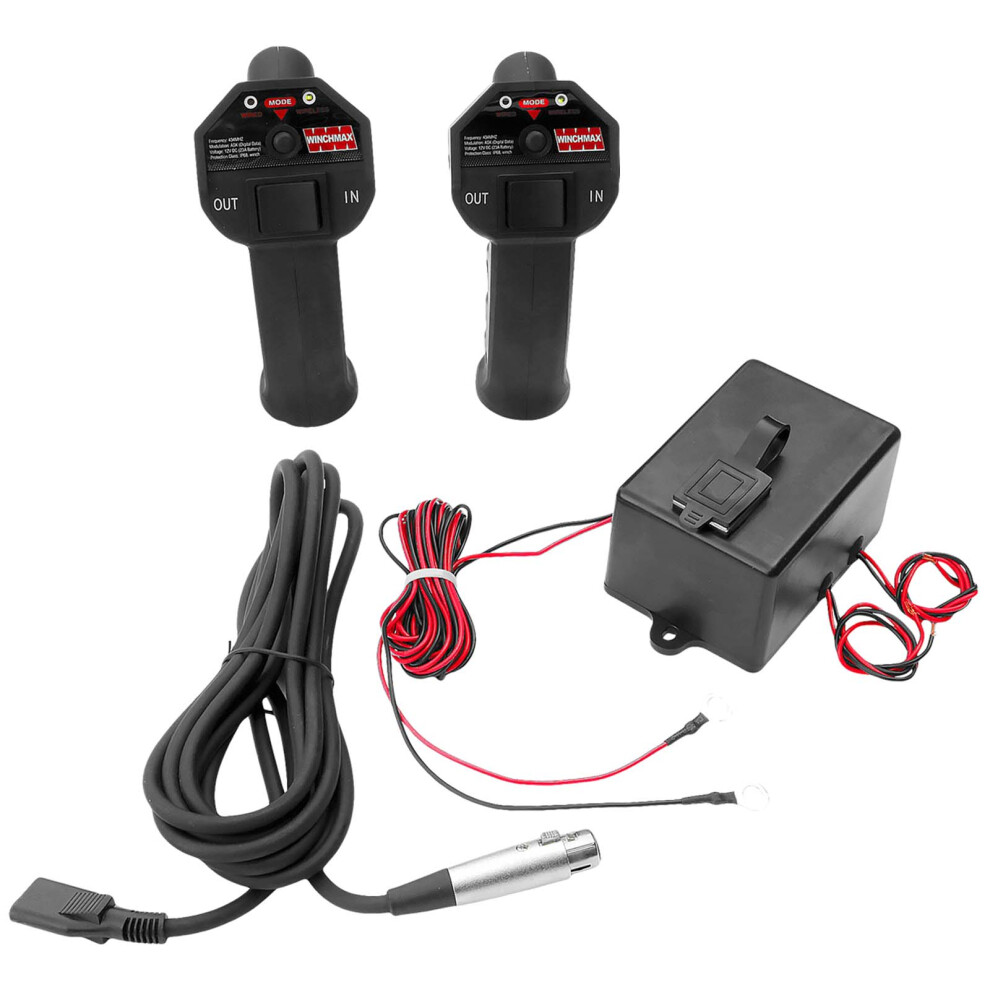

Winch Wireless Remote Control, 12V
Converts a 12V solenoid valve on a hydraulic winch from manual switching to long-range wireless remote control.

  • Supplied with two large grip handheld controllers.
  • Operating Range over 30m (100ft).
  • 250mm output cables to connect to the coils on an existing solenoid control valve.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.

Details

OPC P98CHX9
Brand
Codes 5060854570222 (EAN)
MPN WMHYSOLVALVE3-12V,WMHYREG3,WMHYBLOCK3,WMSLREMKIT12V(M)
