WINCHMAX CETOP3/NG6 24v Solenoid Valve, Manifold and Regulator

WINCHMAX CETOP3/NG6 24v Solenoid Valve, Manifold and Regulator Description

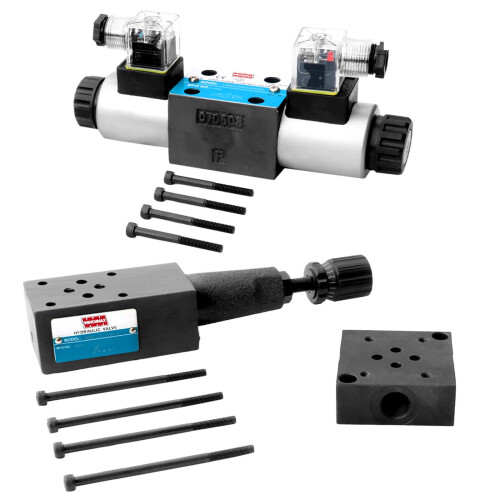

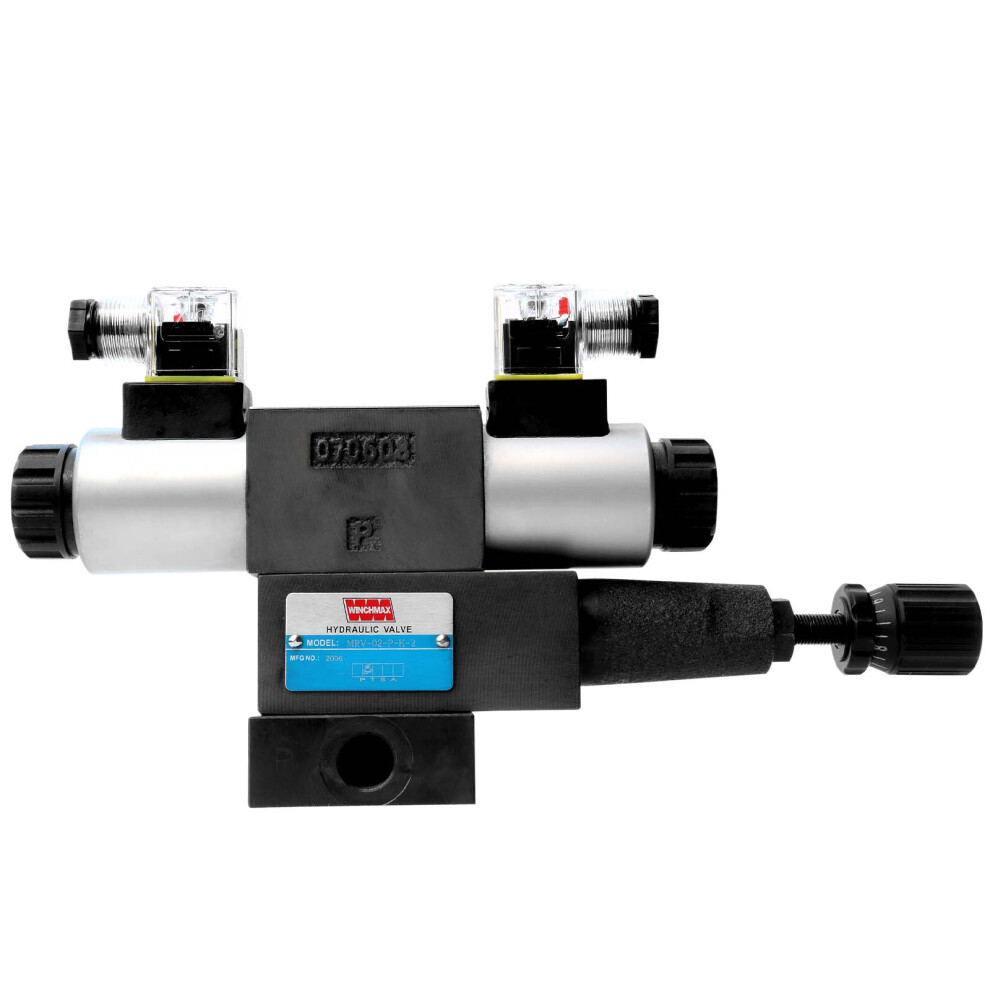

CETOP3/NG6 Solenoid Operated Modular Directional Control Valve with Pressure Regulator and Manifold Block
High flow directional control for hydraulic winches.

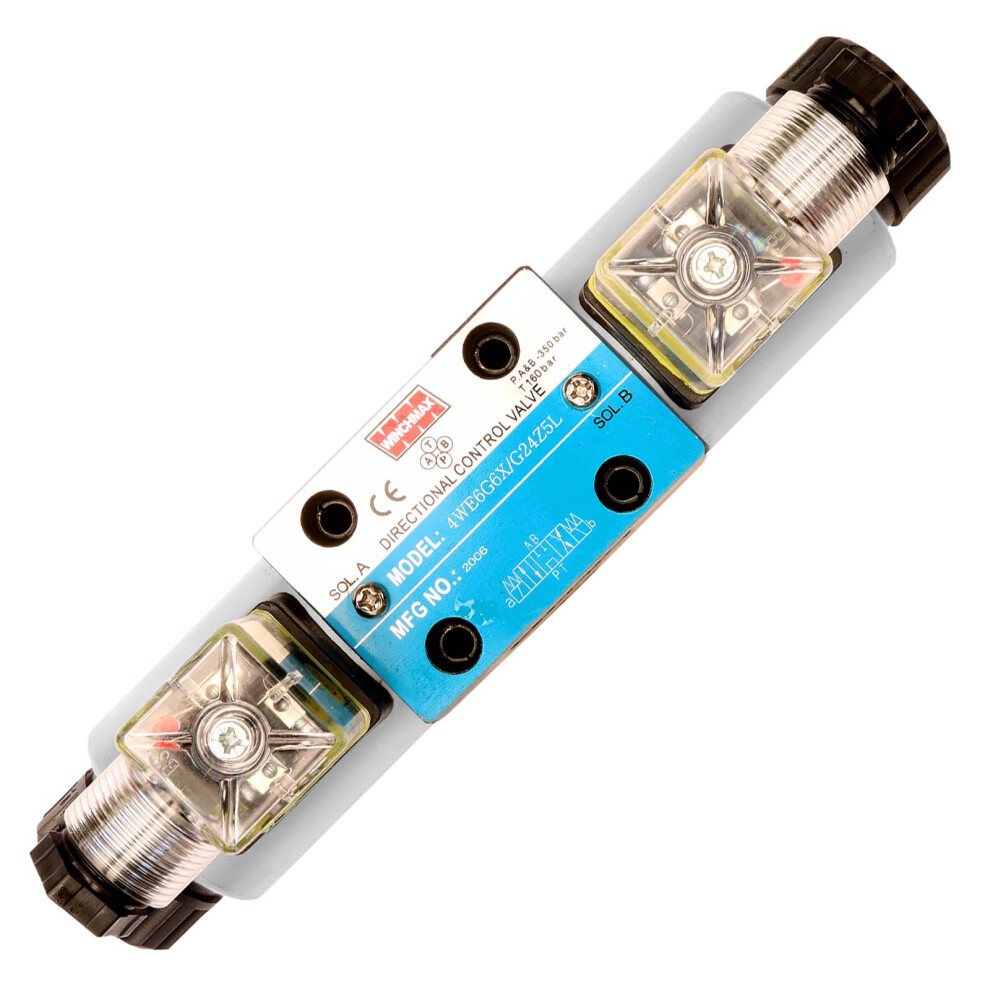

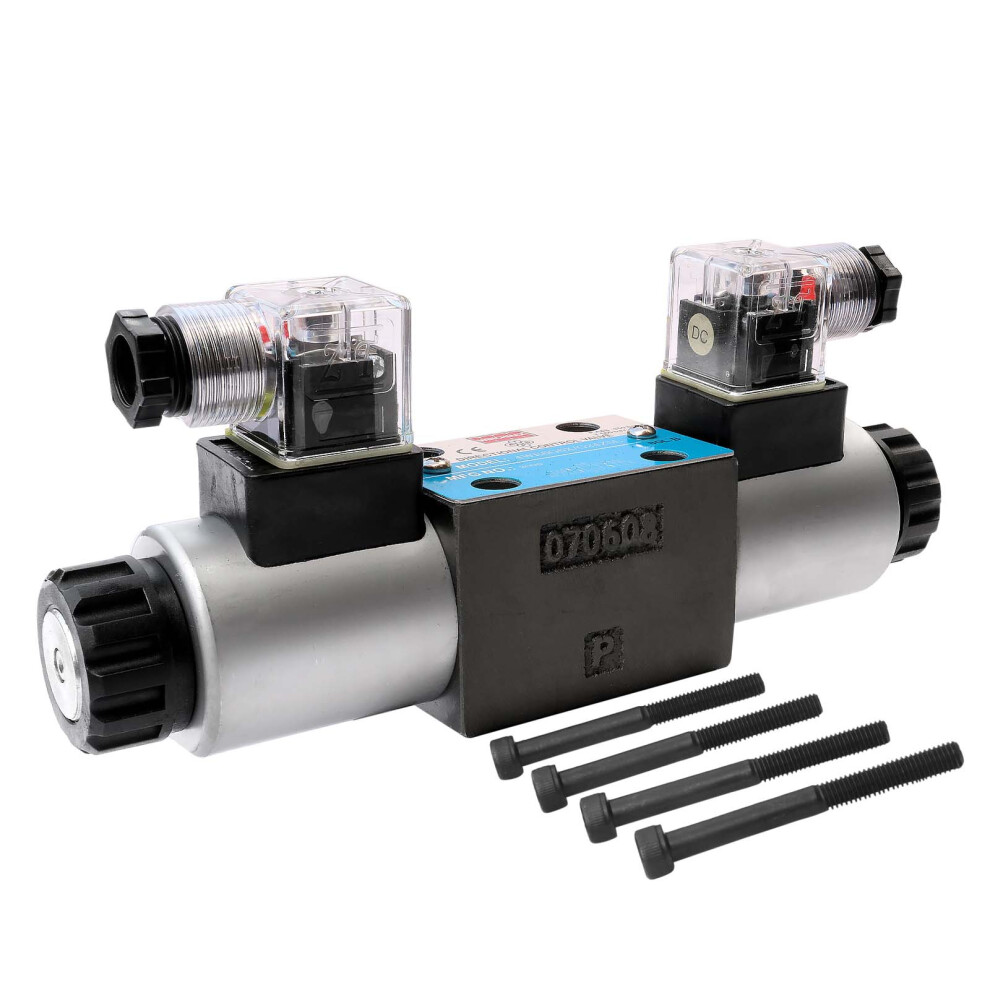

Solenoid Operated Directional Hydraulic Control Valve, CETOP3/NG6 Three-Position 24V
Used to start, stop, and direct the oil flow.

Features

• Double 24V Coils.
• High Flow up to 80l/min.
• Removable DIN plug connector with clear cover, cable gland, and LED indicator.
• Configuration; Spring-centred P open to Tank, A & B Blocked.
• Max Pressure P, A, B, 31.5 MPa (315 bar/4500 psi).
• Manual override feature.

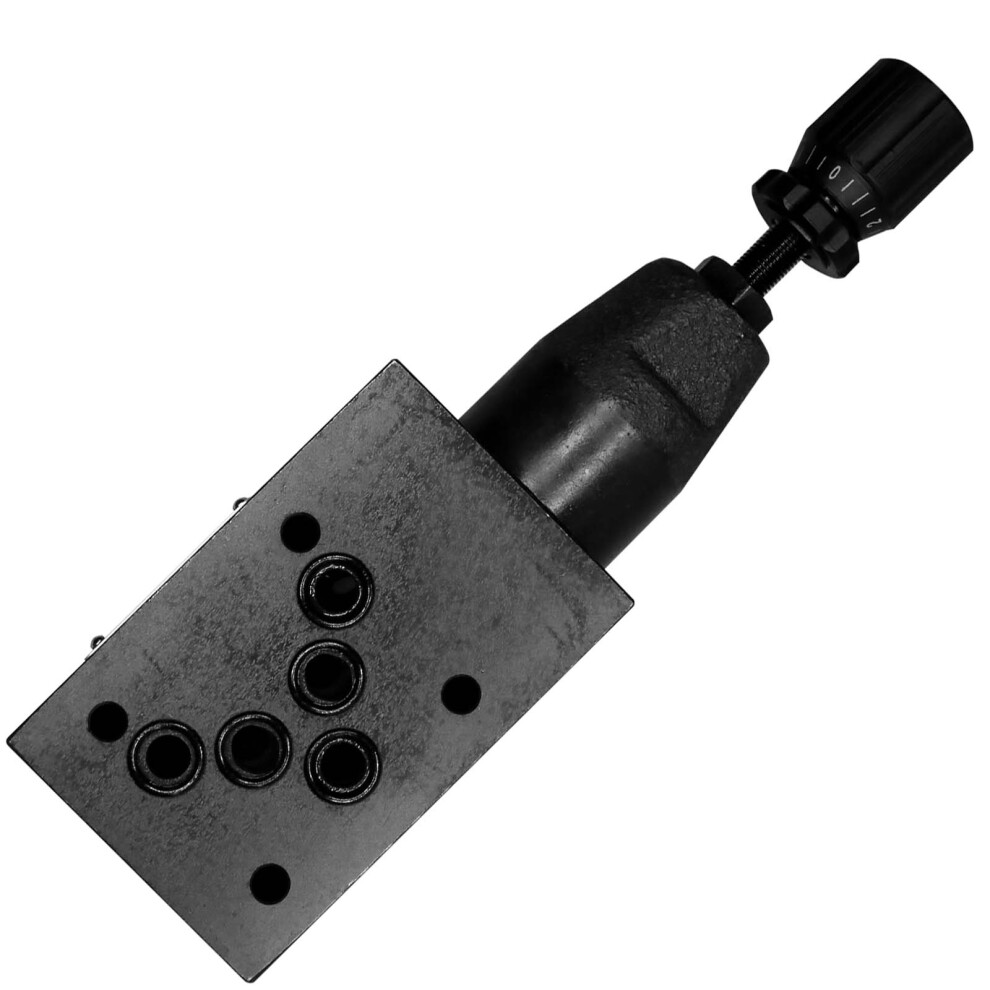

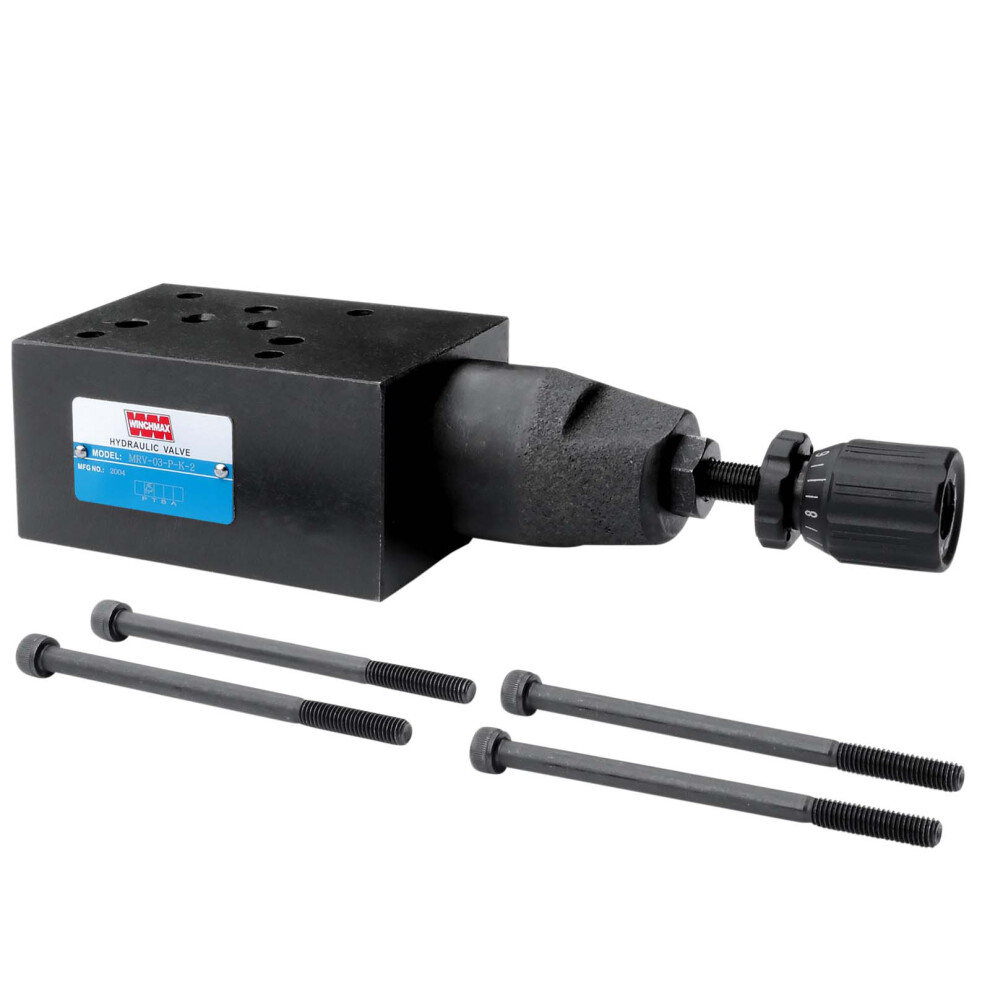

Modular Hydraulic Pressure Regulator Relief Valve CETOP3/NG6
A modular relief valve used to regulate the maximum pressure within the operating parameters of the winch or other item being controlled. Installed between the manifold block and directional control valve. When the set pressure is exceeded, P will bypass across to T.

Features

• Easy to operate rotary calibration control with lock ring.
• Maximum flow 35l/min.
• P to T on operation.
• Pressure Adjustment Range 3.5-14 MPa (35-140 bar setting range).
• Supplied with extended bolts for attachment between direction valve and manifold block.

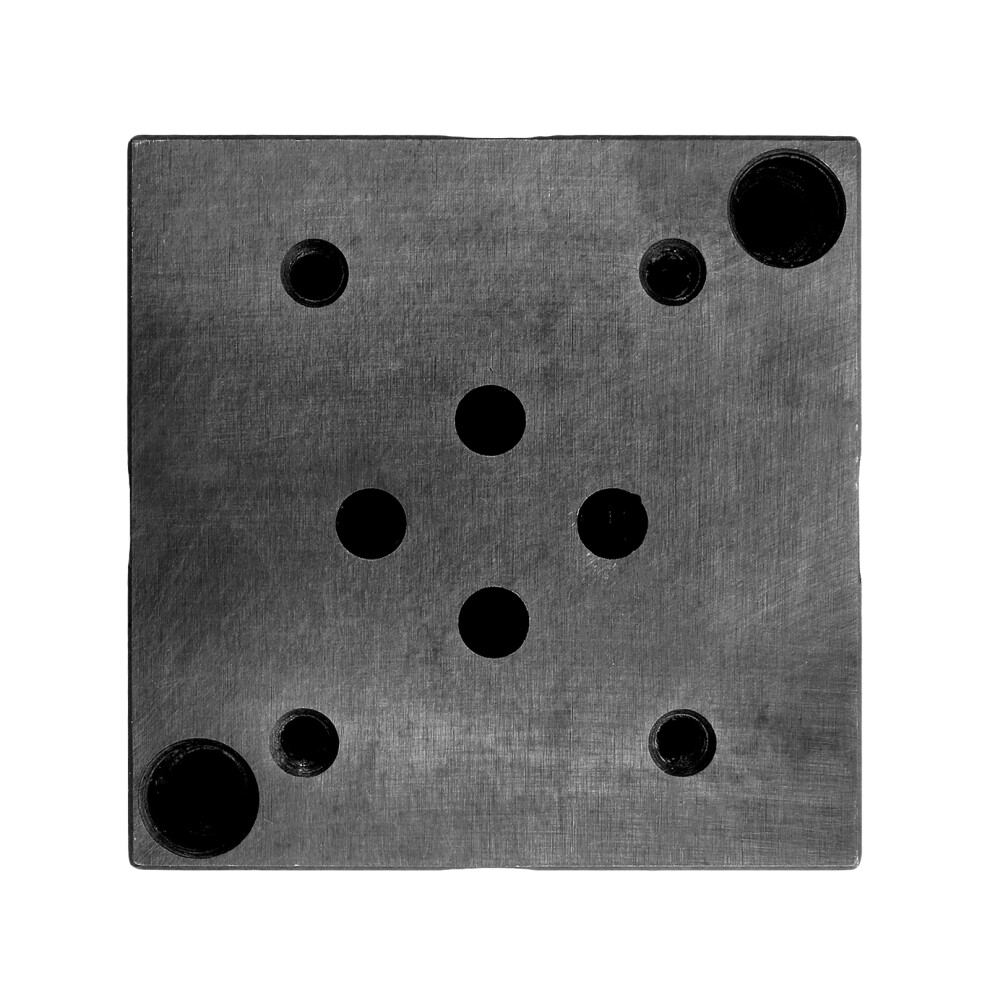

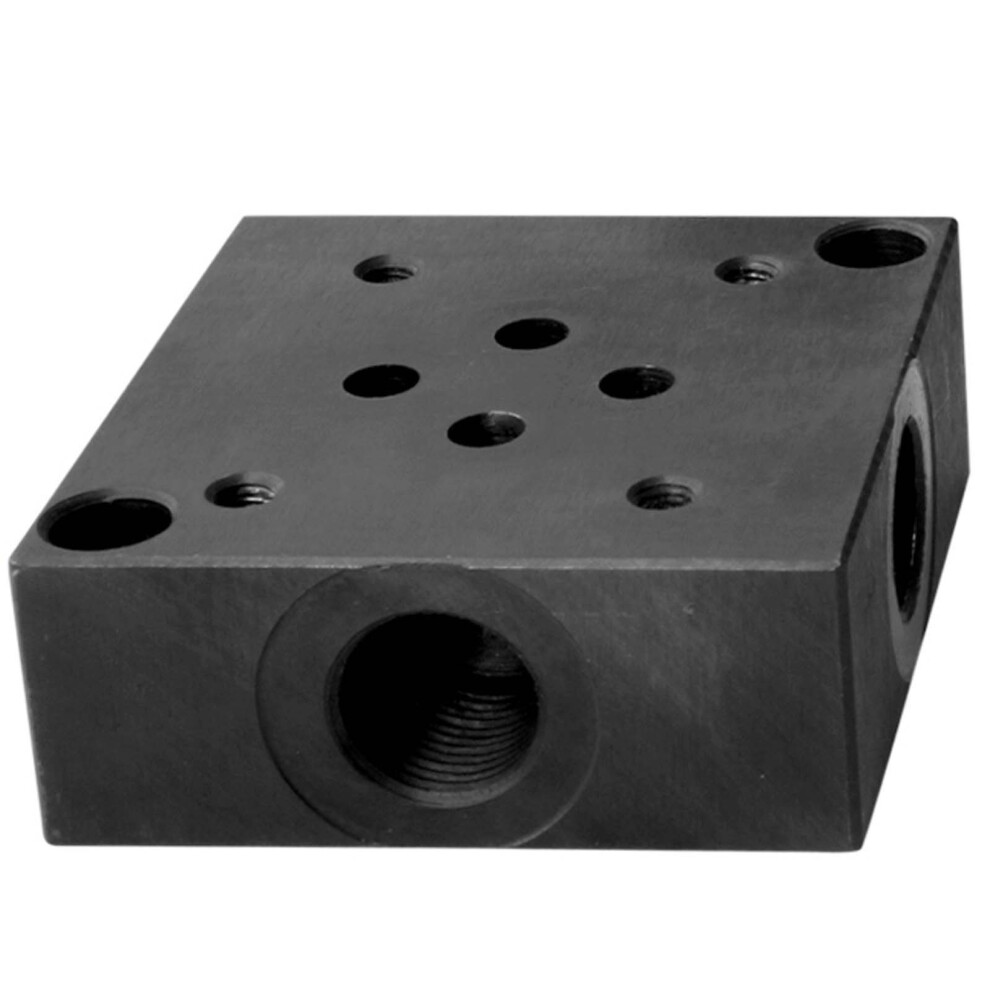

Manifold Subplate CETOP3/NG6 Hydraulic
Provides a manifold to connect the P, T, A, B pipework into a directional control valve (and pressure regulator if required).

Features

• Forged Steel Construction.
• Side Ported P, T, A, B.
• Port size 3/8 inch BSP.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.
