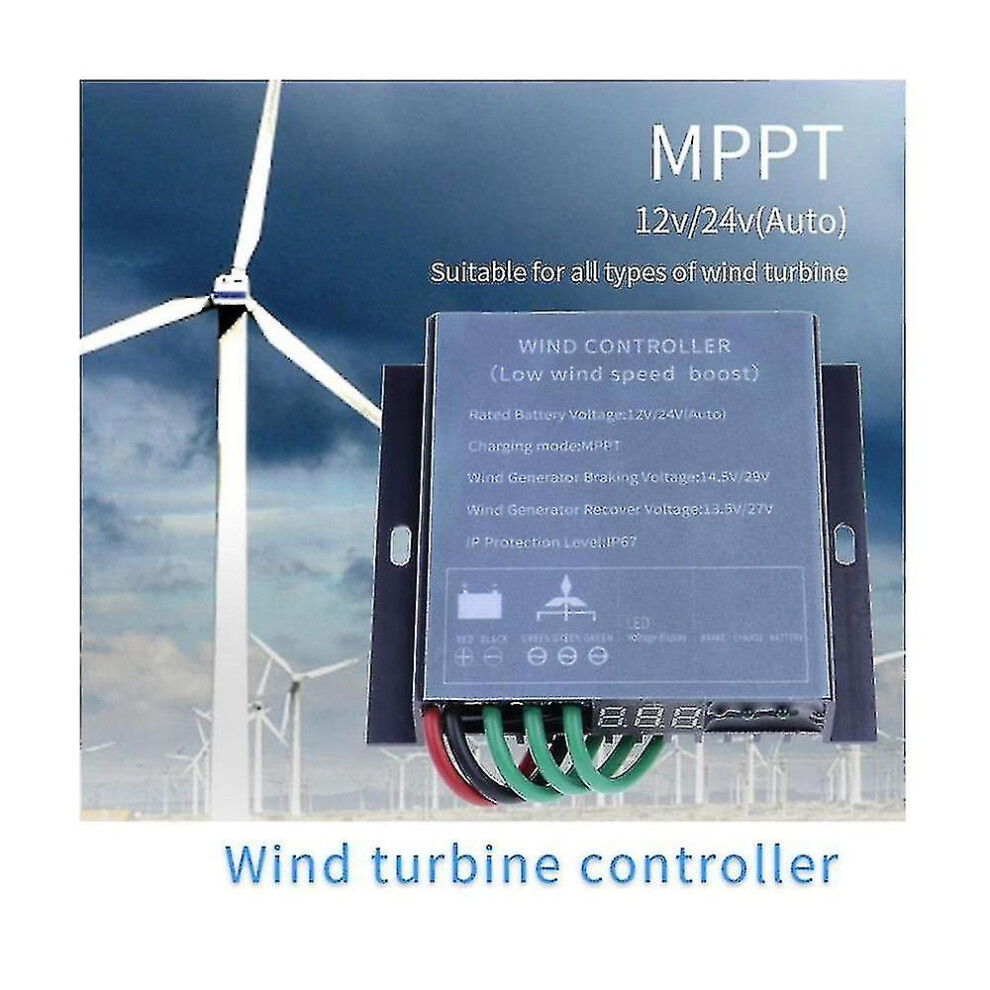

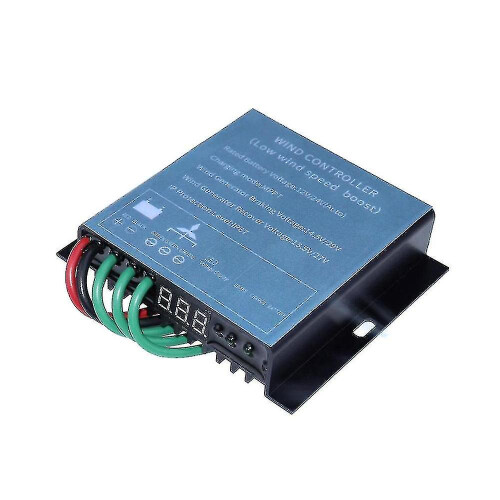

Wind Generator Controller 12/24v 800w Mppt Wind Charge Controller Wind Turbine Generator Controller

1. Automatically charge the battery.2. The rectifier and brake circuit of this controller adopts an integrated module, which is more advanced than the terms of heat dissipation and reliability.3. Adopts a fully sealed and waterproof design, and protection grade reaches above IP67. It can be used normally for a long time even in water.Notes: Confirm that the output voltage of the wind turbine generator is with the rating voltage of the battery. Connect the wires in the following order, first connect the positive and negative poles of the battery, and then connect the three-phase voltage output of the fan. connect the battery and wind turbine to the controller in accordance with the instructions. Reverse polarity or wrong position will lead to abnormal operation of the system or even complete damage to the controller.Wiring mode:1. Connect the positive and negative poles of the battery to the positive (red) and negative (black) terminals of the battery of the controller.2. Respectively connect the three-phase output voltage of the wind turbine to the three-phase input (green line) terminal of the controller fan.Parameters:1. Maximum input AC voltage: AC35V2. Output voltage: 12V / 24V3. Battery charging cut-off voltage: 14.5V 0.3V / 29V 0.3V4. Maximum charging current: 15A (12V) maximum charging current: 10A (24V)5. Wind generator speed limit voltage 14.5V 0.3V, 29V 0.3V6. Protection level: IP677. Static power consumption: 0.008A8. Bearing power: 800W9. Maximum bearing wind speed: .1210. Working temperature: -35 C - 65 C11. Input wiring: three-wire system12. Control mode: 12V/24V compatible13. Installation : bolted14. Do not reverse the positive and negativepoles to avoid burning the controller.Application:Wind Controllercolor:BlueMaterial:aluminum alloyPackage Contents:1 x MPPT Wind Generator ControllerOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm. 1. The material of high-quality goods is good. 2. The style is novel and unique, and is deeply loved by consumers. 3. It is practical and can stand the test. There are many repeat customers. 4. Will ship within 48 hours 5. Delivery within 4-10 working days
