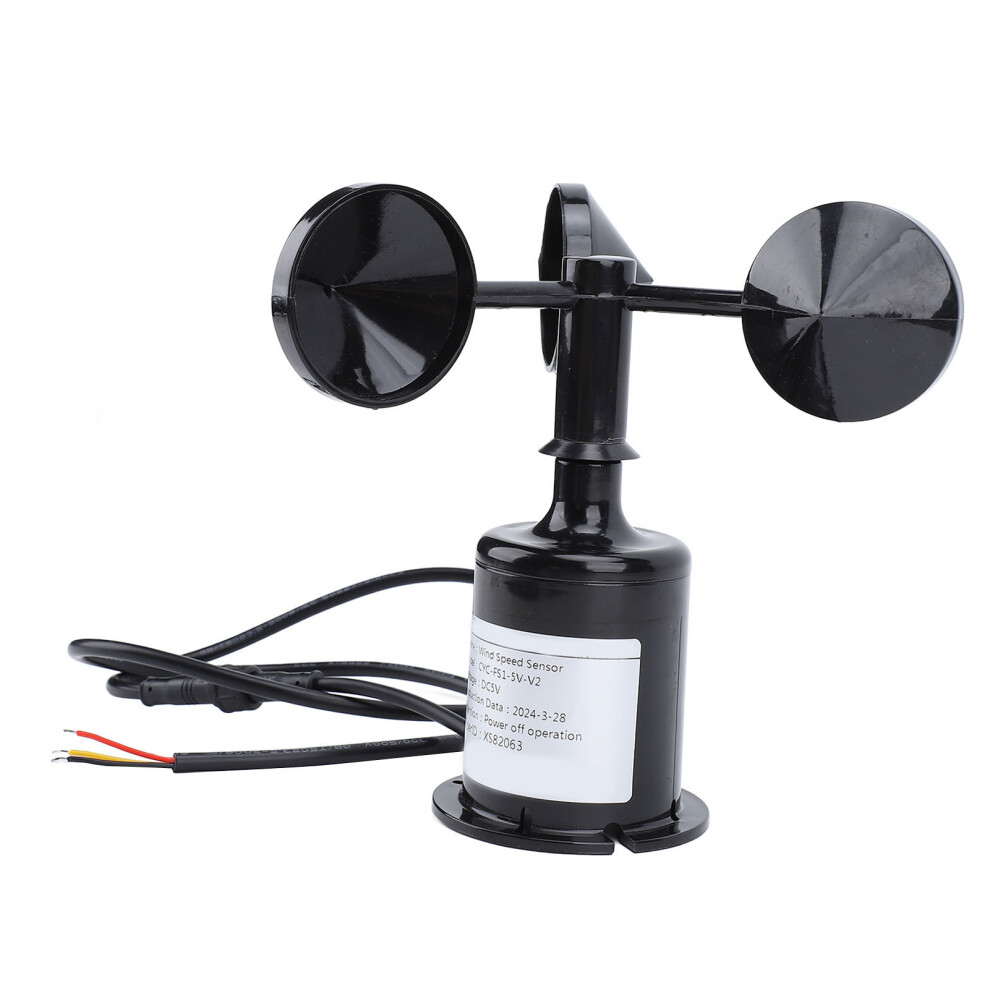

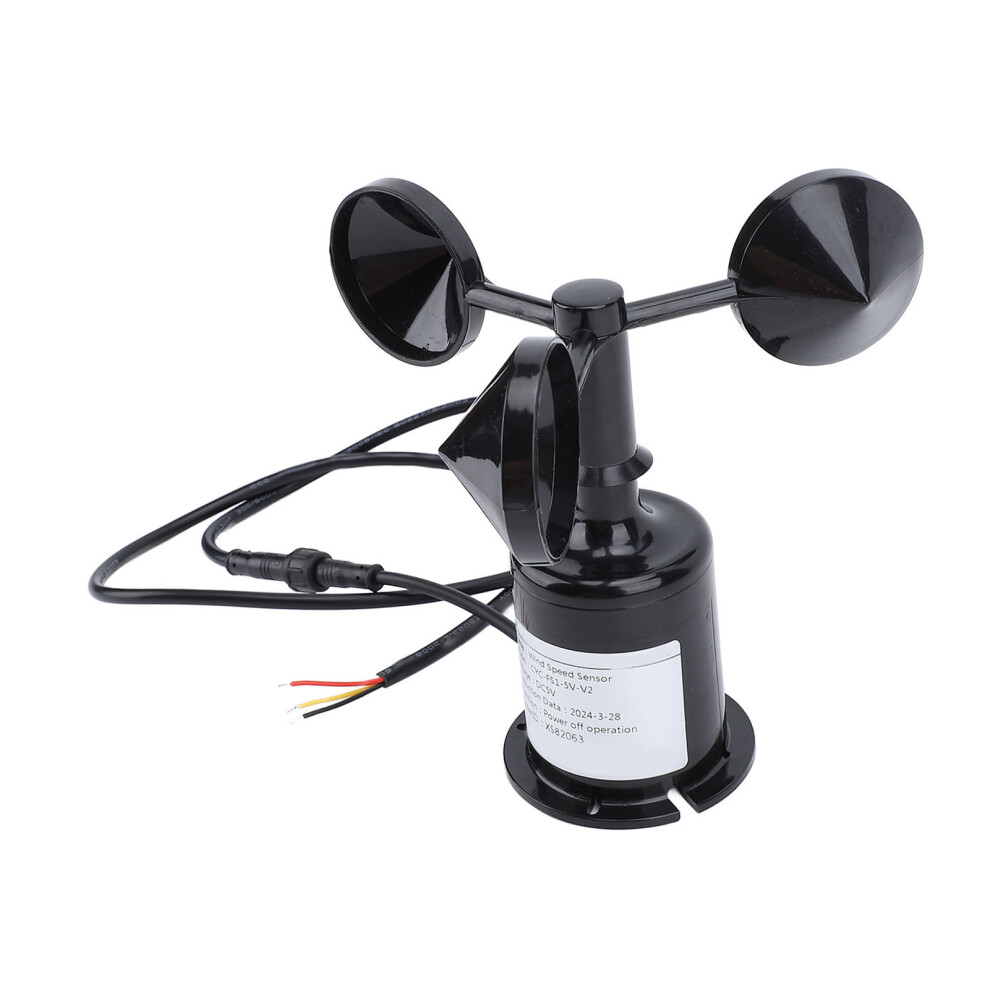

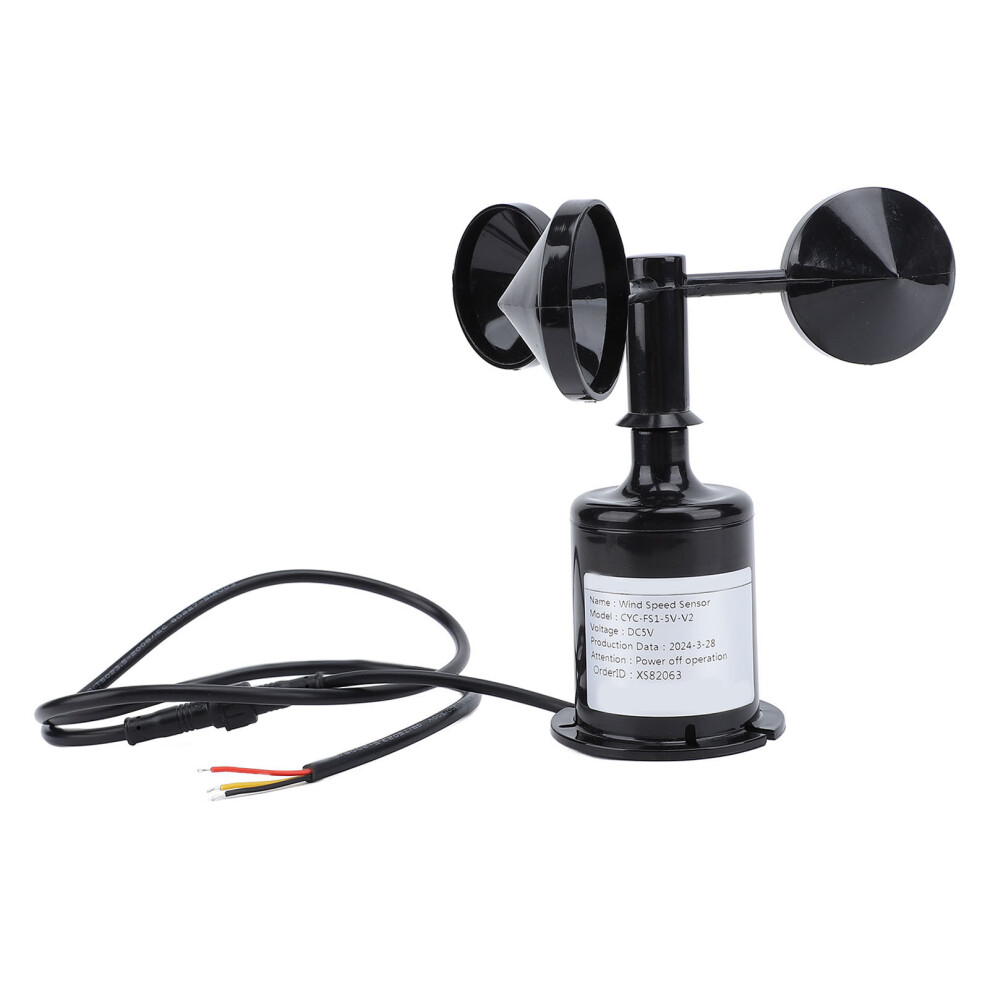

Wind Speed Anemometer Sensor 5V High Precision with 2.62ft Extension Cable

Wind Speed Anemometer Sensor 5V High Precision with 2.62ft Extension Cable Description

Wind Speed Anemometer High Accuracy 5V Wind Speed Monitoring Sensor Measuring Detector with 2.62ft Extension Cable
Item Type: Wind Speed Anemometer
Material: ABS
Size: Approx. 158x180x70mm/6.22x7.09x2.76in
Power Supply Voltage: DC5V
Signal Output: 0-2.5V
Measurement Range: Wind Speed 0-45m/s
Connection Extension Cable Length: Approx. 0.8m/31.50in
Accuracy: (0.5+0.02V)m/s
Resolution: 0.1m/s
Start up Wind Speed: 0.8m/s
Maximum Power Consumption: 0.48W
Load Capacity: DC12V power supply, current output impedance 350Ω, DC24V power supply, current output impedance 900Ω, voltage output impedance 1KΩ
Operating Environment: Temperature -35C to 60C, humidity 100%RH without condensation
Protection Level: IP64 waterproof

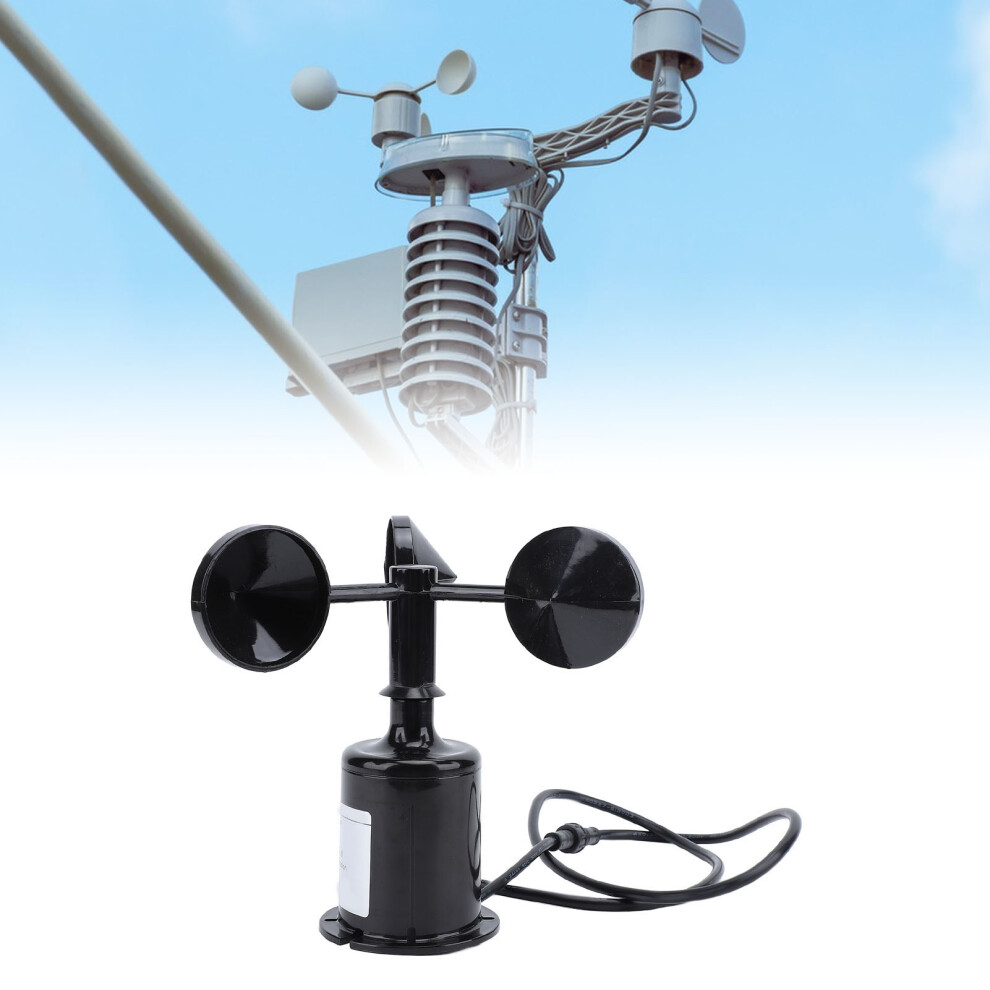

Application: Greenhouse, Environmental Protection, Meteorological Station, Ship, Pier, Farming, Advertising Gate, Meteorology, Marine, Environmental, Airport, Port, Laboratory, Agriculture and Traffic wind speed measurement environments
Calculation Formula: 0-2.5V:F=V/2.5*A+BF: Wind speed value, m/s;
V: Sensor output voltage, V;
A: Sensor range width (upper range minus lower limit);
B: The lowest value of the sensor range (the lower limit of the range);

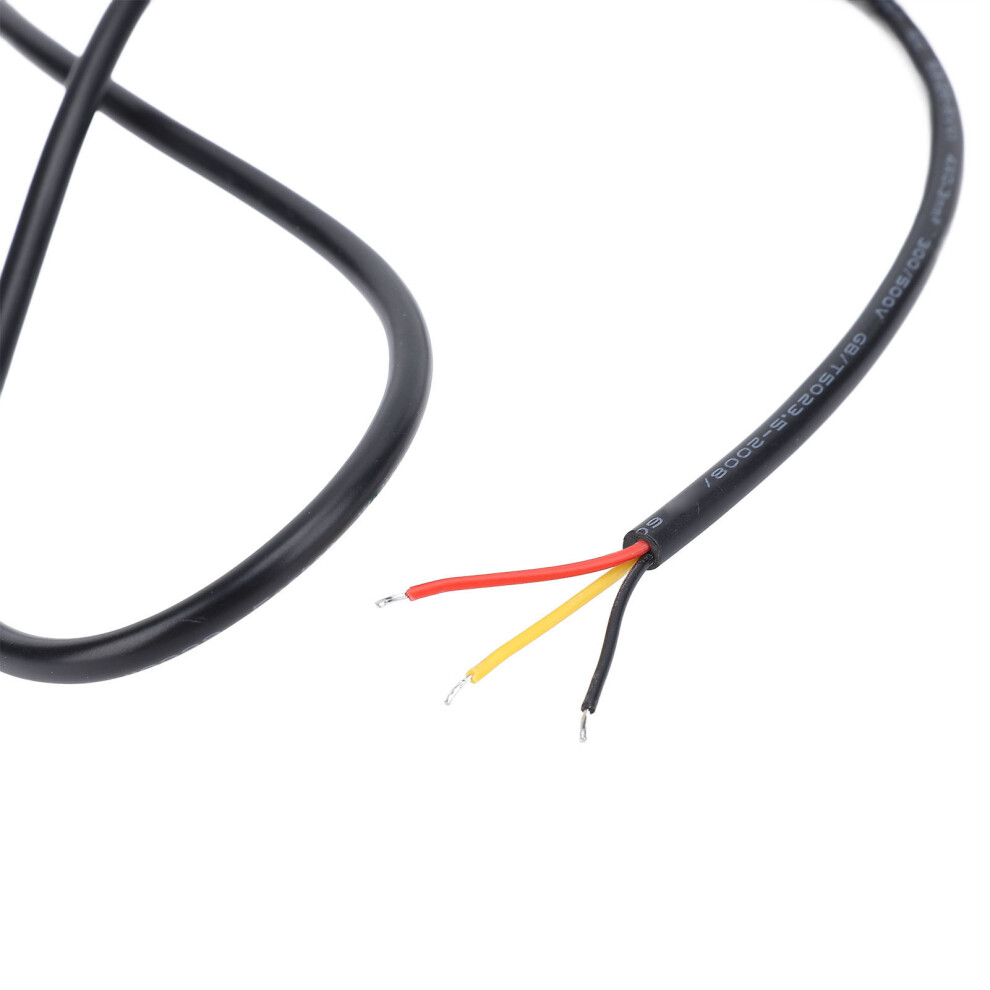

Wiring Method (wire color output signal): Red-Positive, Black-Negative, Yellow-Signal
Diameter: Approx. 63mm/2.48in
Mounting Hole Diameter: Approx. 3.2mm/0.13in
Mounting Depth: Approx. 15mm/0.59in (recommend reserving 25mm for wiring, wire first, then install fixed sensor)
Troubleshooting: 1. The wind blade does not rotate smoothly, the delay is large. Due to foreign objects or jamming in the bearing after long term use. Please return the sensor to the company for processing; 2. The display value is incorrect. It may be caused by wiring problems or communication interface failures that prevent correct data retrieval. Please check if the wiring is correct and secure, if the interface is occupied, and if the interface settings are correct.
