Wireless 512 Controller PCB Module Light Control P

Wireless 512 Controller PCB Module Light Control P Description

Small in size, easy to suit for interior of accessed lighting.
Single key to operate, tricolor LED displaying.
Transmitting standard DMX512 protocol data of controller, also can transmit lighting and lighting DMX512 protocol data.
126 channels automatically jumping frequency, high anti-jamming ability to working reliability.
7 groups ID code settable, user can use 7 groups individual wireless system without any interference with each other in the same place.

Input voltage: 5VDC
Work frequency section: 2.4GHz ISM band, 126 channels frequency section
Max transmitting power rate: 20dBm
Receiver sensitive: -94dBm
Signal port: RS485 or CPU series port AURT.
Operating manual
ID code and LED color corresponding correlation:
1:RED
2:GREEN
3:RED+GREEN = YELLOW
4:BLUE
5:RED+BLUE =
6:GREEN+BLUE = CYAN
7:RED+GREEN+BLUE = WHITE
Colour:blue
Material:PC+Metal

Package Contents:

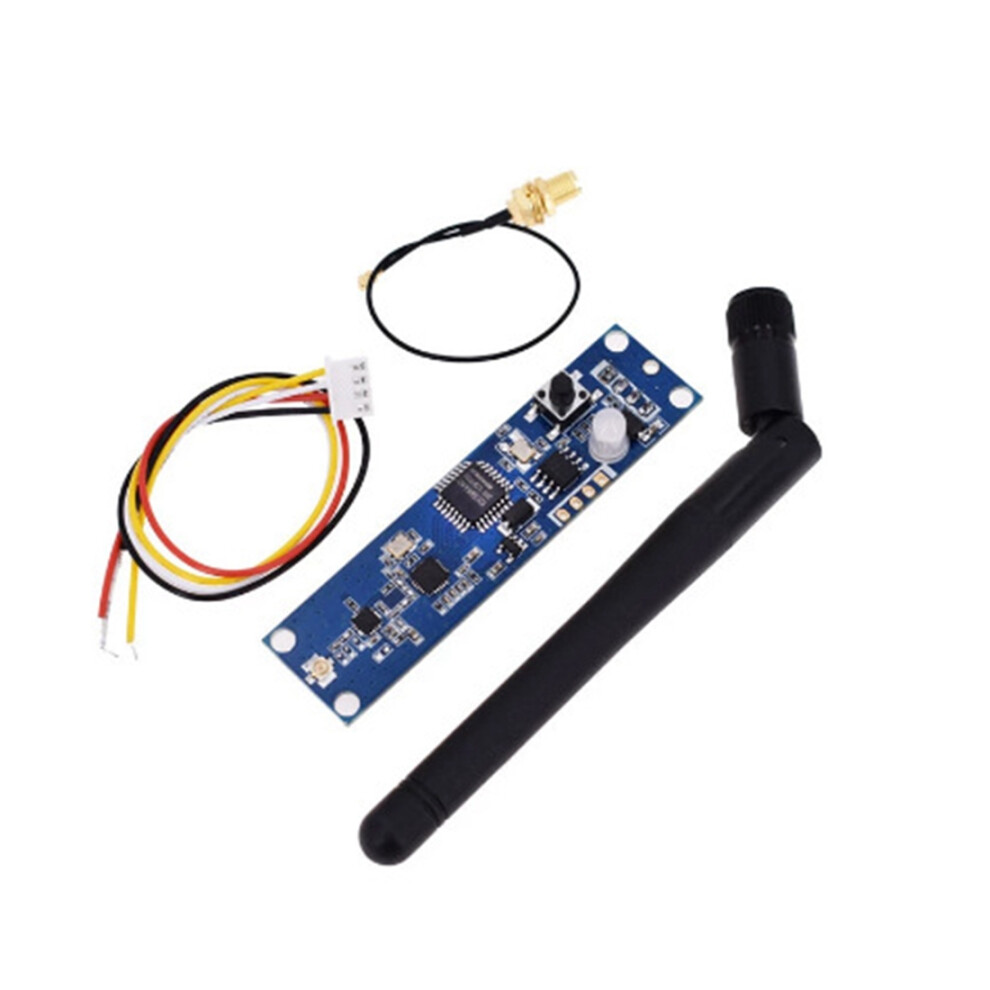

1 x Wireless DMX512 PCB Module Board
1 x Antenna
1 x Connecting wires

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
