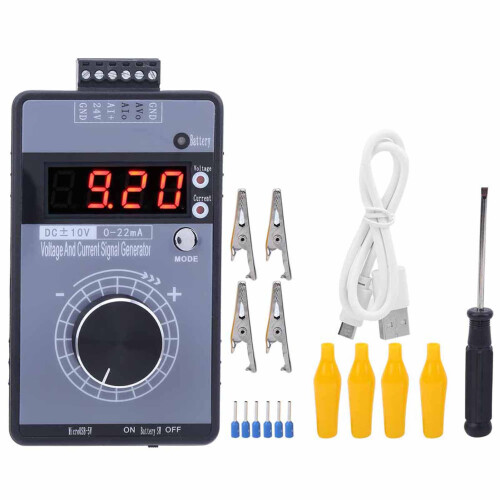

Wireless Hand‑Held Analog Signal Generator 0‑10V & 0‑22mA Transmitter
New
£28.50
Similar Products we think you'll like
Would you like us to let you know when it's back?
Description & Details
Summary
- Hand held digital signal generator, supports 3 power supply modes, which is more convenient to use.
- Voltage and current adjustments can be switched by one button, adopt independent wiring, and output can be simultaneously performed.
- The output has short circuit protection, and power supply has reverse connection protection, which is safe and reliable.
- With pluggable terminal blocks, it is easy to install, stable in performance and easy to carry around.
- It supports two modes of coarse and fine adjustment, the number of adjustment turns can be set, simple operation.
Wireless Hand‑Held Analog Signal Generator 0‑10V & 0‑22mA Transmitter Description
Hand‑Held 0‑10V 0‑22mA Digital Voltage Current Signal Generator Transmitter Analog Simulator
Condition:
Material: ABS
3 Power Supply Methods: Charging with mobile phone charger, power bank or external 24V power supply
External Power Supply: DC15-30V, Power: 1W (Not Charging)/4W (Charging)
Lithium Battery Capacity: 1000mAh, 3.7V
Maximum Charging Current: 0.6A
External: Micro USB- 5V, Current: 0.2A (Not Charging)/1A (Charging)
Current Output: 0-22mA Adjustable, Accuracy After Calibration: 0.05mA, Current sampling resistance is not more than 500 ohms
Digital Tube Display Digits: 4 digits, two decimal places
Encoder: 20 pulses per turn of the knob
Power Supply: Built-in Lithium battery 1000mAH
Size: Approx. 100x60x25mm / 3.9x2.4x1.0in
Details
| OPC | PQCKVNK |
|---|---|
| Codes | 8761379648126 (EAN) |
