Wireless Light Switch Kit For Lamps Fans Appliances 433Mhz,5pcs RF Receiver Default OFF

Wireless Light Switch Kit For Lamps Fans Appliances 433Mhz,5pcs RF Receiver Default OFF Description

Description:

Learning code (Note: "Learning code" means "matching"):
1. Jog/Momentary function learning method:
Press the Learning Pairing Button on the receiving board once and the LED lights up. Release the Learning Pairing Button to enter the learning code mode. Press any button on the remote control and the LED flashes 3 times, which means that the matching is successful. Exit learning mode automatically. If there is no remote control signal after entering the learning code mode, the learning code mode will be automatically exited after 10 seconds.
2. Self-locking/Toggle function learning method:
Press the "Learning Pairing Button" on the receiver board twice, the LED lights up, release the "Learning Pairing Button", enter the learning code mode, press any button on the remote control, the LED flashes 3 times, which means the match is successful. The system automatically exits the learning mode. If there is no remote control signal after entering the learning code mode, the learning code mode will be automatically exited after 10 seconds.
3. Interlock//Latched function learning method:
Press the Learning Pairing Button on the receiving board three times, the LED lights up, and the Learning Pairing Button is released. The learning code mode is entered. Press any button on the remote control and the LED flashes 3 times, which means that the matching is successful. Exit learning mode automatically. If there is no remote control signal after entering the learning code mode, the learning code mode will be automatically exited after 10 seconds.

Clear data:
Press the Learning Pairing Button for 8 consecutive times. The LED indicator flashes 8 times. Then the clear code is completed and all remote control key codes learned before are cleared.

Output mode explanation:
1. Self-locking: Press the same remote control button, press, relay opens, press again, relay off.
2. Interlock: Press the remote control A key, the relay opens, press the remote control B key, the relay is off.
3. Jog: press the remote control "A" button, the relay opens, release the remote control "A" button, the relay off. If you keep pressing the "A" button on the remote control, the relay will remain on. When you release the remote control, the relay will turn off.

Precautions:
1. Do not operate with electricity. Turn off the power and operate it. Check the power supply after use.
2. When the remote control voltage is insufficient, please change the battery in time (when the remote control battery voltage is insufficient, the remote control distance becomes close).
3. When using wireless electronic products, care should be taken to avoid metal masks, large electronic devices, electromagnetic fields, etc., which have a strong source of interference, to avoid the remote control and the receiving distance being short or unable to work properly.
4. Do not use this electronic product abnormally. Unusual use will reduce product performance and longevity. In severe cases, damage to the product will also bring hidden dangers to your safety.

Default staus: power off (can't be reset);
1. The working voltage: AC85-260V;
2. Quiescent current: 8mA;
3. Operating frequency: 433MHz;
4. Load power: 1000W;
5. Receiving sensitivity: -105dbm;
6. Frequency deviation: 0.2MHz;
7. Coding method: learning type;
8. Working mode: jog, self-locking, interlocking;
9. Modulation method: ASK;
10. Remote control distance: 100M (wild);
11. PCBA size: 55mm*32mm*18mm;
12. Shell size: 80MM *38MM *22MM;
13. APP Support: No;
14. Can use with:1398672,1411556,1411557,1411558;

Package included:

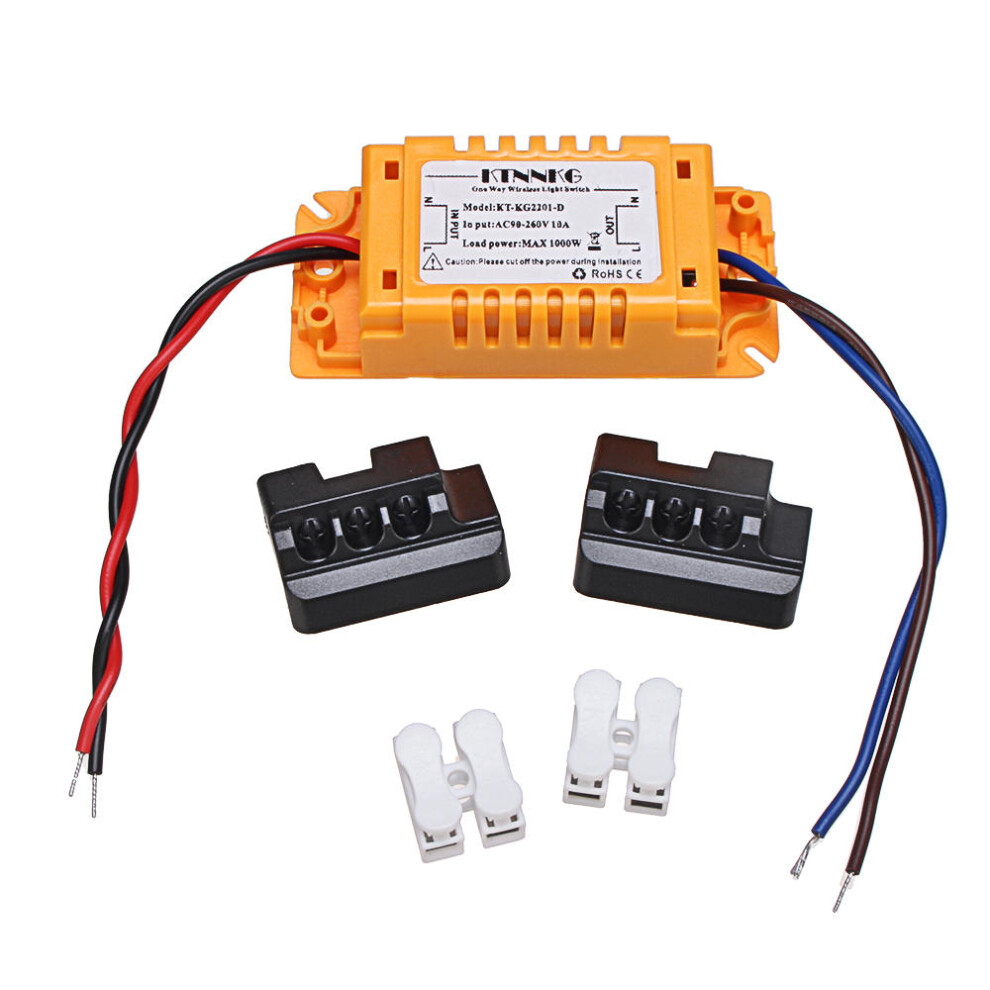

5 x Wireless Light Switch Kit
