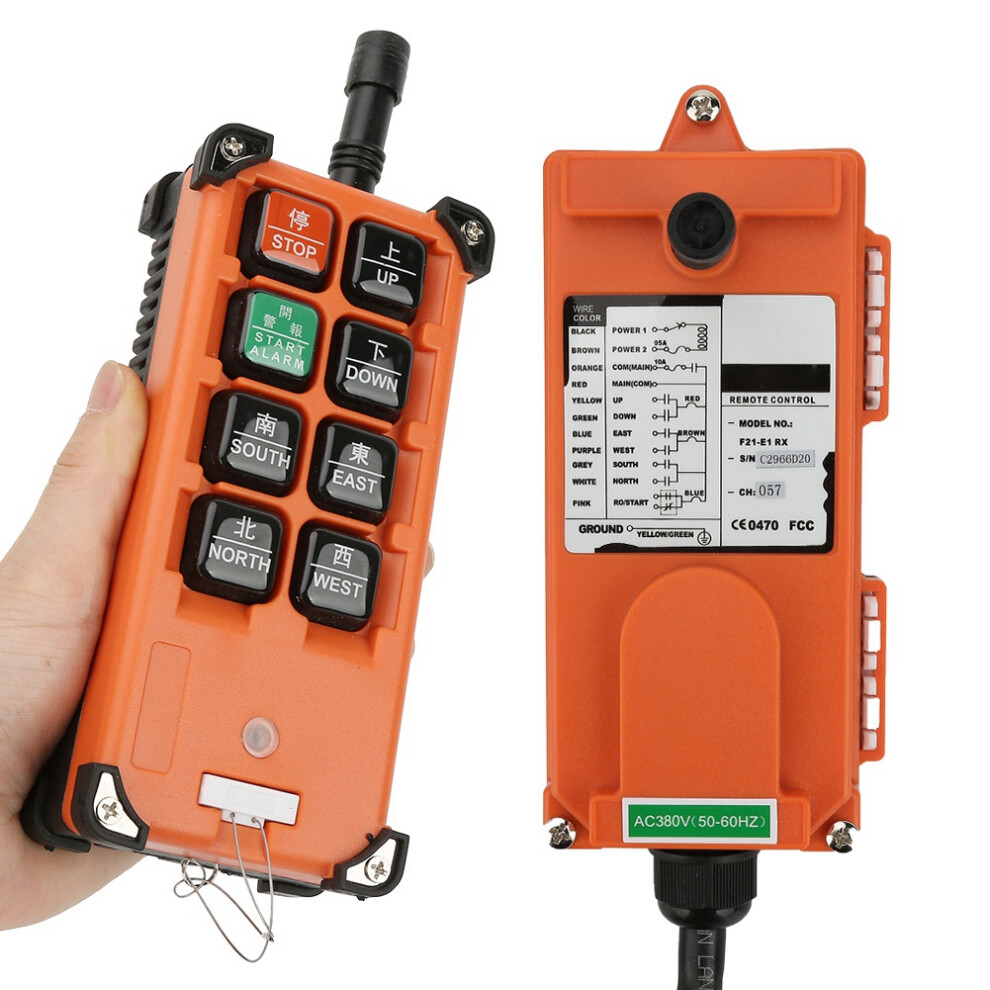

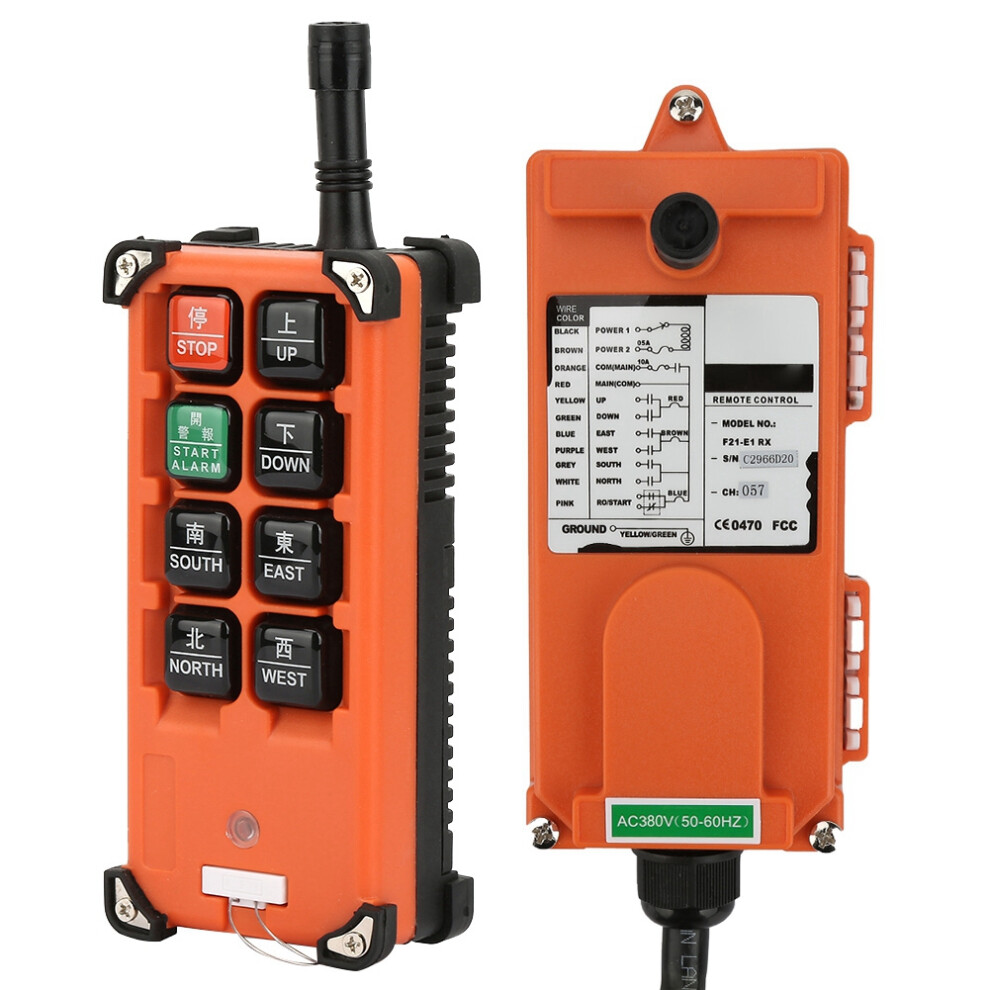

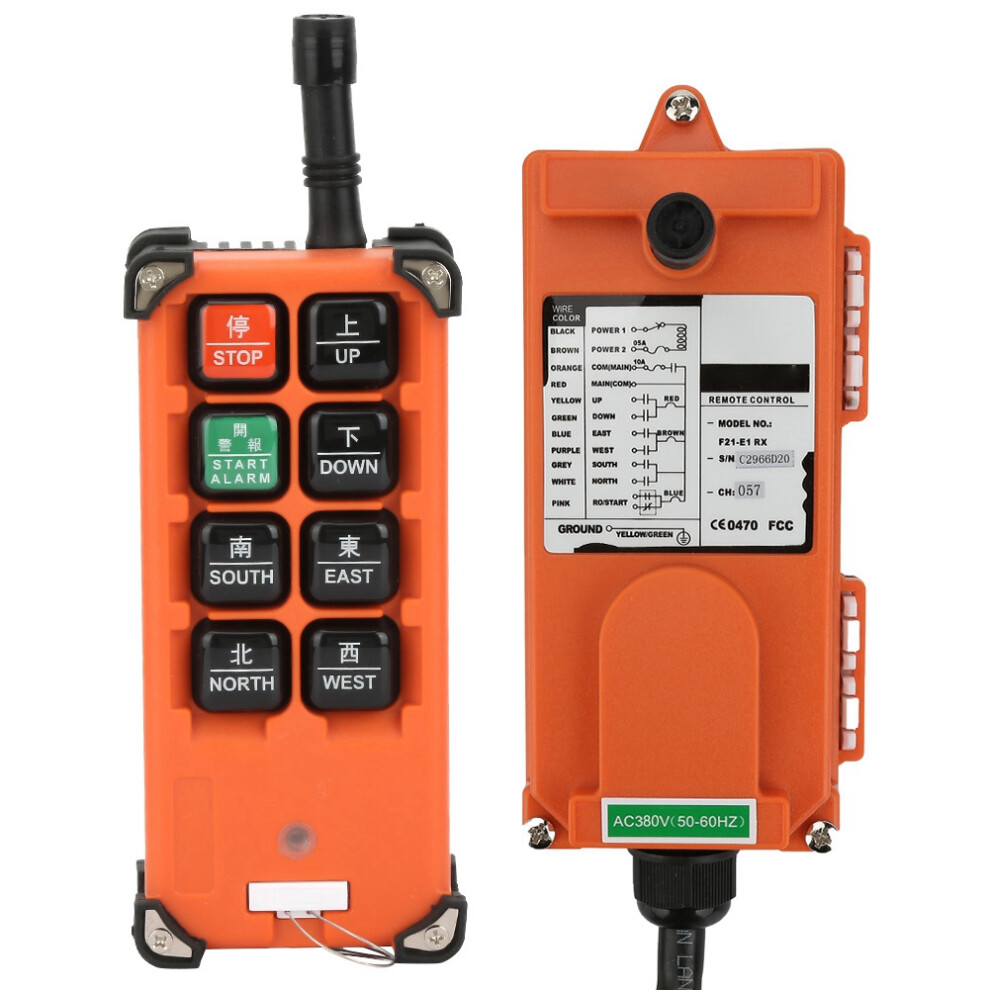

Wireless Remote Controller 2 Transmitter 1 Receiver 380V

Wireless Remote Controller 2 Transmitter 1 Receiver 380V Description

1、With 8 operation buttons, including 7 single-speed buttons and 1 total stop 2、Up to 9 control points 3、With battery voltage warning device, it can cut off the circuit when the voltage is insufficient. 4、Safe button switch to prevent unauthorized use. 5、Internal functions can be set by the computer interface
Features:
With 8 operation buttons, including 7 single-speed buttons and 1 total stop
Up to 9 control points
With battery voltage warning device, it can cut off the circuit when the voltage is insufficient.
Safe button switch to prevent unauthorized use.
Internal functions can be set by the computer interface
Upper/lower, east/west, south/north can be set as whether they inhibit each other.
Standby 1 button can be set to boot, speed up, stamp, normal and other functions.
It is suitable for industrial control of single hook single speed/two mechanism inching hoist and less than 6 contacts
Specification:
Control distance: up to 100 meters
Security code: more than 4.3 billion, factory never repeat
Temperature: - 35to + 80(regardless of the cell temperature resistant)
Protection level: IP65
Transmitter power supply: dc 3V (2 *AA batteries )(NOT Included)
Parameters of remote control:
Case: glass fiber reinforced nylon
Protection level: IP65
Transmission power: < 10dBm
Transmitter power supply: 2 AA batteries
Security code: 32 bits (4.3 billion sets)
Control distance: 100 meters
Receiver parameters:
Case: glass fiber reinforced nylon
Protection level: IP65
Transmission power: 110dBm
Security code: 32 bits (4.3 billion sets)
Contact capacity: 8A hermetic relay input
Receiver power supply: AC380V
Weight: Approx.1682g/59.3oz

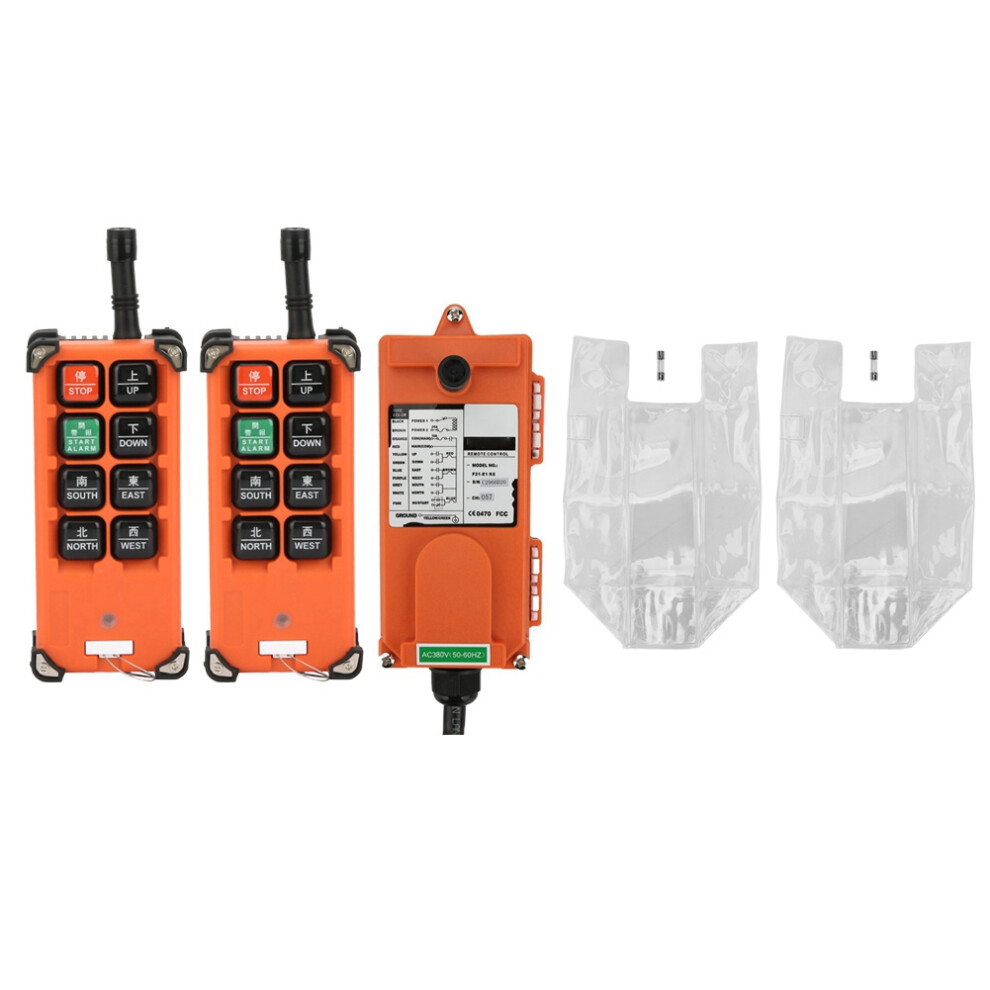

Package list:
2 x transmitters (batteries NOT Included)

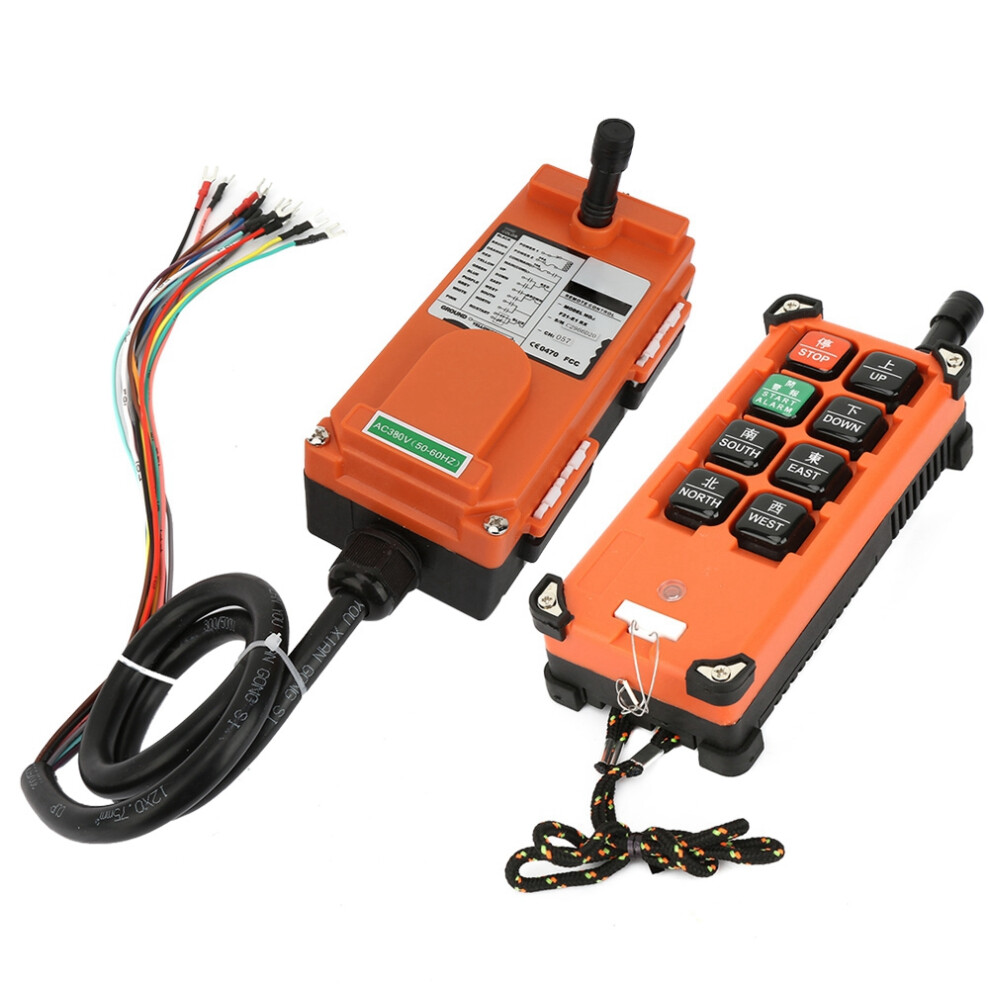

1 x receiver with a cable of 1m
1 x Qualification certificate, specification and wiring diagram
2 x Dust cover
