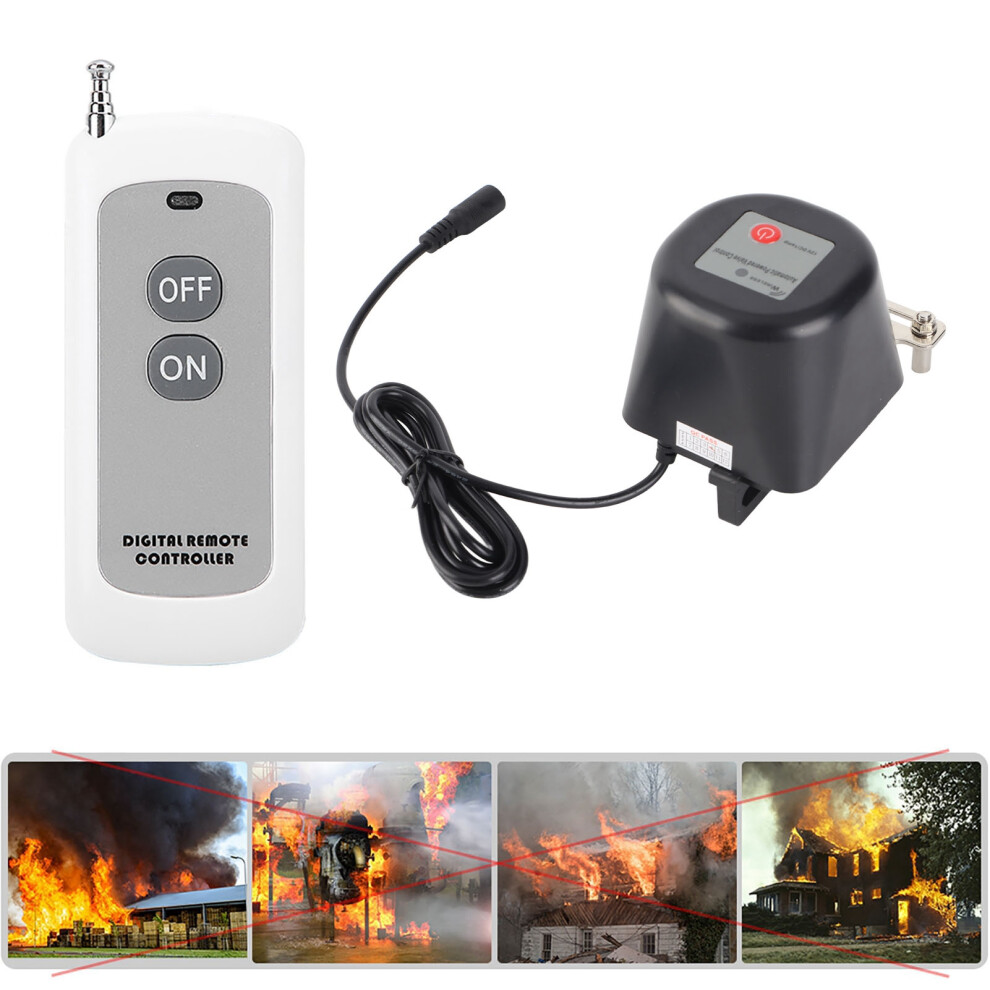

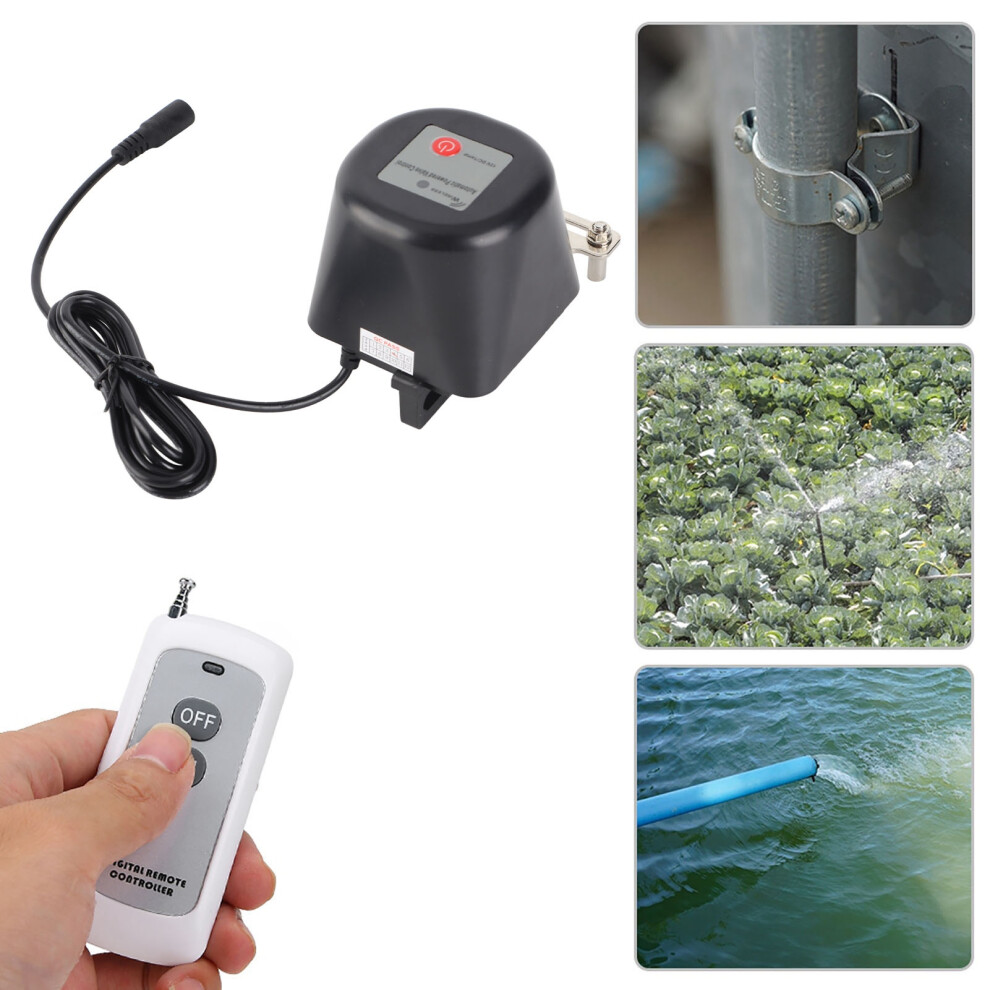

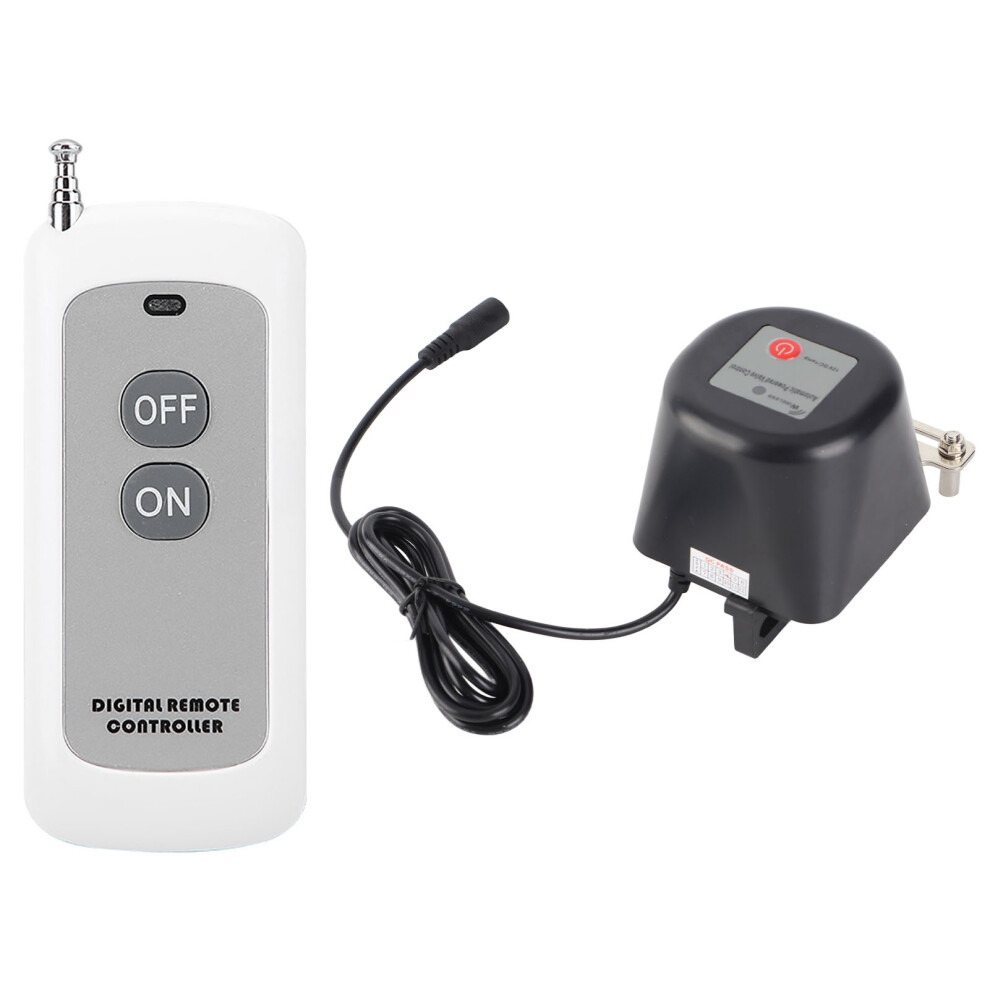

Wireless Remote Electric Manipulator Valve Pipeline Switch Controller

Wireless Remote Electric Manipulator Valve Pipeline Switch Controller Description

1、Electric valve controller is widely used in gas pipeline ball valve, agricultural irrigation, agricultural, vehicle water spraying control and other automatic control. 2、The 3D adjustable bracket and high torsion allow the arm to adapt to different types of gas ball valve switches. 3、Easy to install by yourself, no need to change the original configuration of the pipeline. 4、DC12V safety voltage, automatic closing valve action fast and dependable. 5、High safety insulation and flame retardant housing resists to radio interference.
Features:
1. Electric valve controller is widely used in gas pipeline ball valve, agricultural irrigation, agricultural, vehicle water spraying control and other automatic control.
2. The 3D adjustable bracket and high torsion allow the arm to adapt to different types of gas ball valve switches.
3. Easy to install by yourself, no need to change the original configuration of the pipeline.
5. High safety insulation and flame retardant housing resists to radio interference.
6. Automatic control, electric and manual switch.
Specification:
Material: Metal
Working Temperature -25-85
Working Humidity: < 95%
Rated Current: 100mA
Working Current: 20mA-300mA
Rated Power: 1.2W
Working Power: 0.24W-3.6W
Valve Pressure: 1.6MPa
Valve Specifications: 15, 20, 24
Valve Closing Time: 2-10 Seconds
Insulation Resistance: > 20 M Ω
Battery of Remote Control: 12V 23A Battery (Not Excluded)
Package List:
1 x Controller
1 x Remote Control
1 x 12V Power Supply
1 x Installation Kit
1 x Instructions
Note:
1. Please refer to the manual before use to complete the code alignment of the remote control.
