Wireless Universal Dual-path Control Air Suspension Compressor Kit For Campervan

Wireless Universal Dual-path Control Air Suspension Compressor Kit For Campervan Description

MaXpeedingrods Wireless Air Spring Bag Compressor Controller Kit for Motorhome Van Pickups

Introduction:

The electronic controller kit allows you to adjust the air springs from inside and outside the cab using a handheld remote controller or phone, eliminating the need for wiring and drilling holes in the cab. Moreover, it can be pre-set to meet your needs in different situations. At the same time, it can be used with any brand of air spring bags.

Application:

Universal Fit For Most 1/2, 3/4 And 1 Ton Pickups And Van

For Ford Transit 2001-2022

For Fiat Ducato 1994-2024

For Iveco Daily 35S 2006-2014 RWD FWD

For Iveco Daily 35L 2006-2014 RWD FWD

For Mercedes-Benz Sprinter 2006-2022

For Toyota Hilux 4WD 2015-On

For Toyota Hilux 4WD 2005-2015

For Vauxhall Movano 2010-2022

For Renault Master 2010-2022

Notice: Air Spring Bag is not included

Item Specifications:

Condition: Brand New

Installation instruction and User Manual included

Package Length, width and height: 37*35*28 cm

Package Wight: 5.95 Kg/13.2 LBS

Installation: Search for "How to Install Air Controller Kit for Ford F-150" on YouTube

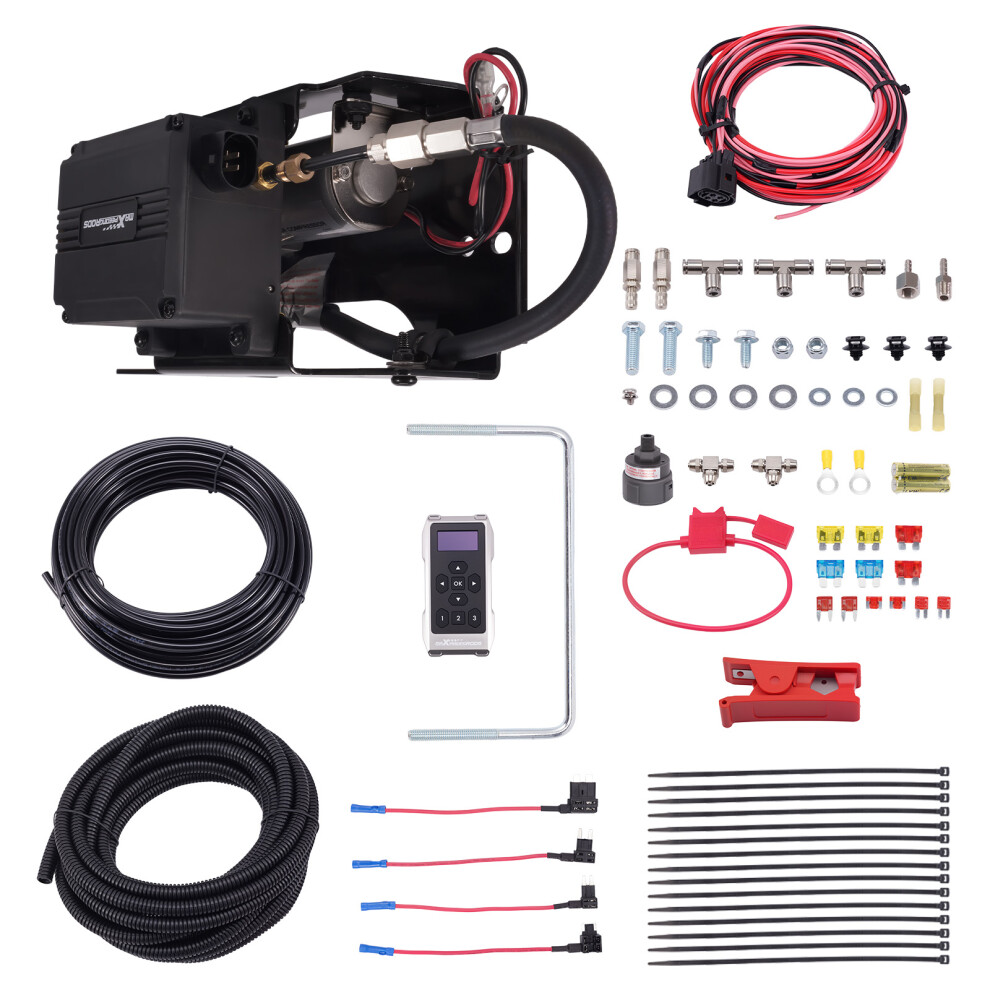

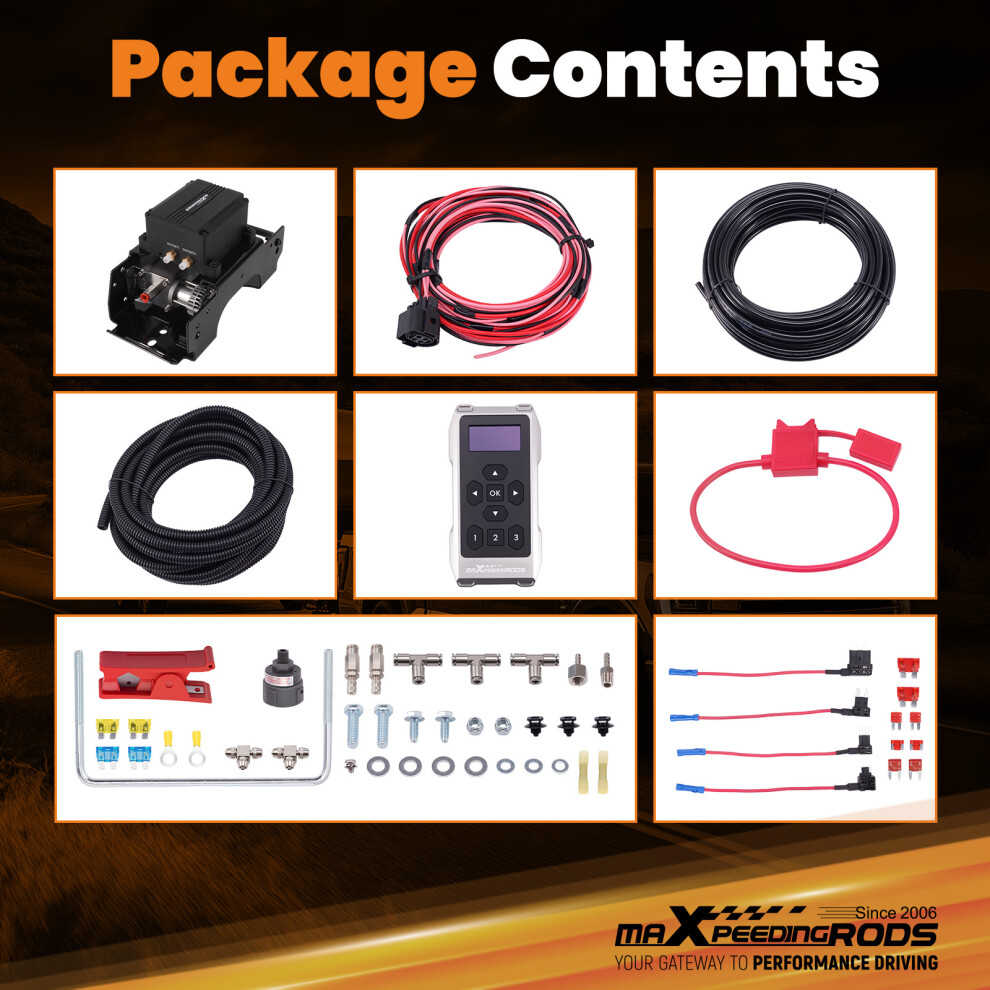

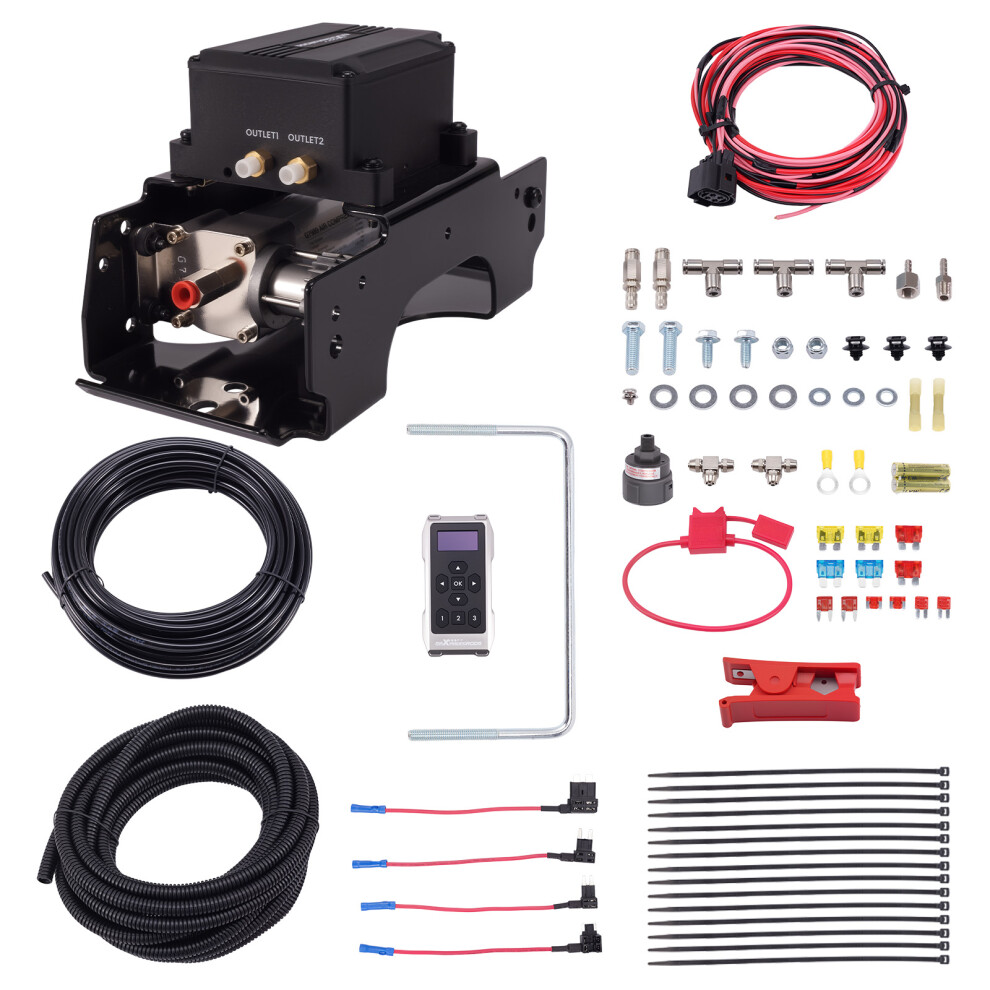

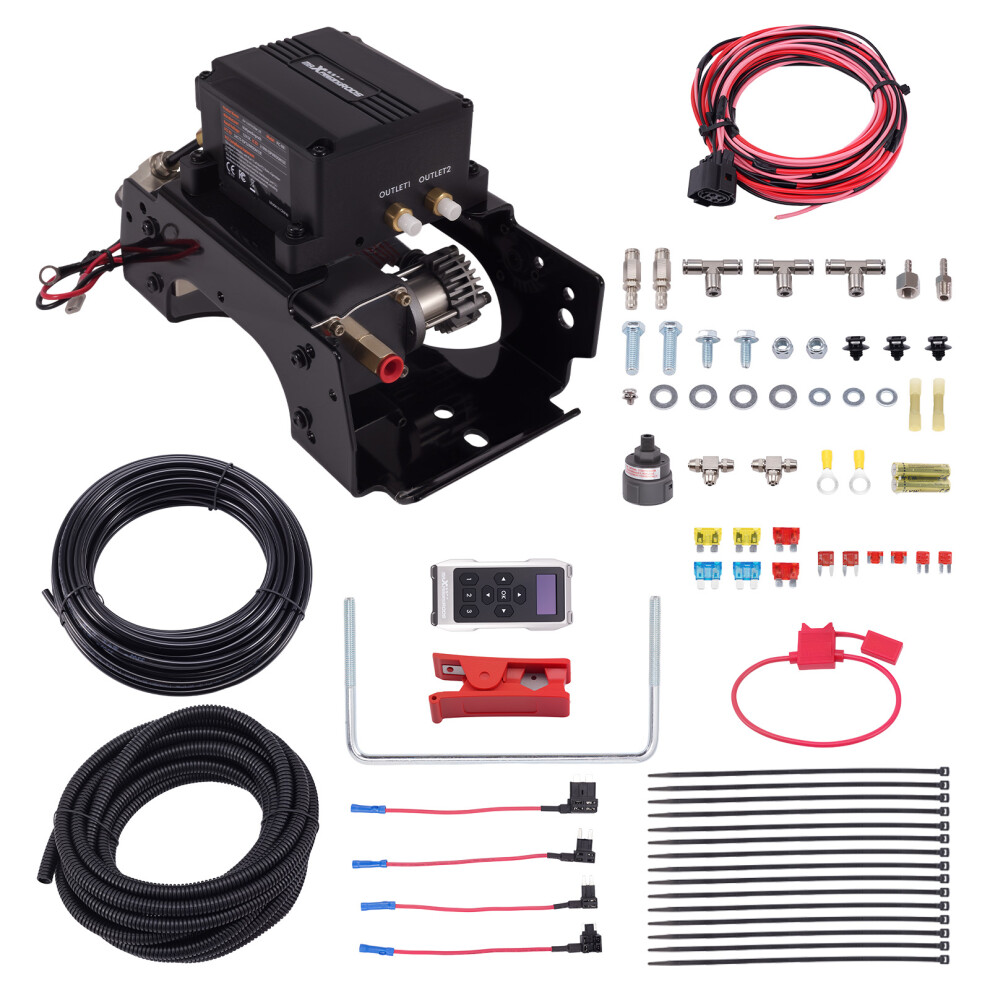

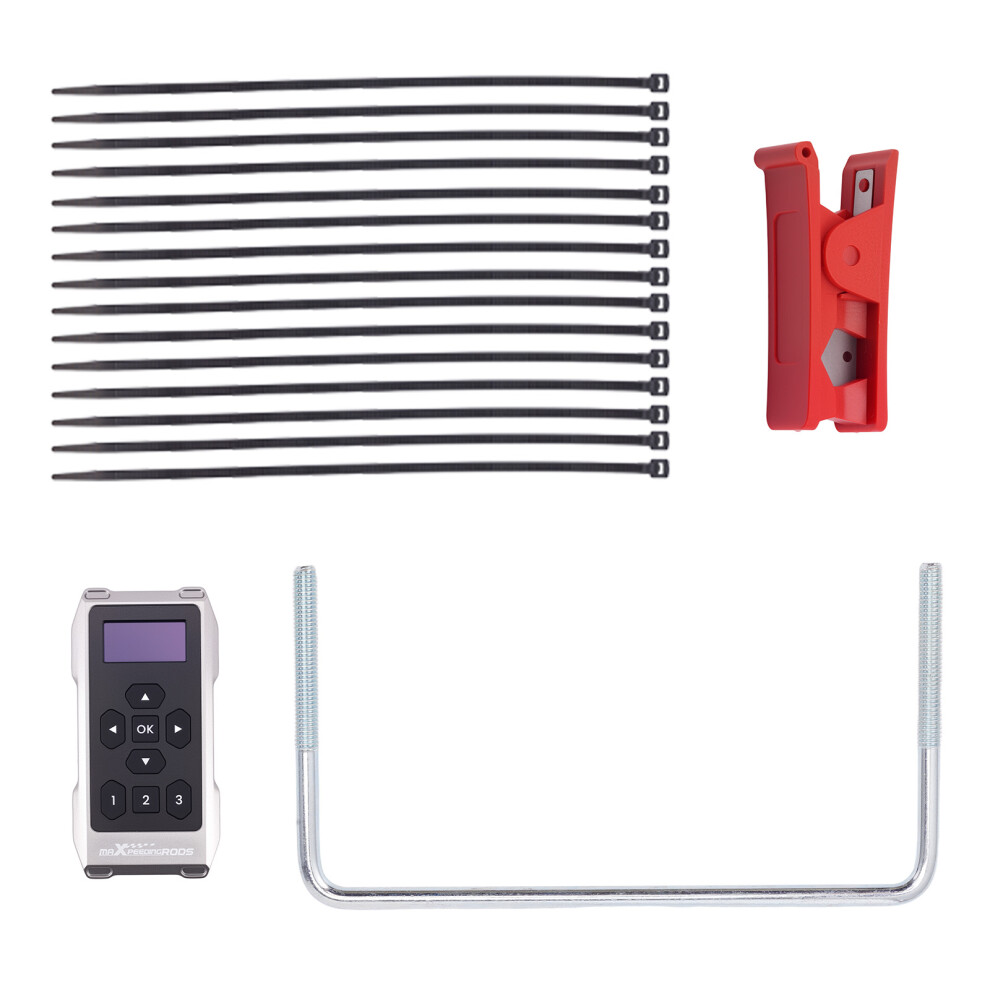

Package includes (as the picture shows):

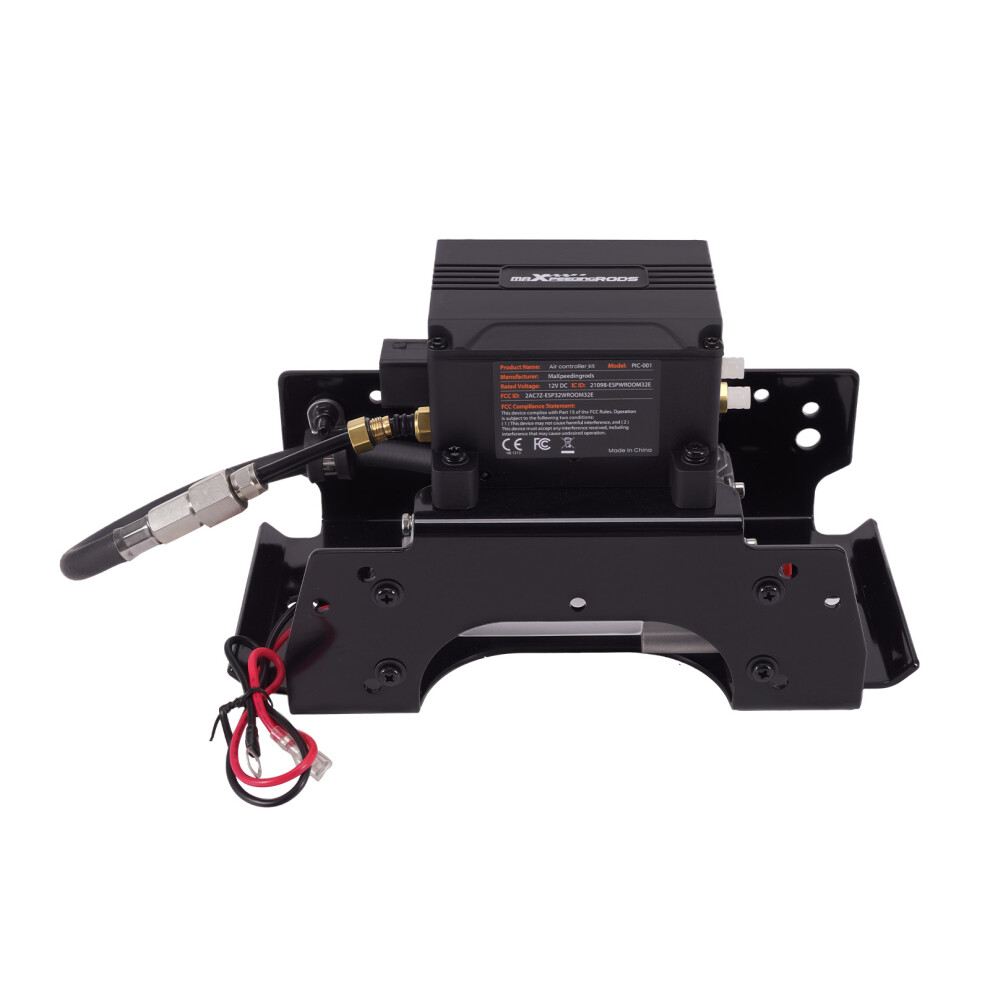

1x Compressor control system assembly

1x Wireless controller

1x Air Line φ6*1 (14M)

1x Air filter

1x Wire harness (6 M)

1x Relay harness(1M)

3x PTC Connector

2x Quick-Connect

1x Installation instruction

1x User Manual

And some other accessories

Features:

- Dual-path controls let you adjust left and right air pressure separately.

- Independently inflate each air spring to maintain vehicle level and stability under heavy loads.

- Heavy-duty compressor, Maximum air pressure is 120 psi.

- Convenient and quick all-in-one installation.

- The black powder-coated steel mounting bracket offers both U-bolt options (enabling drill-free installation on most vehicle models) and self-tapping screw options.

- Professionally designed integrated manifold.

- No air lines or wiring harnesses are required in the cab.

- A wireless controller can activate the compressor from inside or outside the cab.

- Free app turns your phone into a fully functional controller.

- Three preset values can be customized to meet the needs of different scenarios.

- Left and right air springs can be set to different preset values independently.

- The integrated installation can meet the installation requirements of various models.

- 100% factory tested to be leak free.

- Recommended working pressure：50-70 PSI.

- The compressor undergoes rigorous fatigue testing to ensure quality.

- The air controller kit has passed the rigorous salt spray testing.

- The connection signal between the remote control and the application APP is very stable within a range of about 20 meters from the vehicle.

- The wireless remote control is factory matched to be used directly.

- Operating temperature range: -40 to 80/104-176.

- Monitor the system's live situation and run diagnostics via the app.

- Air spring types can be selected via the app to set pressure limits and protect the air springs.

- The compressor duty cycle can be selected via the app.

Notice:

- All modifications must be performed by qualified personnel and in compliance with your local modification regulations.

- It is important to read and understand the installation instruction before you install it.

- Press any button for 3 seconds to activate the wireless controller, and the screen will display the last working pressure.

- Before using the remote control, be sure to install the batteries, which are included in the accessories.

- After downloading the APP, please make sure that the permission of Nearby devices is turned on. If it is not turned on, it will definitely crash directly.

- To prevent the vehicle battery voltage from being drained, always operate this system with the ignition on.

- Do not immerse this product in water.

FAQ

1、

Q: Why does the kit need to have a power wire to the battery and one into the fuse panel? Do they do different things or could this be 1 wire?

A: The one connected to the fuse is needed to activate the system motherboard after the car is ignited, and the one connected to the battery is the power supply line of the air pump. They have different functions and both need to be connected.


2、

Q: Why does the compressor not run after receiving the inflate command?

A: The compressor duty cycle limits the compressor running time to ensure the life of the compressor. When the compressor exceeds or accumulates a running time of about 3 minutes, the system will not inflate, you need to turn off the engine and wait 10 seconds before restarting. Then, give the pressure setting command again, and the compressor will run normally. (The best way is to wait about 15 minutes before running the compressor again.)


3、

Q: Why is the connection signal not so good?

A: Please do not operate the remote control or mobile phone APP when there are obvious obstructions (such as direct blocking walls, large corners, large vehicles, or multiple vehicles).


4、

Q:Why does the air pump stop working before reaching the set air pressure?

A: In order to prevent the compressor from continuing to work due to air leakage, if the air pressure value does not rise by 10 psi within 30 seconds compared with before, the air pump will stop working and the ignition switch will be turned back on to resume normal function.


5、

Q: Will the system automatically inflate when the actual pressure is lower than the set pressure?

A: Yes. If the actual pressure is lower than the set pressure about 4psi, the system will automatically inflate. If the actual pressure is higher than the set pressure, no correction will be made.
