Wireless Wifi Temperature Controller Thermostat AC110-220V DTC1201 Description

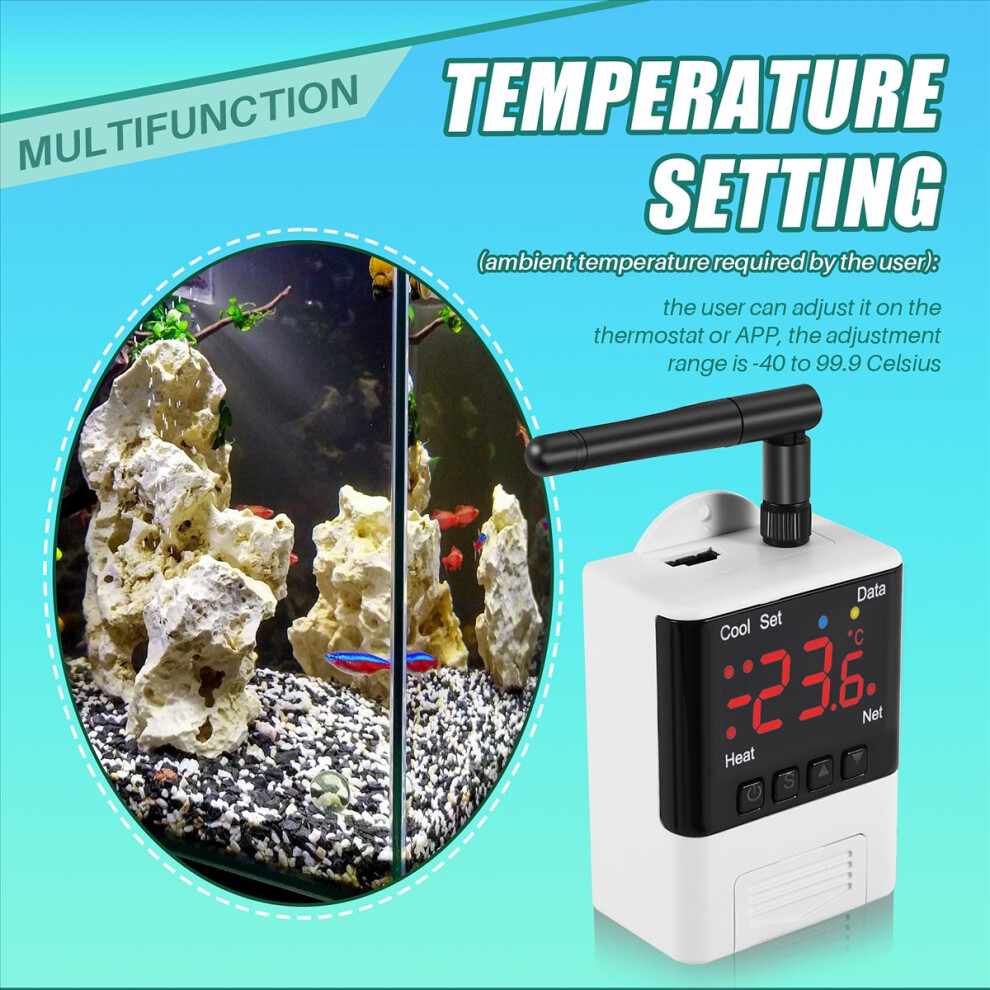

1. Temperature setting (ambient temperature required by the user): the user can adjust it on the thermostat or APP, the adjustment range is -40 to 99.9 Celsius
2. Temperature difference setting: set the difference between the heating and cooling target temperature when working at a constant temperature; for example, the target temperature is 40 Celsius, the temperature difference is set to 2 Celsius, stop heating after heating to 40 Celsius, and enter the constant temperature mode , When the temperature drops to 38 Celsius, re-enter the heating mode, this value differs by 2 Celsius, this value can be adjusted by the host or APP
3. Compressor delay: This function is generally used for compressor refrigeration. If the temperature controller is used for refrigerator freezer, this value must be set. The general setting value is 3-6 minutes according to the back pressure of the compressor. APP to adjust, the adjustment range is 0 to 10 minutes
4. Temperature correction: used to correct the temperature value currently detected by the thermostat, the correction range is 0 to 10 degrees Celsius

Product name: Thermostat
Product model: DTC1201
Power supply voltage: AC 110 -230V
Temperature range: -40Celsius -99Celsius
Temperature measurement accuracy: +/-1Celsius (-40Celsius -70Celsius)
Sensor cable length: 100cm
Sensor cable type:

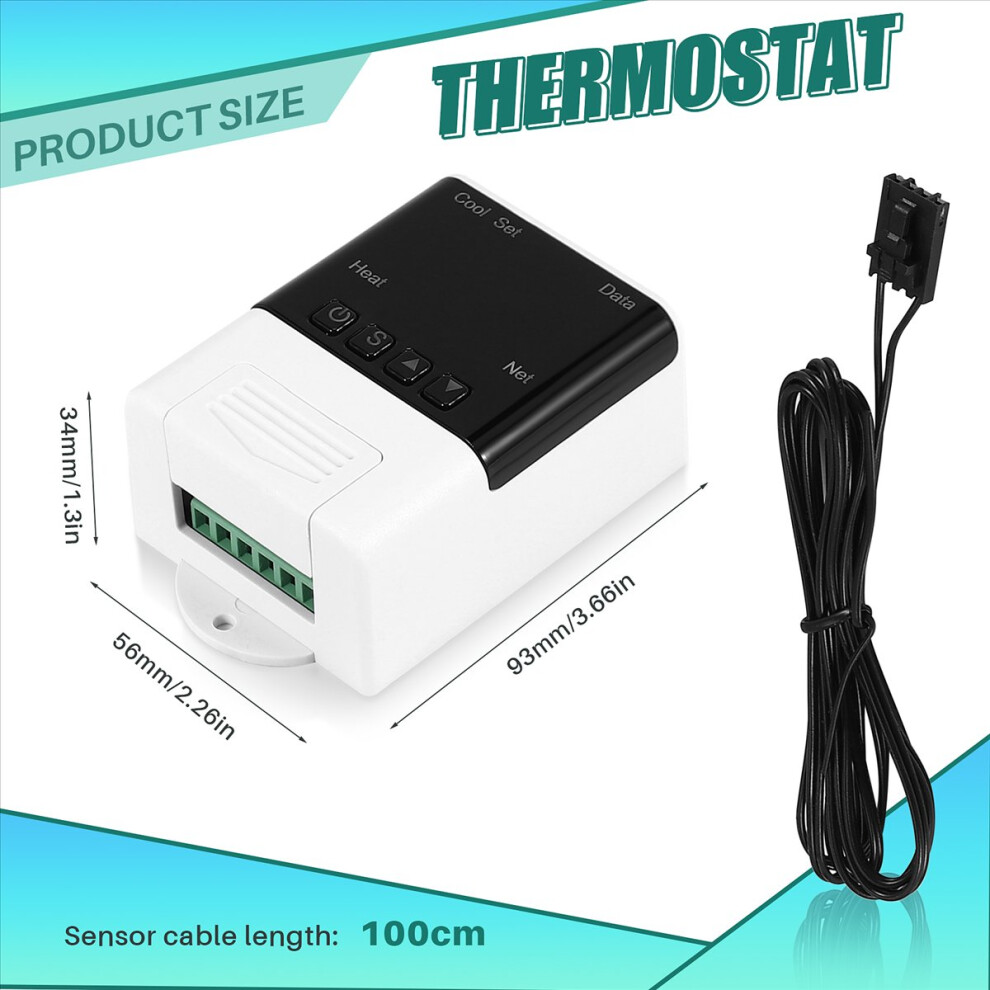

Size: 93mm x 56mm x 34mm
Output capacity: cooling (10A/250VAC) heating (10A/250VAC)
Indicator status:
Cool indicator (Cool and Heat indicators cannot be on at the same time):
On: cooling work
Off: cooling off
Flashing: delay
Heat indicator:
On: heating work
Off: heating off
Set indicator:
On: parameter setting status
Data indicator (yellow light: distribution network indicator):
Data transmission indicator
Net indicator (indicating whether the APP is successfully connected to the device):
On: online
Blinking: offline
Caveat: This thermostat is forbidden to be used in water or excessively humid environment. It is prohibited to use in high temperature, strong electromagnetic interference and strong environment.
State of Assembly: Ready-to-Go
colour:Black+white
Material:plastic

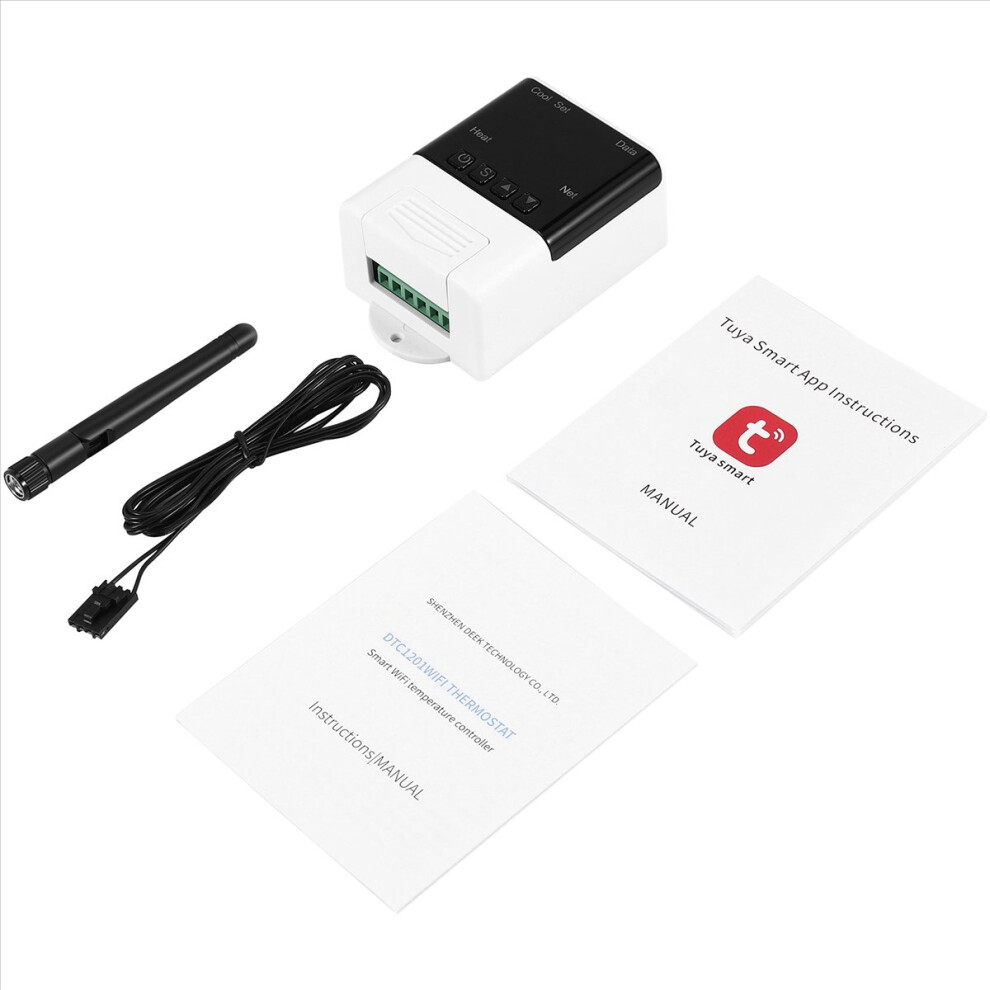

Package Contents:
1 x Wireless digital temperature controller
1 x Temperature sensor cable

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
