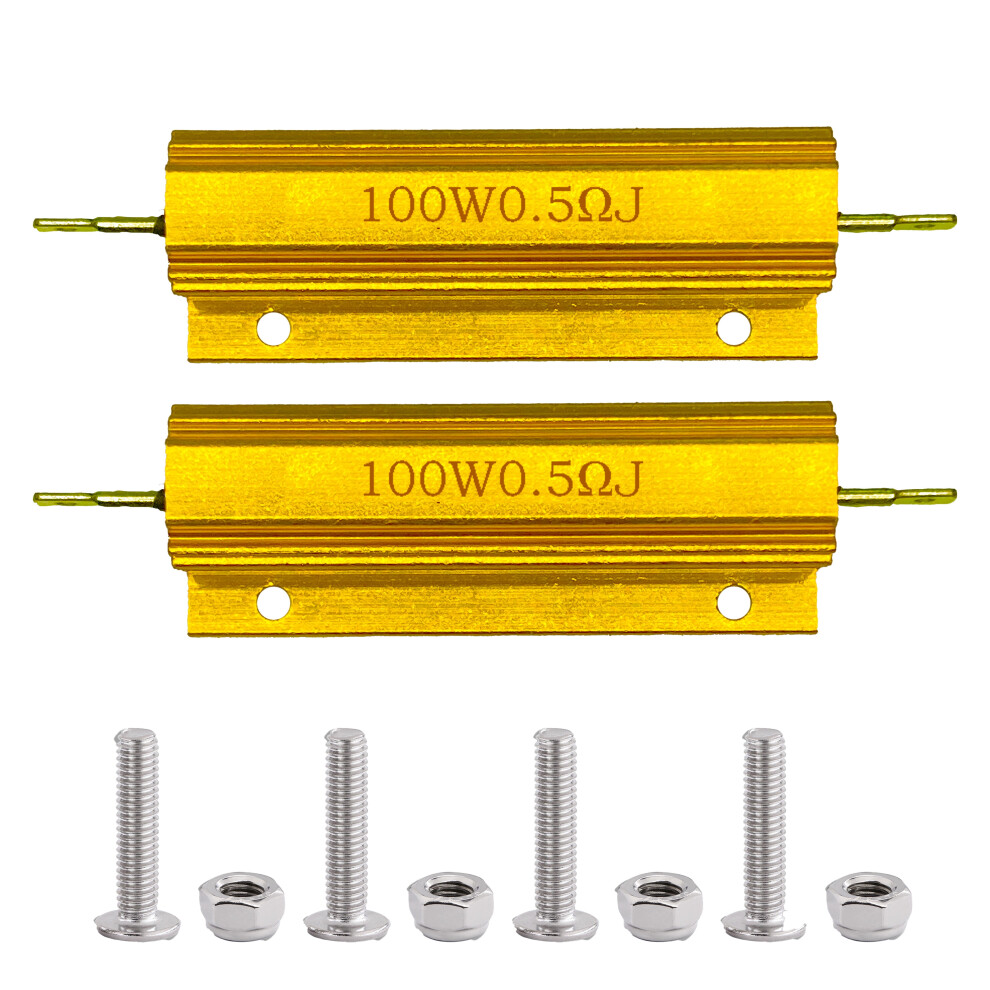

Wirewound Load Resistor Aluminum Case 0.5 Ohm 100W 2PCS

Wirewound Load Resistor Aluminum Case 0.5 Ohm 100W 2PCS Description

Specification: Type: Aluminum Housed Wirewound Resistors Material: Aluminum, Cement, Metal Color: Yellow. Rated power: 100W, Resistance tolerance: 5%. Technology: Wirewound, Axial Leaded. Resistance: 0.5 Ohm Maximum voltage (V): 1kV. Quantity: 2PCS Surface with heat dissipation grooves, small size, high power, high temperature resistance, strong overload capacity with weather resistance, high precision, standard low inductance resistors, high stability, strong structure, its variability good multiple combinations to choose from, conducive to mechanical protection, easy to install and use. Can also be called: discharge resistor, pre-charge resistor, brake resistor, voltage regulator resistor, equalisation resistor, inverter resistor, servo resistor, etc.... Resistor Core: High temperature insulating ceramic rods are used as the resistor skeleton, alloy resistor wires are selected, and are evenly wound using a precision automatic winding machine. Aluminium shell: Adopting industrial type aluminium material, the surface is treated by electrophoresis of Yang grade, which has better heat dissipation effect. Filler: Adopt insulating non-flammable silicone, with moulding process for dense potting, so that the resistor core and the aluminium shell to form a solid structure of the resistor body. General use of epoxy resin and quartz sand doping. Lead-outs: There are hole-end wires, screw-type, welded high-temperature wires, alloy wires for customers to choose according to their needs. Resistor wire and iron cap at the lead-in end are welded by high pressure.
