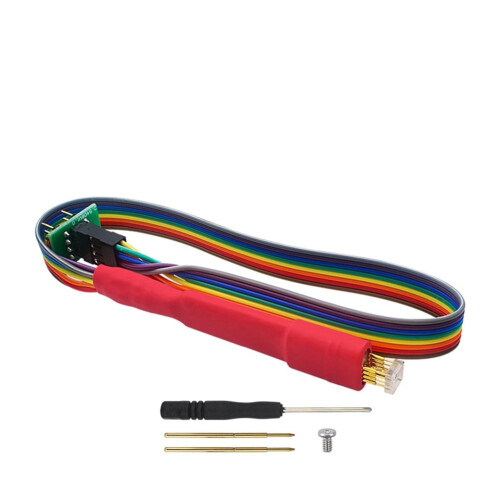

Wson8 Chip Burning Probe WSON86X5 Read And Write Spring Pin Baffle Spacing 1.27mm

Wson8 Chip Burning Probe WSON86X5 Read And Write Spring Pin Baffle Spacing 1.27mm Description

Style: WSON86X5 What this is WSON8 8pin surfacemount package with a 6 by 5 millimeter body Why customers need it Compact footprint supports higher PCB density and smaller products Standard WSON8 footprint simplifies design handoffs with ICs that use this package Compatible with automated SMT assembly processes Key attributes Package type: WSON8 Pin count: 8 Body size: 6 x 5 mm Mounting method: surfacemount (SMT) Footprint compatibility: standard WSON8 land pattern; confirm exact pad layout from the IC datasheet Material: not specified in this description Performance considerations: package style is designed for 8pin devices; actual performance depends on the internal IC 23 use scenarios Scenario 1: Integrate an 8pin IC such as an opamp, ADC, DAC, or sensor in a compact wearable or portable device where space is at a Scenario 2: Use on a dense consumer electronics board requiring a small, SMT 8pin package to conserve board real estate Scenario 3: Include in development or evaluation kits that require a compact WSON8 package to test 8pin ICs without using larger footprints How to use Verify pinout and electrical requirements with the device datasheet Ensure the board footprint matches the standard WSON86X5 pattern Follow standard SMT assembly guidelines for small, density packages
