X1000 SSD Expansion Board+Metal Case for 5

X1000 SSD Expansion Board+Metal Case for 5 Description

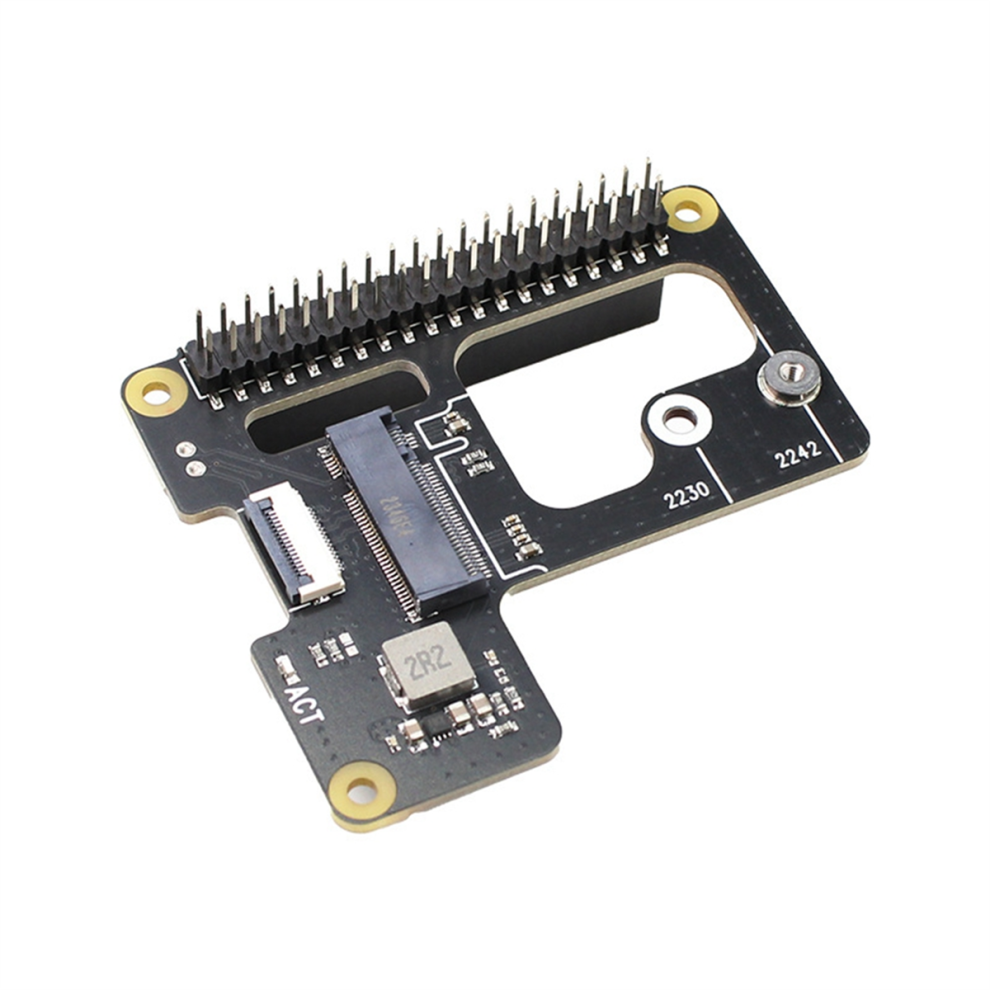

X1000 is a PCle M.2 NVMe protocol M.2 solid-state drive expansion board designed specifically for 5. It supports NVMe protocol M.2 interface hard drives and provides high-speed reading and writing.
X1000 hardware has on NVME SSD capacity, depending on the .
Compatible with other HAT expansion boards;
FFC length is only 30mm;
Supports the installation of official active radiators and third- radiators;

With ACT LED indicator light; on: power normal/standby, flashing: read/write;
Reserve space for installing the POE module;
Only supports 2230/2242NVME M2 SSD disk. You need to bring your own screws to install the 2230 hard drive;
Can power the X1000 shield directly from the FFC PCIe strip (providing up to 5W of continuous power)
40pin pin header, which can automatically supply power from GPIO to avoid the problem of insufficient power supply for large-capacity SSDs.
[PCle interface design based on PI5]
The PI5 can be connected through the FFC cable, and the X1000 shield can be powered directly from the FFC PCIe strip (providing a maximum continuous power of 5W).
Due to different batches, the appearance, color and printed words of the product , which not affect the use.
Colour:Black
Material:PCB

Package Contents:
1 x Expansion Board

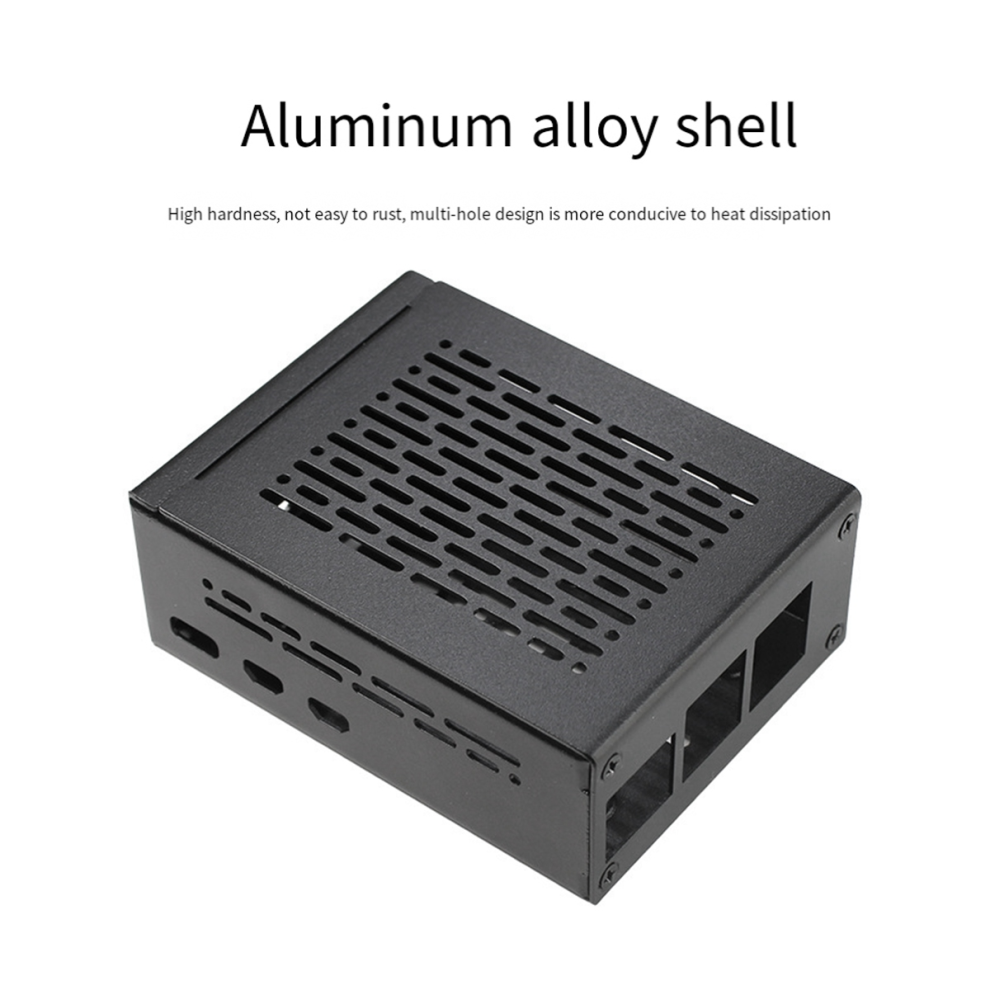

1 x Metal Case

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
