XD68KTYZACS1 AC220V 28W Permanent Magnet

XD68KTYZACS1 AC220V 28W Permanent Magnet Description

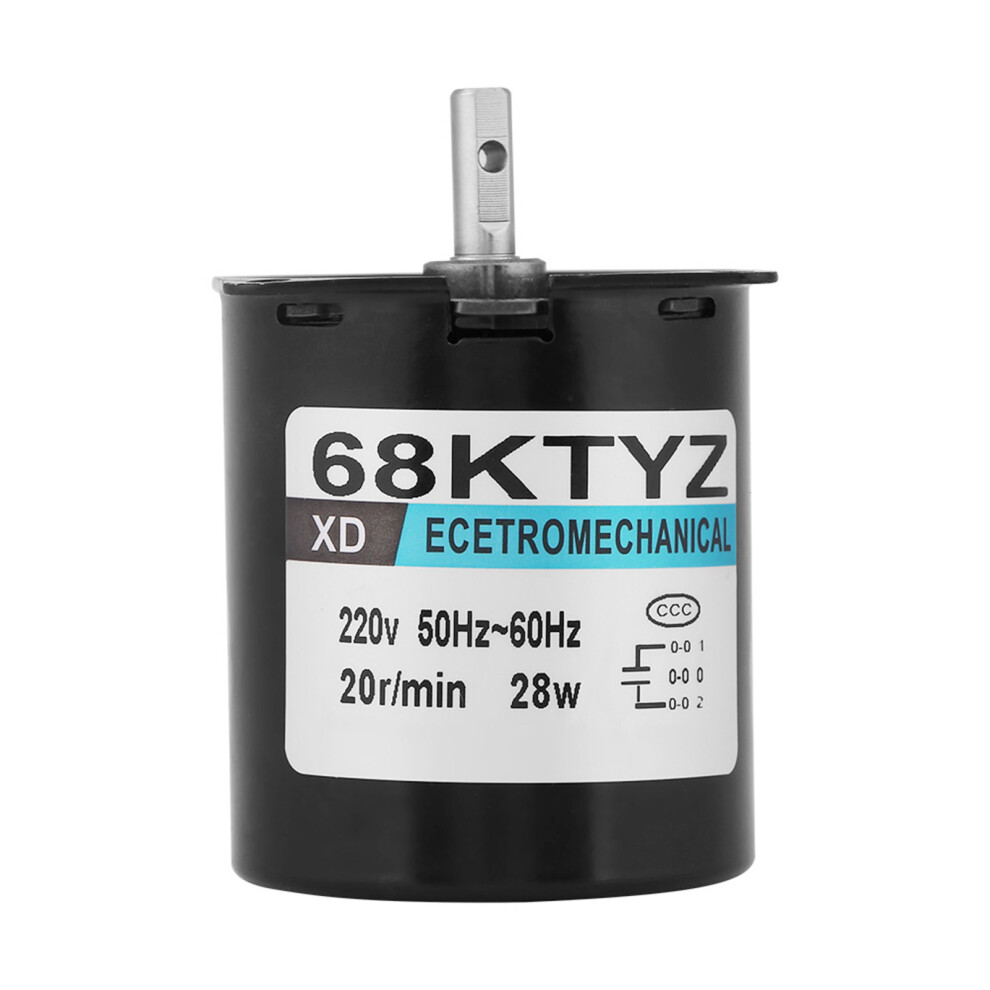

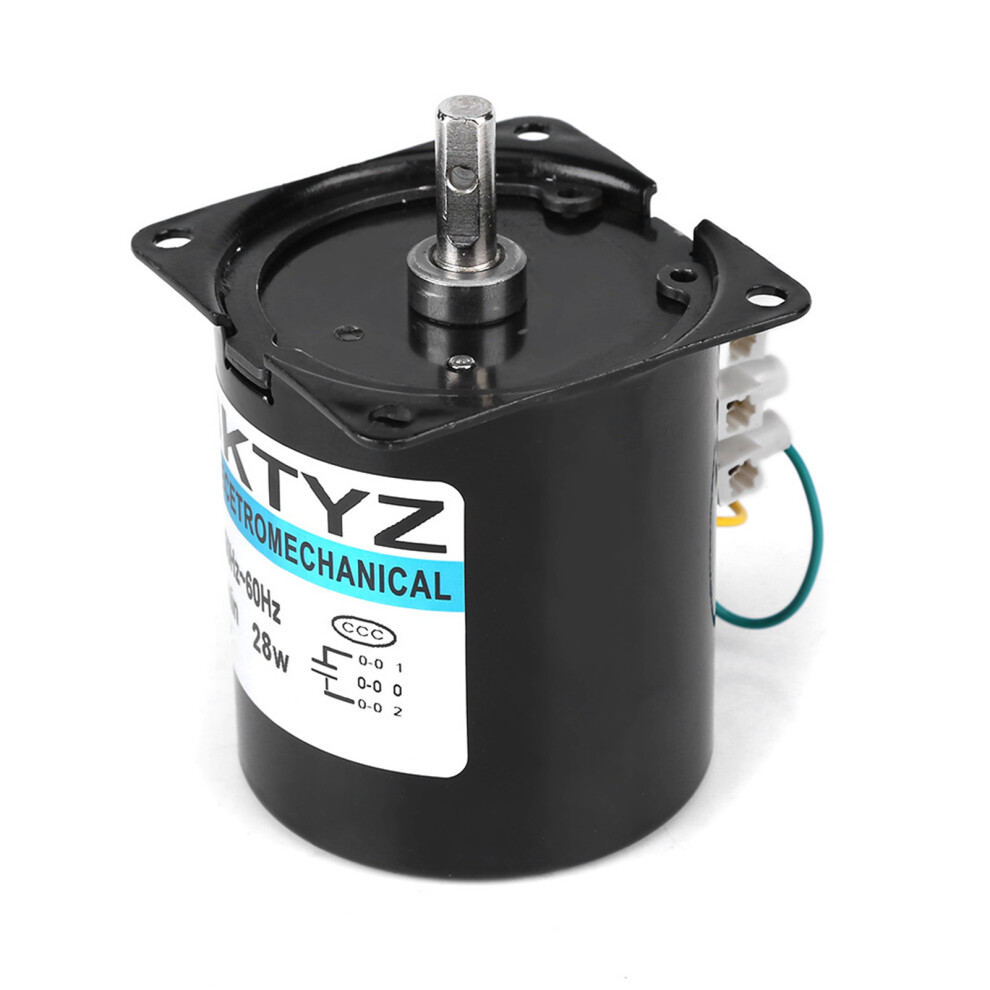

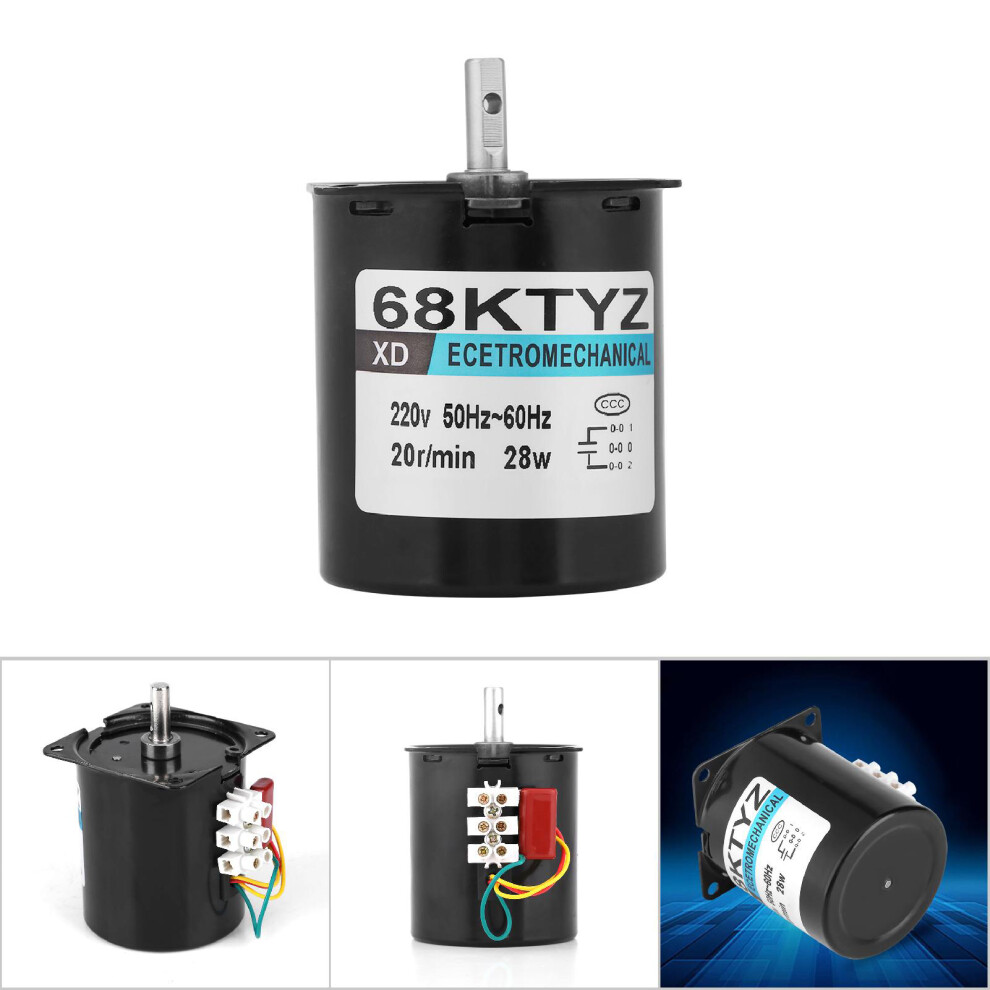

XD68KTYZACS1 AC220V 28W Permanent Magnet Synchronous Gear Motor CW/CCW 20 r min



1、Mainly used in instrument, automation, stage lamps and advertising display equipment, curtain automatic control, automatic voltage regulator, etc. 2、Small volume but large torque. 3、Motor gets constant under the rated frequency, not affected by voltage. 4、With copper wire production, metal gear, constant speed. 5、This synchronous motor is stable, durable, and compatible.

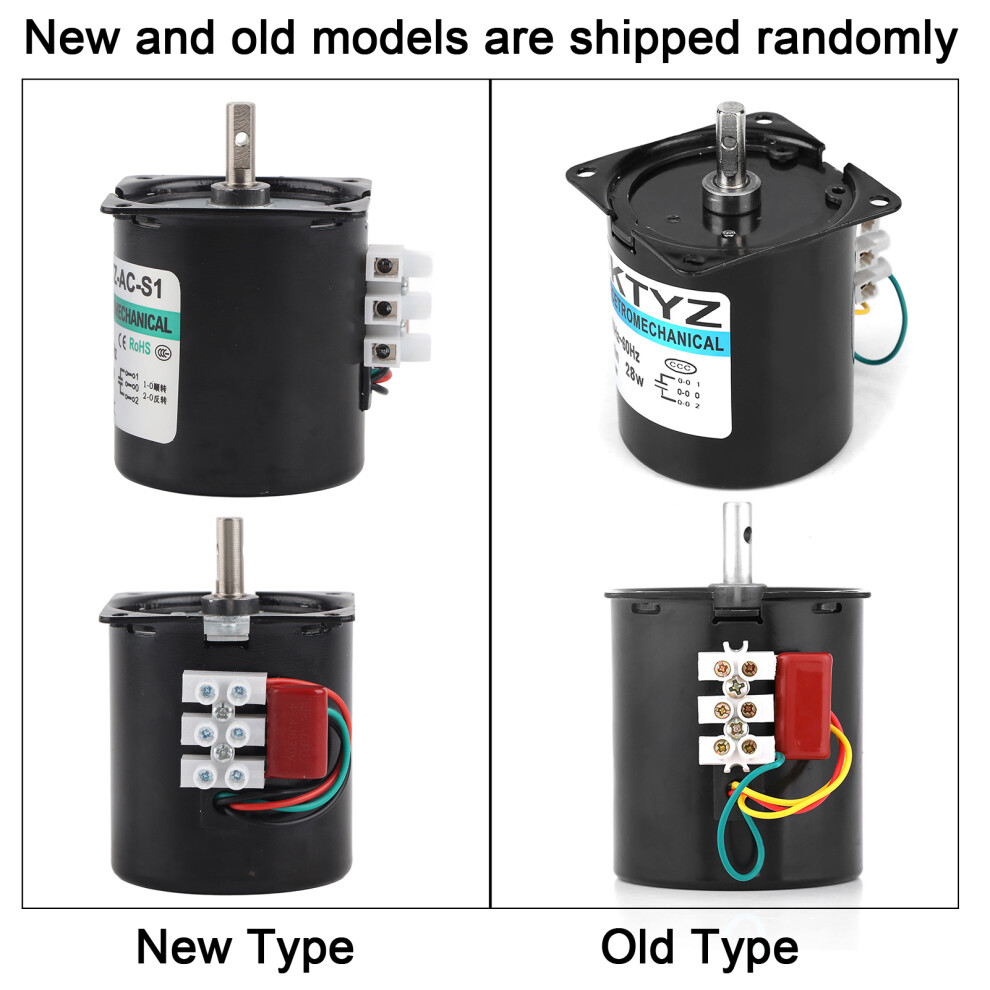

Features: Mainly used in instrument, automation, stage lamps and advertising display equipment, curtain automatic control, automatic voltage regulator, etc. Small volume but large torque. Motor gets constant under the rated frequency, not affected by voltage. With copper wire production, metal gear, constant speed. This synchronous motor is stable, durable, and compatible. Specification: Model: XD68KTYZ-AC-S1 Material: Metal Current: 0.5A Voltage: AC220V Frequency: 50Hz~60Hz Power: 28W Speed(Optional): 2.5RPM, 20RPM, 30RPM, 110RPM Torque(kgf.cm): 60(2.5RPM), 14(20RPM), 9(30RPM), 2(110RPM) Shaft Type: D-Type Weight: 532g Package Including: 1 x Synchronous Motor(Wires in the picture are not included) Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
