(XH-M603) 12V Charger Control Module Power Supply Battery Automatic Charging Protection Board

(XH-M603) 12V Charger Control Module Power Supply Battery Automatic Charging Protection Board Description

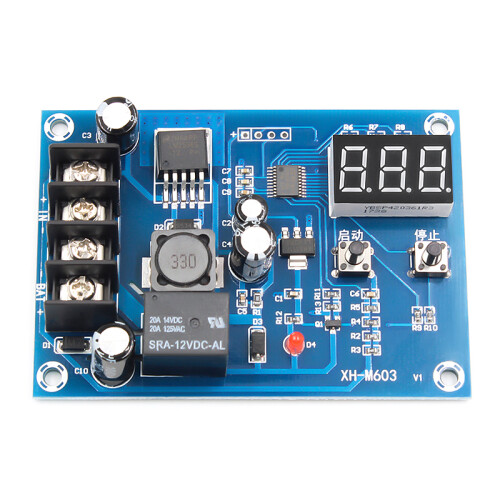

XH-M603 Charging Control Module 12-24V
Input Voltage: DC 10-30V
Display Precision: 0.1V
Control Precision: 0.1V
Output Type: direct output
Voltage Tolerance: +/-0.1V
Application Fields: 12-24V storage battery
Size: About 82*58*18mm

XH-M604 Battery Charger Control Module DC 6-60V
Input Voltage: DC 6-60V (max 80V)
Display Precision: 0.1V
Control Precision: 0.1V
Output Type: direct output
Voltage Tolerance: +/-0.1V
Application Fields: 6-60V storage battery
Size: about 81*54*18mm

Using Method:
1. Set Starting Voltage: in normal display voltage state, press the button, it will display start charging voltage; long press for 3s, the digital tube will flash; you can start or stop button to set starting up charge voltage value.
2. Set Stop Voltage: in normal display voltage state, press the button, it will display stoping charge voltage; long press the button for 3s, the digital tube will flash; you can start or stop button to set stoping charge voltage value.
3. Factory Reset: in power on state, press the start/stop button at the same time, digital tube will display 888; that represents factory reset settings.

XH-M602  Control Battery Charging Control Module AC 220V
Input Voltage: AC 220V
Display Precision: 0.1V
Control Precision: 0.1V
Output Type: output switch
Voltage Tolerance: +/-0.1V
Application Fields: for 3.7-120V lithium battery or storage battery
Size: about 86*58*24mm

XH-M601 Battery Charging Control Board 12V
Power Supply Voltage: 13.8-14.8V
Relay Operating Voltage: 12.4V
Relay Disconnect Voltage: 14.8V
Voltage Tolerance: +/-0.1V
Voltage Detection Way: DC voltmeter
Charging Type: 12V storage battery
Potentiometer Adjustment: RP1 RP2
Size: about 50*32*18mm

Potentiometer Adjustment:
1. RP1: adjust storage battery start charging voltage (low voltage setting: clockwise becomes higher, counter-clockwise becomes lower)
2. RP2: adjust storage battery disconnect charging voltage (low voltage setting: clockwise becomes higher, counter-clockwise becomes lower)

Package Included:
1* Battery Charger Control Module
