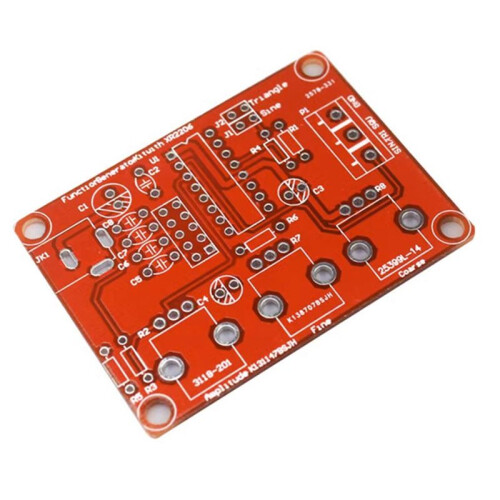

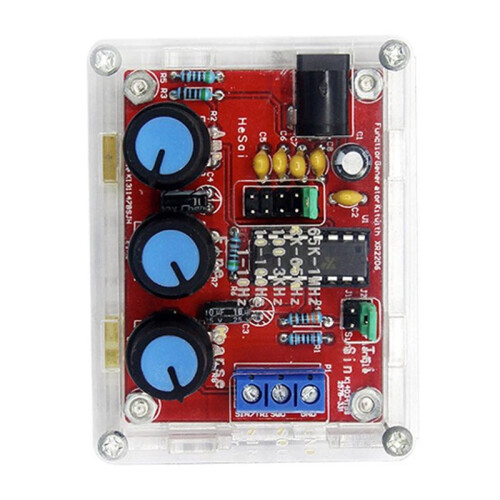

XR2206 High Precision Signal Generator DIY Kit Sine Triangle Square Waves 1Hz 1MHz Frequency Range Adjustable Frequency

XR2206 High Precision Signal Generator DIY Kit Sine Triangle Square Waves 1Hz 1MHz Frequency Range Adjustable Frequency Description

Can produce sine wave, triangular wave, square wave
Frequency can be from 1HZ-1MHZ
Frequency, amplitude adjustable;
five-bit precision resolution;
Frequency adjustment has coarse adjustment and fine adjustment;

Wide range of power supply, can use external power 9-12V or 9V battery;
All in- components, small number of components, simple installation and debugging.
Parameters: Technical specifications:
Power supply voltage: 9-12V input
Waveform: square, sine and triangle
Impedance: 600 ohms + 10%
Frequency: 1hz-1mhz
Sinusoidal wave
Amplitude: 0-3V at 9V input
Distortion: less than 1% (1kHz)
Flatness: + 0.05db 1hz expansion
Square wave
Amplitude: 8v (no load) at 9V input
Rise : less than 50ns (1kHz)
Drop : less than 30ns (1kHz)
Symmetry: less than 5% (1kHz)
Triangular wave
Amplitude: 0-3V at 9V input
Linearity: less than 1% ( to 100kHz) 10ma
Colour:As Shown
Material:Electronic components

Package Contents:

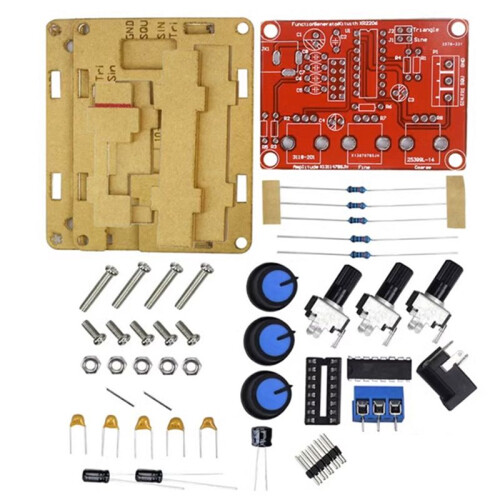

1 * XR2206 High precision signal generator DIY Kit
