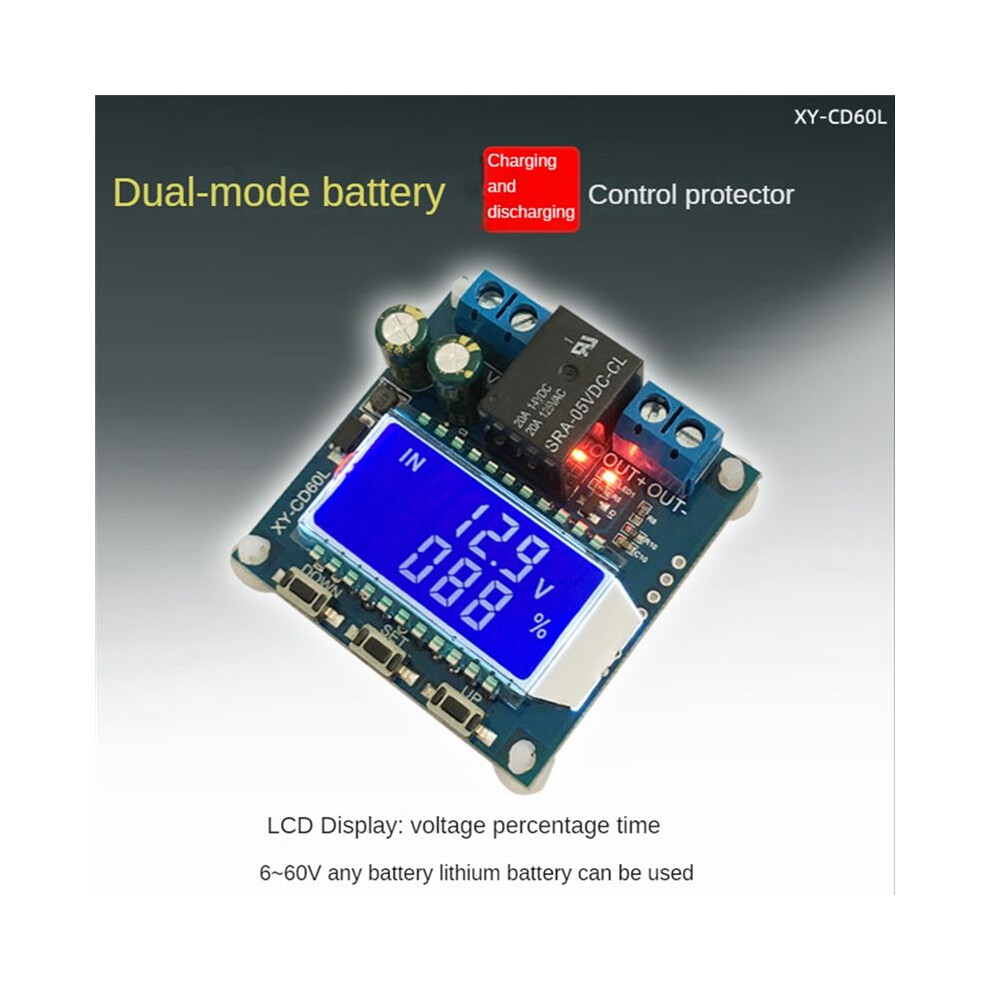

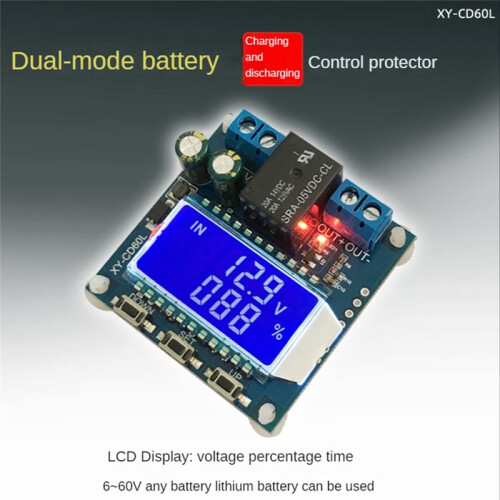

XY-CD60L Battery Charging Control Module Full Power-Off Voltage Protection Under-Voltage Power-Off Protection Module
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£8.21
£13.55
39% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Mon 27th - Fri 31st Jul
Returns: 30 days
180-day payment protection
Most Popular in Household Battery Chargers
Hot
Hot
Description & Details
Summary
- Charging mode IN: By setting the upper limit voltage UP and the lower limit voltage dn; when the battery voltage ≤ the lower limit voltage dn, the relay is turned on, and the charger starts to charge the battery; when the battery voltage ≥ the upper limit voltage UP, the relay is turned off to complete an automatic charging; the relay is turned on, IN flashes to indicate it is charging.

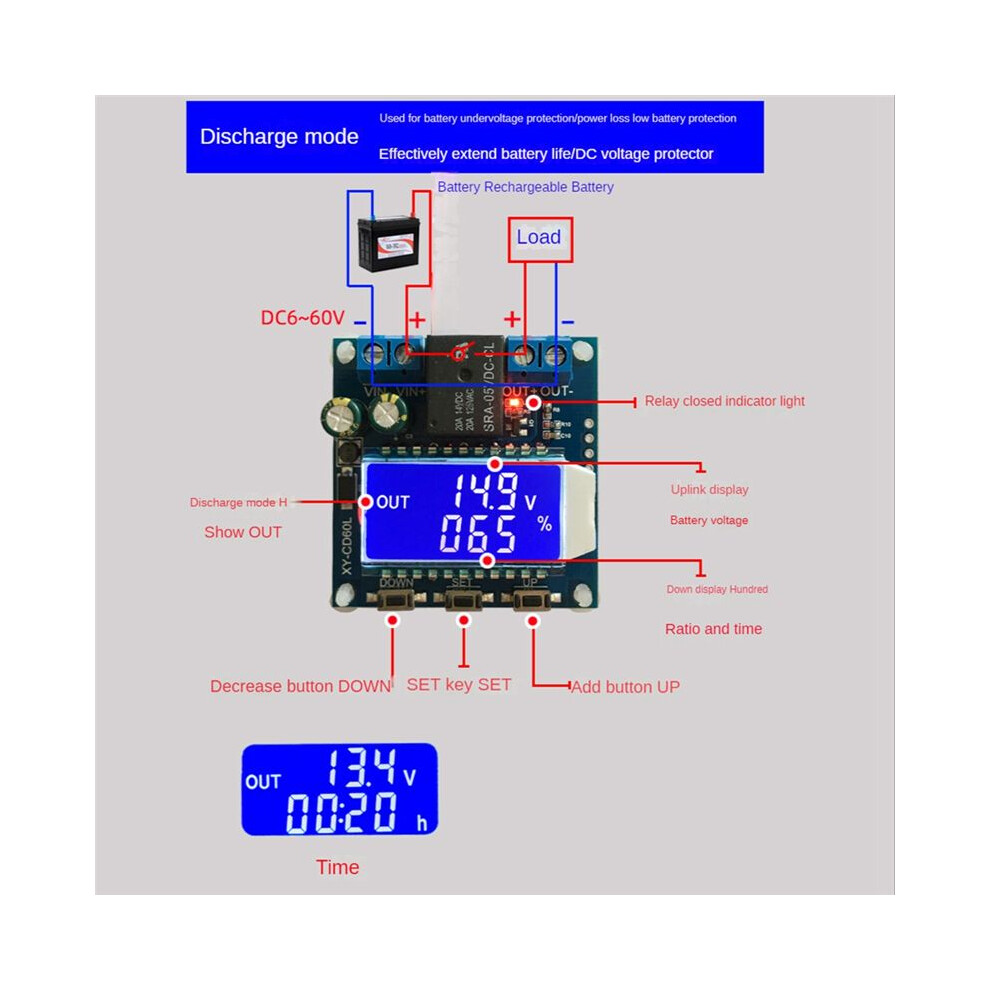

- Discharge mode OUT: By setting the upper limit voltage UP and the lower limit voltage dn; when the battery voltage ≥ the upper limit voltage UP, the relay is turned on and starts discharging; when the battery voltage is ≤ the lower limit voltage dn, the relay is turned off to complete an automatic discharge function; the relay is turned on, OUT flashes, Indicates that it is discharging.
- Note: This product is a simple voltage controller, the output is turned on and off through a relay, it only plays the role of a switch and cannot change voltage.
- Color: black
- Material: PCB+ electronic components
XY-CD60L Battery Charging Control Module Full Power-Off Voltage Protection Under-Voltage Power-Off Protection Module Description
Charging mode IN: By setting the upper limit voltage and the lower limit voltage dn; when the battery voltage the lower limit voltage dn, the relay is turned , and the charger starts to charge the battery; when the battery voltage the upper limit voltage , the relay is turned off to complete an automatic charging; the relay is turned , IN flashes to indicate it is charging.
Discharge mode OUT: By setting the upper limit voltage and the lower limit voltage dn; when the battery voltage the upper limit voltage , the relay is turned and starts discharging; when the battery voltage is the lower limit voltage dn, the relay is turned off to complete an automatic discharge function; the relay is turned , OUT flashes, Indicates that it is discharging.
Note: This product is a simple voltage controller, the output is turned and off through a relay, it only plays the role of a and cannot change voltage.
Color: black
Material: PCB+ electronic components
Function Description:
1. Calculation of voltage percentage: battery voltage / (upper limit voltage - lower limit voltage)
2. Button function:
button: short press to display % and , long press for 5 seconds to modes, charging mode: IN, discharging mode: OUT

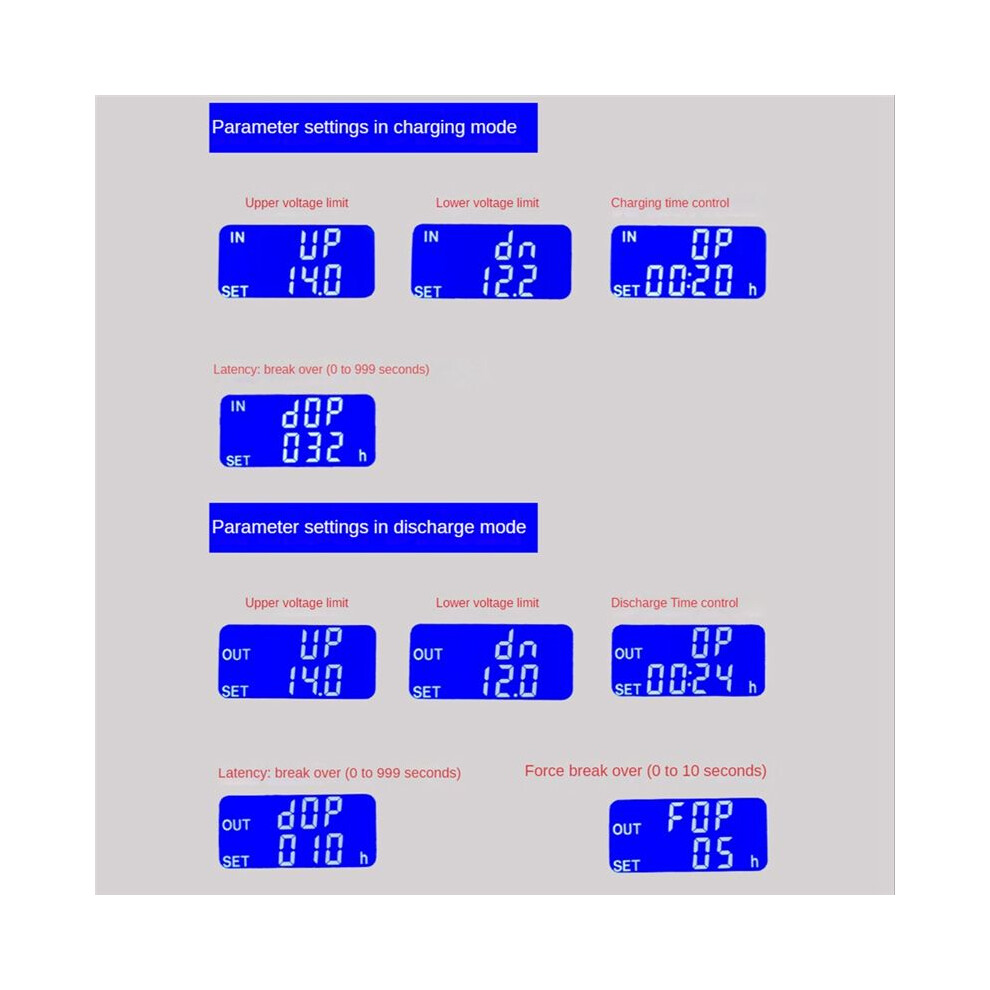

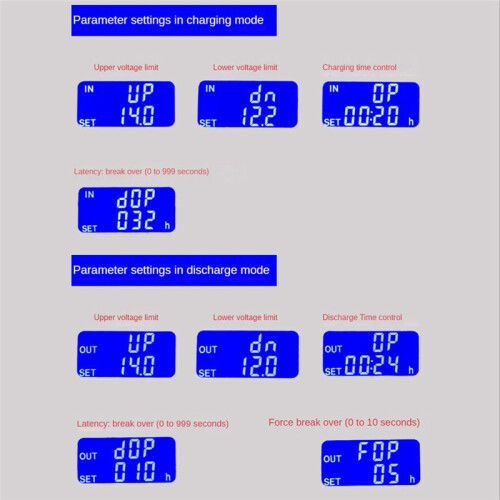

SET button: Short press to view the currently set parameters; long press the SET button to enter the parameter setting interface, set : voltage upper limit, dn: voltage lower limit, OP: conduction , dOP: delayed conduction (0-999 seconds) , FOP in discharge mode: forced (0-10 seconds)
DOWN button: Short press to turn off/ the relay enable (emergency stop function) after it is turned off, the LCD display is OFF, and the relay is disconnected
Package Contents:
1 x Battery protector
Details
| OPC | PSZ2M9H |
|---|---|
| Codes | 6031462941307 (EAN) |

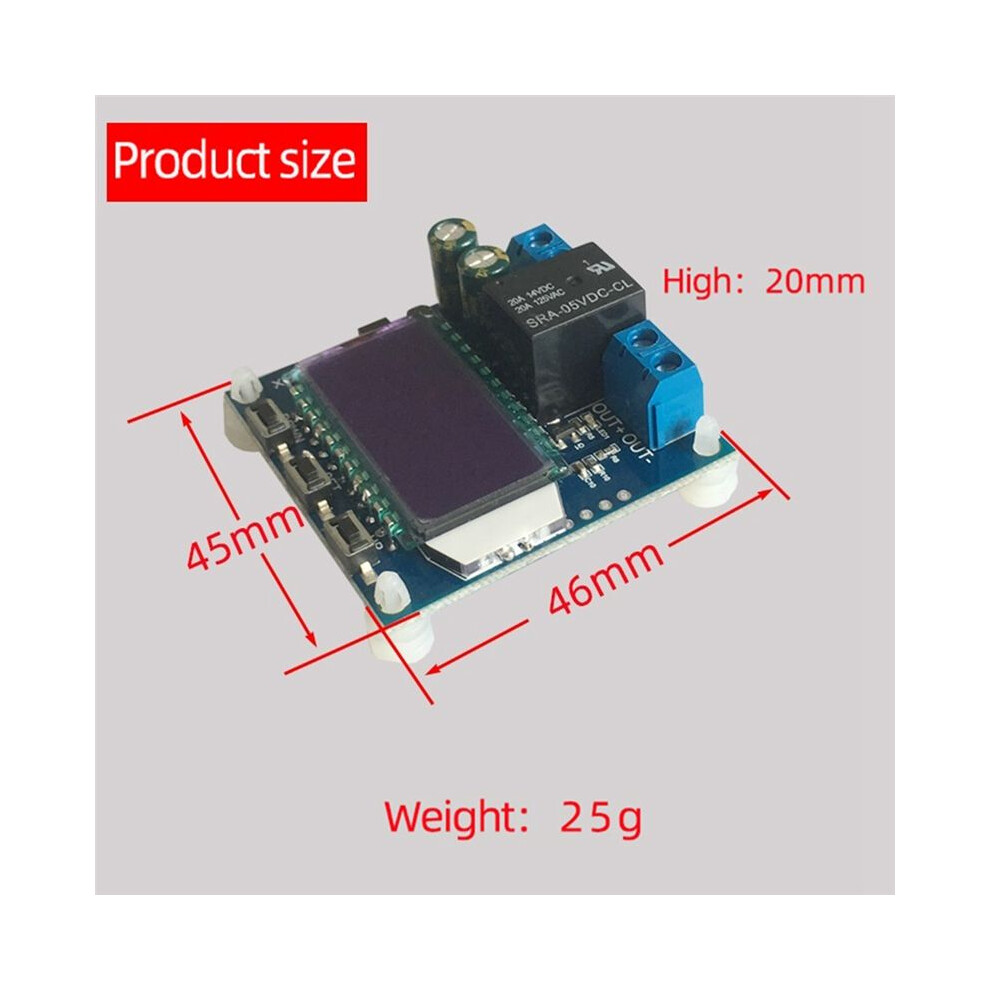

Product Data
| Height | 1cm |
|---|---|
| Width | 7cm |
| Length | 11cm |
| Weight | 0.0275kg |
| Colour | Black |
| Material | PCB+ electronic components |
