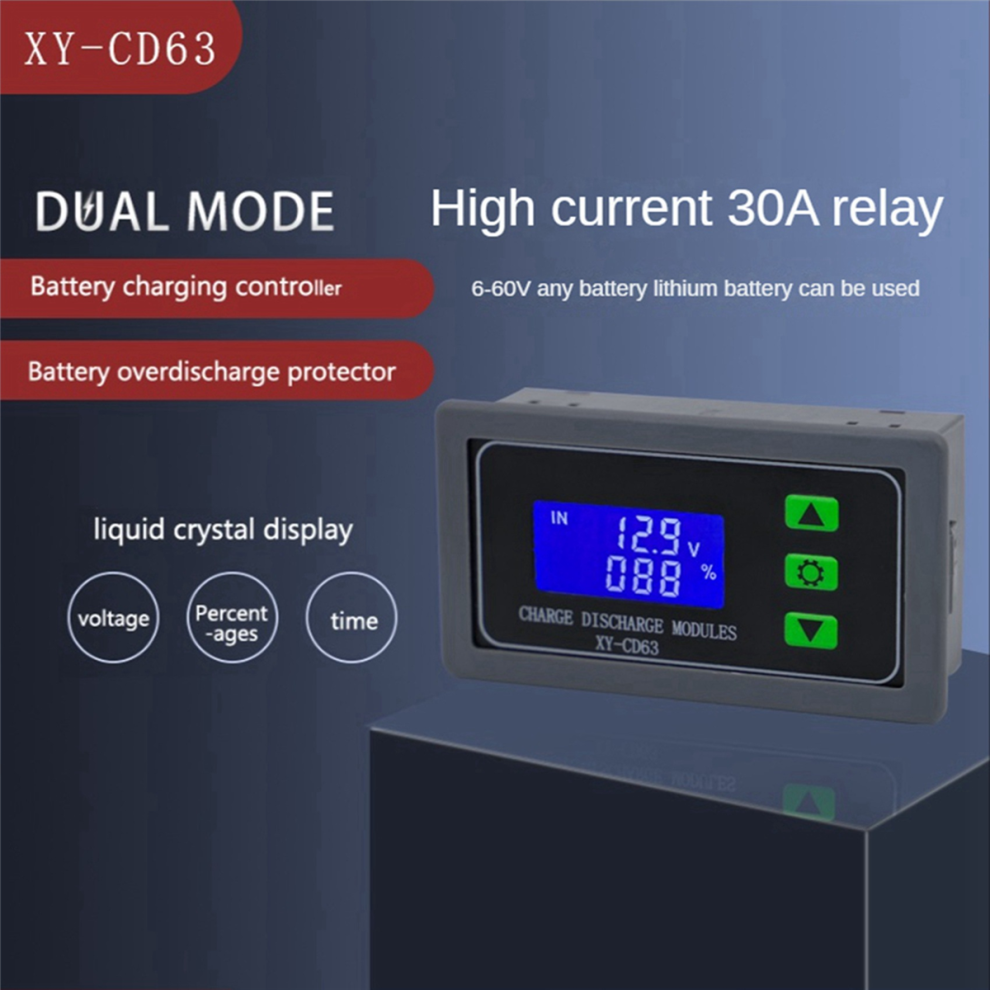

XY-CD63 CD63 30A Battery Charging Control Module Full Power Off

XY-CD63 CD63 30A Battery Charging Control Module Full Power Off Description

Calculation of voltage percentage: battery voltage / (upper limit voltage - lower limit voltage)

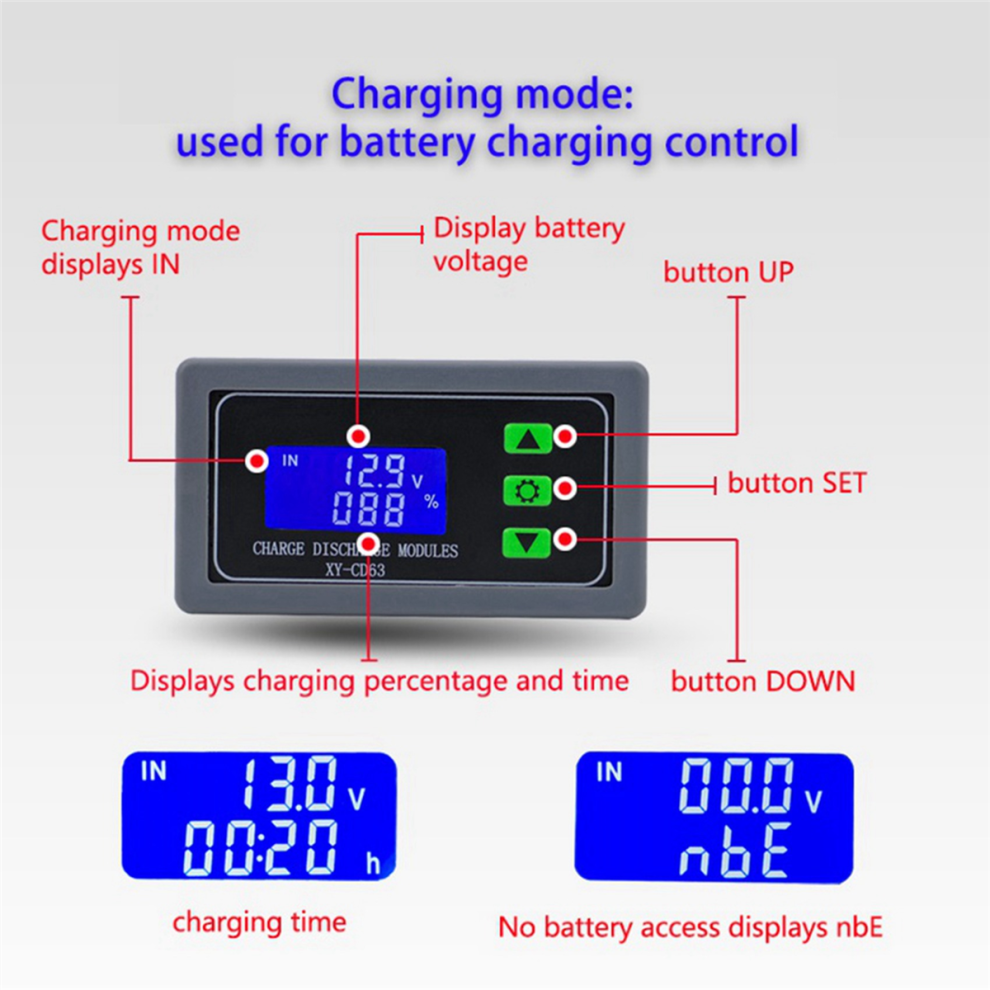

Key function: Up button: short to switch display% and time, long for 5 seconds to switch mode, charging mode: in, discharging mode: out
Set button: short to view the currently set parameters; long set button to enter the parameter setting interface, setting up: upper voltage limit, : lower voltage limit, Op: conduction time, : delayed conduction time (0-999 seconds), FOP: forced conduction time (0-10 seconds) in discharge mode
Down button: short the close / open relay enable (emergency stop function) to close, the LCD displays off, and the relay is disconnected. Long the down button to set the LCD backlight status. L-P: off backlight is always on, on: backlight automatically goes out after 5-10 minutes; after it goes out, any button to wake up.

Parameter setting: 1. and hold the set key to enter the parameter setting interface; 2. After entering the parameter setting interface, short the set key to switch the set parameters; 3. After the parameters are , they can be set by up / down key. Short and long are supported; 4. If you want to set other parameters, repeat steps b) and C); 5. After all parameters are set, long set key to exit and save
Color: black
Material: ABS

Package Contents:

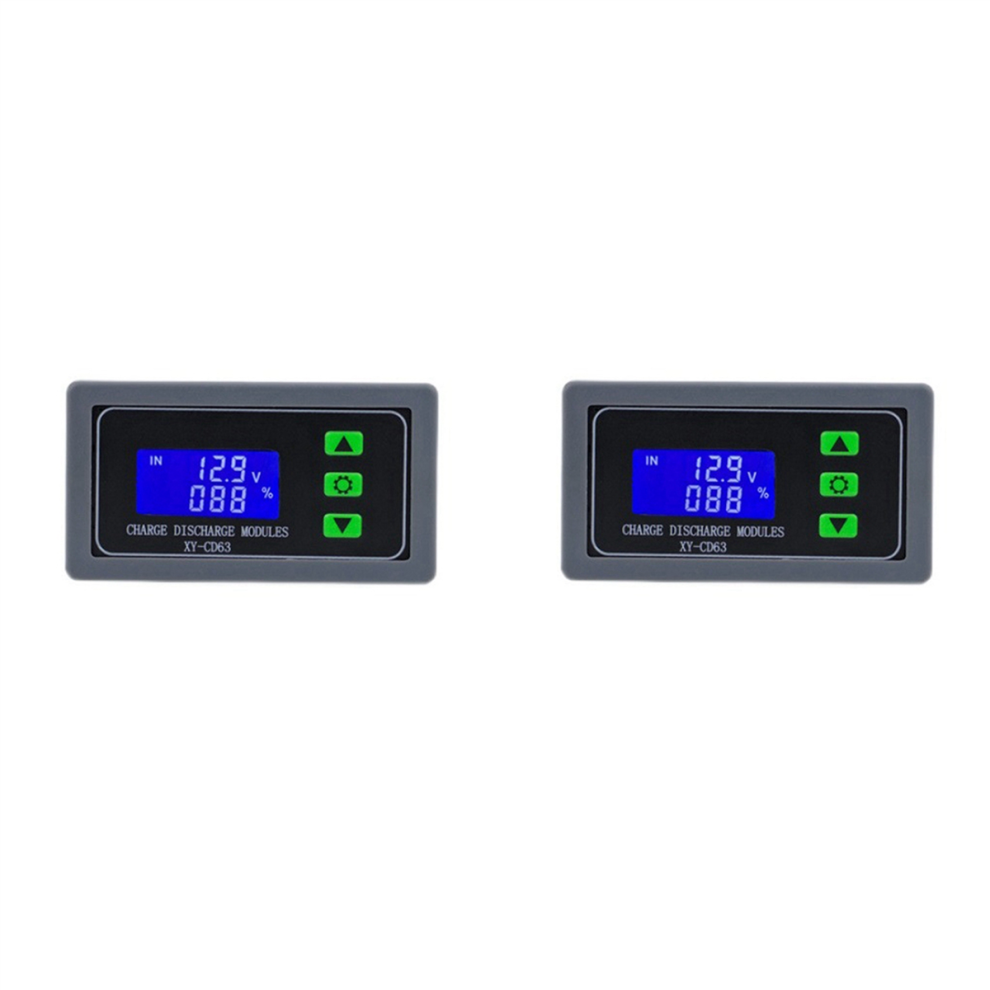

2 x Battery protector

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
