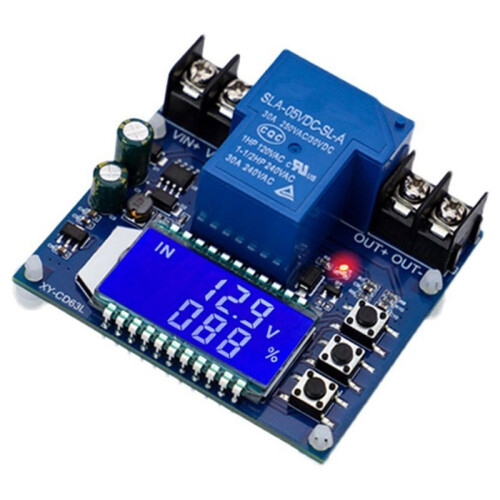

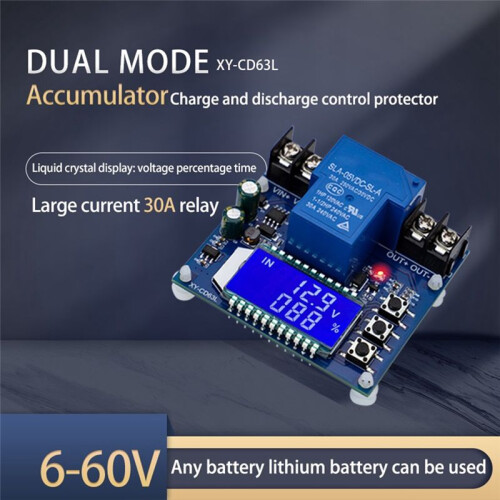

XY-CD63L 30A Battery Charge Discharge Controller Low Voltage Cut Off Undervoltage Overvoltage Protection Display
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 133,000 Trustpilot reviews and an 'Excellent' rating
£9.66
£13.04
26% off!
+£1.67 Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£1.67) | Tue 15th - Mon 21st Sep
Sold by: Zemaoxia
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary

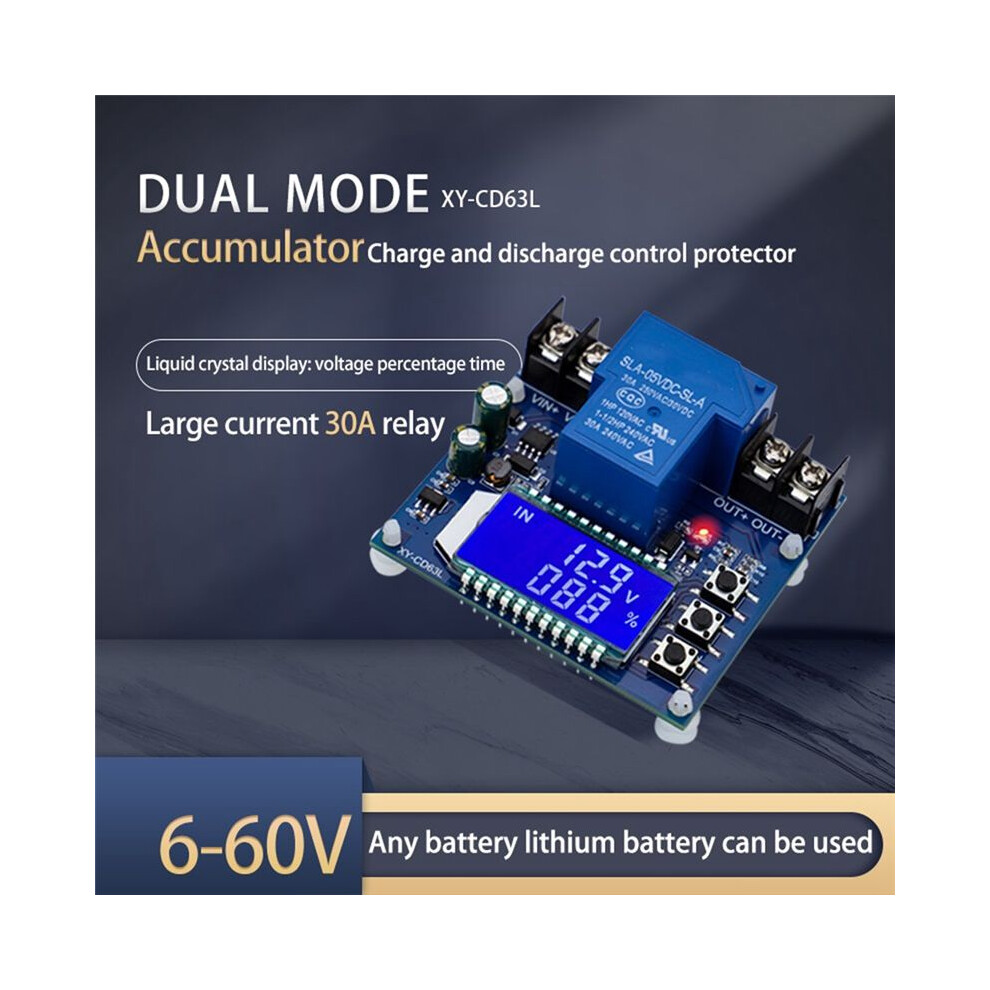

- This product is a voltage controller, which turns on and off the output through a relay, which only acts as a switch and cannot change the voltage.

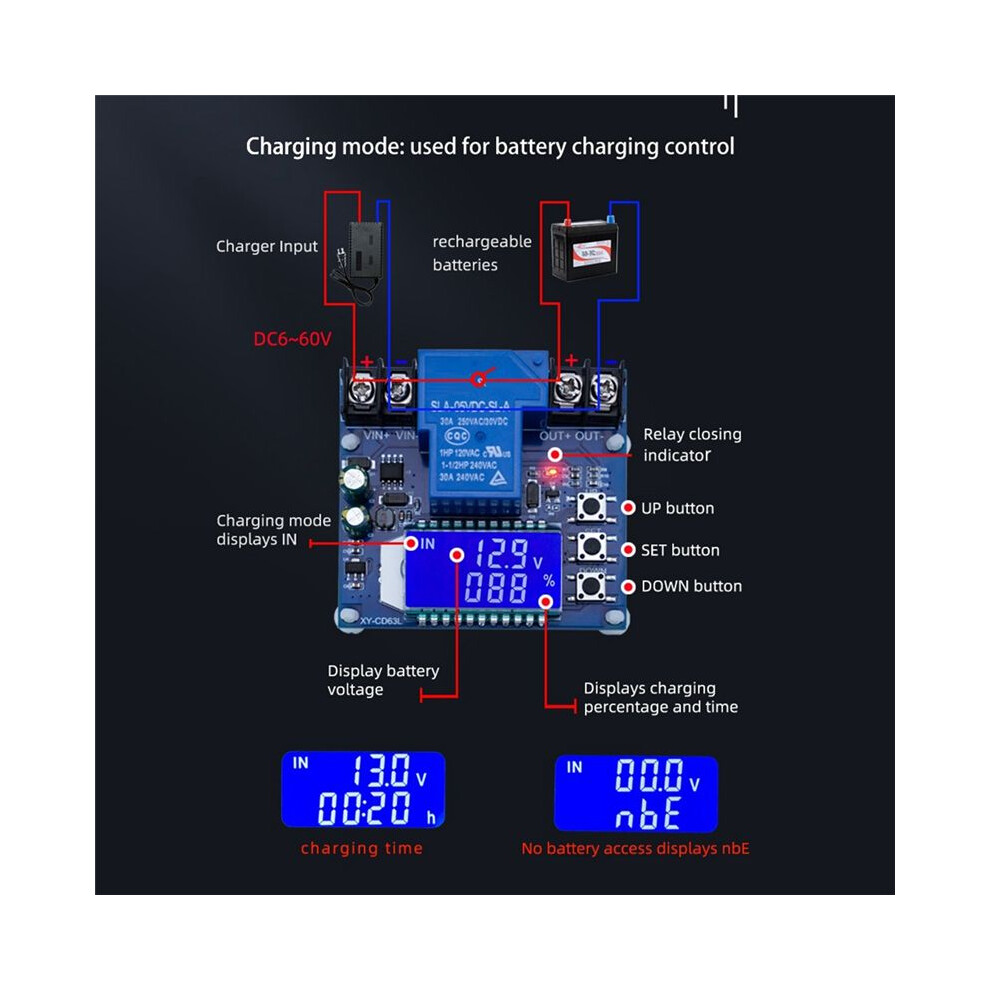

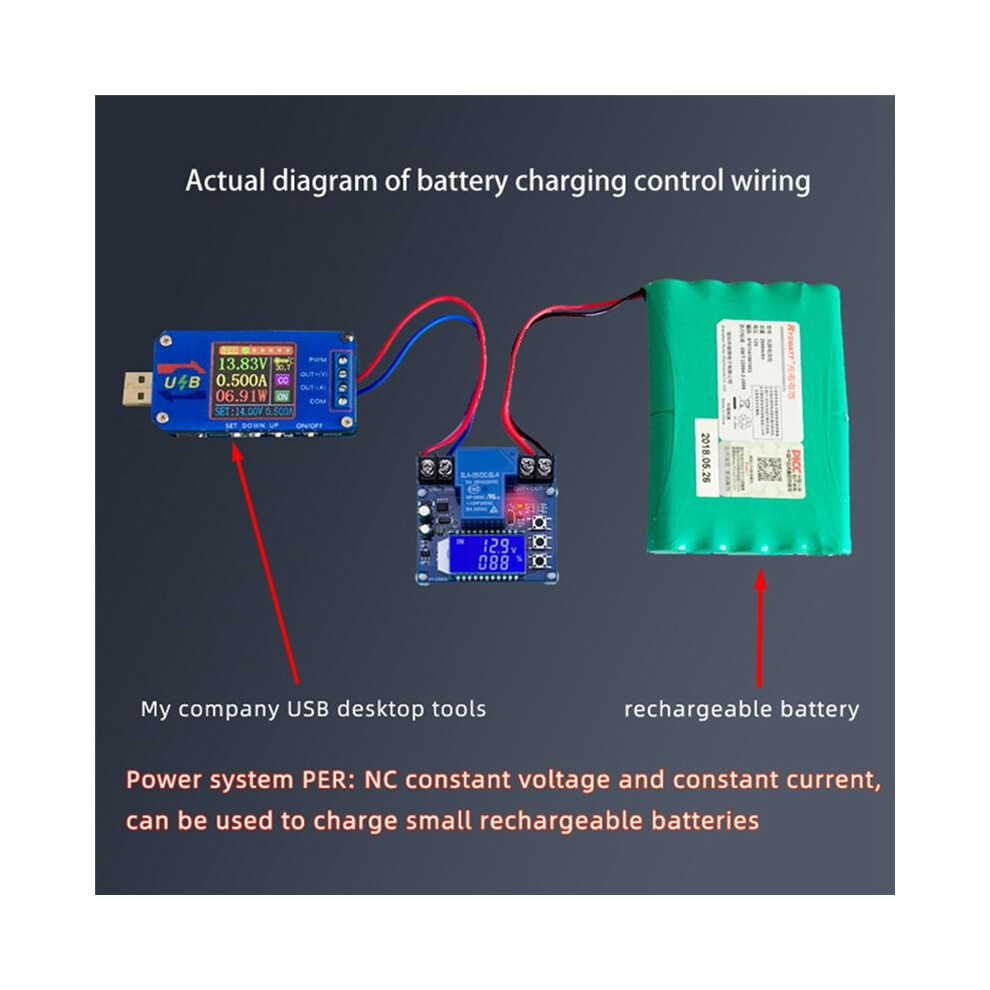

- Charging mode IN: By setting the upper limit voltage UP and the lower limit voltage dn; when the battery voltage less than or equal to the lower limit voltage dn, the relay is turned on, and the charger starts to charge the battery; when the battery voltage greater or equal to the upper limit voltage UP, the relay is disconnected to complete an automatic charging; the relay is turned on, IN flashes, indicating that it is charging.

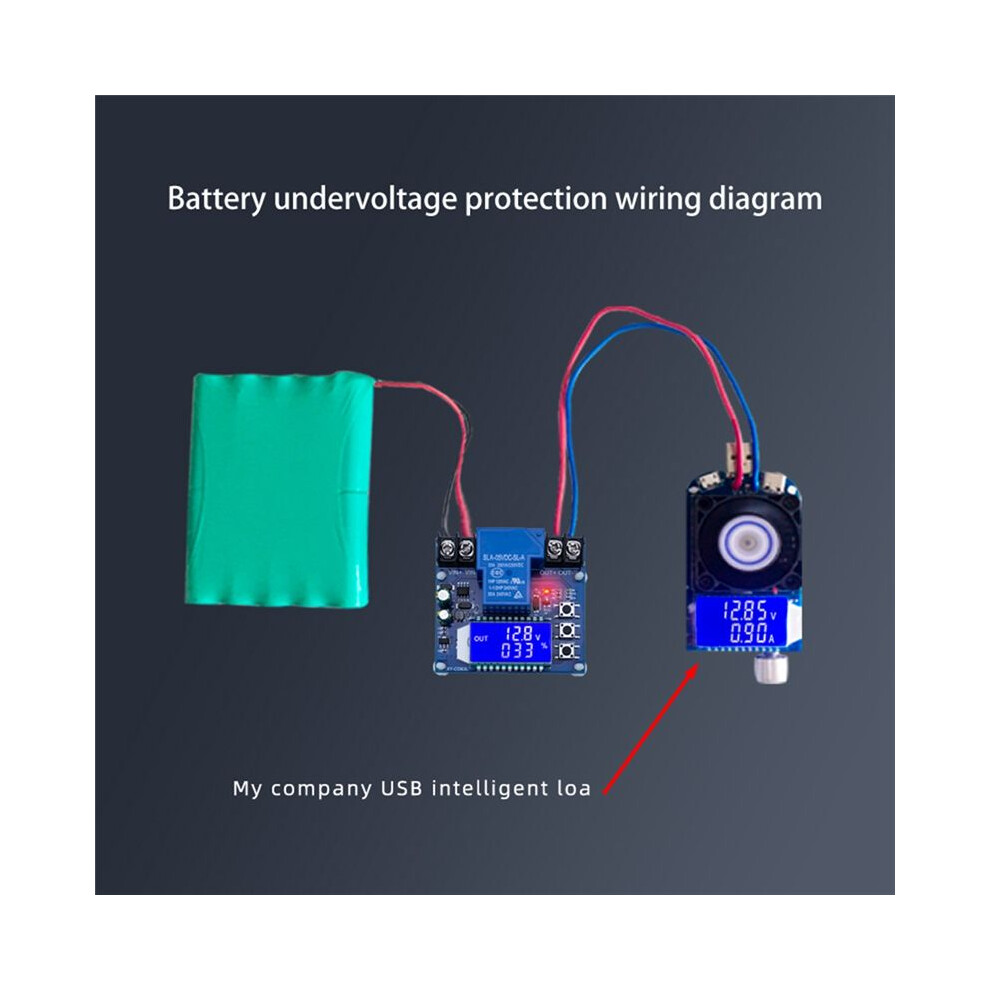

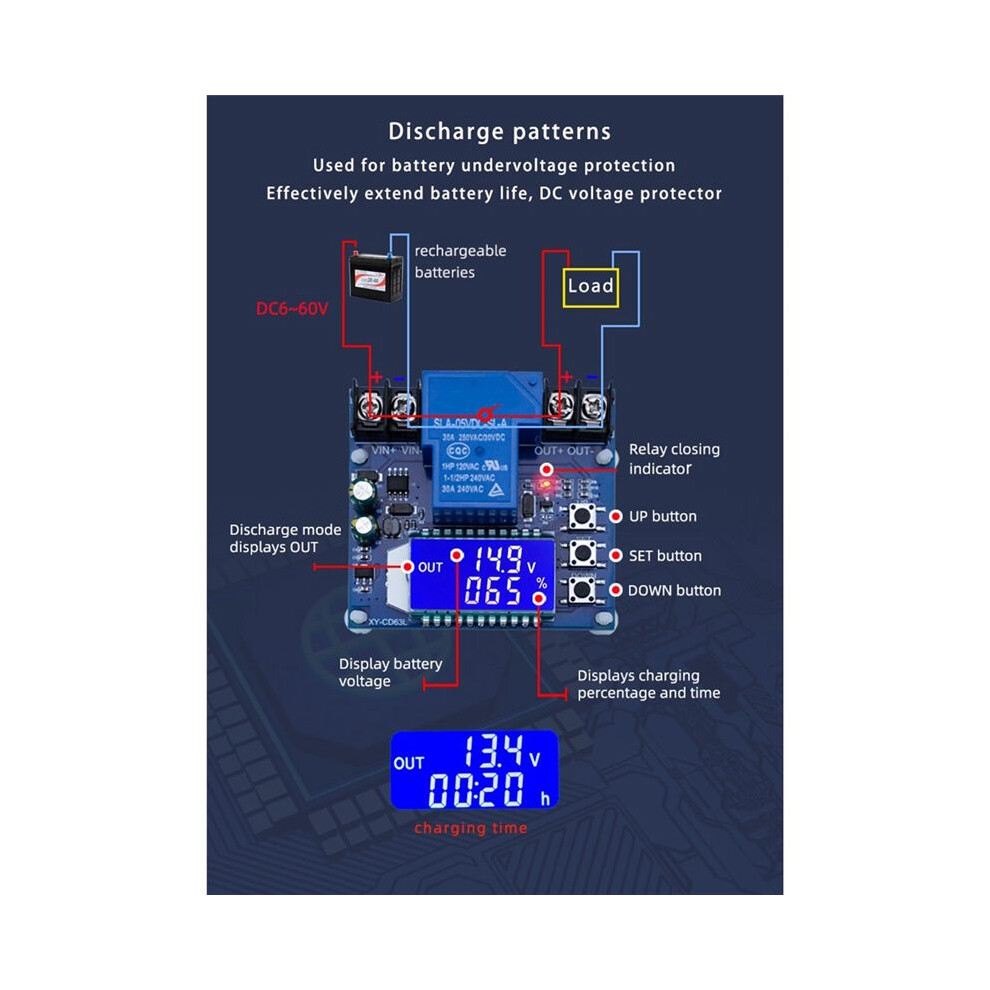

- Discharge mode OUT: By setting the upper limit voltage UP and the lower limit voltage dn; when the battery voltage greater or equal to the upper limit voltage UP, the relay is turned on and starts to discharge; when the battery voltage less than or equal to the lower limit voltage dn, the relay is disconnected to complete an automatic discharge function; the relay is turned on and OUT flashes, Indicates that it is discharging.
- Note: This product is a simple voltage controller, which uses a relay to turn on and off the output. It only functions as a switch and cannot be transformed.
- Battery Charge Discharge Controller
XY-CD63L 30A Battery Charge Discharge Controller Low Voltage Cut Off Undervoltage Overvoltage Protection Display Description
This product is a voltage controller, which turns and off the output through a relay, which only acts as a and cannot change the voltage.
Charging mode IN: By setting the upper limit voltage and the lower limit voltage dn; when the battery voltage less than or equal to the lower limit voltage dn, the relay is turned , and the charger starts to charge the battery; when the battery voltage greater or equal to the upper limit voltage , the relay is disconnected to complete an automatic charging; the relay is turned , IN flashes, indicating that it is charging.
Discharge mode OUT: By setting the upper limit voltage and the lower limit voltage dn; when the battery voltage greater or equal to the upper limit voltage , the relay is turned and starts to discharge; when the battery voltage less than or equal to the lower limit voltage dn, the relay is disconnected to complete an automatic discharge function; the relay is turned and OUT flashes, Indicates that it is discharging.
Note: This product is a simple voltage controller, which uses a relay to turn and off the output. It only functions as a and cannot be transformed.
Function:
Calculation of voltage percentage: battery voltage/(upper limit voltage-lower limit voltage)
Button:
button: Short press to to display percentage and , long press for 5 seconds to modes, charging mode: IN, discharging mode: OUT

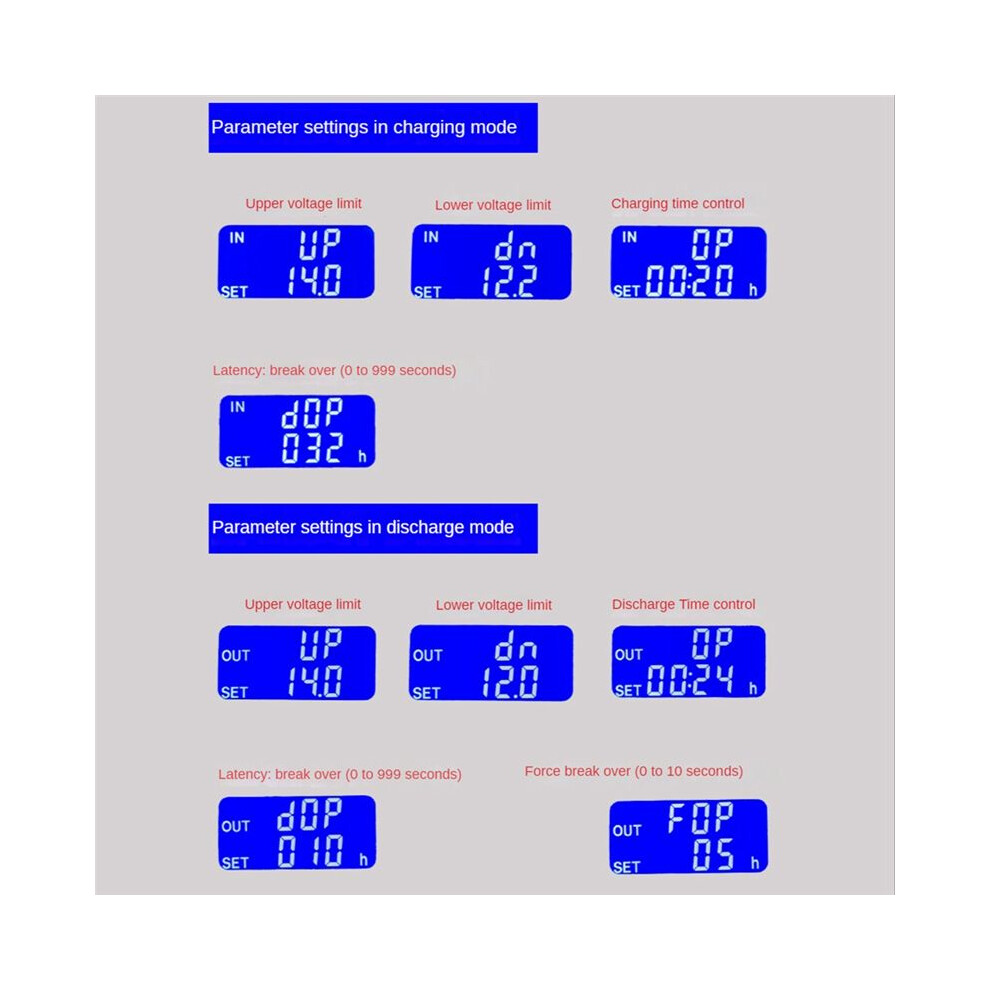

SET button: Short press to view the currently set parameters; long press the SET button to set the parameter
DOWN button: Short press to turn off/ the relay (emergency stop function), after the LCD display is OFF, the relay is disconnected
type: Battery protector
color:
Material:PCB+electronic components

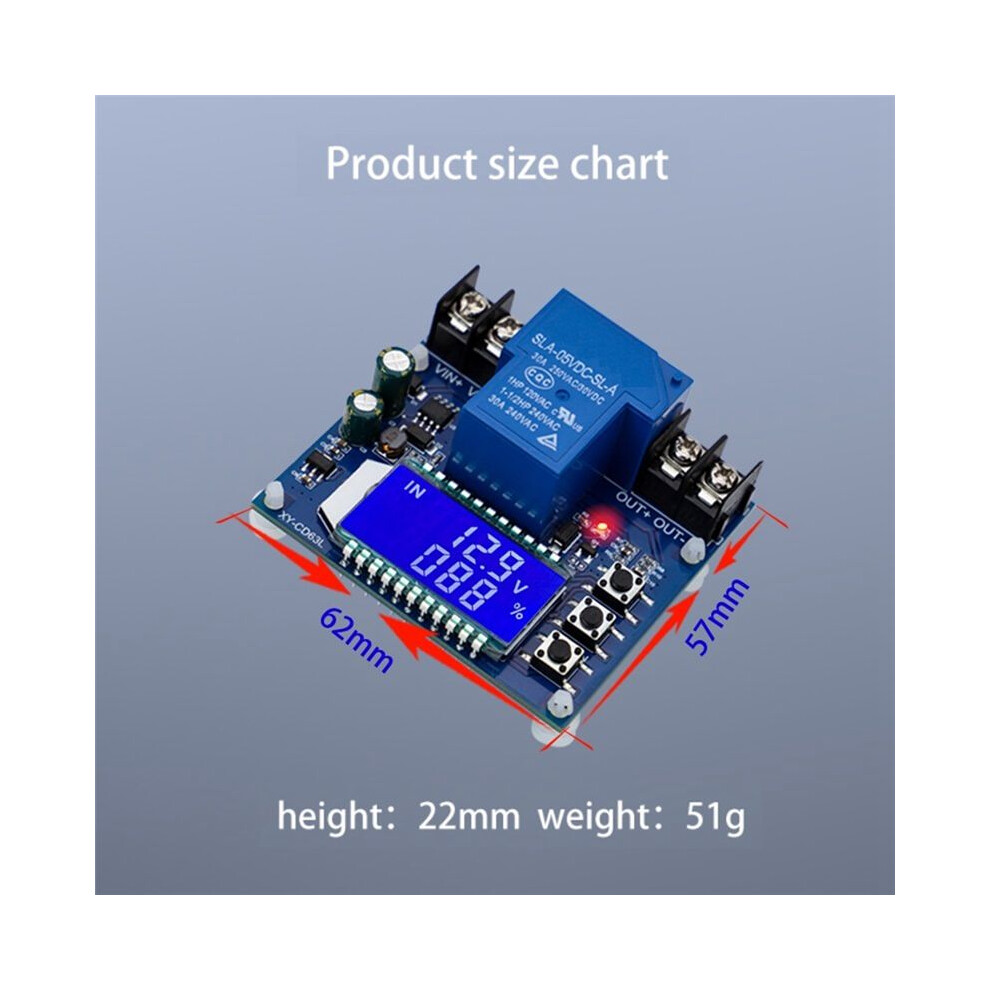

size:62 x 57 x 22mm
Package Contents:
1 x Battery protector
Details
| OPC | PRDYSSK |
|---|---|
| Codes | 4713954303863 (EAN) |
Product Data
| Height | 3cm |
|---|---|
| Width | 8cm |
| Length | 8cm |
| Weight | 0.06kg |
| Colour | Blue |
| Material | PCB+electronic components |
