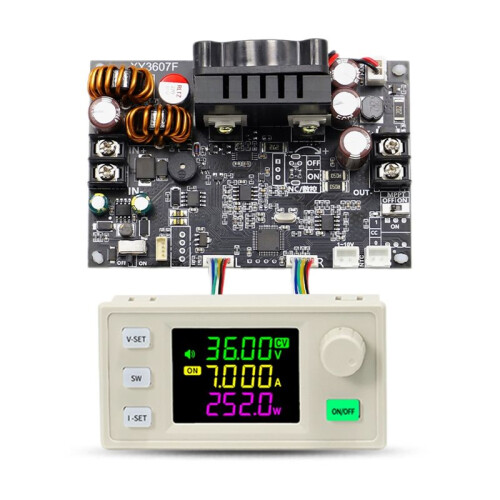

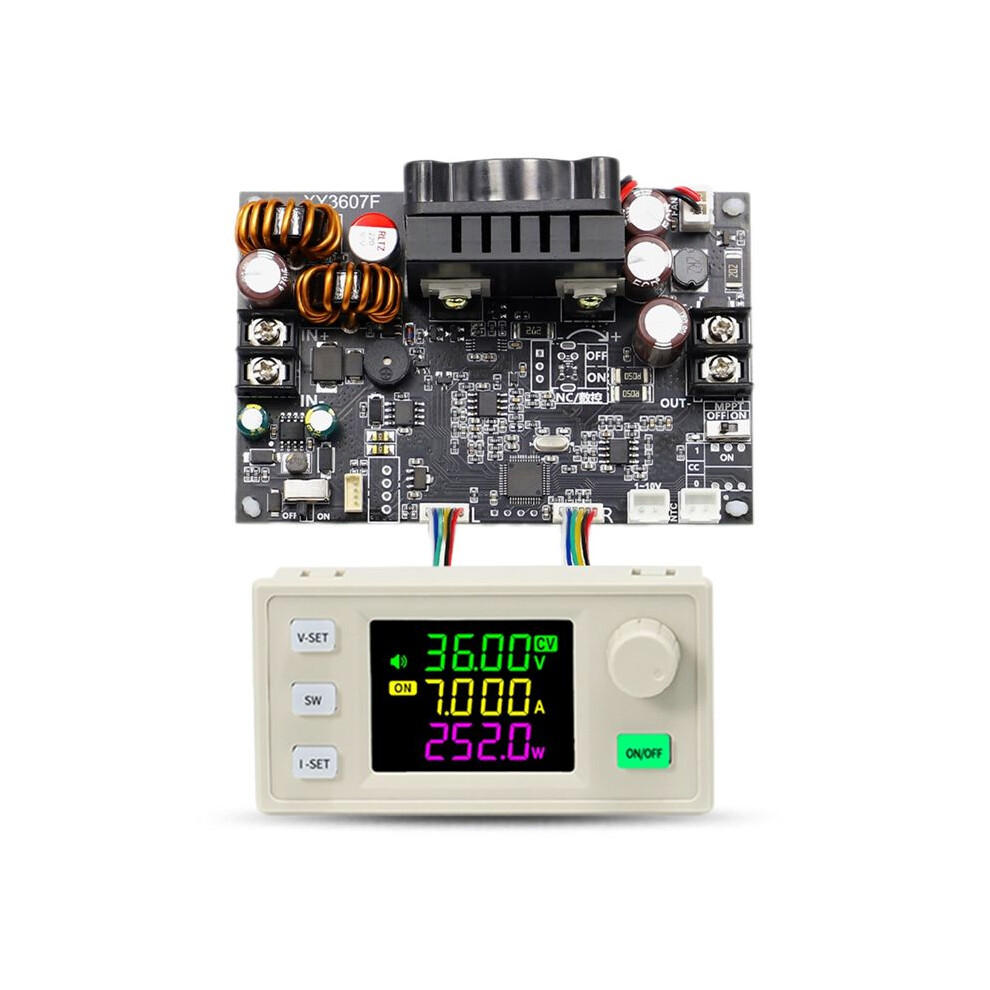

XY3607F CNC Step- and Step-Down Adjustable Voltage Regulator Constant Voltage and Current Solar Charging 7A/252W

XY3607F CNC Step- and Step-Down Adjustable Voltage Regulator Constant Voltage and Current Solar Charging 7A/252W Description

CNC step- and step-down power supply, constant voltage, constant current, constant power.
Support mppt solar charging
Support firmware upgrade
Support serial communication, standard Modbus protocol
Independent dual serial , serial TTL and onboard 485 communication.

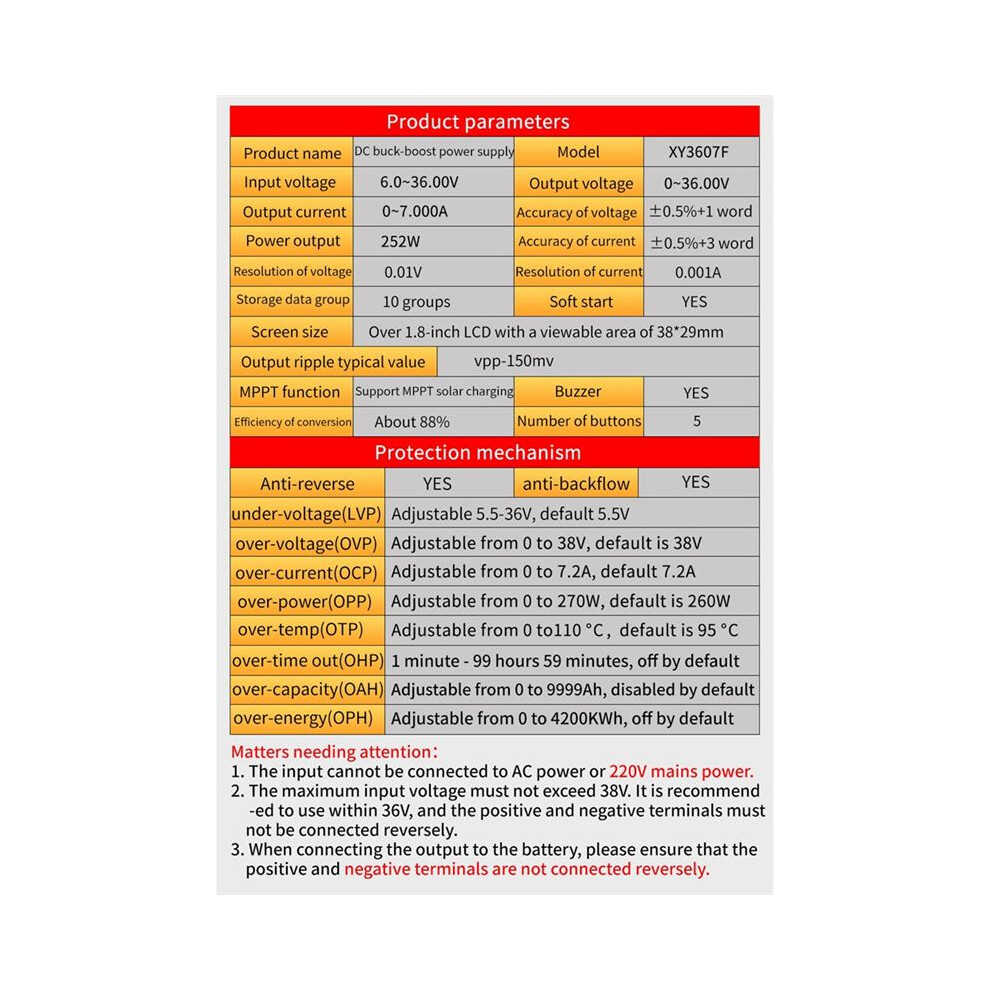

Product name: buck-boost power supply
Model: XY3607F
Input voltage: 6.0-36.00V
Output current: 0-7.00A
Power output: 252W
Resolution of voltage: 0.01V

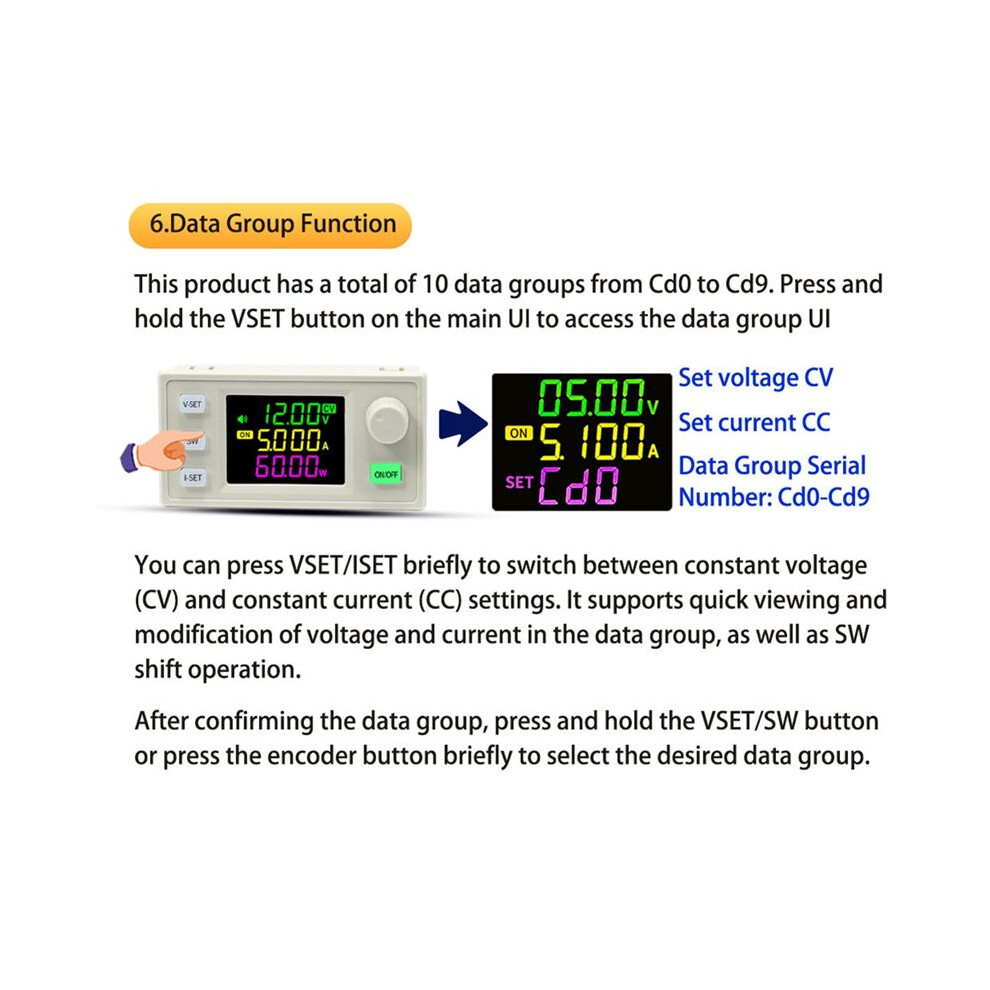

Storage data group: 10 groups
Screen size: Over 1.8-inch LCD with a viewable area of 38x29mm
Efficiency of conversion: About 88%
MPPT function: Support MPPT solar charging

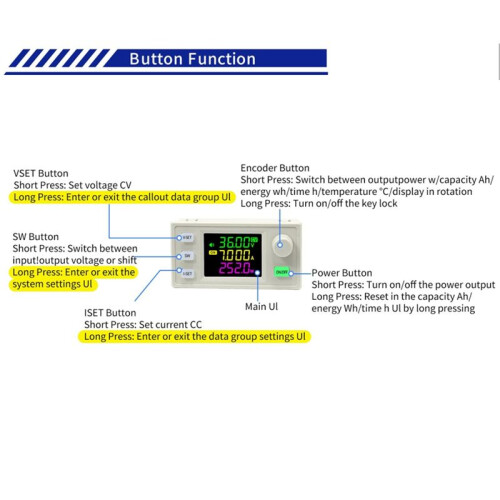

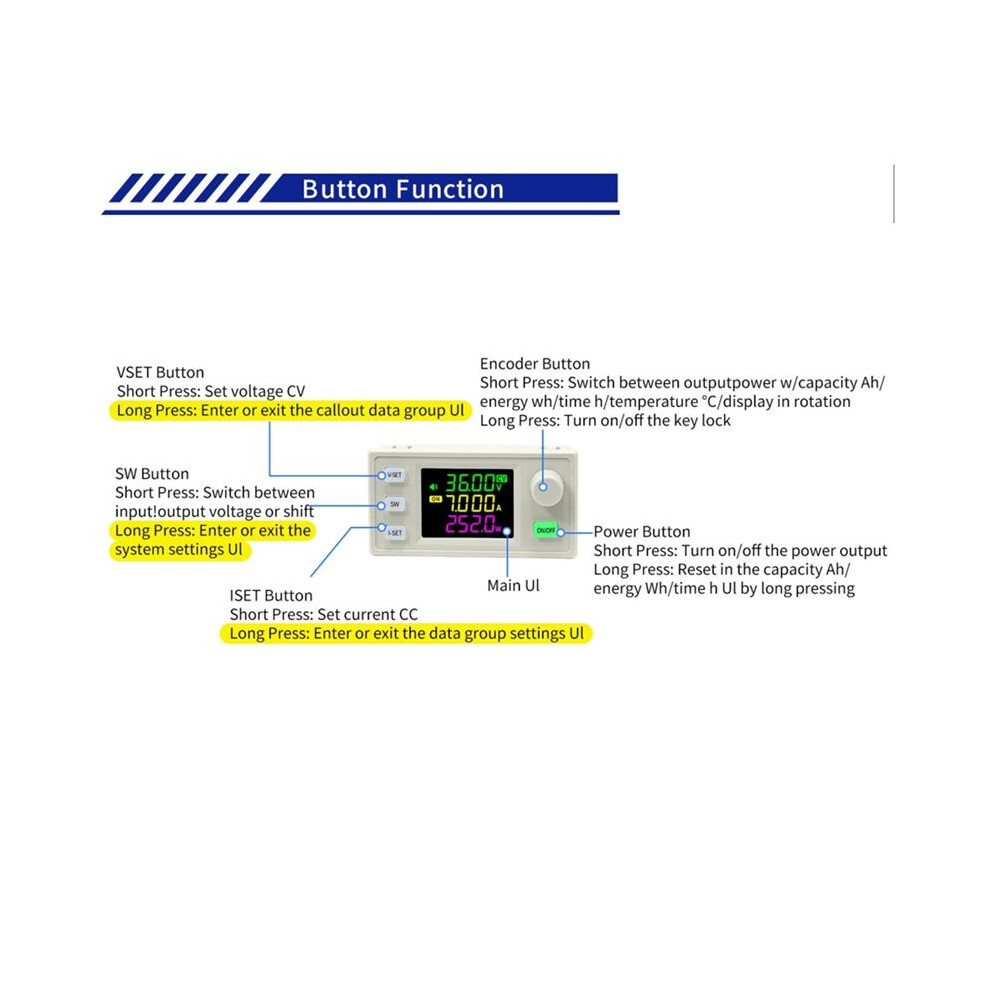

Number of buttons: 5
Output ripple typical value:vpp-150mv
under-voltage (LUP): (Adjustable 5.5-36V, default 5.5V)
over-voltage (OUP):(Adjustable from 0 to 38V, default is 38V)
over-current (OCP):(Adjustable from 0 to 7.2A, default 7.2A)
over-power (OPP):(Adjustable from 0 to 270W, default is 260W)
over-temp (OTP):Adjustable from 0 to 110c, default is 95 C
over- out (OHP): 1 minute -99 hours 59 minutes, off by default
over-capacity (OAH):0-9999Ah, off by default
over- (OPH):0-4200KWh, off by default
Precautions:
1. The input cannot be connected to AC power, let alone 220V AC power
2. The maximum input voltage cannot exceed 38V. It is recommended to use it within 36V, and the positive and negative poles cannot be connected in reverse.
3. When connecting the output terminal to the battery, be careful not to connect the positive and negative poles in reverse.
Colour:Photo Color
Material:PCB+Plastic+Electronic Components

Package Contents:
1 x base plate
1 x display

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement all
