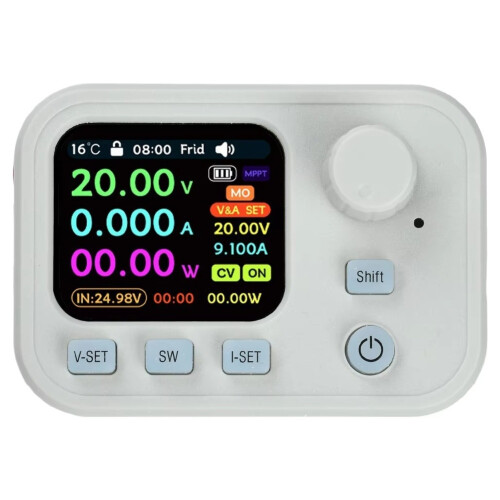

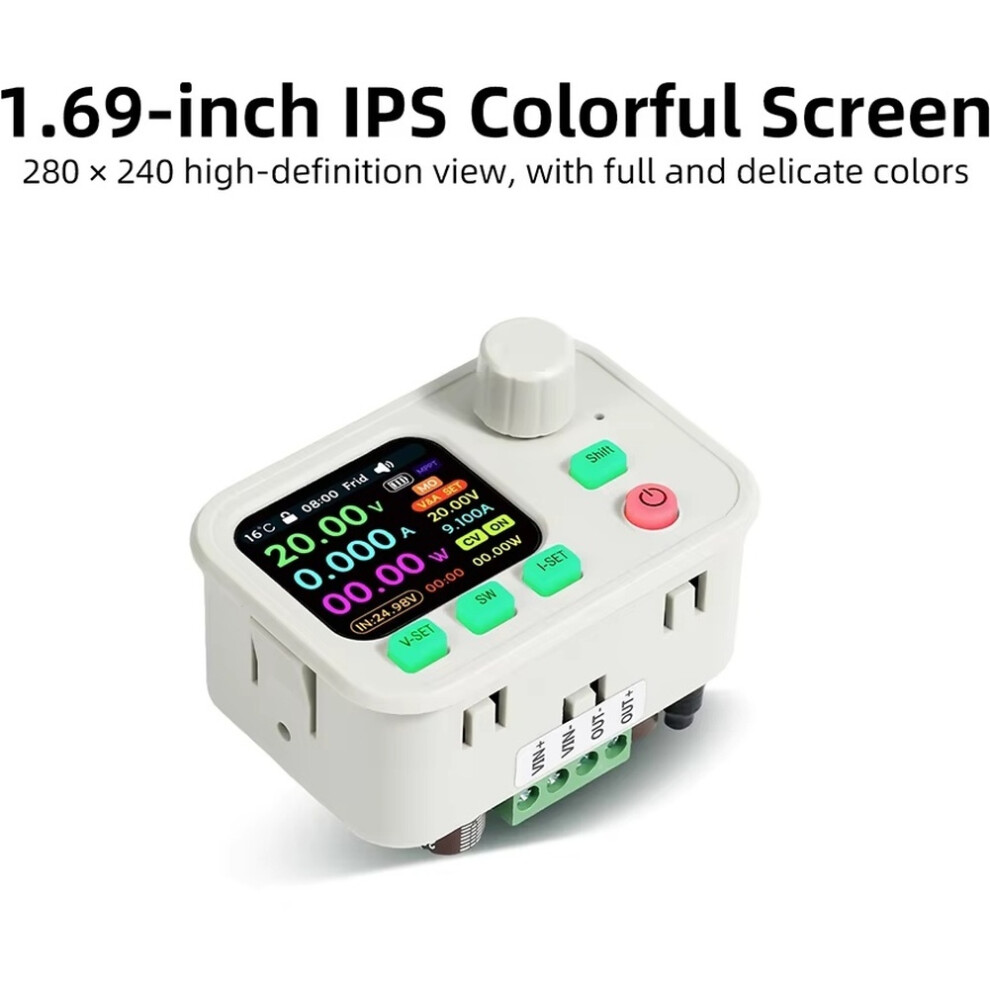

XY6506W 390W CNC Voltage Power Supply Base Constant Voltage and Current Step-Down Module BT/Wi-Fi Control

XY6506W 390W CNC Voltage Power Supply Base Constant Voltage and Current Step-Down Module BT/Wi-Fi Control Description

Parameter

XY6506W
Input Voltage: 12-72 V
Output Current: 0-6.000 A
Output Power: 390 W
Voltage Resolution: 0.01 V
Conversion Efficiency: Approximately 96%
Output Voltage: 0-65V
Voltage Accuracy: 0.5% + 1 digit
Current Accuracy: 0.5% + 3 digits
Current Resolution: 0.001A
Data Storage Capacity: 10 sets

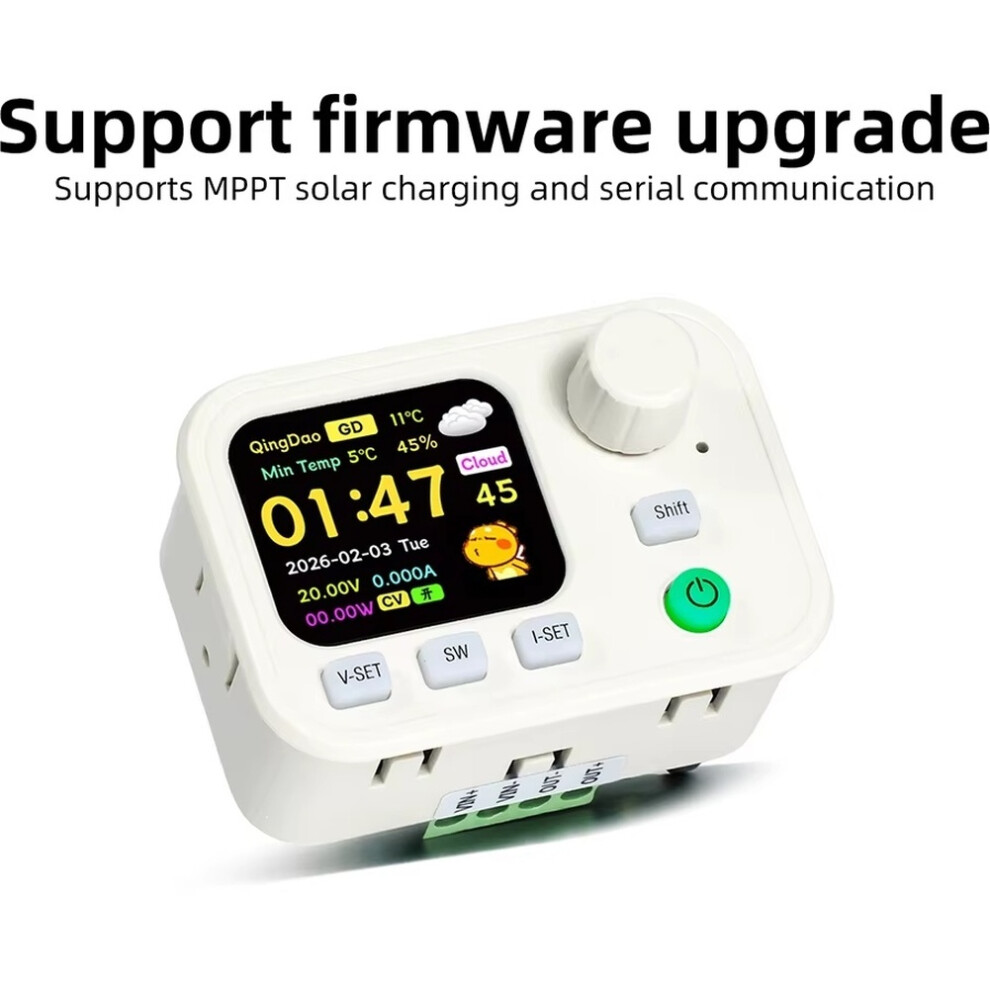

MPPT Function: Supports MPPT solar charging
Buzzer: Yes
Soft Start: Yes
Protection Mechanisms
Input Reverse Connection Protection: Yes
Output Backfeed Protection: Yes
Input Undervoltage Protection: Adjustable from 10-75V, default 10V
Output Overvoltage Protection: Adjustable from 0-67V, default 67V
Output Overcurrent Protection:
6506W: 0-6.2 A (adjustable), default 6.2 A
Output Overpower Protection:
6506W: 0-420 W (adjustable), default 400 W
Over-Temperature Protection: Adjustable from 60-110C, default 110C
Timeout Protection: 1 minute-99 hours 59 minutes, default: Off
Over-Capacity Protection: Adjustable from 0-9999 Ah, default: Off
Over- Protection: Adjustable from 0-4200 kWh, default: Off
Probe Over-Temperature Protection: Adjustable from 0-110C, default: Off
Color: As Shown
Material: plastic

Package Contents:
1*Voltage regulator power supply
