XY6509 CNC Adjustable DC Regulator Power Supply Co

XY6509 CNC Adjustable DC Regulator Power Supply Co Description

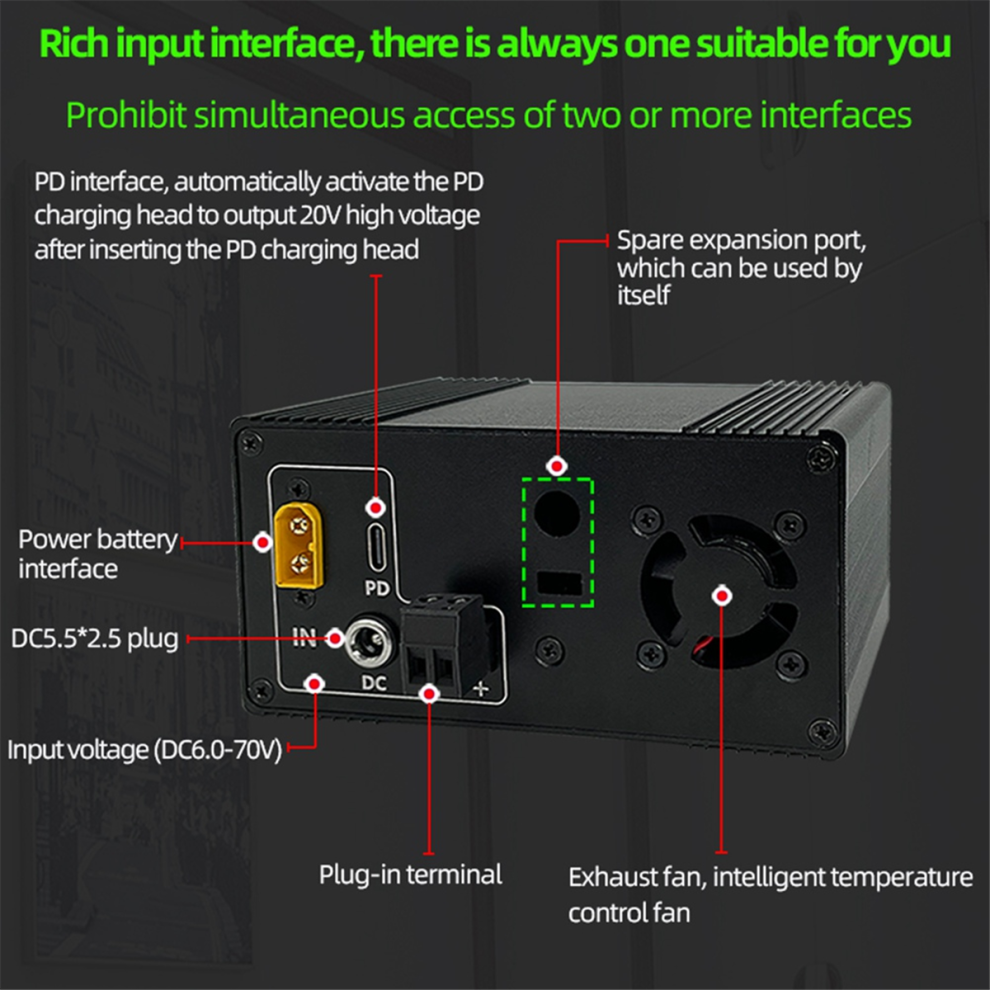

1. The front of the shell has an air inlet, and the reasonable air outlet and heat dissipation structure can effectively take away the heat inside the shell, making the power supply run efficiently and reliably.
2. LCD screen layout is reasonable, the font is large and full of rounded, professional power supply LCD screen, you want the function it has!
3. Built-in buzzer, key prompts, alarm prompts, and more use of the product.
4. Upgraded plug-in terminals, easy to disassemble and replace.
5. The product has a wide range of applications, with MPPT function, support for MPPT solar charging, can be connected to the external temperature probe to support over-temperature protection.

Parameter:
Input voltage: 12-72.00V
Output current: 0-9.000A
Output power: 585W
Voltage resolution: 0.01V
Output Voltage: 0-65V
Voltage accuracy: 0.5%+1 word
Current accuracy: 0.5%+3 words
Current resolution: 0.001A
Storage data group: 10 groups
Number of buttons: 5
Screen size: Over 1.8-inch LCD with a viewable area of 38 x 29mm
Buzzer: Yes
Soft : Yes
Output ripple typical value:vpp-150mv
Efficiency of conversion: About 95%
MPPT function: Support MPPT solar charging
Protection mechanism:
Input anti-reverse connection: Yes
Output anti-reverse: Yes
Input undervoltage protection: 10-75V adjustable, default 10V
Output over-voltage protection: 0-67V adjustable, default 67V
Output overcurrent protection: 0-9.2A adjustable, default 9.2A
Output over power protection: 0-650W adjustable, default 600W
Over-temperature protection: 0-110C adjustable, default 95C
Timeout protection: 1 minute -99 hours 59 minutes, default off
Over capacity protection: 0-9999AH adjustable, default off
Super energy protection: 0-4200KWH adjustable, default off
Colour:black
Material:plastic
The actual product may have slight color difference or difference, which not affect the use

Package Contents:
1 * DC Buck Boost Converter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
