XY7025 CNC DC Buck Adjustable Regulated Power Supply Constant Voltage

XY7025 CNC DC Buck Adjustable Regulated Power Supply Constant Voltage Description

CNC DC step-down power supply, constant voltage, constant current, constant power.
Support mppt solar charging

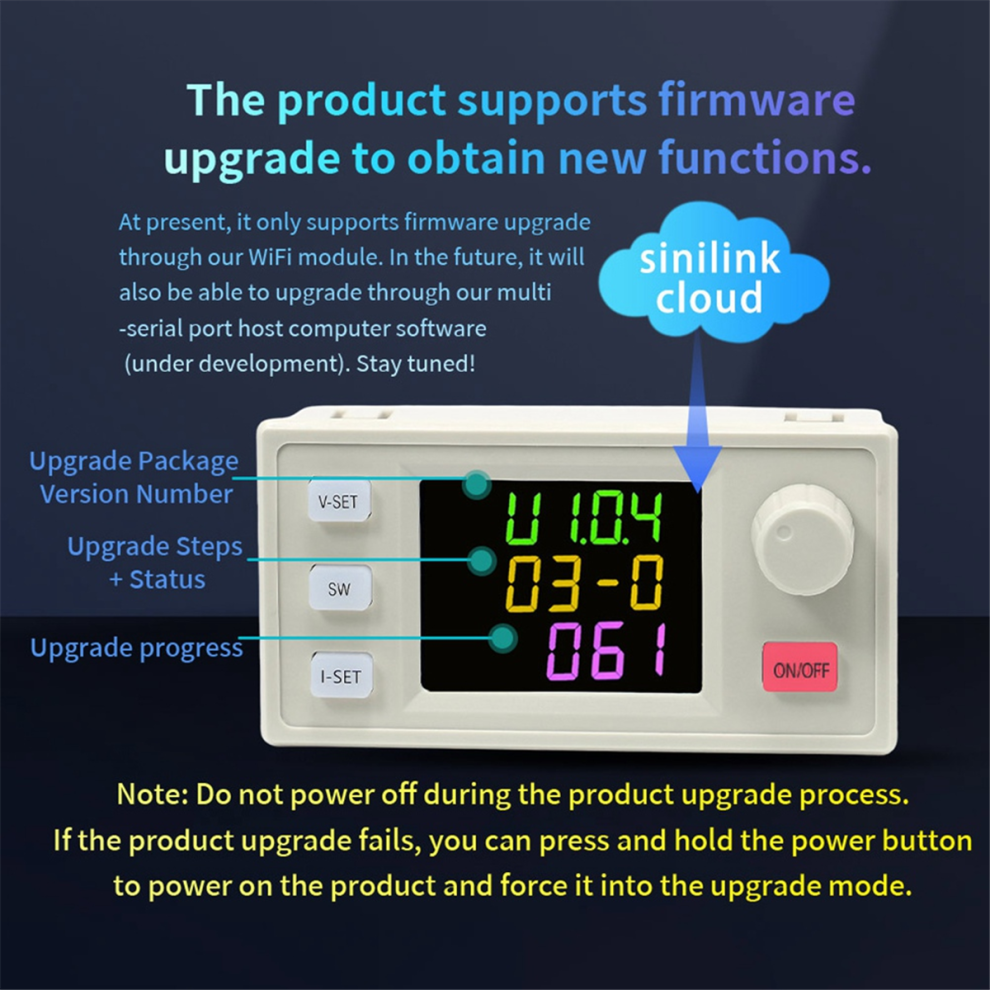

Support firmware upgrade
Support serial communication, standard Modbus protocol
dual serial ports, serial TTL and onboard 485 communication.

Product name: DC buck power supply
Model: XY7025
Input voltage: 12-85.00V
Output voltage: 0.0-70.00V
Output current: 0-25.00A
Power output:1750W
Resolution of voltage: 0.01V
Storage data group: 10 groups
Efficiency of conversion: About 95%
MPPT function: Support MPPT solar charging
Accuracy of voltage: 0.5%+1 word
Accuracy of current:0.5%+3 word
Resolution of current: 00.01A

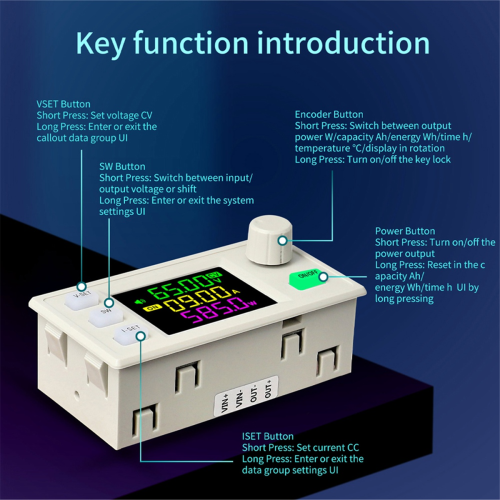

Number of buttons: 5
Output ripple typical value:vpp-150mv
under-voltage ():(Adjustable 10-95V, default 10V)
over-voltage (OVP):(Adjustable from 0 to 72V, default is 72V)
over-current (OCP):(Adjustable from 0 to 27A, default 27A)
over-power (OPP):(Adjustable from 0 to 2000w, default is 1800W)
over-temp (OTP): Adjustable from 0 to 110c, default is 95 C
over- (OHP): 1 minute -99 hours 59 minutes, off by default
over-capacity (OAP):0-9999Ah, off by default
over-energy (OPH):0-4200KWh, off by default
Precautions:
1. The input cannot be connected to AC power, let alone 220V AC power
2. The maximum input voltage cannot exceed 90V. It is recommended to use it within 85V, and the positive and negative poles cannot be connected in reverse.
Colour:Photo Color
Material:PCB+Plastic+Electronic Components

Package Contents:

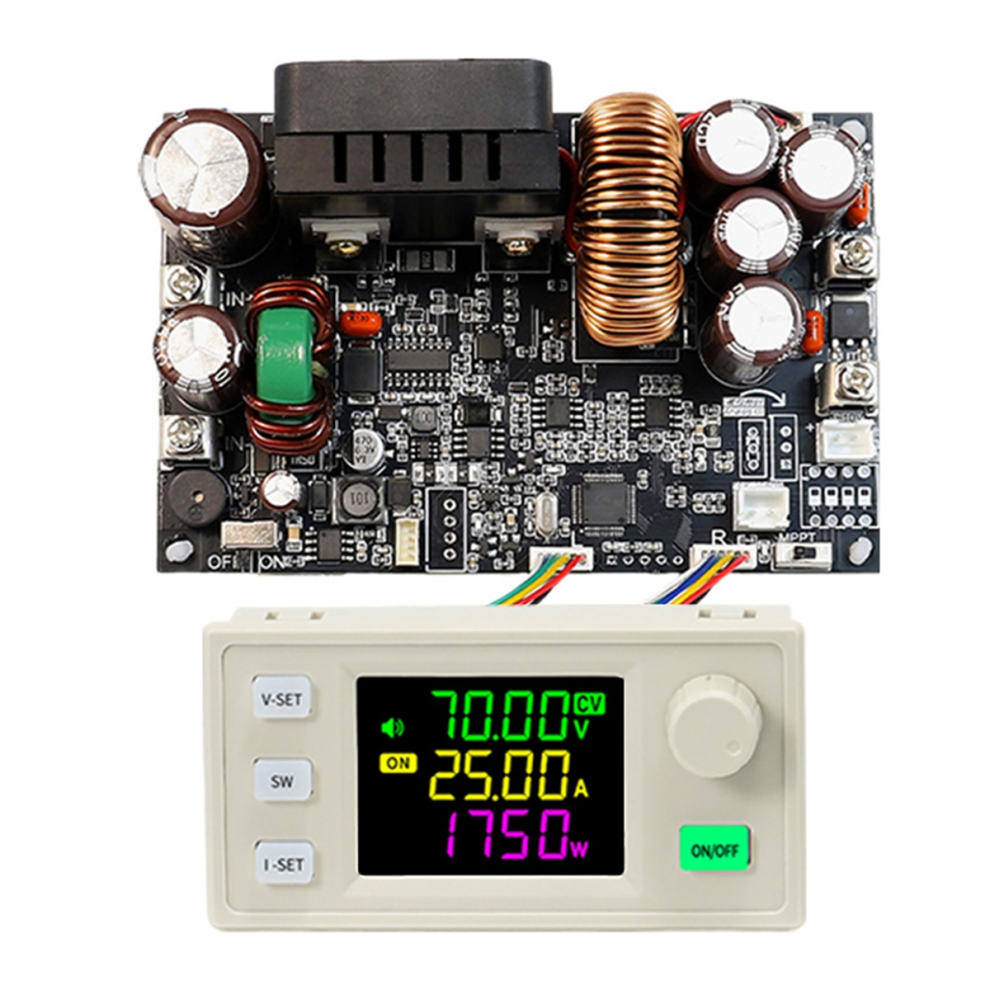

1 x base plate

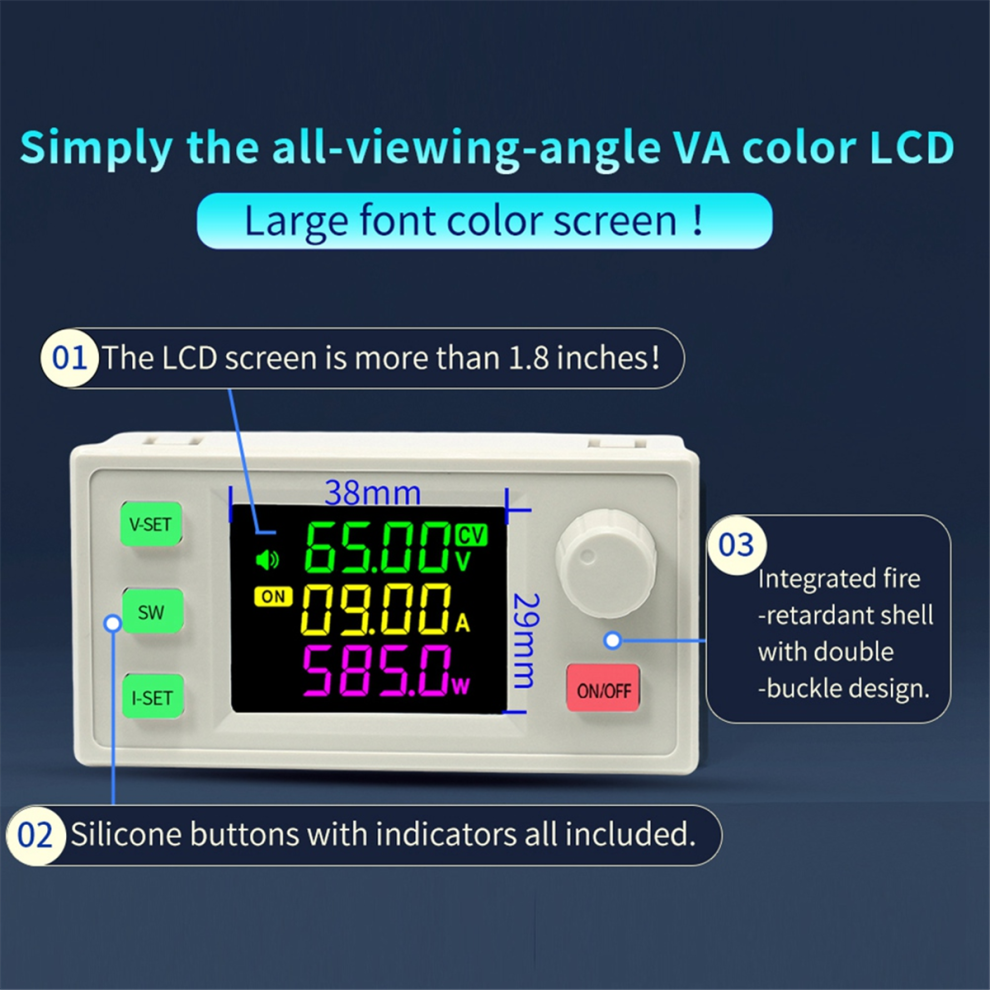

1 x display

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
