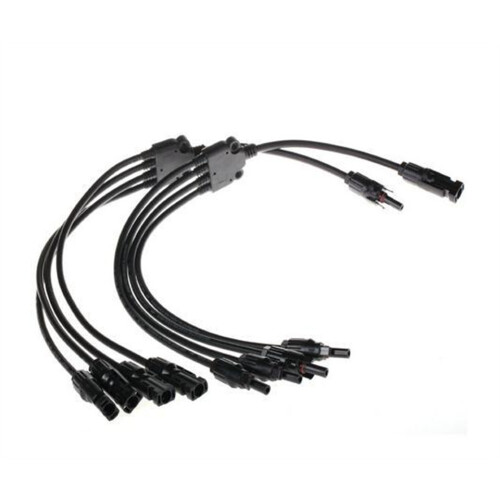

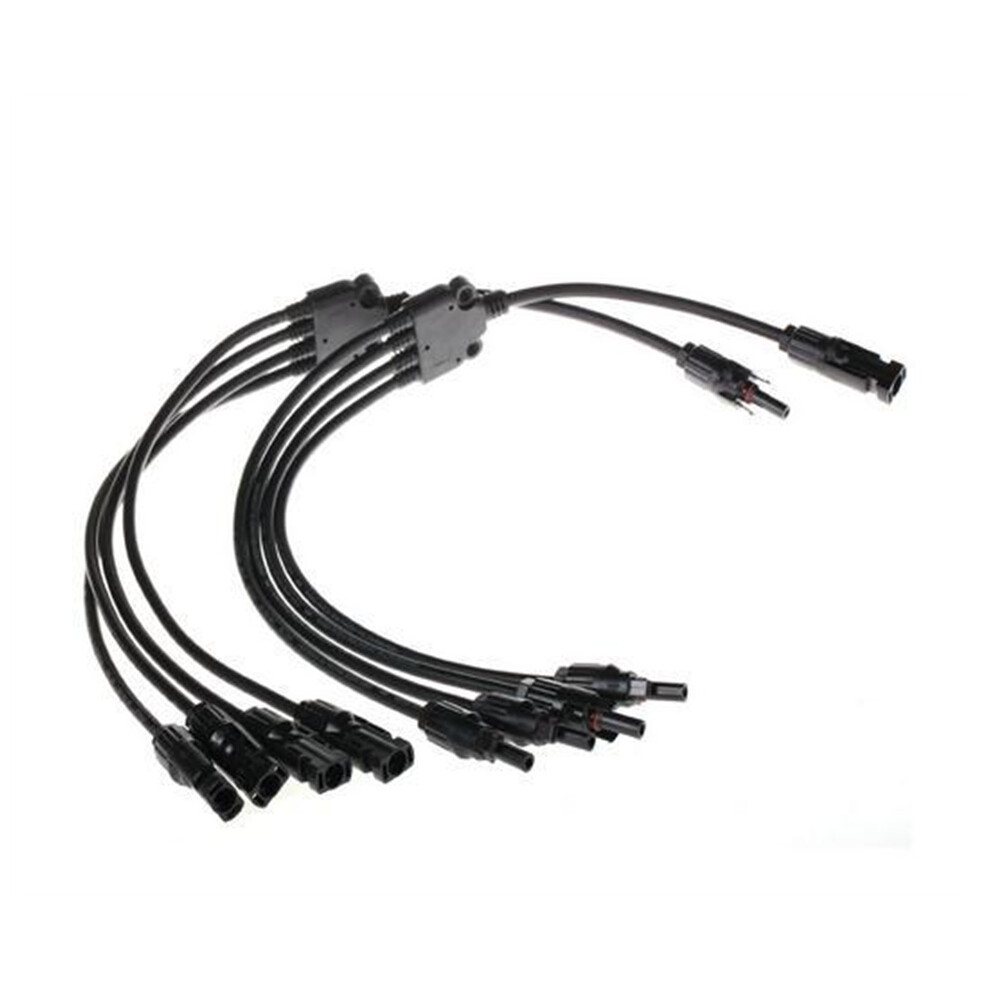

Y Branch Solar Panel Cable Connector 4Y Waterproof IP65 Solar Adapter Cable MC4

Y Branch Solar Panel Cable Connector 4Y Waterproof IP65 Solar Adapter Cable MC4 Description

Feature:

It can be used in harsh environment

Created seal, design of dust proof

Strong pulling force capability

Lower contact resistance

Load capability with big current and high voltage

Double seal rings for better waterproof effect

With excellent aging resistance and UV endurance

Compatible with PV cables with different insulation diameters

Resistance of extra high & low temperature and fireproof

Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument

Specification:

Rated voltage: TUV 1000V DC/UL 600V DC

Rated Current: 20A~30A

Wire Size: 2.5mm2~6.0mm2/14AWG ~10AWG

Withstanding Voltage: TUV 6000V AC(1Min)/UL 2200V DC(1Min)

Pollution Level: 2

Protection Grade: Class II

Terminal Material: Copper,Silver plated

Contact resistance: 5m??

Connector: PPO

IP protection grade: IP68(IEC 60529)

Pull-out force: ??50N

Insertion force: ??50N

Test Temperature: -40??~+85??

Flame retardant grade: UL94V-0

Length: 44CM

Package Included:

1 pair Solar Panel Cable Connector

Note:

Please allow 1-3cm error due to manual measurement. please make sure you do not mind before you bid.

Due to the difference between different monitors, the picture may not reflect the actual color of the item. thanks!
