Y Type Solar Panel Extension Cable Set 30A 1.5-6mm² IP67 Black

Y Type Solar Panel Extension Cable Set 30A 1.5-6mm² IP67 Black Description

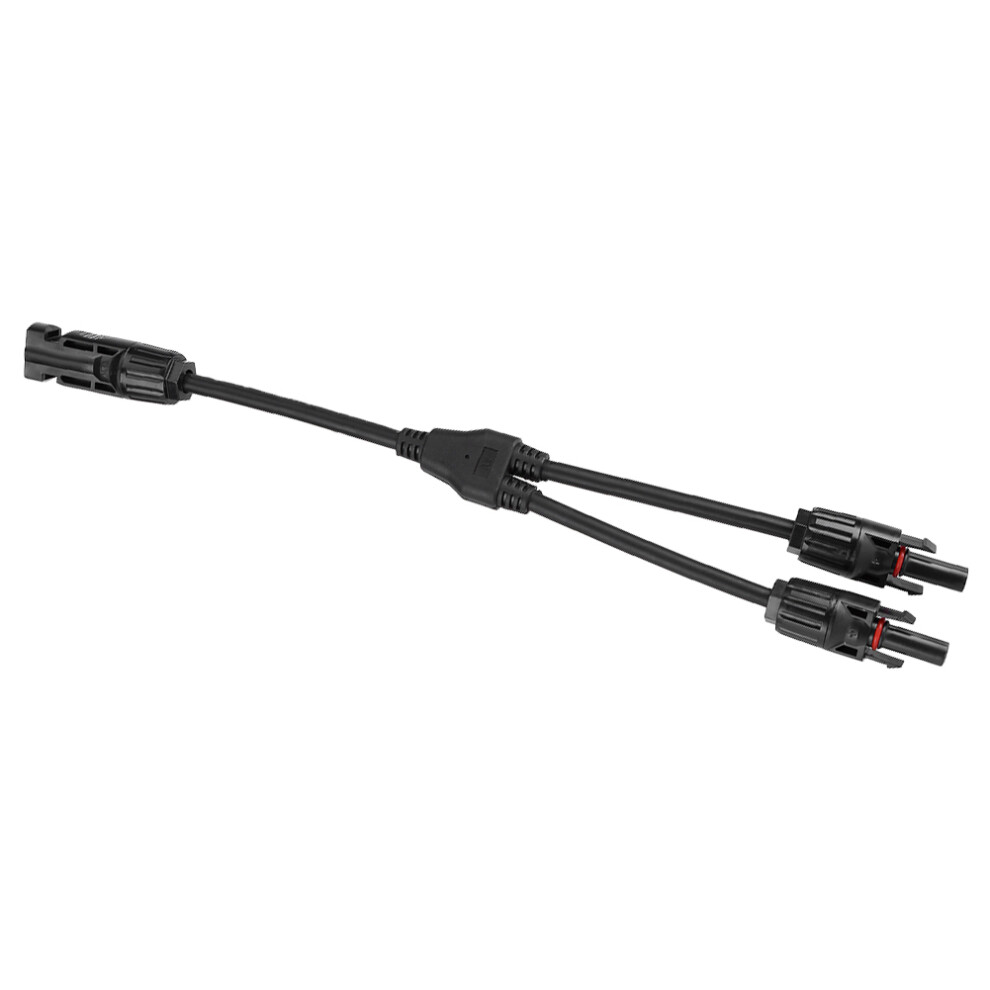

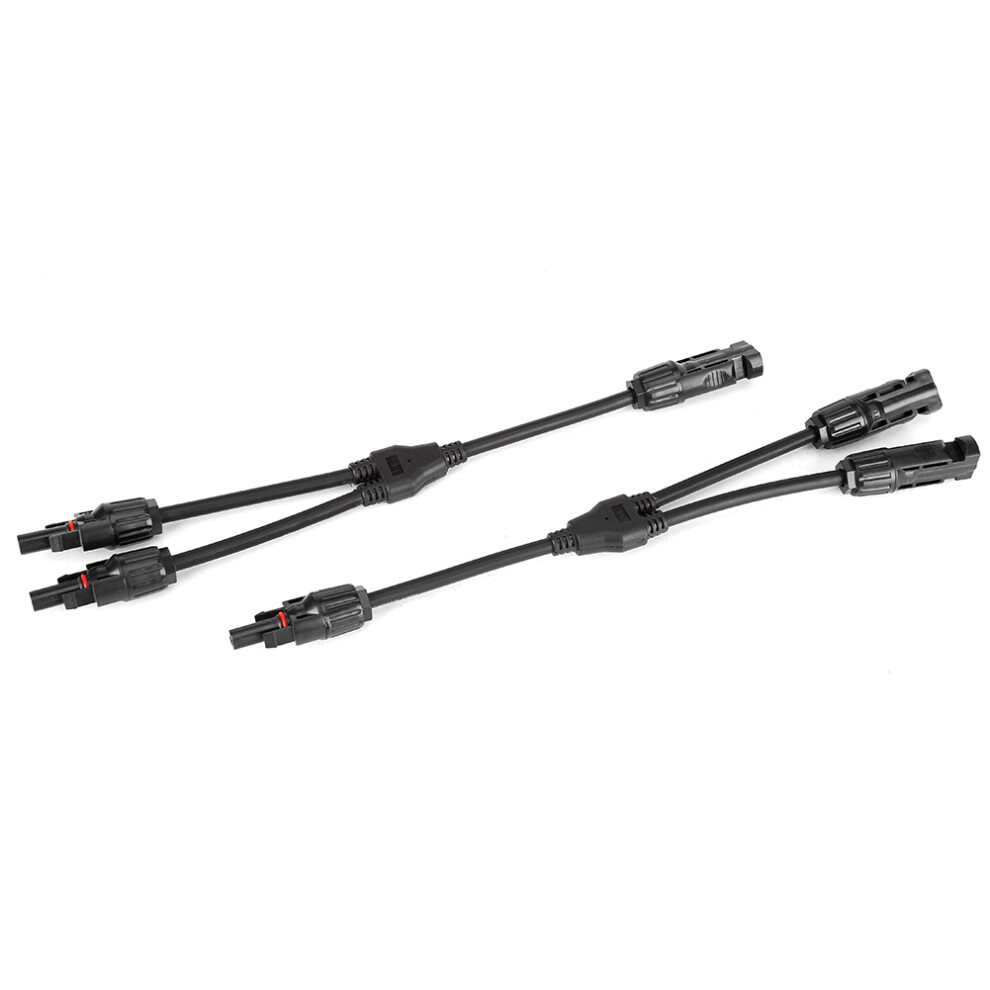

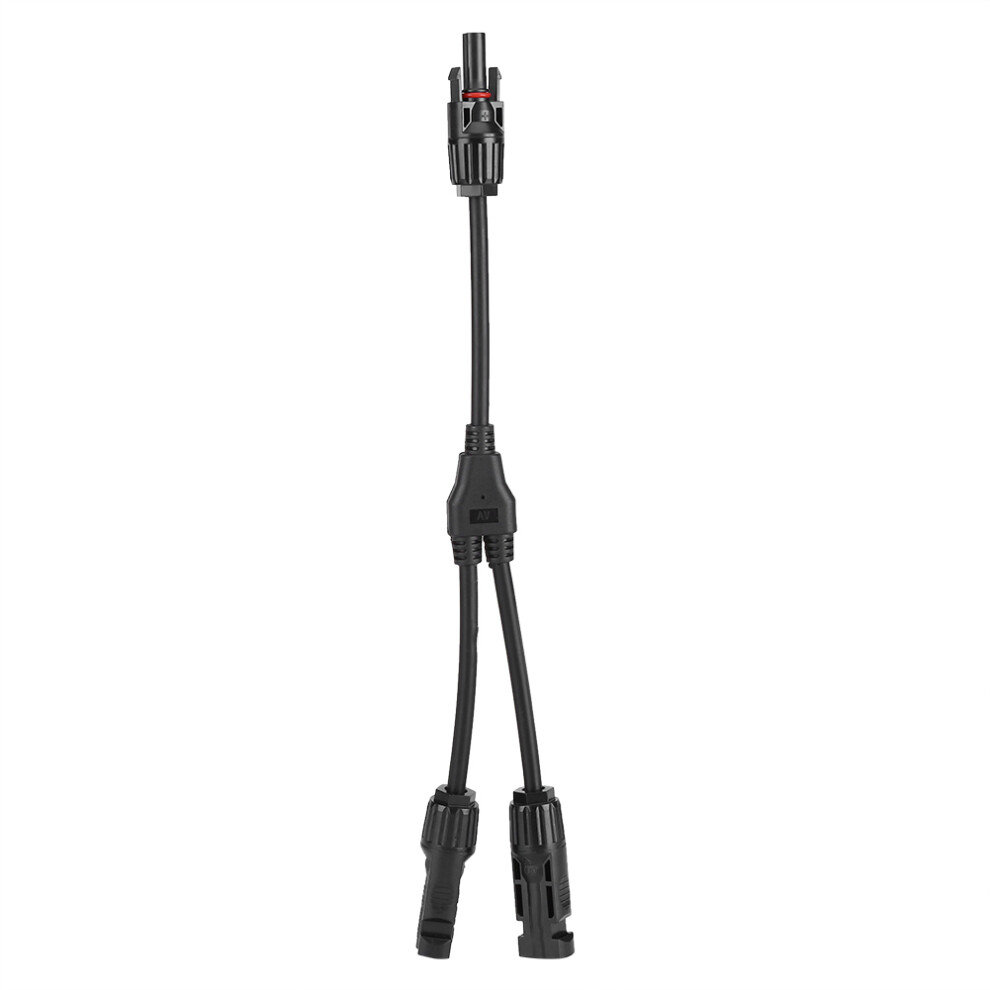

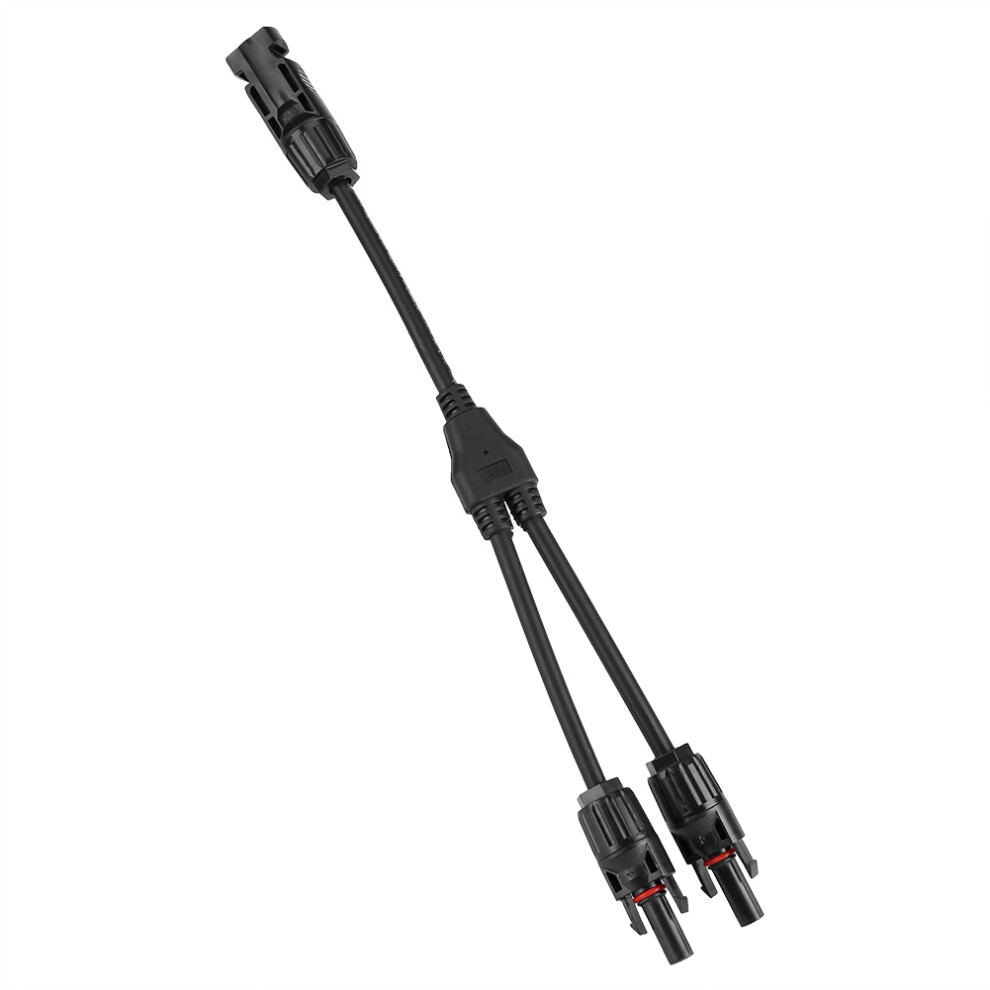

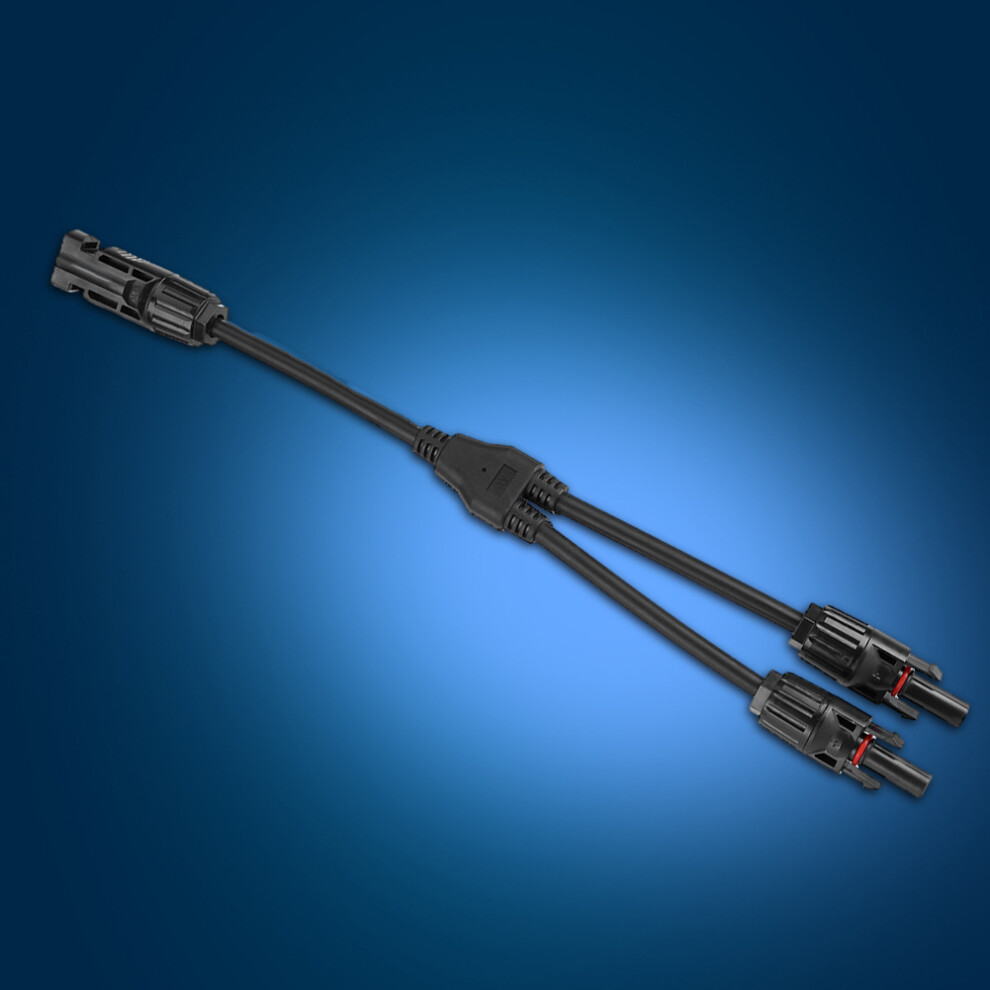

1 Pair Y Type Male Female Connector Solar Panel Extension Cable PV Wire Adapter
Description:
This pair of Y type solar cable connector wire set is a perfect solution to parallel connect multiple solar panels together in a solar field, and it is typically used in parallel applications.
Features:

The connector has high resistance against UV, and it is of anti-aging, water and dust proof.


The extension cable adopts the crimp connection terminal, with good abrasion resistance and excellent softness.

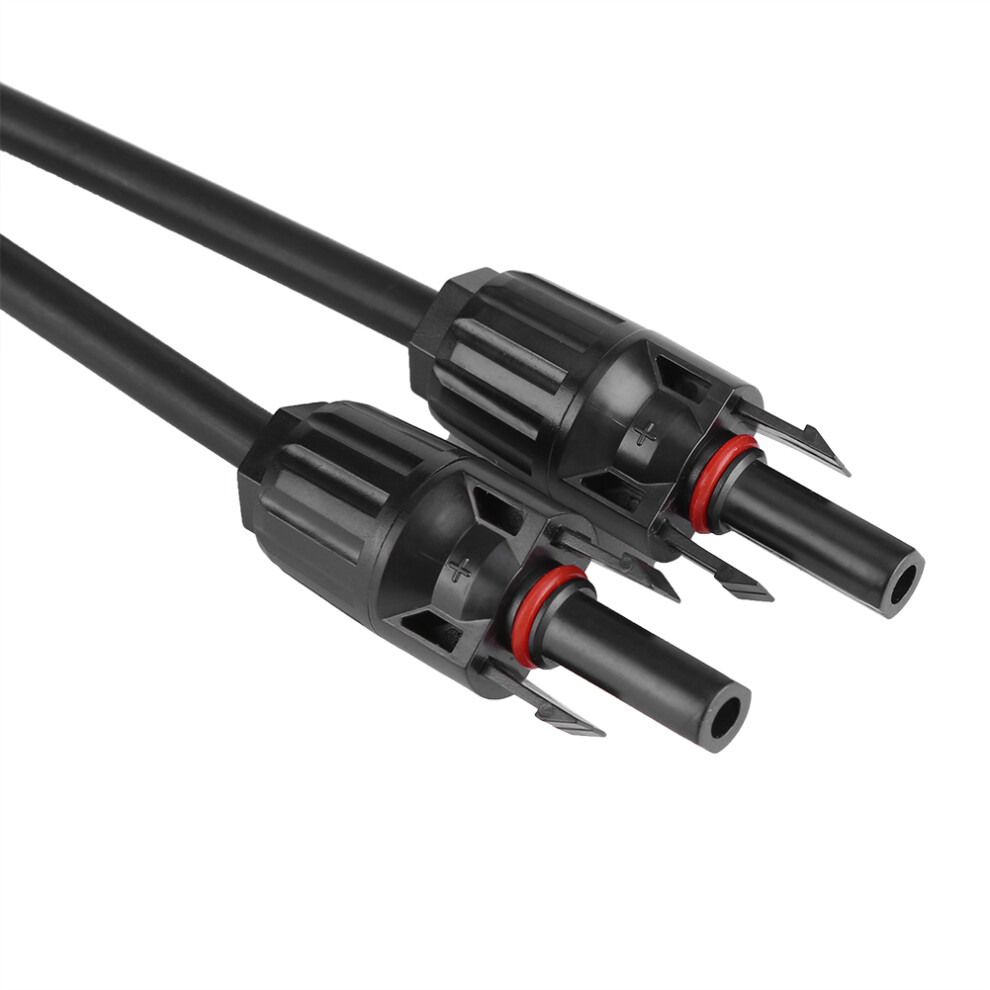

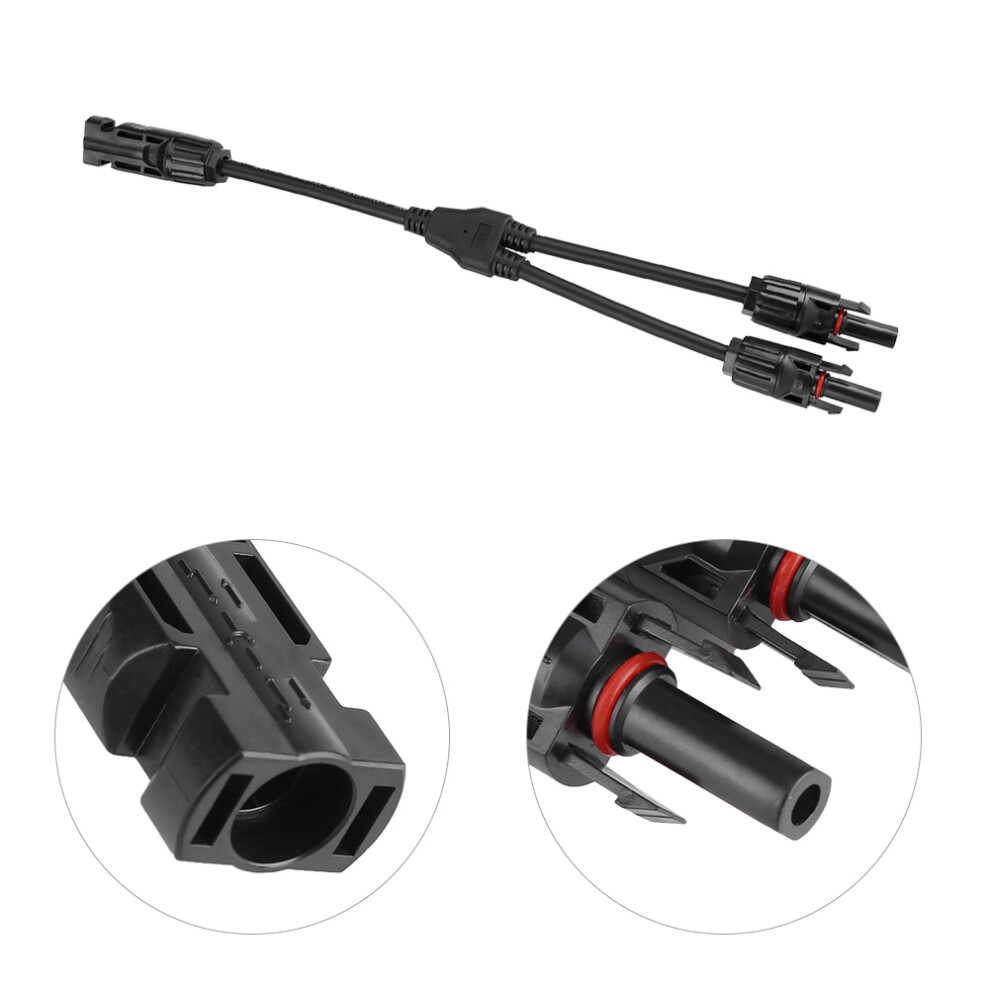

Male and female connectors have stable self-locking system, and it's easy to insert and withdraw.


Good load capability with big current and high voltage. Resistance of extra high and low temperature and fire proof.


Pair of Y type male female connector solar cable, suitable for solar power station, PV connector and PV junction box.

Specifications:
Condition:
Operating Current: 30A(6mm²)
Withstand Voltage: DC1000V
Contact Resistance: 0.5mΩ
Insulation Resistance: 500MΩ
Suitable Single Core Cable Cross-section: 1.5mm²~6mm²
Cable Outer Diameter Range: 5mm~7mm
Environmental Temperature: -40 ~ + 105
Protective Grade: IP67
Safety Level: II
Insertion Force: 50N
Withdrawal Force: 50N
Insulation Material: PPO, Black
Contact Component: Copper cn, Nickel Plating sn
Flame Retardant Level: UL94-VO
Terminal Connection: Crimp Connection
Package Included:
1 * Pair of Y Type Male Female Connector Solar Cable
