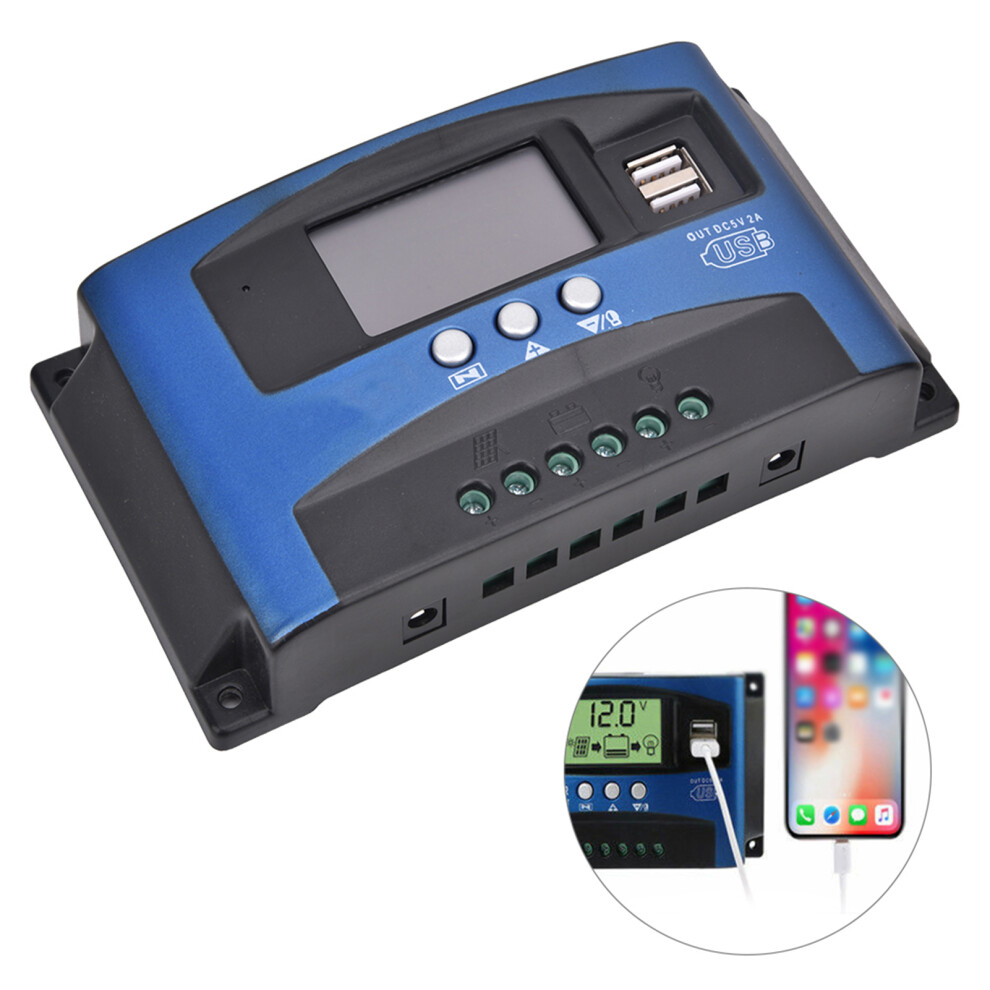

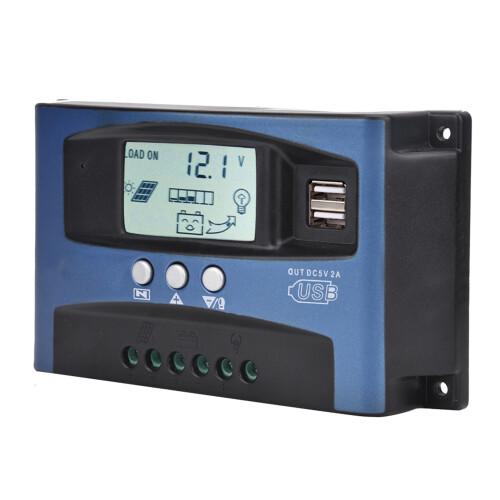

YCX-003 30-100A MPPT Solar Panel Regulator Charge

YCX-003 30-100A MPPT Solar Panel Regulator Charge Description

YCX-003 30-100A MPPT Solar Panel Regulator Charge Controller 12V/24V Auto Focus Tracking 40A



1、Industrial-grade master chip, 16 AD sampling accuracy, temperature, charging current, discharge current accurate real-time display, power generation at a glance. 2、Automatic focusing MPPT tracking charging, high charging efficiency, non-stop detection during charging, bidirectional focusing tracking. 3、Large-screen LCD display, adjustable charging and discharging parameters. UItra-wide charge and discharge adjustable, you can charge any battery. When the output is off, the time can be adjusted, more convenient. 4、Complete three-phase charge management, effectively protect the battery, the battery is more durable. 5、Built-in overheating, overcurrent short circuit, open circuit protection, reverse connection protection, when the fault is eliminated, the controller automatically recovers, does not damage the device.



Features: 1. Industrial-grade master chip, 16 AD sampling accuracy, temperature, charging current, discharge current accurate real-time display, power generation at a glance. 2. Automatic focusing MPPT tracking charging, high charging efficiency, non-stop detection during charging, bidirectional focusing tracking. 3. Large-screen LCD display, adjustable charging and discharging parameters. UItra-wide charge and discharge adjustable, you can charge any battery. When the output is off, the time can be adjusted, more convenient. 4. Complete three-phase charge management, effectively protect the battery, the battery is more durable. 5. Built-in overheating, overcurrent short circuit, open circuit protection, reverse connection protection, when the fault is eliminated, the controller automatically recovers, does not damage the device. 6. Bidirectional MoS tube anti-backflow circuit, high-power charging mode, ultra-low heat. Function: 1. Always keep the battery on fill voltage condition. 2. Prevent the battery from over-charging. 3. Prevent the battery from over-discharging. 4. Prevent the battery from reverse charging to solar panels during nights. 5. Reverse Polarity Protection for Battery. 6. Reverse Polarity Protection for Solar Panels. 7. When the battery voltage is low, the controller will automatically cut off the load from the system. If the voltage of battery is back to normal and the load will restart working. 8. Thunder protection. 9. According to the battery voltage grade, the controller can automatically set charge-off voltage, the load-off voltage, the load- restore voltage. (The parameter is default under 25 condition, locked by the CPU procedure, cannot adjust.) 10. The controller will automatically compensate the temperature of the charging voltage according to the changes of ambient temperature. Specification: Condition: 100% Brand New Material: ABS + ROHS Model: YCX-003 System Voltage: 12/24V Adaptive Solar Panel Voltage: 12V, 18V, 24V, 36V Floating Charge Voltage: 13.7V (default, adjustable) Discharge Cut-Off Voltage: 10.7V (default, adjustable) Discharge Recovery Voltage: 12.6V (default, adjustable) Standby Current:
