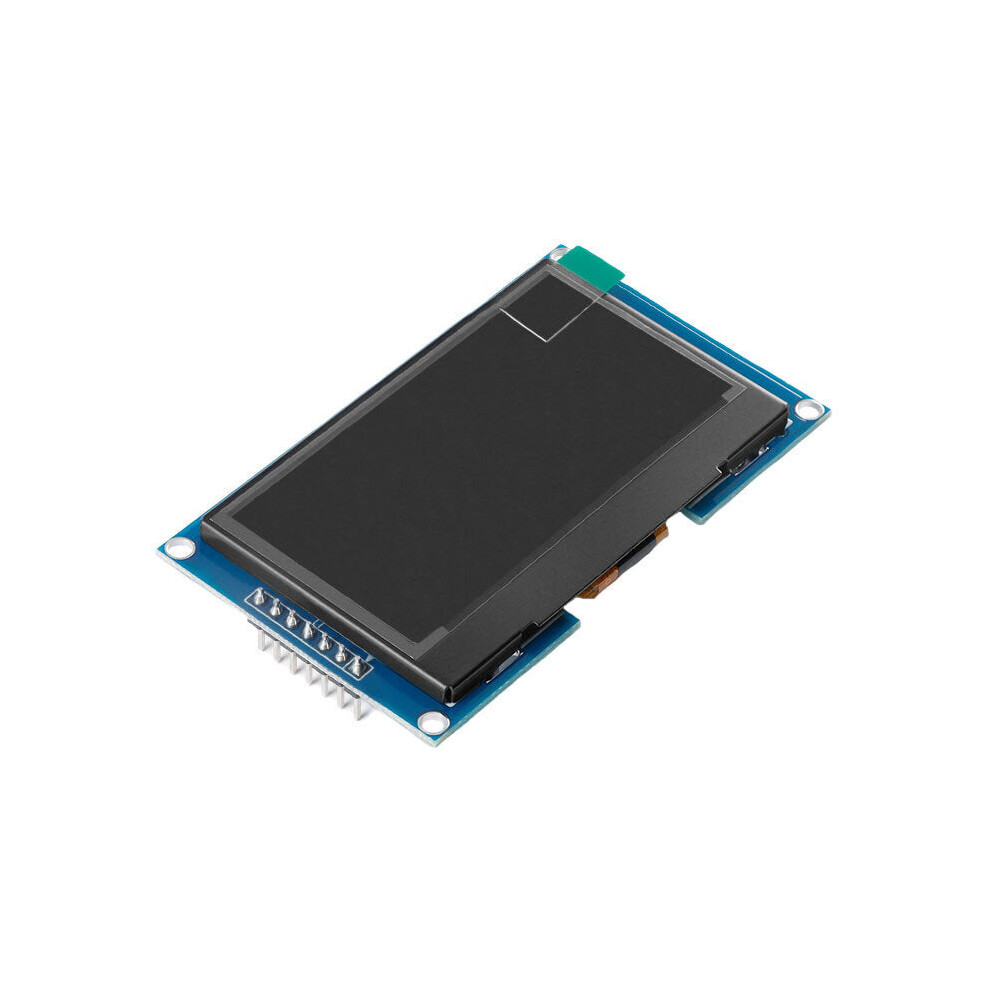

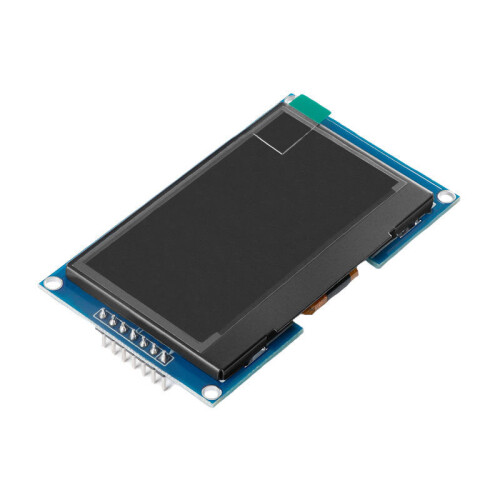

(Yellow) 2.42 inch 7PIN OLED Display LCD Screen Module Resolution 128*64 SPI/IIC Interface SSD1309 Driver

(Yellow) 2.42 inch 7PIN OLED Display LCD Screen Module Resolution 128*64 SPI/IIC Interface SSD1309 Driver Description

Feature:
Driver chip: SSD1309.
Support interface: IIC/SPI.
Resolution: 128 x 64.
Display size: 2.42 inches.

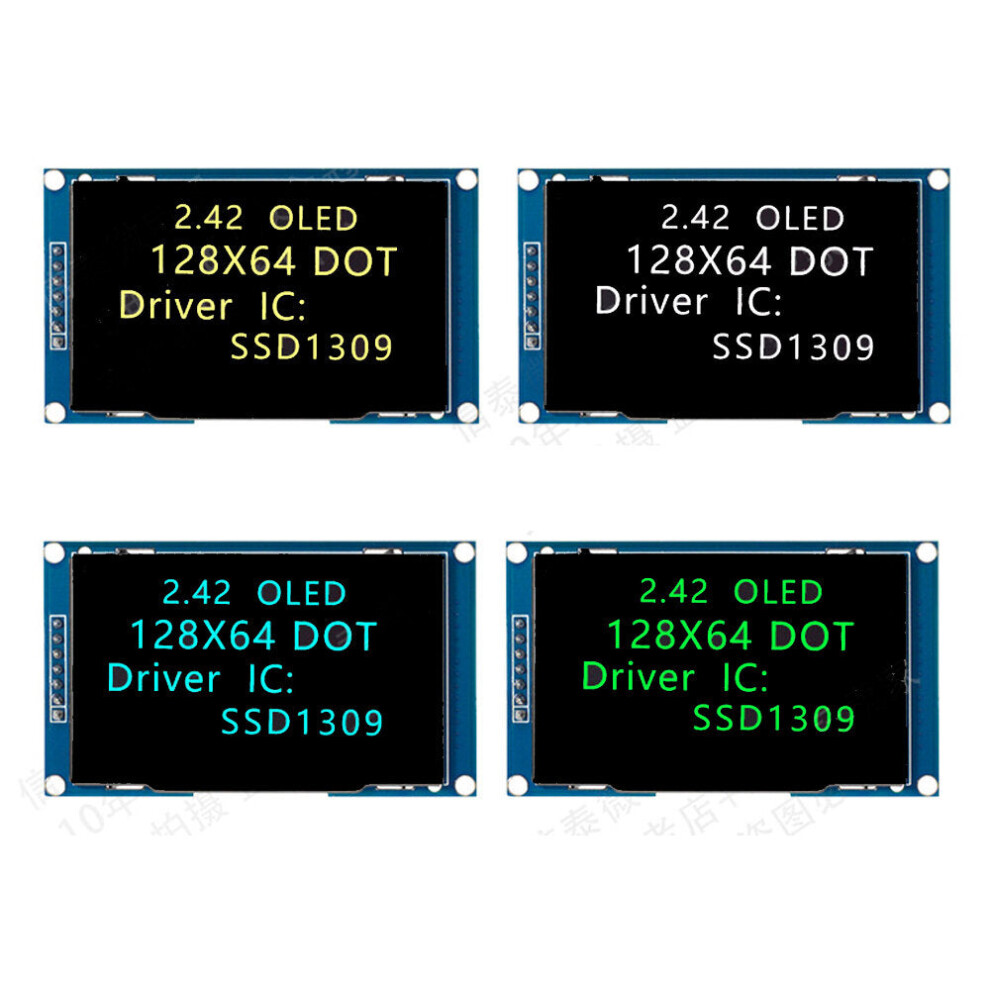

Display color: white/blue/yellow/green (optional).
Module size: 71 x 43.5 (mm).
Glass size: 60.5 x 37.00 (mm).
Display area: 55.02 x 27.49 (mm).
Drive voltage: 3.3-5V.
Number of pins: 7PIN.
Viewing angle: >160.
Working temperature: -40C~70C.
Storage temperature: -40C~80C.

SPI Interface Definition:
1. GND - Power Ground.
2. VDD - Power Supply Positive (2.8-5.5V).
3. SCK - Clock Line.
4. SDA - Data Line.
5. RES - Reset Line.
6. DC - Data/Command.
7. CS - Chip Select.

Package includes:
1 x OLED screen
