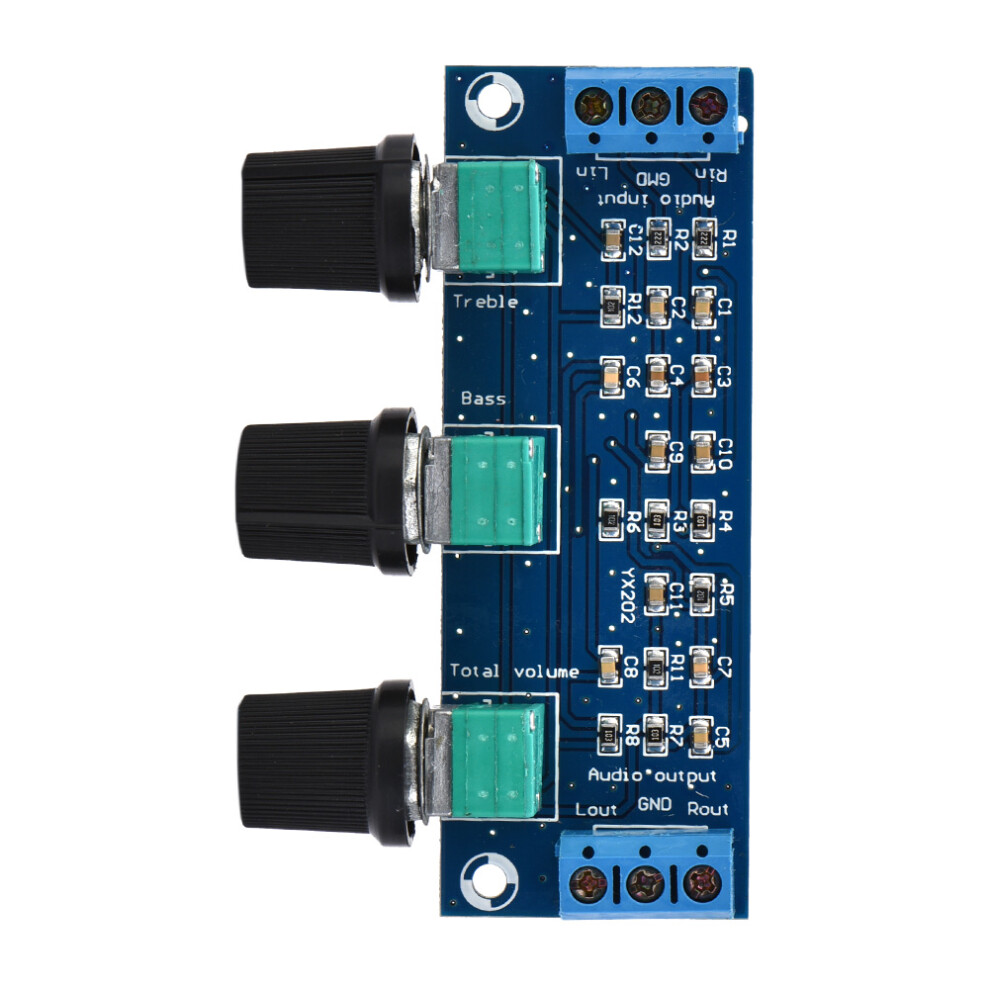

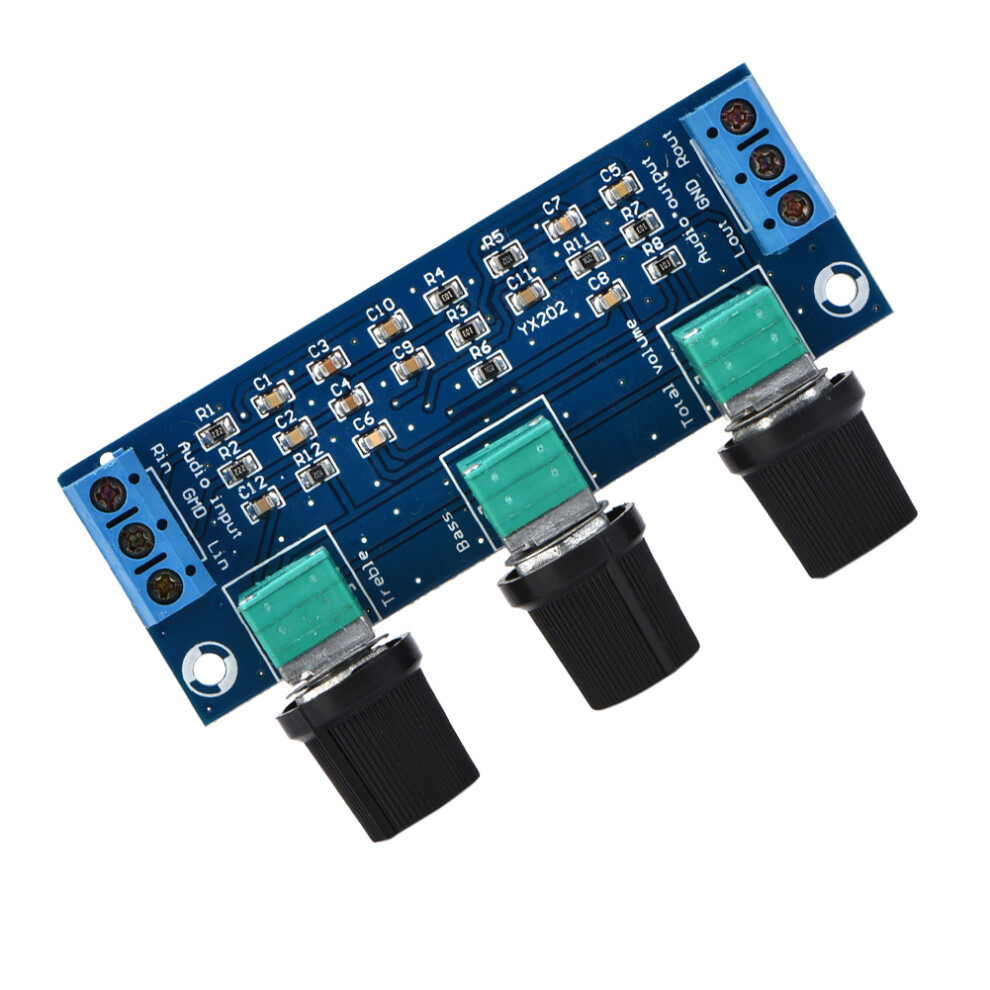

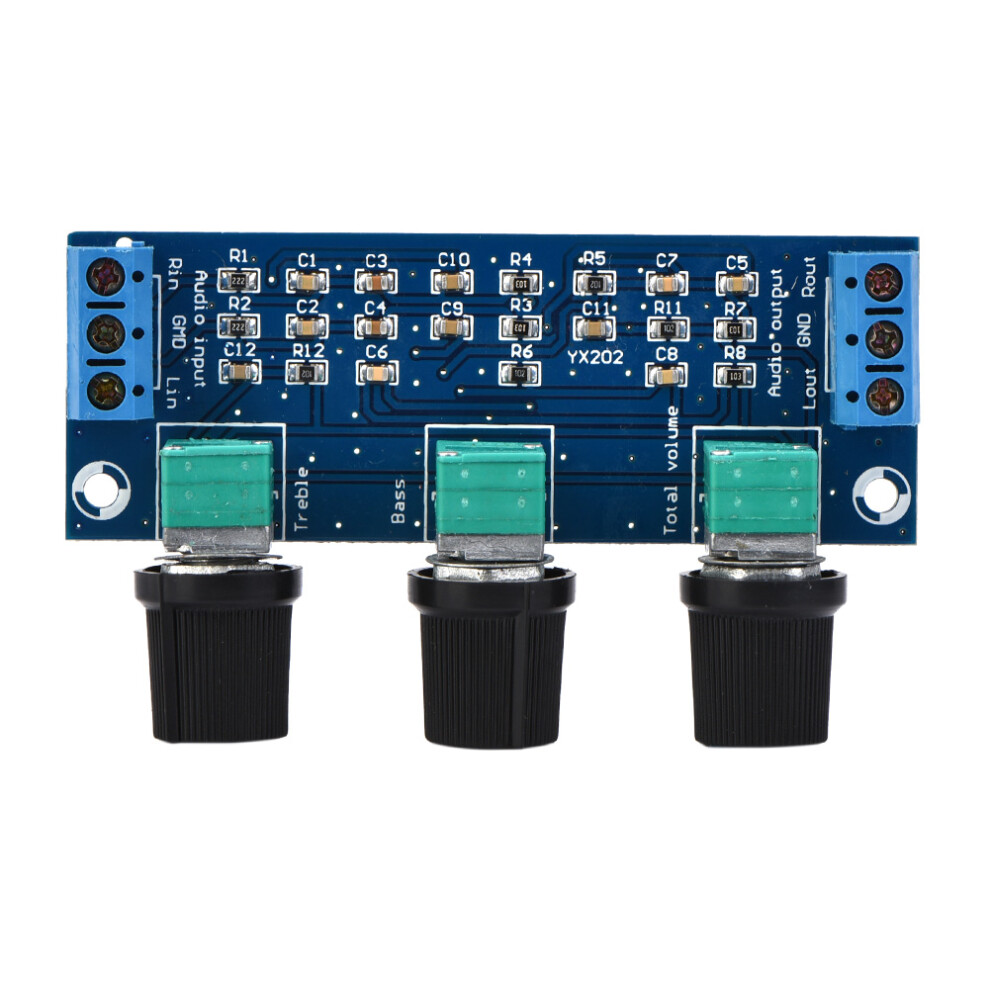

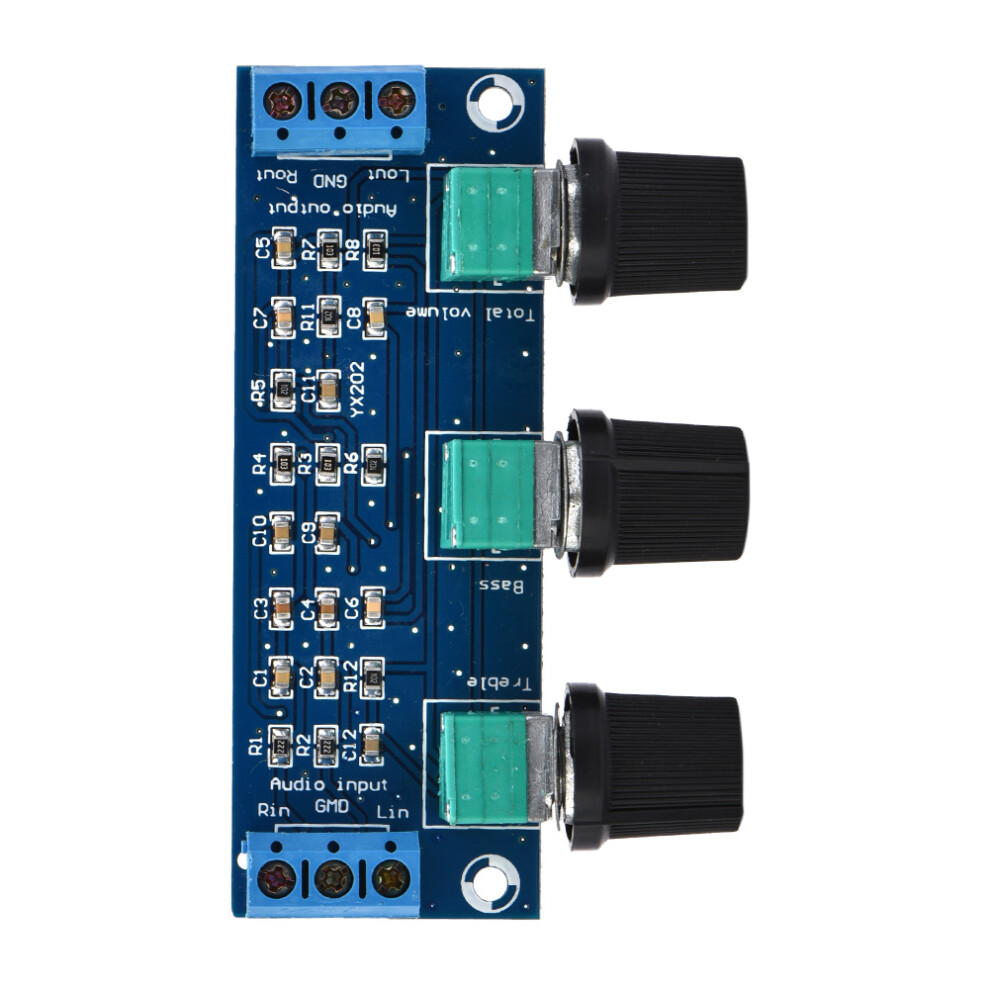

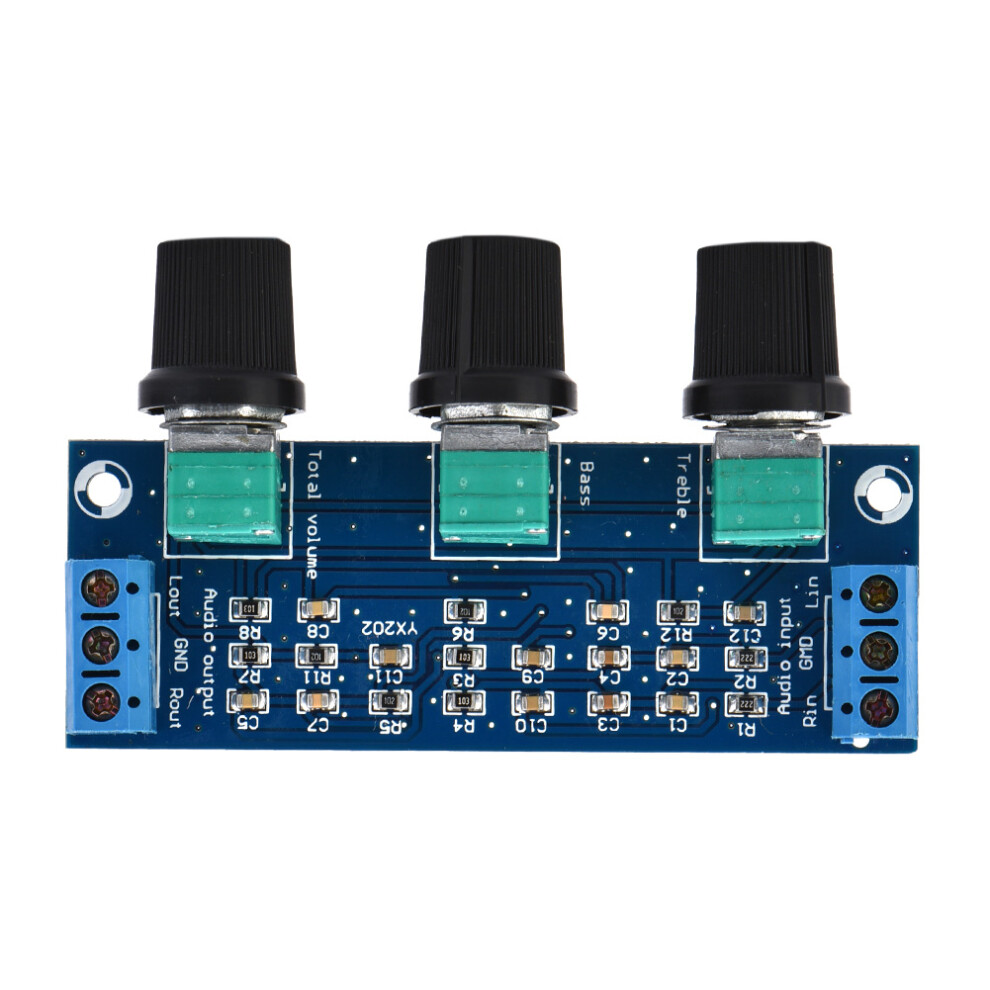

YX202 Passive Tuning Attenuated Volume Control Board

YX202 Passive Tuning Attenuated Volume Control Board Description

1、Three way adjustment type: (treble + bass + total volume) 2、Adopted of high quality electronic components, and precision process, ensure for the durability 3、No power supply, the heating stage front stage tuning board 4、Tone board can adjust the total volume, high voice, low voice, suitable for effect board and high-end stone machine with attenuated passive tone board 5、Only change treble and bass, without affecting the original tone quality timbre
Features:
Three way adjustment type: (treble + bass + total volume)
Adopted of high quality electronic components, and precision process, ensure for the durability
No power supply, the heating stage front stage tuning board
Tone board can adjust the total volume, high voice, low voice, suitable for effect board and high-end stone machine with attenuated passive tone board
Only change treble and bass, without affecting the original tone quality timbre
Specification:
Channel type: dual channel
Adjustment type: three-way (high + low + total volume)
Volume control: total volume control
High pitch adjustment: 10KHz (plus or minus 10db)
Residual noise: < 0.1mVac
Input resistance: 100kΩ
The output resistance: 600Ω
Audio input: 301-3P terminal
Audio output: 301-3P terminal
Phi with respect to installation size: 76mm (2*Dia.3mm)
Weight: Approx.32g/1.1oz
Package list:
1 x Passive volume control board
