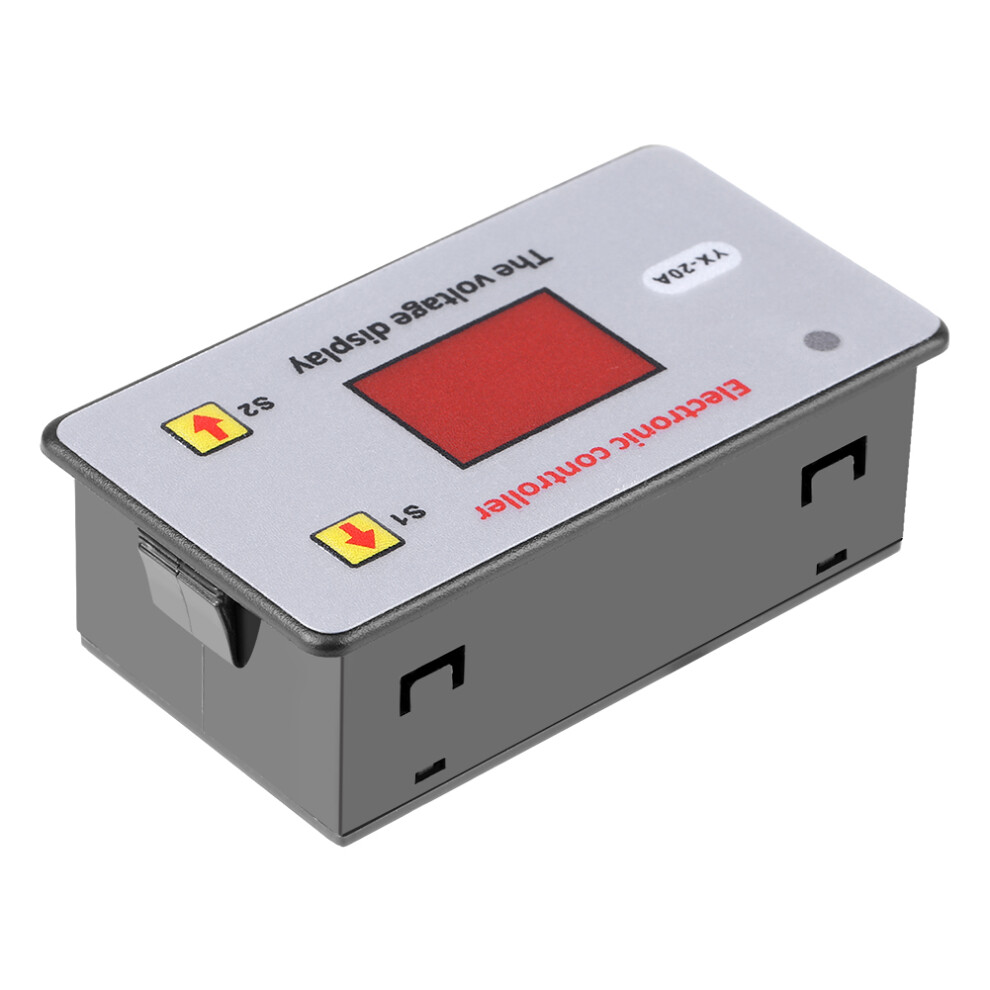

YX815 6-48V Battery Charging Controller 20A Overvoltage Protection

YX815 6-48V Battery Charging Controller 20A Overvoltage Protection Description

6-48V Battery Charging Controller Module for Undervoltage Control Over discharge Protection

Specifications:

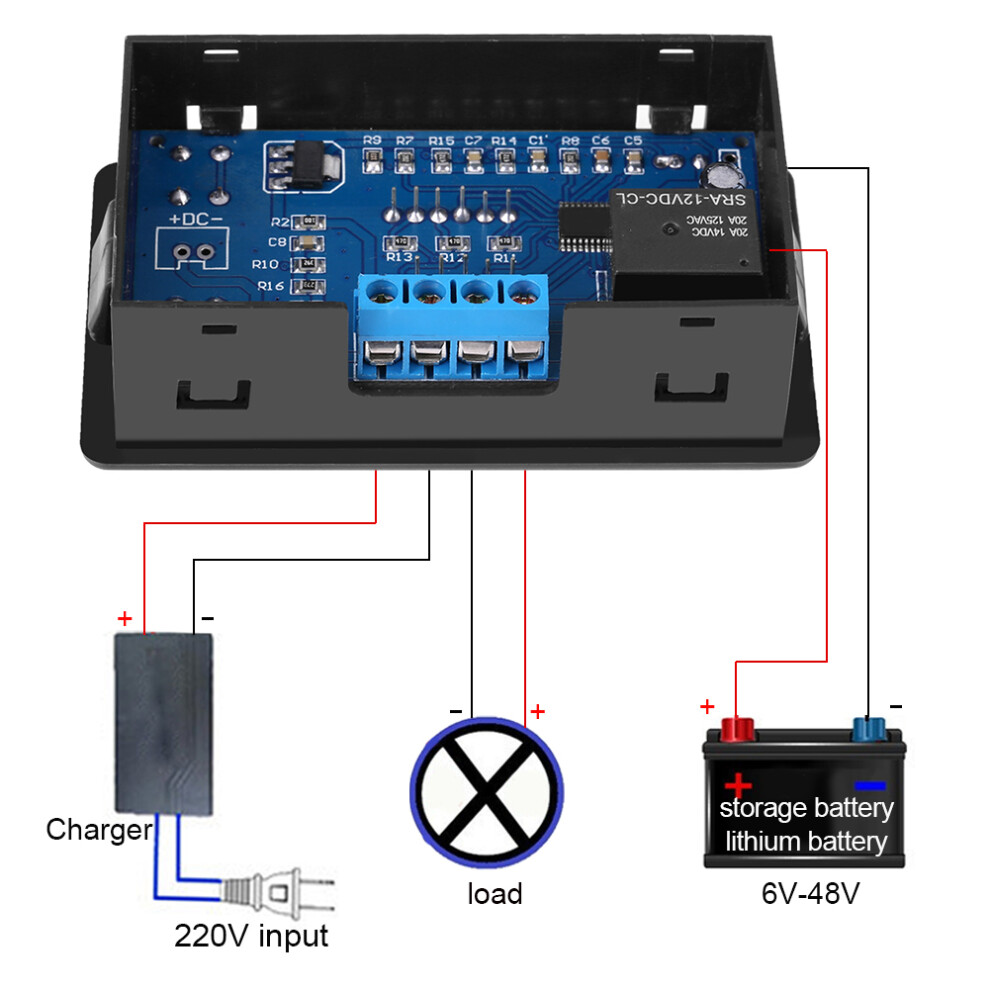

This battery charging controller has the function of parameters adjustable, power failure memory function. When
the battery is under voltage, disconnect the load and connect the
charger. When the battery is over voltage, disconnect the charger and
connect the load.

Features:

When
the battery is under voltage, disconnect the load and connect the
charger. When the battery is over voltage, disconnect the charger and
connect the load.


This battery charging controller has the function of parameters adjustable, power failure memory function.


The control voltage is 10V-60V, and with high accuracy of 0.1V.


This battery charging controller is suitable for storage battery, lithium battery, etc.


This charging controller protects battery undervoltage, protects battery overcharge, protects load control.


Specifications:

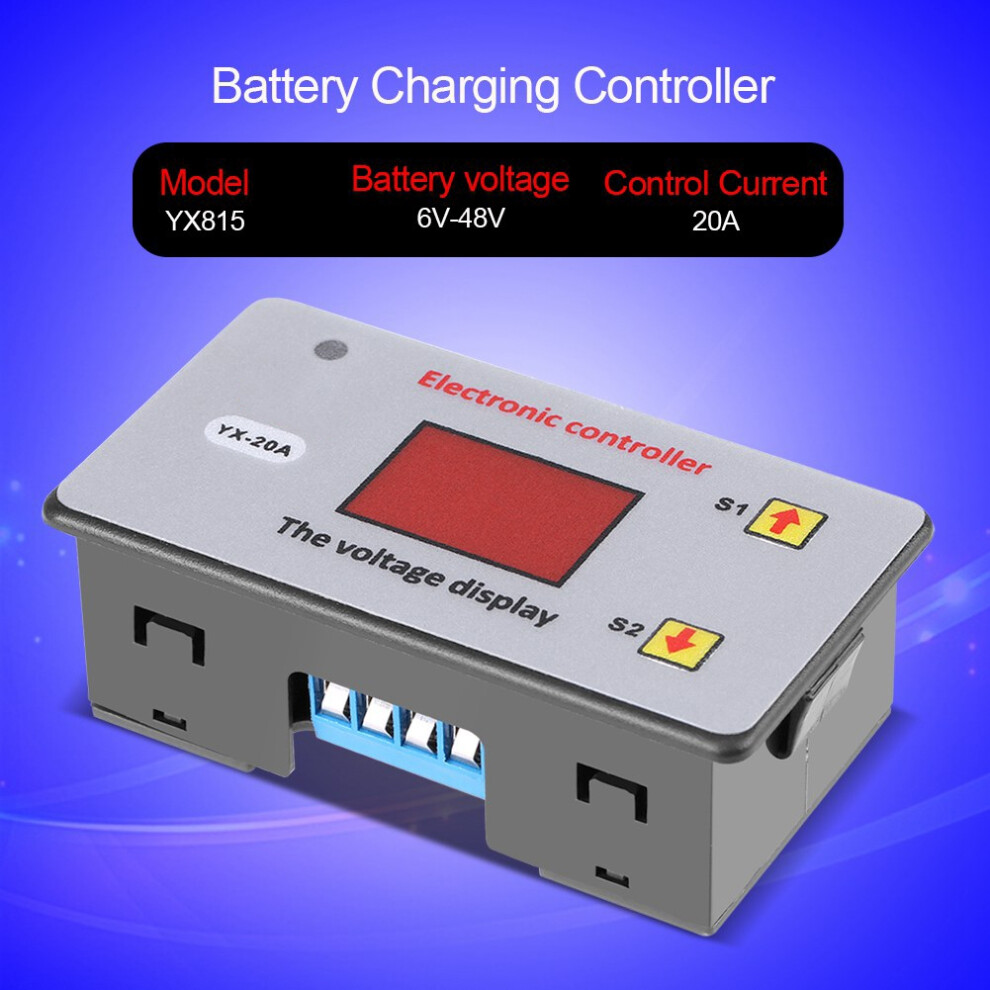

Model: YX815
Control voltage: 10V-60V
Control current: 20A
Control accuracy: 0.1V
Voltage error: 0.1V
Scope:  storage battery, lithium battery, etc
Packing: antistatic bag

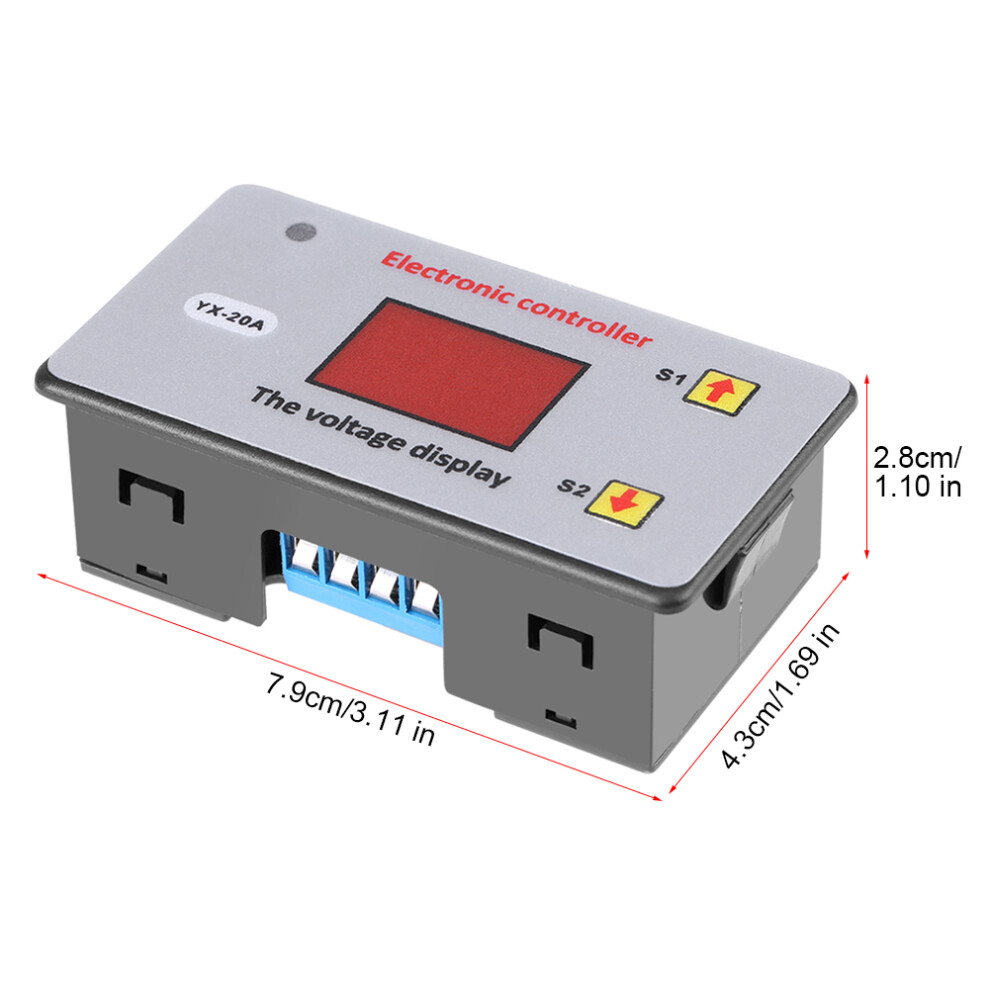

Size: 7.9 x 4.3 x 2.8cm/3.11 x 1.69 x 1.10inch
Installation size: 76 x 39.5mm/2.99 x 1.56inch
Weight: 44g

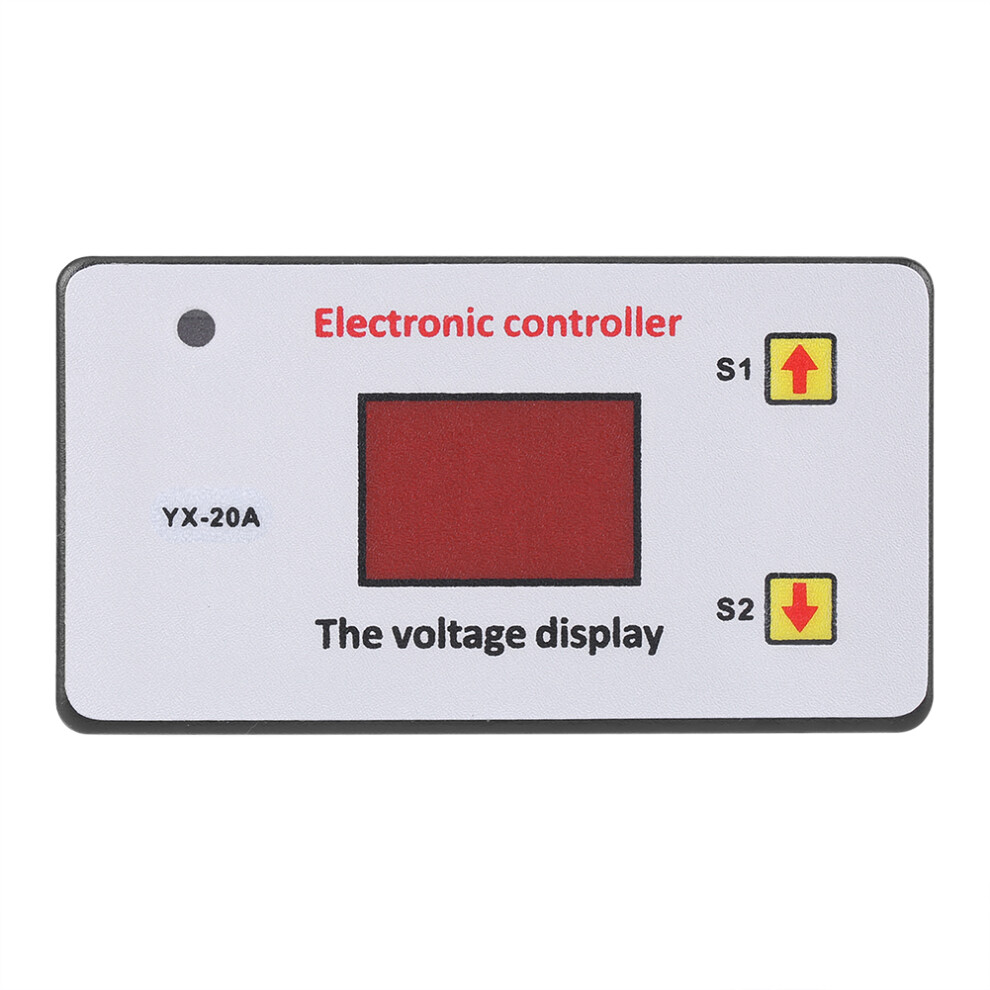

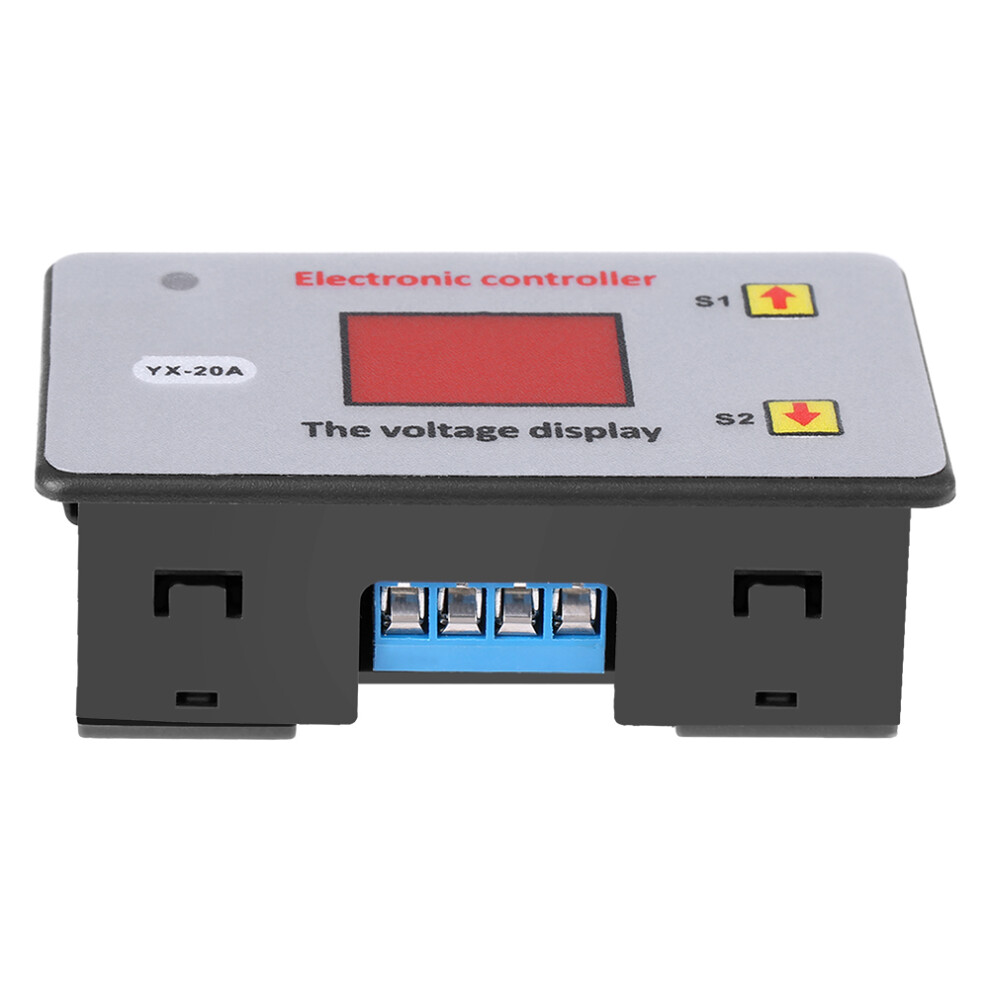

Voltage setting method:
In setting state(digital tube flashes)
S1: up-regulated voltage
S2: down-regulated voltage
S1 undervoltage setting button (charging startup, load stop):
1.Under normal display voltage, press the S1 button to display the charging start(load stop )voltage value.
2.Long
press the s1 button digital lamp tube flashing, and set charging
startup voltage（load stop） value through s1 and s2 buttons.
S2overvoltage setting button (charging stop, load start):
1.Under normal display voltage, press the S2 button to display the charging stop （load start up）voltage value.
2.Long press s2 button digital lamp tube flashing, through s1 and s2 buttons to set charging stop （load start up）voltage value.
Restore factory Settings:
Under
the state of electricity, press the buttons of s1 and s2 at the same
time, and the digital tube displays 888, that is to restore the original
factory setting success.
(Note: when s1 cannot up regulate the voltage, set s2 first, and s2 cannot down regulate the voltage, set s1 first)

Package Included:
1 x Battery Charging Controller

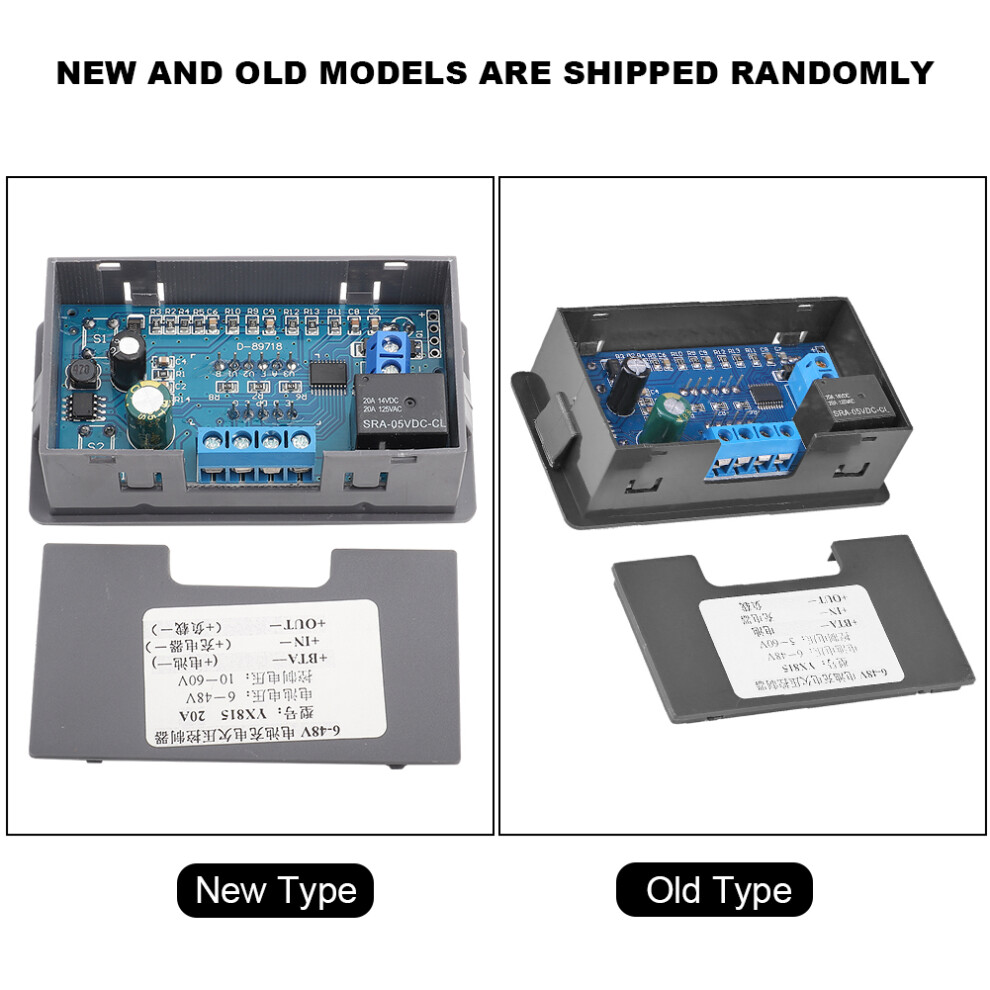

Note:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
