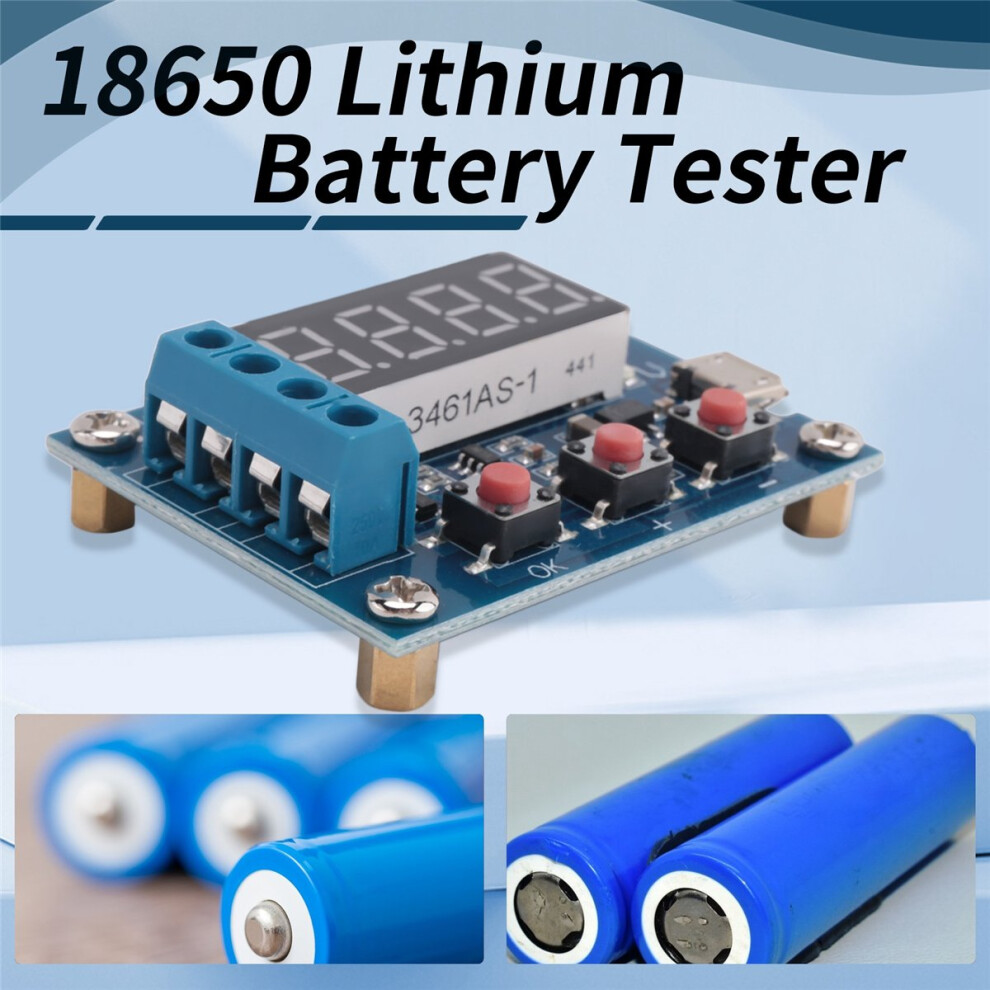

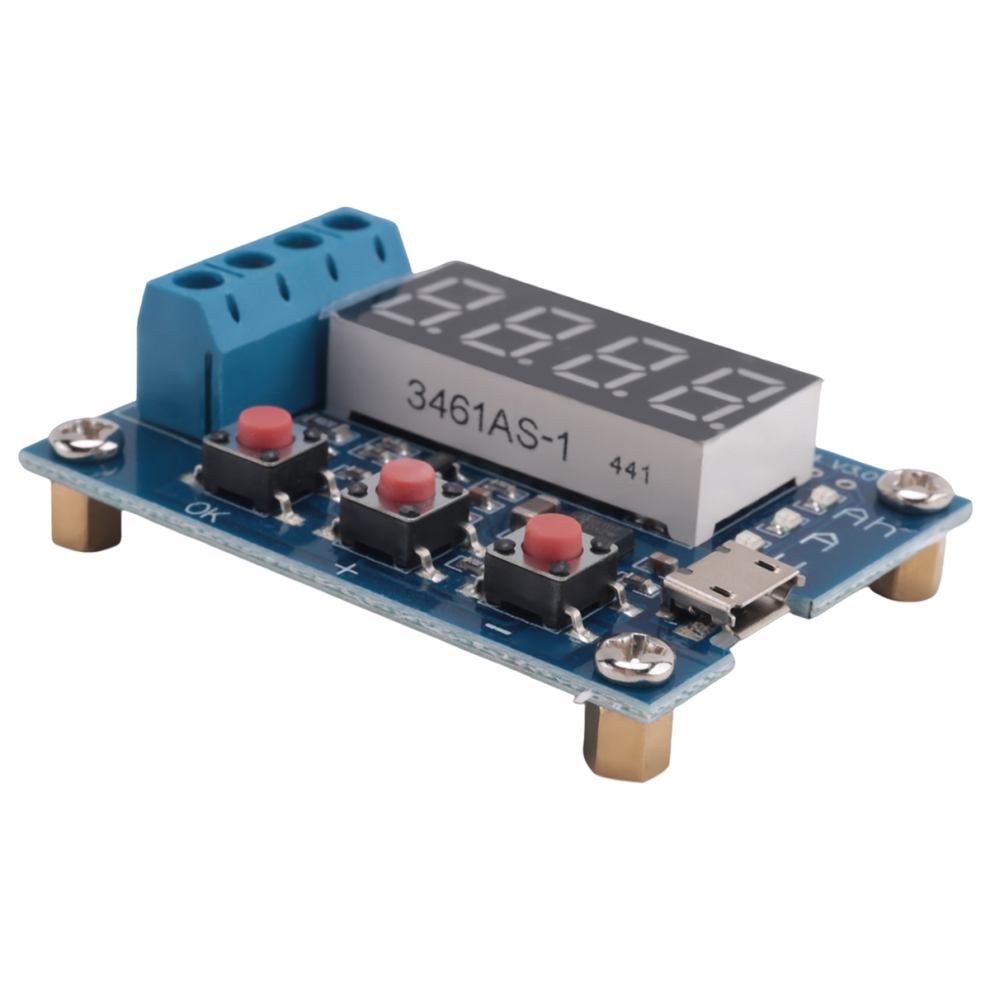

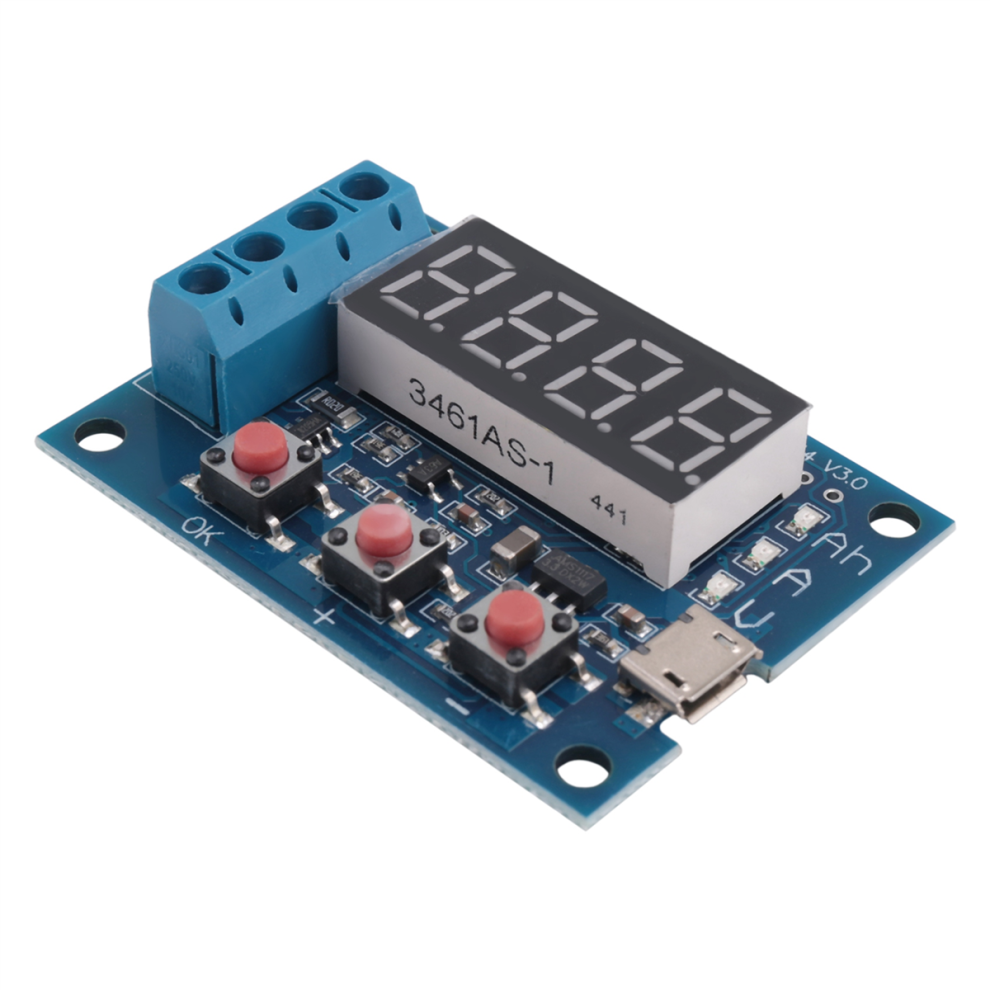

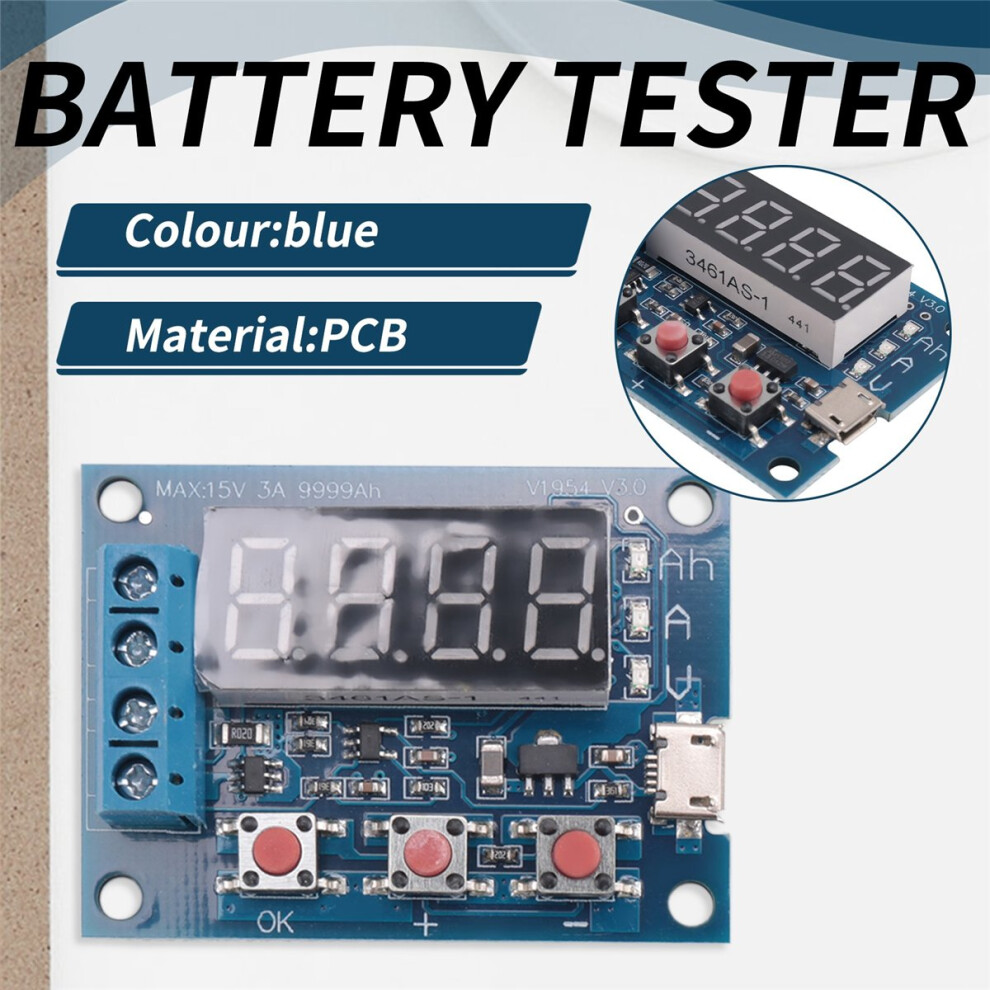

ZB2L3 18650 Battery Tester External Load Discharge Type 1.2-12V Equal Capacity Meter

ZB2L3 18650 Battery Tester External Load Discharge Type 1.2-12V Equal Capacity Meter Description

ZB2L3 battery capacity tester discharge type 1.2-12V external load capacity of the battery and other tests 18650. Tools, single-function, by controlling the load off and get real-time integrated discharge current capacity results.Maximum support 15V 3A discharged through the discharge voltage and current, itself does not discharge.Maximum capacity statistics support 9999Ah (9999000mAh). Automatically identify and develop appropriate battery termination voltage can also be manually adjusted.
Power supply voltage: DC4.5-6V (micro-USB connector). Operating Current: less than 70mA. Discharge voltage: 1.00V-15.00V 0.01V resolution.Termination voltage range: 0.5-11.0V. Supported by current: 3.000A 0.001A resolution. Maximum voltage measurement error: 1% + 0.02V. Maximum current measurement error: 1.5% + - 0.008A.
Error codes and their meanings:Err1: battery voltage is above 15V. Err2: battery voltage is lower than the termination voltage. Err3: Battery can not afford to load or discharge current line too much resistance. Err4: overcurrent (current exceeds 3.1A)

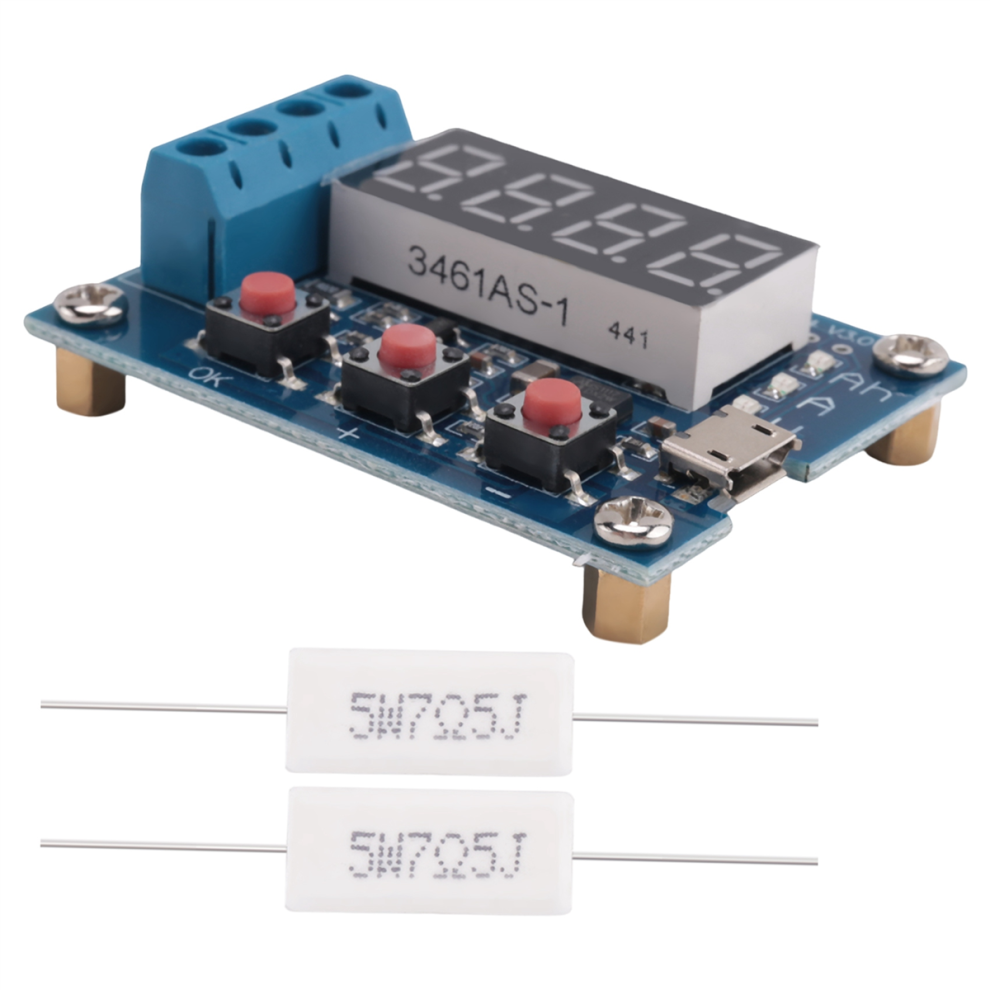

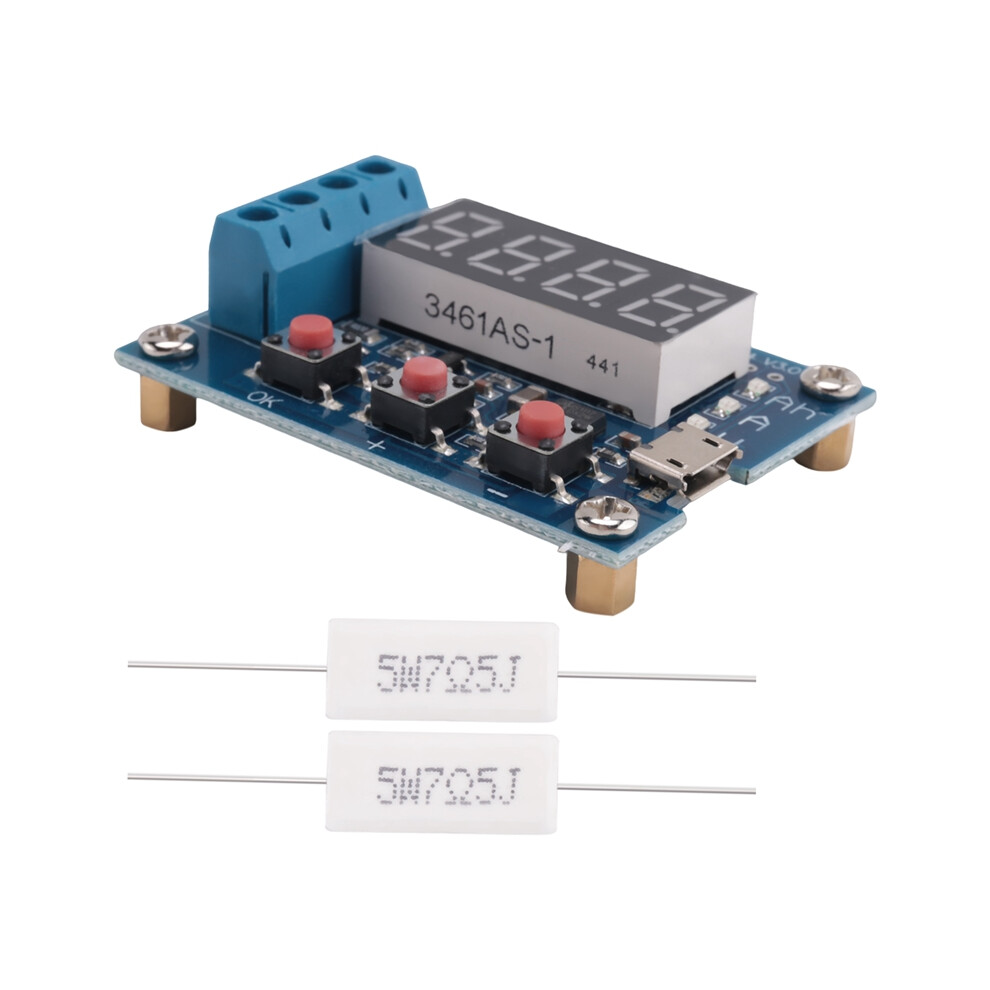

Note: Use the resistance of the discharge process, resistive load seriously heat, please pay attention to safety!.This circuit voltage in order to improve the measurement accuracy, specially designed DC bias, when the terminal displays then a small voltage does not affect the actual measurement, if you are shorting the input terminals (absolute 0V) show 0

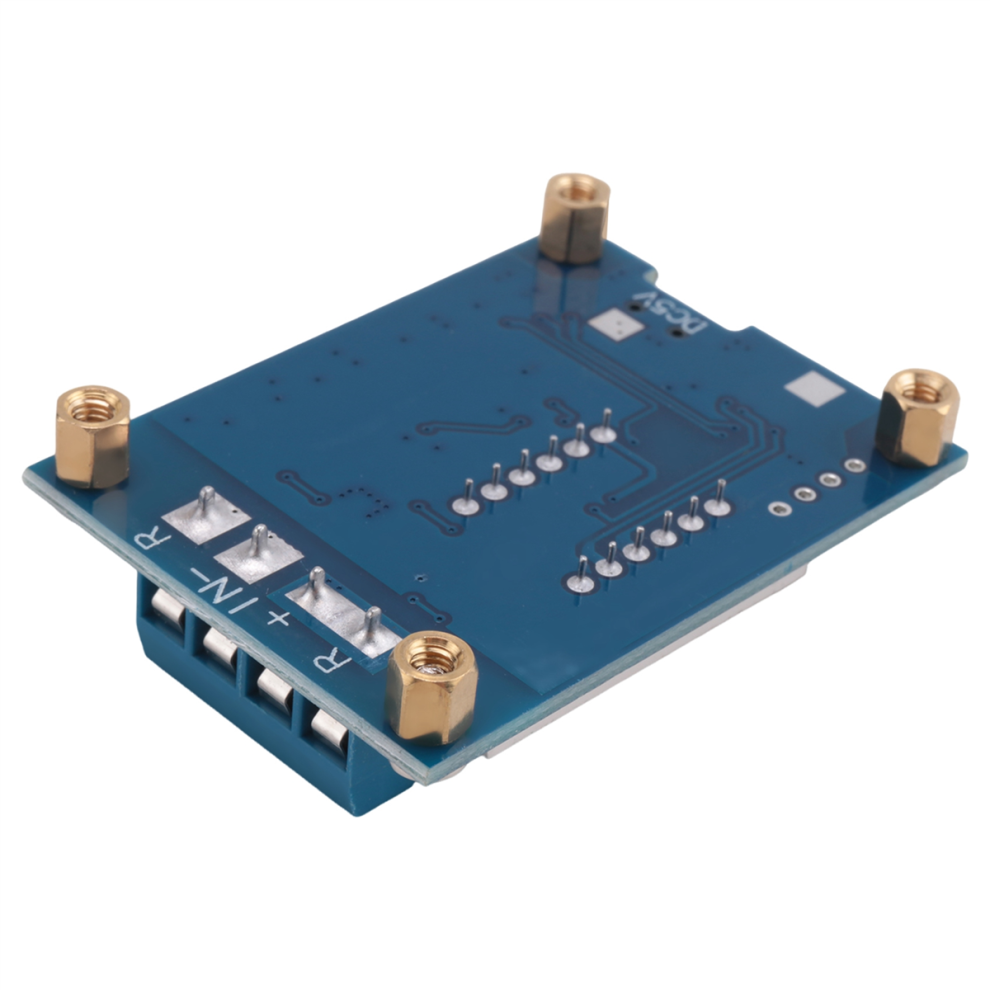

Instructions:1. The first test should be fully battery.2. Connect the battery to be tested positive to positive input, a negative input to the negative, can not be reversed (with load reversal may damage the circuit)! Load connected to the output of the positive and negative output, to work through the tester micro-USB power supply ( desktop or laptop USB powered), then the battery voltage.

3. Dir test need only one of the "OK" button, the tester can automatically develop an appropriate termination voltage of the battery full charge voltage, and flashing after the test three times. Need to develop artificial termination voltage only when the battery voltage display state by pressing "+" or "-" buttons to modify the termination voltage display beginning with P, behind the representative voltage resolution 0.1V, set up after pressing the "OK " testing.
4. After the of the test the tester control the load of the electronic switch is turned on, the shows that the process release capacity (Ah), current discharge current (A) and battery voltage (V) between the wheel was. When the battery voltage reaches the set cut-off voltage, load control switches off the tester display data stays in capacity (Ah) and above and the corresponding indicator flashes quickly together, now displays the actual capacity of the battery is discharging capacity, about the "OK" to terminate flashing allows stable data display, again "OK" button to return to the power-on state can just replace the battery test section ......

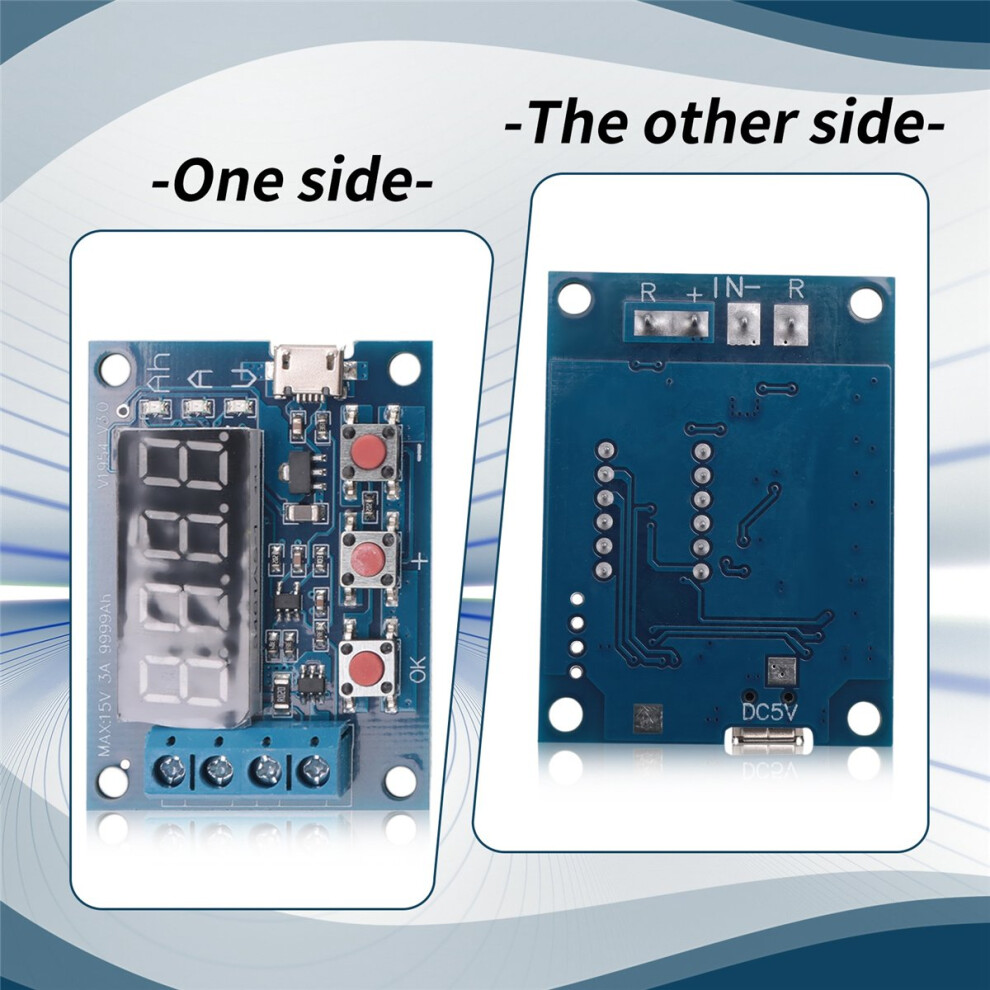

Finished Size: 50mmX37mmX17mm (length X width X height maximum position size, contains copper foot height)
Colour:blue
Material:PCB

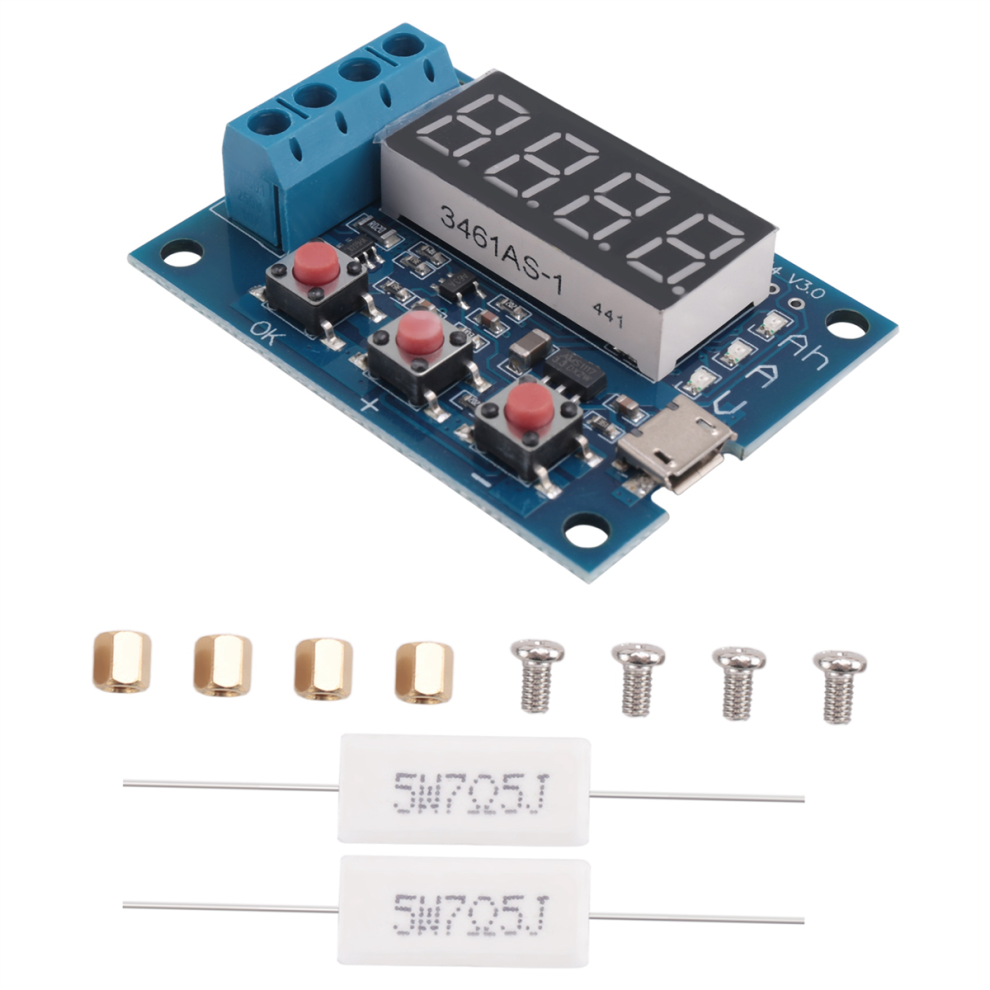

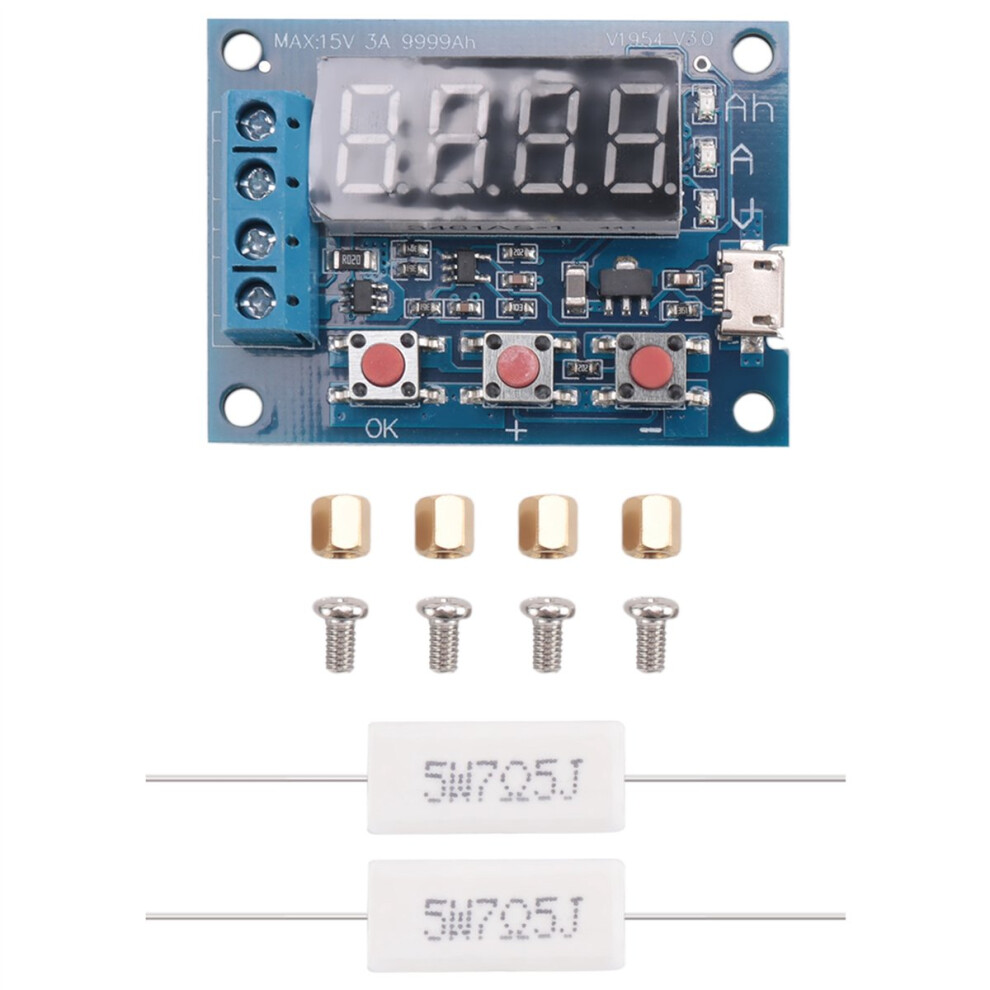

Package Contents:
1 x Tester Module

Only the above package content, other products are not included.
