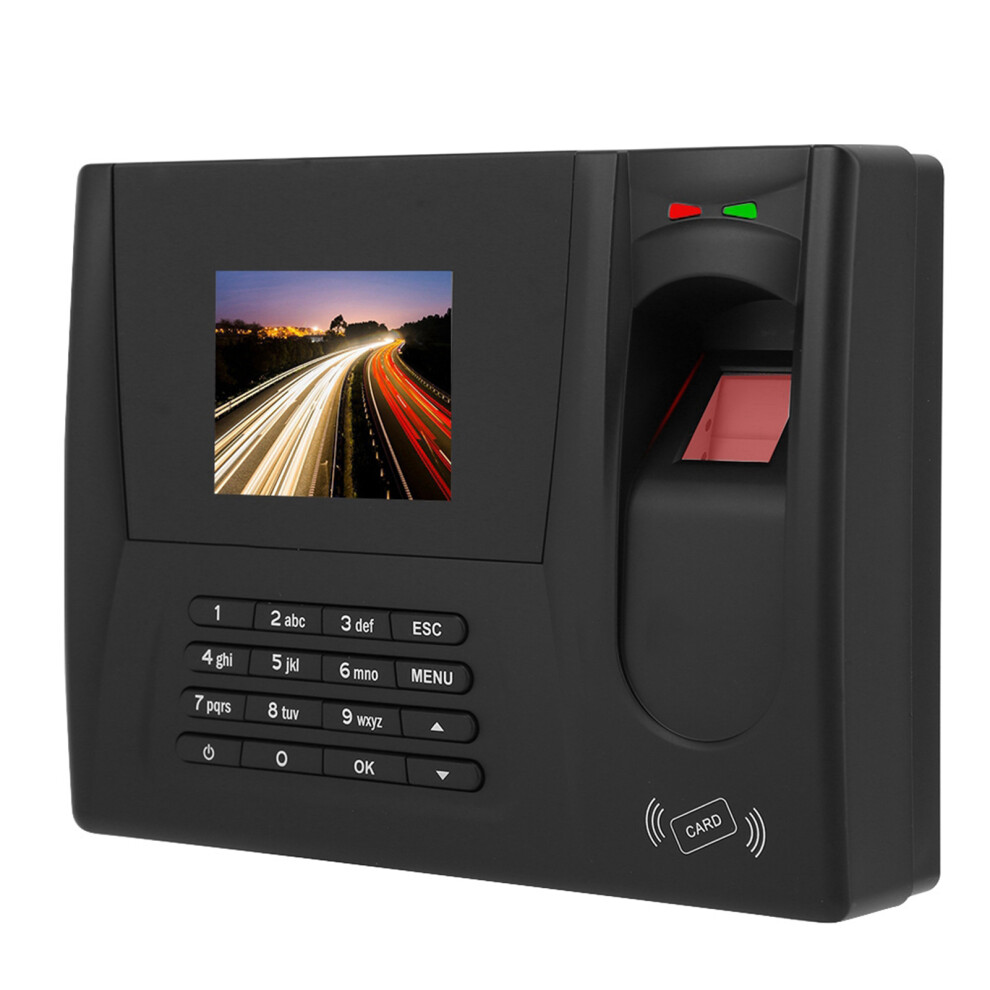

ZDC20 2.8in TFT TCP/IP Fingerprint Card Reader Attendance Machine

ZDC20 2.8in TFT TCP/IP Fingerprint Card Reader Attendance Machine Description

1、The fingerprint recognition capability is significantly improved, and the recognition time in the full fingerprint state is less than 1 second. 2、The intelligent sensor fingerprint collector is equipped with advanced power management functions to achieve low energy consumption. 3、Fingerprint smart update, one-time registration for life time use. 4、2.8-inch TFT color display, the interface operation is clear. 5、Support U disk download and USB communication. Fingerprints can be shared by a USB flash drive after registration on a single machine, without the need to connect to the computer in real time.
Features:
The fingerprint recognition capability is significantly improved, and the recognition time in the full fingerprint state is less than 1 second.
The intelligent sensor fingerprint collector is equipped with advanced power management functions to achieve low energy consumption.
Fingerprint smart update, one-time registration for life time use.
2.8-inch TFT color display, the interface operation is clear.
Support U disk download and USB communication. Fingerprints can be shared by a USB flash drive after registration on a single machine, without the need to connect to the computer in real time.

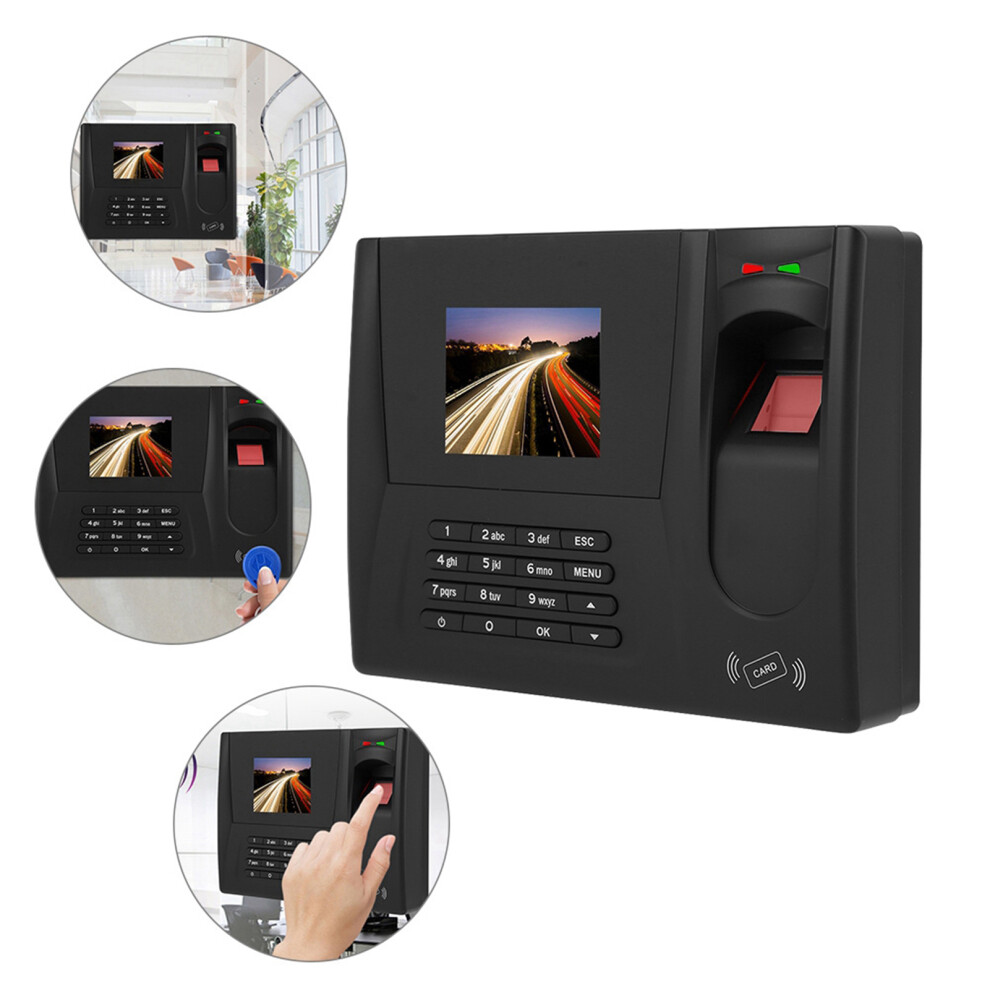

Can be used by fingerprint, password, and card reader.
The software is simple to use, intuitive to operate, and with the product update and continuous improvement, users can continue to enjoy the added value brought by the software upgrade.
Specifications:
Condition: Brand New
Color: Shown as Picture
Material: ABS Plastics
Display: 2.8-inch TFT (320*240)
Fingerprint collector resolution: 500DPI)
CPU: 32bit CPU
Fingerprint Storage Capacity: 1,000 pieces
Recording Capacity: 100,000
Communication Method: USB, TCP/IP
Authentication Method: Fingerprint, Password, Proximity Card
Proximity Card: 125Khz, EM4100 or Compatible Non-contact ID Card
U Disk Upload / Download Data: Support
Record Query Function: Yes
Fingerprint Smart Update: Support
Recognition Angle: full angle recognition
Recognition Speed: 1 second
Rejection Rate (FRR): 0.1%
Fake Rate (FAR): 0.0001%
How it Works: Offline / Online
Fingerprint Recognition Mode: 1:1, 1:N
Language Display: Chinese, English, Spanish
Voice Prompts: high-definition humanized speech
Ringing Function: Built-in timed Ringing
Self-test Function: Support
Power Management function: sleep, automatic shutdown
Power Adapter: DC 12V/1A
Working Environment: Temperature: -10 C ~ +60 C,
Humidity (RH): 20%~80%
Machine Size: Approx. 180 * 134 * 36 mm/7.1 * 5.3 * 1.4 in

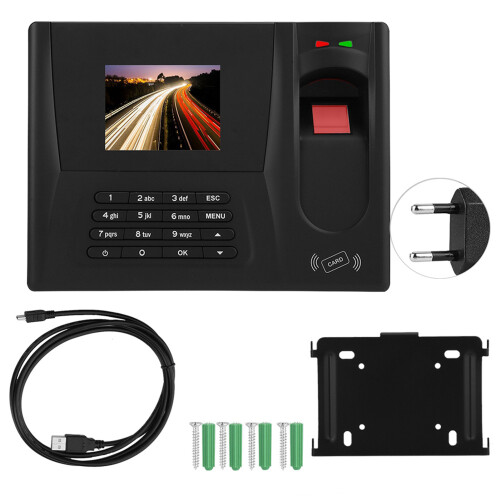

Package List:
1 * Fingerprint Attendance Machine
1 * Power Supply
1 * Hanging Plate
1 * User Manual
1 * CD Disc
